Product description Overpowering the Sun with the Impact Venture Read More - Introducing the Venture TTL-600 Monolight from Impact
- A Meaningful Relationship

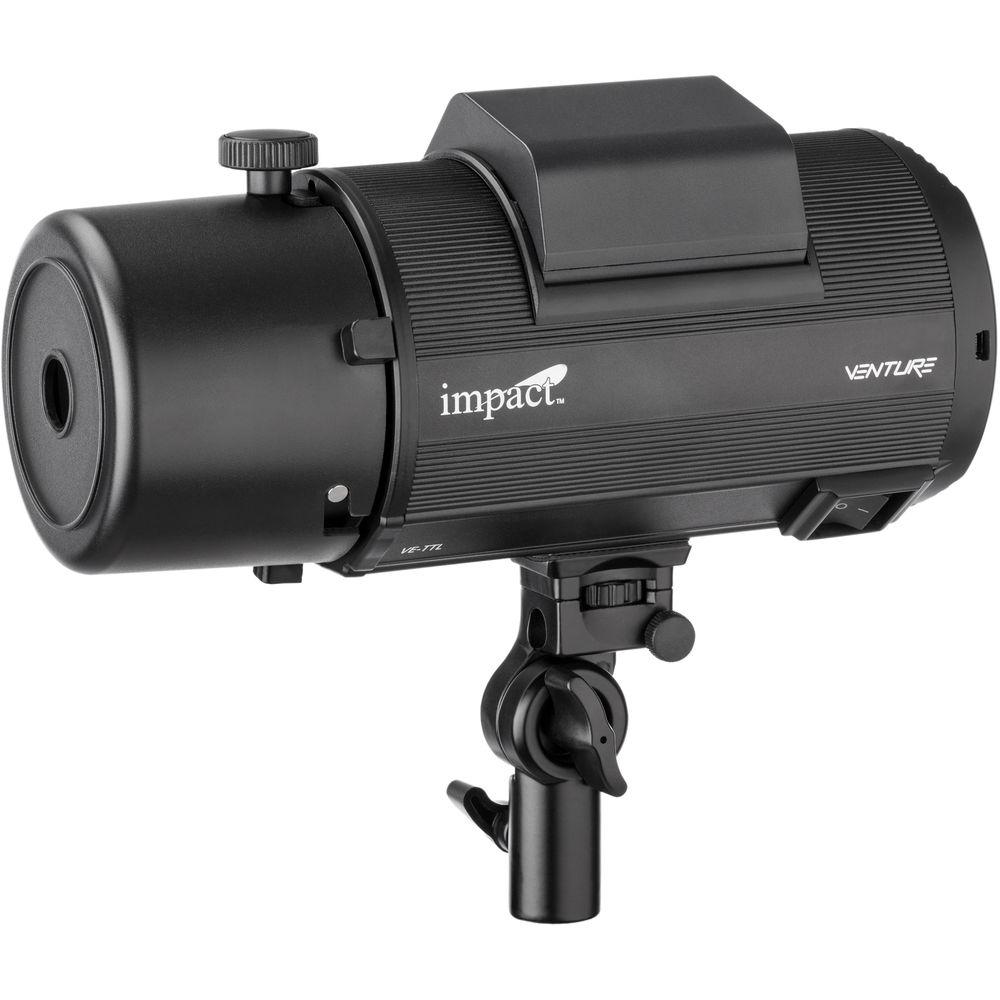

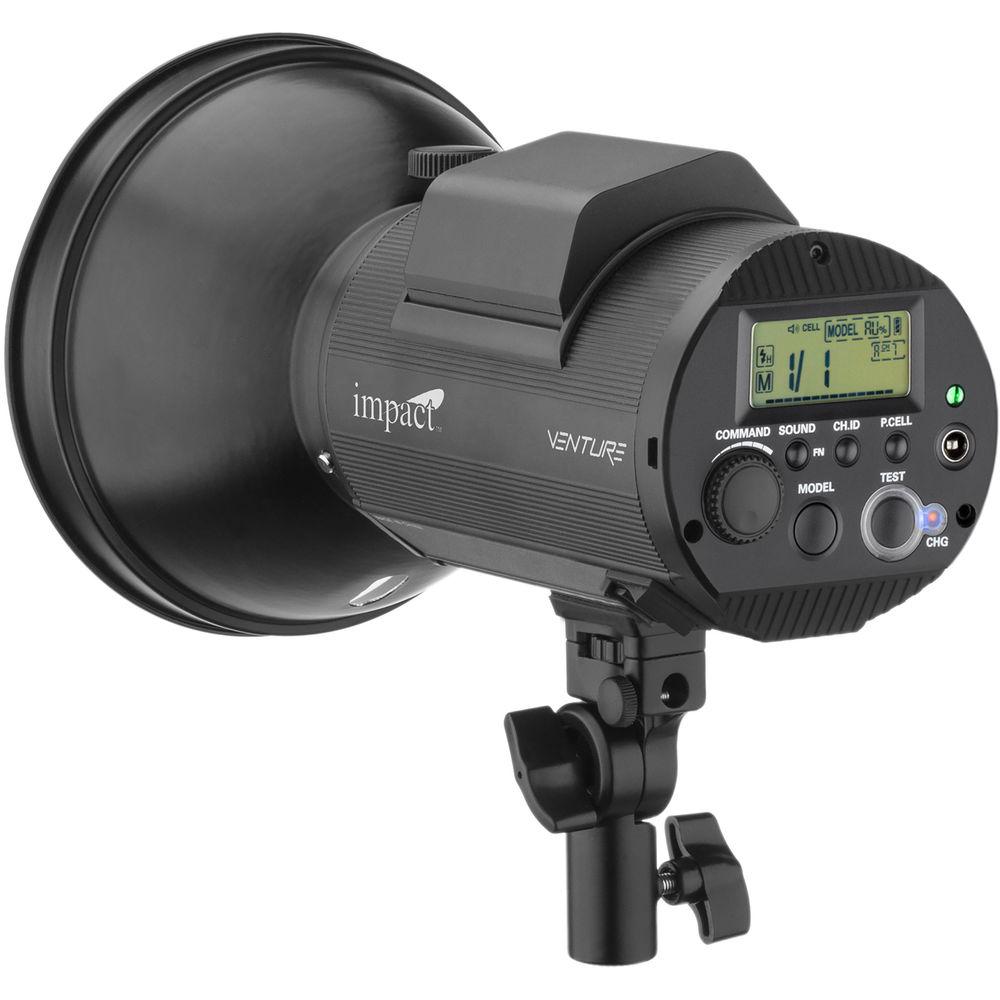

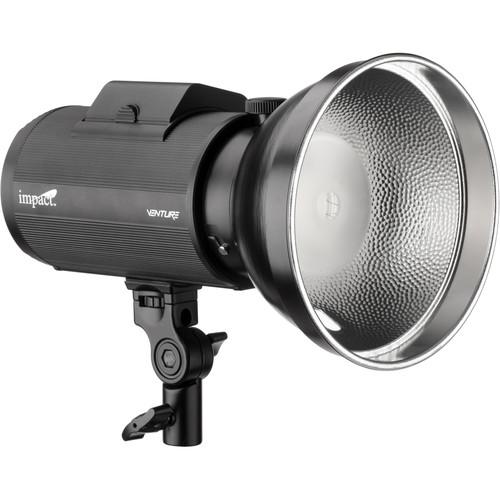

For a fast, lightweight, and compact light, look no further than the Venture TTL-600 Battery-Powered Monolight from Impact. The Venture TTL-600 offers full support for Sony, Canon, and Nikon, allowing you to go fully mobile with your studio. Busy photographers can set up their monolight on a stand or hand it to an assistant, put the optional TTL transmitter onto their camera's hot shoe, and start shooting.
The Venture TTL-600 operates in two modes. The Quick Mode reduces your light's power to produce a short flash duration range of 1/455 - 1/19,500 seconds for a faster recycle rate of 1.2 seconds. The Power Mode allows you to increase the power output to produce a flash duration range of 1/380 - 1/18,500 seconds with a 3-second recycle rate. With a maximum of 600W/s output, this monolight provides an 8-stop power range control, which gives you a range of choices to achieve the exact shot you had in mind.
The proportional and independent modeling-light modes can both be set to Constant to be on continuously, or to Recycle Signal that turns off when the flash is triggered and turns back on when recycled. The adjustable 15W LED lamp allows you to adjust the lamp's brightness independently from the flash or proportional to the flash's output.

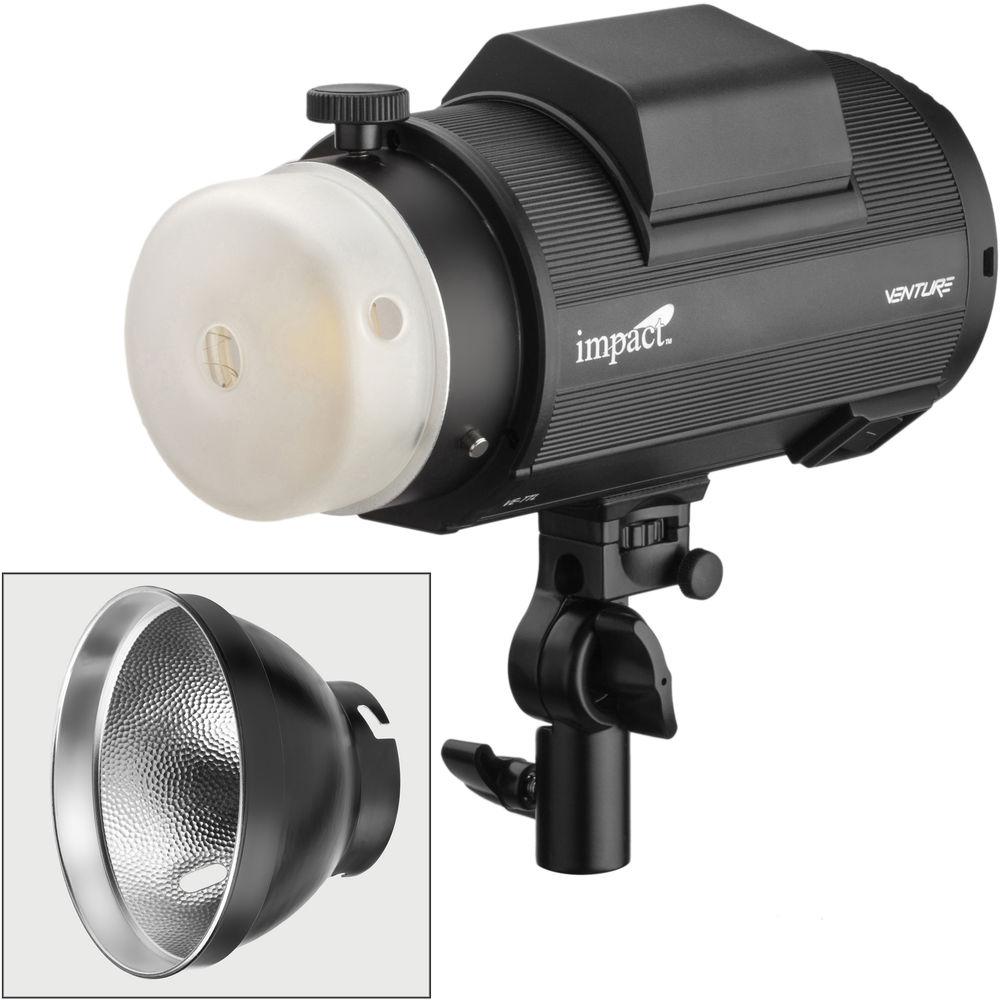

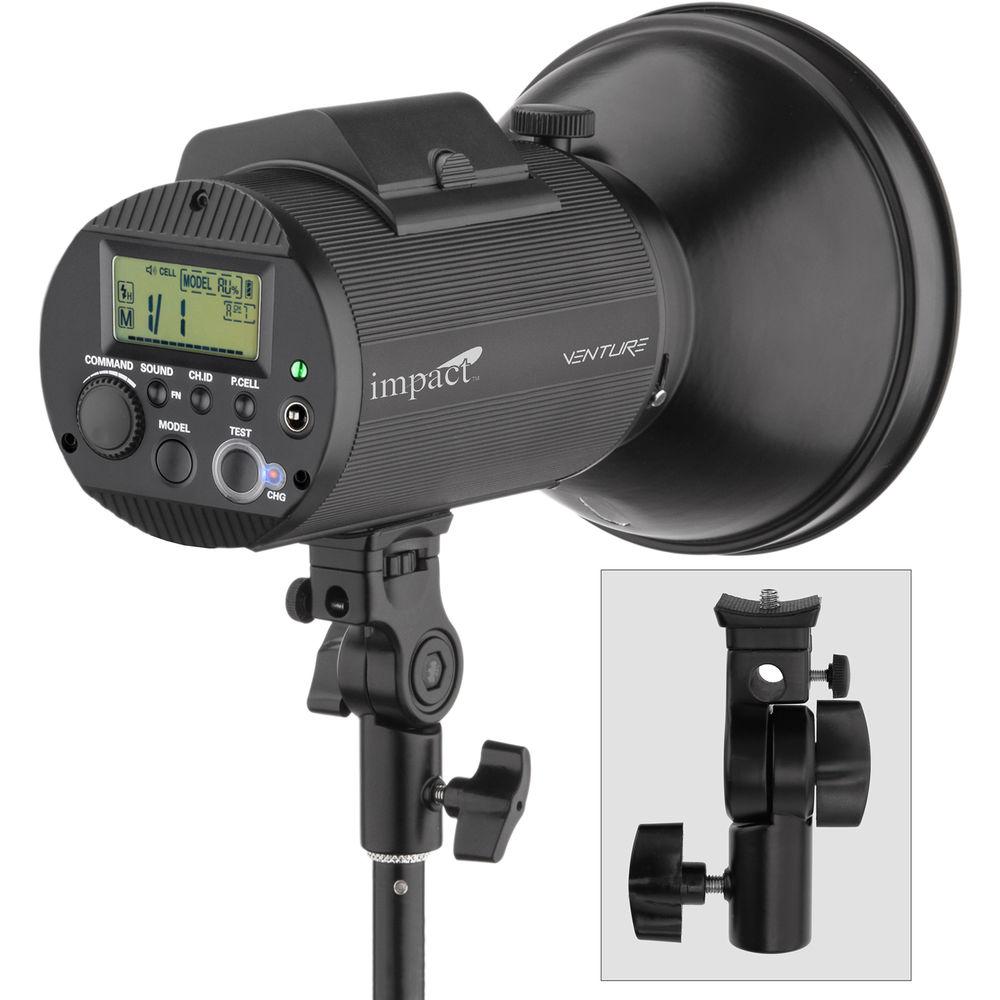

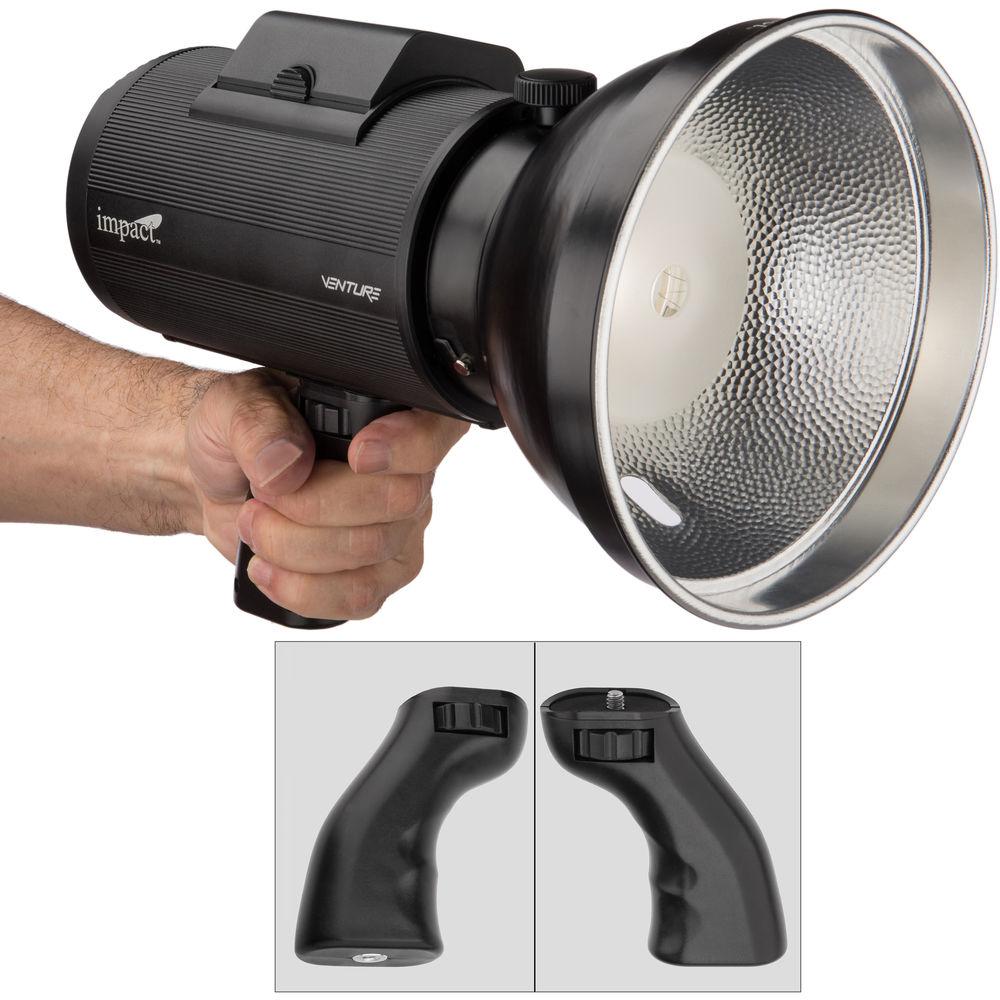

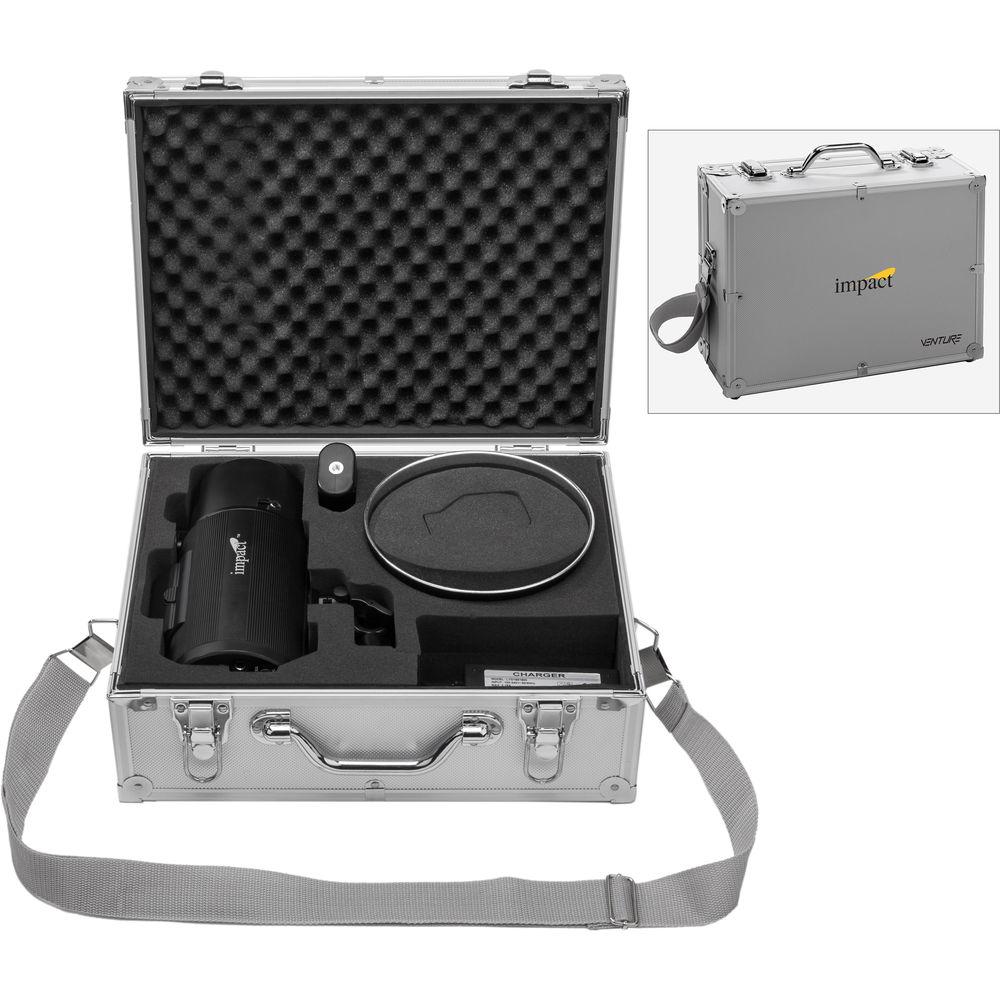

Weighing in at just over four pounds and measuring less than 9" in length, this monolight could be tucked into most backpacks if necessary. The Venture TTL-600 comes with a reflector, removable pistol grip, stand mount, battery, charger, PC cord, and an aluminum case with a nylon strap for added portability. - Battery-Powered 600Ws
- Designed for location shoots where a powerful strobe is needed
- Two Flash Modes
- Quick Mode and Power Mode
- Digital Color-Correction Circut
- Digital Color-Correction Circuit to stabilize the color temperature in either Quick Mode or Power Mode, providing consistency with a variance of 50K
- Wireless TTL with Integrated 2.4GHz Wireless Control
- Integrated 2.4 GHz receivers for TTL and High Speed Sync with Canon, Nikon, and Sony cameras, operates up to 328' away with available Venture transmitters VE-WCC (Canon), VE-WCN (Nikon), VE-WCSMI (Sony), VE-WCSO (Sony AutoLock)
- High Speed Sync
- HSS not requiring a special settingFor freezing motion or the use of a larger aperture in bright light Shutter speeds as fast as 1/8000 second, camera permitting
- Flash Durations
- Flash durations up to 1/19,500 of a second to freeze action
- LED Modeling Lamp
- 15W modeling lamp featuring two modes: independent and proportional, each with Constant and Recycle Signal option

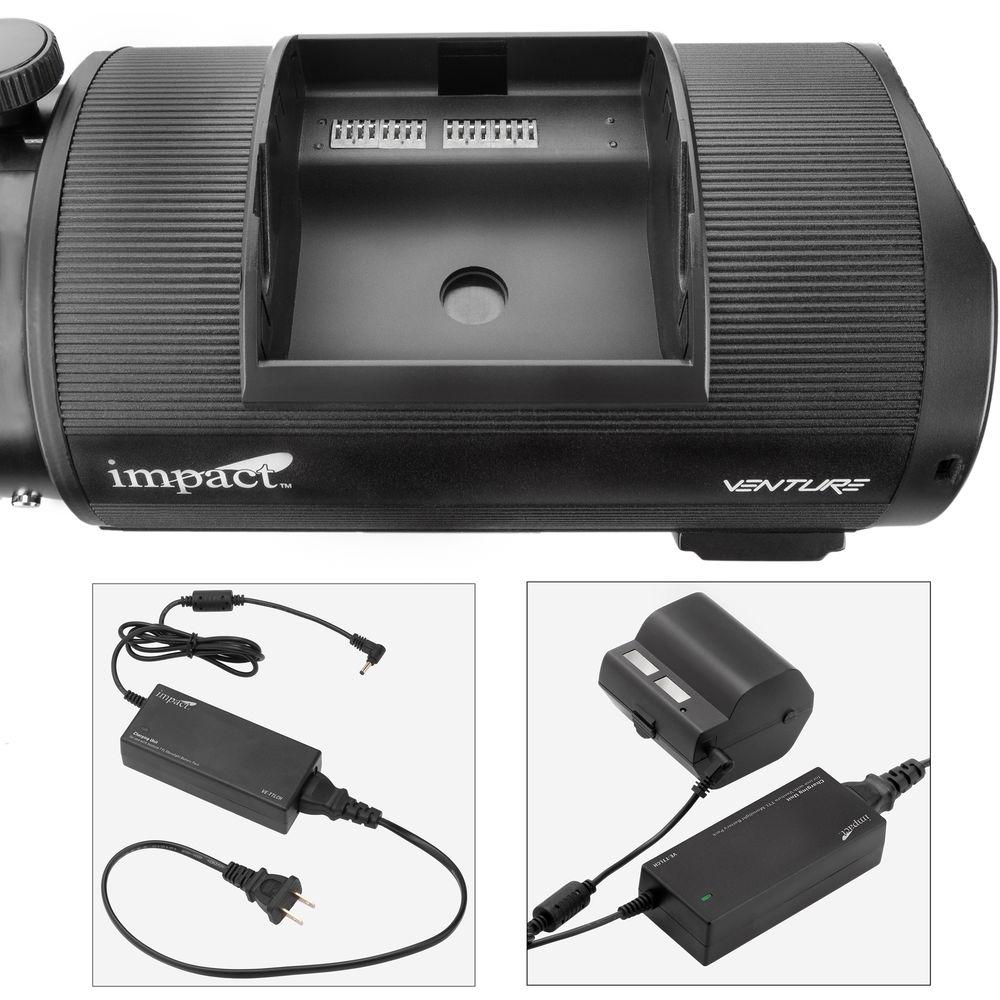

UPC: 847628594951 In the Box Impact Venture TTL-600 Battery-Powered Monolight Lithium-Ion Battery for Venture TTL 600 ycucwuwcczetab Venture Quick Charger for TTL-600 Reflector Pistol Grip Stand Mount PC Cord Aluminum Case Nylon Case Strap Limited 1-Year Warranty User Manual PDF 1.5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Impact Venture TTL-600 Battery-Powered Monolight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersImpact Venture TTL-600 Specs | | | Maximum Power | 600 Ws | | Power Control | 8 Stops | | Flash Duration | 1/19,500 to 1/380 Sec | | Recycle Time | 1.2 Sec (Full Power) | | Color Temperature | 5500 to 5600K | | Flash Ready Indicator | Audio, Visual | | Accessory Fitting Type | Comet | | | | Type | LED | | Control Modes | Constant, Independent, Proportional | | | | Sync Type | Radio | | Wireless Channels / Groups | 9 / 3 | | Wireless Range | 328' / 100 m (Radio) | | | | Battery Chemistry | Lithium-Ion | | Maximum Output Voltage | 14.8 VDC | | Flashes Per Charge | 500 Flashes (Full Power) | | Recharge Time | 3.5 Hours | | | | Display | None | | Dimensions |
