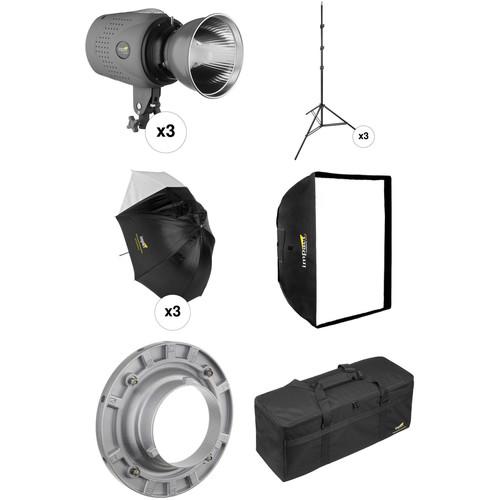

Impact VS-LCD400 400Ws Monolight 3 Point

User Manual for Impact VS-LCD400 400Ws Monolight 3 Point Kit

• Product category: Monolights Impact
• Brand: Impact
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Impact Monolights

Product description

• 3 x Impact Digital Monolight 400W/s (120VAC) You might be surprised at how many photo assignments you can handle with a compact, lightweight monolight like the Impact Digital Monolight 400W/s (120VAC). It's got 400w/s of power in an easily transportable package, and light output that can be varied in 1/10 stop stages over a 4-stop range, accessible through the digital readout. The 150W modeling light can be coupled to the flash, getting brighter or dimmer to match the actual light output, or independently set to the level you want. The monolight accepts S-type monolight reflectors and head accessories. It also has a limited Auto Dump function, firing the strobe when you reset to a different power level (so the strobe is automatically set to the correct setting for the next flash). A built-in optical slave allows the monolight to be triggered using another flash. Perfect for portraits, small still-lifes, and much more.
  • Power is variable over a 4-stop range
  • Digital readout coupled with the power variator
  • Accepts S-type monolight reflectors and head accessories
  • Power is adjustable in 1/10 stop increments, from full to 1/8 power
  • Model light intensity may be coupled to, or independent from, the flash output levels
  • Limited Auto Dump feature automatically fires the strobe when you reset to a lower power level
  • Built-in optical slave "sees" the light from other flashes, and fires monolight automatically
  UPC: 847628013483
• 3 x Impact Air-Cushioned Light Stand (Black, 10') This Impact Air-Cushioned Light Stand is a black anodized aluminum support that rises to a height of 10' and folds down to 33.5" for storage and transport. The stand will handle up to 8.5 lb and is topped with a 5/8" stud with 1/4"-20 threads. It has a wide footprint of 38" for greater stability. Air cushioning gently lowers the light when making height adjustments to protect equipment and fingers.
  Air-Cushioned
  • Protects equipment and fingers from damage
  Compact Design
  • Will fit easily into most location cases
  Accepts Casters
  • For easy positioning of lights
  UPC: 847628030626
• 3 x Impact Convertible Umbrella - White Satin with Removable Black Backing - 45" This is an Impact 45" white satin umbrella with removable black backing. Umbrellas soften, broaden, and diminish the light output of any flash light source. Umbrellas with a white interior will soften and weaken light more than an umbrella with a silver lining. A white umbrella without a black backing may also be used as a makeshift softbox, although the use of the light will not be as efficient as with a softbox. Choosing umbrella size is determined by the size of the subject, and the strength of the light supply being used. Choosing an umbrella surface is as subjective as choosing a paint and brush. This size is perfect for a 1 - 2 person half-length portrait, or a 3x4 ft product setup.
  • Backing may be removed half way, providing a unique combination of light bounced from different surfaces.
  UPC: 847628013308
• Impact Luxbanx Duo Medium Square Softbox (26 x 26") The Luxbanx Duo Medium Square Softbox from Impact is a versatile 26 x 26" light shaping tool for strobe, LED, and fluorescent lights. It's also useable with quartz lights up to 1000W due to its heat-resistant, textured silver interior. When using the Luxbanx Duo with strobes, both the front diffuser and inner baffle can be used for maximum softening of the output. When using it with hot lights the inner baffle should be removed. Open face lights can be used as is but it's recommended that you use the flood setting rather than spot on Fresnel sources. The softbox has 4 forward-opening vents to dissipate heat. Removing the front and inner diffuser essentially turns the Luxbanx Duo into a large reflector with maximum brightness and contrast. The versatile Luxbanx Duo has an additional control via an optional fabric grid which mounts to the recessed lip of the softbox with touch-fasteners. The grid narrows and concentrates the light's beam forward, controlling spill light and adding directional control to the Luxbanx Duo's attributes. The ample surface area and square shape of the softbox make it ideal for large sets, groups, full length fashion, and large product work. Every Luxbanx comes with a carrying case and a spare Flex Rod. Separate purchase of a speed ring that matches your light's mount is required for use. Impact makes models to fit most popular brands. When using hot lights, the inner baffle should be removed. UPC: 847628561823
• Impact Speed Ring for Impact, Bowens S, Westcott & Aputure The Speed Ring for Impact, Bowens S, Westcott & Aputure from Impact features indexed flex rod holes that allow you to effortlessly mount any square, rectangular, strip, or octagonal Luxbanx softbox to Impact, Bowens S, Westcott, and Aputure heads. The ring will also fit most other brands of softbox. The sturdy all-metal ring rotates 360 degrees to facilitate orientation or to clear obstacles in tight quarters. It has 3/8"-16 taps on two sides to allow mounting directly to grip gear such as Impact's Swivel Umbrella Adapter, 3 Section Double Articulated Arm, Super Clamp, and more. UPC: 847628003309
• Impact Light Kit Bag #2 (34 x 13.5 x 12") The black Light Kit Bag #2 (34 x 13.5 x 12") from Impact makes transporting your lighting kit easy and secure. The bag is designed to hold three monolights along with their reflectors (such as Impact VC500LR), four stands, boom, umbrellas, cables and other support gear but can also be used to hold other lighting equipment instead. You'll have plenty of room to take along enough lighting gear for a portrait session - all packed in an organized and accessible way. A touch fastened divider tray separates the stands, boom and umbrellas from the lights preventing them from bumping together and causing scratches or damage. For additional smaller equipment such as cables and small accessories, there are three interior 10.5 x 8.0" zippered mesh pockets.The bag is made from soft, padded water-resistant nylon and contains six movable touch fastened interior dividers (6 large, 2 small) that will permit you to configure the bag to accommodate the gear you need that day. The Light Kit Bag is carried by its two 2" wide overlapping top carry handles that can easily be extended into dual shoulder straps. The contents are accessed via dual zippers that when placed together will accept a user-supplied lock. For even more protection, the bottom of the bag contains three rubber feet for when the bag is placed on the ground. And the bag folds down to a quarter of its height for convenient storage and easy setup. Whether for storage or transport, the Impact Light Kit Bag will serve both pro or amateur well.
  • The soft padded carry case is designed to hold three monolights with reflectors, four light stands, umbrellas, cables and other accessories
  • The interior has six movable, touch fastened dividers that permit you to configure the bag to suit your needs; dividers consist of six large and two smaller styles
  • 2" (5.1 cm) wide overlapping dual carry handles that convert to a shoulder strap
  • Interior has three zippered 10.5 x 8.0" mesh pockets (26.7 x 20.3 cm)
  • Touch fastened protective nylon tray separates light stands and umbrellas from monolights
  • Water-resistant padded nylon construction
  • Folds down to less then 4" for convenient storage and easy setup
  • Dual zippered opening; accepts user-supplied lock
  UPC: 847628030619

• 3 x Digital Monolight 400W/s (120VAC) zabeexzufaaeuvrcza
• Flashtube
• 150W Modeling Light
• 7" Grid Reflector
• Mini to PC Sync Cord
• Extra Fuse
• Limited 1-Year Warranty

• 3 x Air-Cushioned Light Stand (Black, 10')

• 3 x Convertible Umbrella - White Satin with Removable Black Backing - 45"

• Luxbanx Duo Medium Square Softbox (26 x 26")

• Speed Ring for Impact, Bowens S, Westcott & Aputure

• Light Kit Bag #2 (34 x 13.5 x 12")

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 3 x Impact Digital Monolight 400W/s (120VAC)

  Maximum Power	400 Ws
  Power Control	4 Stops in 1/10-Stop Increments
  Guide Number	197' / 60 m at ISO100
  Flash Duration	1/1500 to 1/400 Sec
  Recycle Time	2 Sec (Full Power)
  Flash Ready Indicator	Visual
  Reflector	Changeable
  Accessory Fitting Type	Bowens S Type

  Type	Tungsten
  Wattage	150 W

  Sync Type	Optical
  Wireless Range	33' / 10 m (Radio)

  AC Input Voltage	110to120 VAC, 60 Hz
  Circuit Protection	Fuse

  Display	None
  Auto Dump	Yes
  Fan Cooled	No
  Dimensions	H: 8.5 x W: 6.0 x L: 11.6" / H: 21.5 x W: 15.5 x L: 29.5 cm, Including Reflector
  Weight	6.75 lb / 3.06 kg

  Box Dimensions (LxWxH)	18.5 x 10.1 x 9.5"

• 3 x Impact Air-Cushioned Light Stand (Black, 10')

  Maximum Load	8.5 lb (3.8 kg)
  Maximum Height	121.5" (308.6 cm)
  Minimum Height	40.5" (102.9 cm)
  Closed Length	33.5" (85 cm)
  Footprint Diameter	38" (96.5 cm)
  Leg Tip	0.8" (20 mm)
  Attachment Size	5/8" (16 mm) stud with 1/4"-20 male threads
  Accepts Wheels	Yes, casters
  Air Cushioned	Yes
  Weight	2.4 lb (1.1 kg)

  Box Dimensions (LxWxH)	34.0 x 3.0 x 3.0"

• 3 x Impact Convertible Umbrella - White Satin with Removable Black Backing - 45"

  Size	45.0" / 114.3 cm
  Interior	White
  Exterior	Black
  Shaft Diameter	8 mm
  Folded Size	L: 29.8" / L: 75.5 cm

  Box Dimensions (LxWxH)	31.2 x 4.0 x 1.6"

• Impact Luxbanx Duo Medium Square Softbox (26 x 26")

  Shape	Square
  Interior	Silver
  Requires Speed Ring	Yes, Not Included
  Accepts Grids	Yes
  Maximum Wattage	1000 W (Hot Lights)
  Removable Front Face	Yes
  Removable Interior Baffle	Yes
  Rectangular Dimensions	W: 26.0 x H: 26.0 x D: 15.0" / W: 66.0 x H: 66.0 x D: 38.1 cm
  Weight	2.2 lb / 1.0 kg

  Box Dimensions (LxWxH)	22.1 x 8.8 x 2.4"

• Impact Speed Ring for Impact, Bowens S, Westcott & Aputure

  Compatible Lighting	Aputure Bowens S Mount Impact Wescott
  Compatible Softbox Shape	Strip
  Number of Mounting Holes	10
  Material	Aluminum

  Box Dimensions (LxWxH)	7.95 x 7.85 x 2.45"

• Impact Light Kit Bag #2 (34 x 13.5 x 12")

  Interior Dimensions	34 x 13.5 x 12" / 86.4 x 34.3 x 30.5 cm

  Closure Type	Zipper
  Carry and Transport Options	2 x Connecting Handstrap
  Material of Construction	Nylon
  Exterior Dimensions (W x H x D)	34.5 x 14 x 13" / 87.6 x 35.6 x 33 cm
  Weight	5.8 lb / 2.6 kg

  Box Dimensions (LxWxH)	35.0 x 14.0 x 12.5"
