User Manual for Impact Wall Plate with 1-1 8" Locking Receiver Click to enlarge the picture
Contents of the user manual for the Impact Wall Plate with 1-1 8"
- Product category: Studs, Receptors & Pins Impact
- Brand: Impact
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Impact Studs, Receptors & Pins
|
User manual for the Impact Wall Plate with 1-1 8" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Impact product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Impact user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Impact product will considerably shorten its lifespan!
|

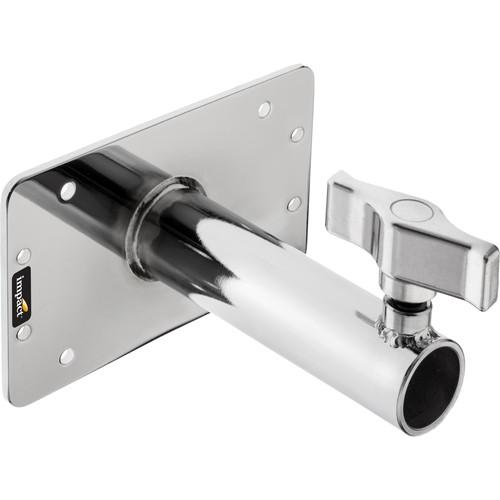

Product description Constructed of chrome-plated steel, this Impact Wall Plate with 1-1/8" Locking Receiver is a handy accessory on any type of production set. All that's needed is a flat surface for its base and optional nails or screws to mount it to walls, ceilings, or floors. It's often gaffer-taped to apple boxes or the floor to temporarily support lighting equipment at a very low angle. Alternately it can be used as a speaker or monitor platform to be mounted on a stand with a 1-1/8" top stud or any other gear fitted with a male 1-1/8" pin. - Heavy-Duty Chromed Steel
- The receiver is welded to the plate for secure support.
- 1-1/8" Locking Receiver
- The 1-1/8" locking junior pin receiver accommodates any fixture with a standard 1-1/8" stud.
- Mounting Options
- The wall plate is a space-saving solution in tight places where stands and other supports don't fit. It's also useful as a floor plate for low angle shooting. Eight anchor points are located on the base for extra secure mounting with nails or screws.
UPC: 847628592698 In the Box Impact Wall Plate with 1-1/8" Locking Receiver Limited 1-Year Warranty User Manual PDF 265.5kbryxacyeybbvyvdtefzvtbxvab Table of Contents
|
Upload User Manual
Have you got an user manual for the Impact Wall Plate with 1-1 8" Locking Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersImpact SRP-122P Specs | Mounting | 1-1/8" / 28 mm Receiver | | Material | Steel | | Dimensions | L: 3.5 x W: 5.9" / L: 8.9 x W: 15.0 cm (Base)
L: 4.5" / L: 11.4 cm (Stud) | | Weight | 1.65 lb / 0.74 kg | | | | Package Weight | 1.9 lb | | Box Dimensions (LxWxH) | 6.3 x 5.3 x 3.9" |
