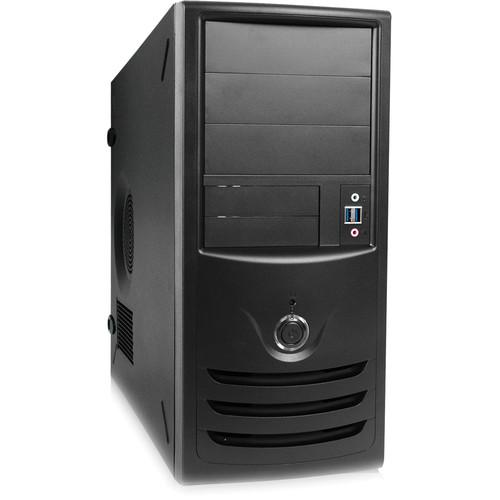

User Manual for In Win C589.CH350TB3 Mid Tower Chassis with 350W Power Supply Click to enlarge the picture
Contents of the user manual for the In Win C589.CH350TB3 Mid Tower Chassis
- Product category: Desktop Computer Cases In Win
- Brand: In Win
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for In Win Desktop Computer Cases
|
User manual for the In Win C589.CH350TB3 Mid Tower Chassis contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any In Win product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official In Win user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a In Win product will considerably shorten its lifespan!
|
Product description The C589.CH350TB3 Mid Tower Chassis with 350W Power Supply from In Win is designed for ATX and Micro ATX motherboards. Made with SECC Japanese steel metal, this chassis has a single 2.5", five 3.5", and three 5.25" drive bays for expandability and future upgrade. With screw-less front and side panel, swiveled HDD drive cage, this chassis has four screw-less PCI/AGP expansion slots. - TAC 2.0 Thermal Solution
- Qualified for TAC 2.0, a mass ventilation hole side panel design that strengthens thermal efficiency, and cools down the entire system.
- Tool-Free Installation and Easy Maintenance
- The chassis has a tool-free front panel, side panel, and I/O slots. It has screw-less front and side panels, swiveled HDD drive case, four screw-less PCI/AGP expansion slots, and screw-less 5.25" and 3.5" drive bays for easy installation.
- Side Panel Clip
- It has tool-free installation side panel clip.
- Security
- The chassis has standard Padlock loop for padlock and Kensington security slot.
- Folded Edge
- Folded edge for safety installation with no sharp edges and debris.
- Stamped Motherboard Support
- It does not require motherboard standoffs to be installed as it has stamped motherboard support for fast motherboard installation.
- Configured Nine Drive Bays
- The chassis is equipped with a single 2.5", five 3.5", and three 5.25" drive bays for expandability and future upgrade.
UPC: 827955013899 In the Box In Win C589.CH350TB3 Mid Tower Chassis with 350W Power Supply 6 x #6*32 4.5 Screws (For HDD) 9 x #6*32 Hex Screws (For motherboard and PCI Slot) 4 x M3*5 Screws (For FDD) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the In Win C589.CH350TB3 Mid Tower Chassis with 350W Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIn Win C589.CH350TB3 Specs | | | Motherboard Support | ATX, Micro-ATX | | External Drive Bays | 3 x 5.25"
2 x 3.5" | | Internal Drive Bays | 3 x 3.5"
1 x 2.5" | | Expansion Slots | 7 x Full Height | | | | Fan Controller Included | No | | | | Connections | 2 x USB Type-A (USB 3.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | No | | Security | Kensington Lock Slot, Padlock Loop | | Cable Management Space | None | | Dimensions (W x H x D) | 7.5 x 16.7 x 17.1" / 19.1 x 42.4 x 43.4 cm | | | | Package Weight | 21.6 lb | | Box Dimensions (LxWxH) | 21.7 x 20.3 x 9.8" |
