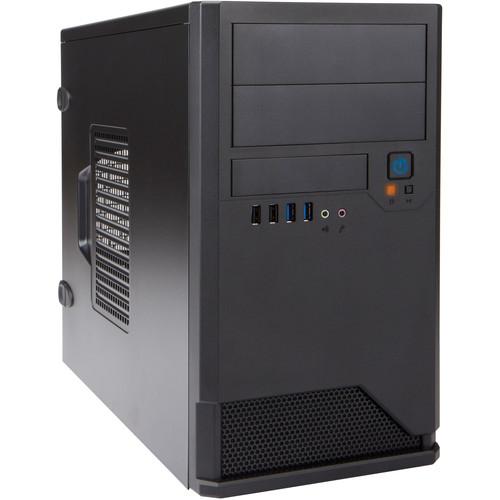

User Manual for In Win EM048 Micro ATX Mini-Tower Chassis Click to enlarge the picture
Contents of the user manual for the In Win EM048 Micro ATX Mini-Tower
- Product category: Desktop Computer Cases In Win
- Brand: In Win
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for In Win Desktop Computer Cases
|
User manual for the In Win EM048 Micro ATX Mini-Tower contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any In Win product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official In Win user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a In Win product will considerably shorten its lifespan!
|
Product description The black EM048 Micro ATX Mini-Tower Chassis from In Win is a chassis with an innovative design, and regulatory compliance. The mini tower is Qualified for TAC 2., an extra vent in the rear panel for an additional fan, has folded edges for safe installation, and has Micro ATX motherboard support. The chassis is equipped with an HD audio port, two USB 2.0 ports, two USB 3.0 ports, and four PCIe expansion slots. In addition, it also features an optional detachable HDD cage, tool-free side panels, ODD bays, and FDD bays for easy removal and installation. - TAC 2.0 Thermal Solution
- Qualified for TAC 2.0, a mass ventilation hole on the side panel strengthens thermal efficiency and cools down the entire system
- Configure up to Seven Drive Bays
- Expandable to two 5.25" (external), two 3.5" (one internal and one external), one 2.5" (internal), and optional two 3.5" (internal) or one 3.5" + one 2.5" (internal) drive bays
- Extra Vent at Rear Panel
- Optional 90mm or 120mm auxiliary cooling fan can be installed on rear panel for better system cooling 1
Please Note: Optional fan is not included. close - Optimal Thermal Solution
- 90 or 120mm rear fan (optional)
90mm front fan (optional)
Intel Certificated TAC 2.0
Additional ventilation holes on the side panel - Folded Edge
- The chassis has a folded edge (no sharp edges, debris), for safe installation
- Stamped Motherboard Support
- No motherboard stand-offs installation required
In the Box In Win EM048 Micro ATX Mini-Tower Chassis (Black) 3 x #6 x 32 Screws 1 x A500 Screw 13 x #6 x 32 4.5 Screws 11 x M3 x 5 Screws Limited 1-Year Warranty Brochure PDF 686kb Table of Contents
|
Upload User Manual
Have you got an user manual for the In Win EM048 Micro ATX Mini-Tower Chassis in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIn Win EM048.CH350TB3 Specs | | | Motherboard Support | Micro-ATX | | External Drive Bays | 2 x 5.25"
1 x 3.5" | | Internal Drive Bays | 1 x 3.5"
1 x 2.5" | | Expansion Slots | 4 x Full Height | | Supported PSU Size | ATX | | | | Fan Mounting (Rear) | 1 x 120 mm
| | Fan Controller Included | No | | | | Connections | 2 x USB Type-A (USB 3.0)
2 x USB Type-A (USB 2.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | No | | Security | Kensington Lock Slot, Padlock Loop | | Cable Management Space | None | | Dimensions (W x H x D) | 7.5 x 13.8 x 15.0" / 19.0 x 35.0 x 38.0 cm |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 26 owners. Add your rating and experience with the product.
