User Manual for In Win IW-RS212-02 2U Storage Rackmount Server Chassis Click to enlarge the picture
Contents of the user manual for the In Win IW-RS212-02 2U Storage Rackmount
- Product category: Server Rackmount Chassis In Win
- Brand: In Win
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for In Win Server Rackmount Chassis
|
User manual for the In Win IW-RS212-02 2U Storage Rackmount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any In Win product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official In Win user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a In Win product will considerably shorten its lifespan!
|

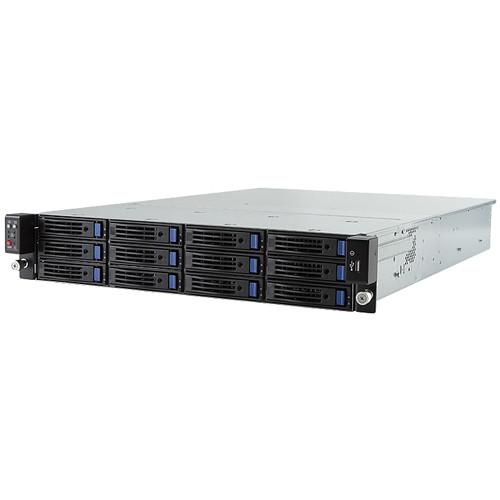

Product description The IW-RS212-02 2U Storage Rackmount Server Chassis from In Win is a 1.0mm SGCC steel case for a storage server that is able to fit in a 28" 2U rack. It features the EIA-RS310D standard for mounting and can hold an ATX, CEB, or EEB motherboard. The front of the case features twelve hot-swap 3.5" HDD trays for replacing and installing drives quickly and easily. Also, a 2.5" internal drive bay is available.
The IW-RS212-02 chassis has a 4-port Mini-SAS backplane with 6 Gb/s support. There is also room for seven low-profile PCI expansion cards. The front of the case features a variety of indicator lights for quickly checking the machine's status and there is a USB 2.0 port for convenience. Cooling of the machine is handled by four 80mm PWM Easy-Swap fans and power is supplied by an optional single or 2U 1+1 redundant power supply. - Intel Romley platform compliance
- Hot-swap HDD trays feature locks
- Four 80mm easy-swap fans features Anti-Vibration mechanism
- Intrusion switch for extra security
- Middle top cover can be removed for access to fans
- Power switch with blue LED
In the Box In Win IW-RS212-02 2U Storage Rackmount Server Chassis Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the In Win IW-RS212-02 2U Storage Rackmount Server Chassis in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIn Win RS212 Specs | | | Motherboard Support | ATX | | External Drive Bays | 12 x 3.5" | | Internal Drive Bays | 1 x 2.5"
1 x 3.5" | | Expansion Slots | 7 x Low-Profile | | Backplanes | Mini-SAS to SATA 6 Gb/s | | Connections | 1 x USB Type-A (USB 2.0) | | | | Security Features | Intrusion Switch | | | | Included Cooling | 4 x 80 mm | | | | Rack Form Factor | 2RU | | Material | Steel | | Dimensions (W x H x D) | 28.0 x 19.0 x 3.5" / 711.0 x 482.6 x 87.0 mm |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 04 owners. Add your rating and experience with the product.
