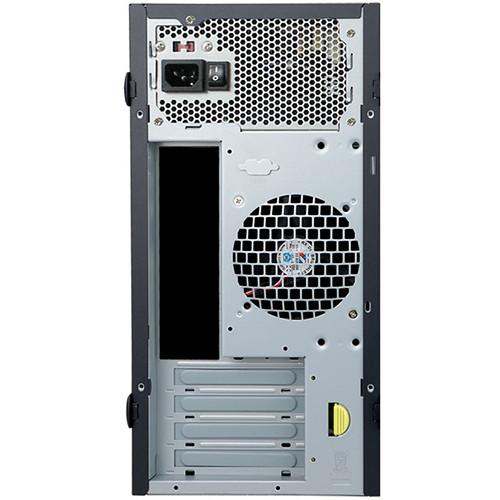

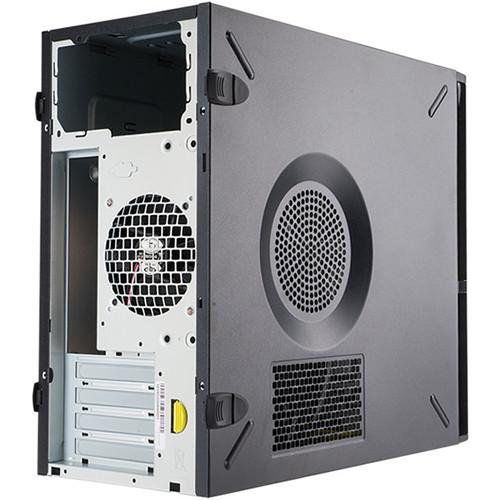

User Manual for In Win Z583 Micro-ATX Mini-Tower Chassis with ATX 350W Power Supply Click to enlarge the picture
Contents of the user manual for the In Win Z583 Micro-ATX Mini-Tower Chassis
- Product category: Desktop Computer Cases In Win
- Brand: In Win
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for In Win Desktop Computer Cases
 |
User manual for the In Win Z583 Micro-ATX Mini-Tower Chassis contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any In Win product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official In Win user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a In Win product will considerably shorten its lifespan!
|
Product description - Key Features
-
- Best performed SECC Japanese steel metal
- 0.8mm sheet metal construction - for better stability & durability
- Folded edge - for safety installation
- No sharp edges, debris
- Stamped motherboard support - no M/B standoffs installation required, for faster M/B installation

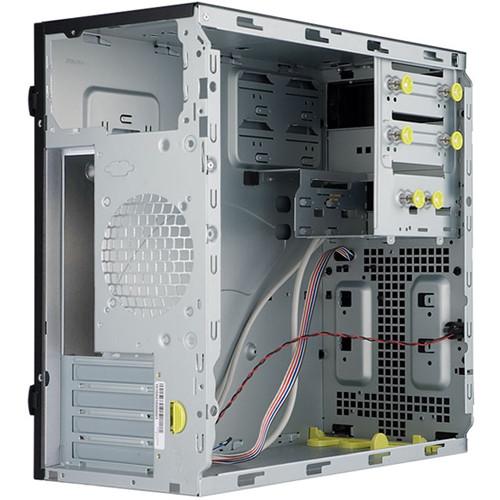

- Configured 5 drive bays - (2 x 5.25", 3 x 3.5") drive bays for expandability of future upgrade
- Meet CE, FCC Class B requirement
UPC: 827955013868 Table of Contents
|
Upload User Manual
Have you got an user manual for the In Win Z583 Micro-ATX Mini-Tower Chassis with ATX 350W Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

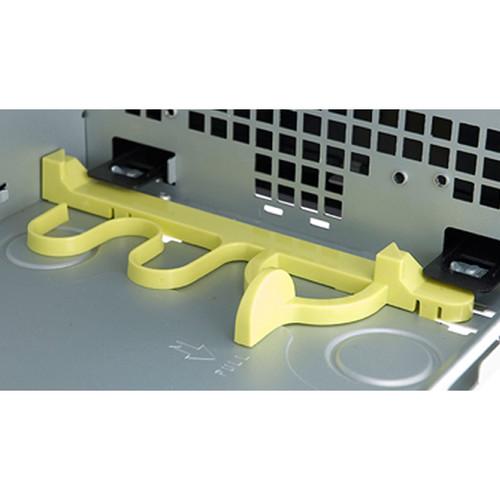

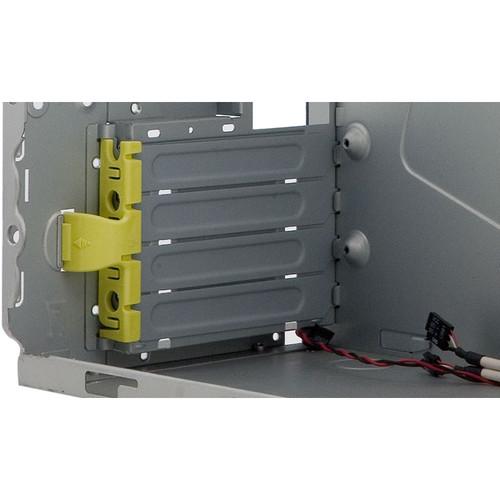

Technical parametersIn Win Z583CH350TB3 Specs | | | Form Factor | Mini tower | | Max Mainboard Size | Micro ATX | | Supported Motherboards | microATX | | Specification Compliance | ATX12V | | Internal Bays Qty | 1 | | Front Accessible Bays Qty | 4 | | Color | Black | | System Cabinet Features | Screwless PCI card retainers, screwless drive bays, padlock loop, fan duct, rolled edges, Kensington lock support | | | | Expansion Bays | 2 (total) / 2 (free) x front accessible - 5.25"
2 (total) / 2 (free) x front accessible - 3.5"
1 (total) / 1 (free) x internal - 3.5" | | Expansion Slots | 4 | | Interfaces | 2 x USB 3.0
2 x audio - mini-jack | | | | Compliant Standards | FCC Class B certified | | | | Power Device | Power supply | | Max Supported Qty | 1 | | Power Provided | 350 Watt | | | | Width | 7.1 in | | Depth | 14.6 in | | Height | 14.3 in | | | | Package Weight | 16.7 lb | | Box Dimensions (LxWxH) | 19.6 x 16.4 x 9.2" |
