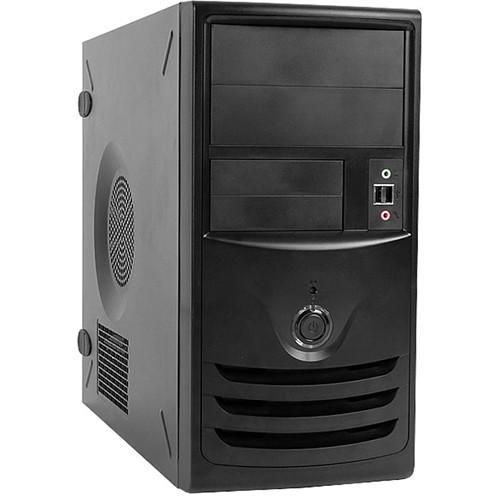

User Manual for In Win Z583 microATX Chassis Click to enlarge the picture
Contents of the user manual for the In Win Z583 microATX Chassis
- Product category: Desktop Computer Cases In Win
- Brand: In Win
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for In Win Desktop Computer Cases
|
User manual for the In Win Z583 microATX Chassis contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any In Win product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official In Win user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a In Win product will considerably shorten its lifespan!
|
Product description The black and silver Z583 microATX Chassis from In Win is a mini tower computer case designed to hold a microATX or Mini-ITX form factor motherboard. The SECC steel frame features a tool-free design with the front panel, drive bays, and I/O slots able to be quickly and easily swapped out and maintained due to the implementation of plastic clips. Also, the HDD cage swivels outward to make the bays more accessible for installation.
This mini tower can hold numerous drives at once with two 5.25" external bays, two 3.5" external bays, one 3.5" internal bay, and one 2.5" internal bay. Also, there are four PCI-E expansion slots for installing additional computer hardware. On the front panel you will find two USB 2.0 ports on the front panel as well as microphone and headphone HD audio jacks.
With TAC 2.0 thermal cooling solution, a mass ventilation hole and side panel design allows for heat to efficiently dissipate. You can also install an optional 80 or 90mm rear panel fan if needed. Security is done through the inclusion of a padlock loop and a Kensington slot. Additionally, this case meets RoHS, CE, and FCC Class B requirements. - Stamped motherboard support means that you won't have to worry about installing standoffs before putting in your motherboard
- Support for ATX 12V and PSII power supplies
- Side panel clip lets you remove the panel without tools
- Tool-free installation and maintenance is easy due to the use of clips on the front panel, drive bays, and I/O slots
- Swiveled HDD cage makes installing drives easy
- Folded steel edges ensure safety while working on your computer
- Optional Features
- 80 or 90mm rear system fan
eSATA
Chassis Intrusion Switch
2 x USB 3.0 ports
3.5" to 2.5" HDD/SSD bracket In the Box In Win Z583 microATX Chassis (Black/Silver) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the In Win Z583 microATX Chassis in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIn Win ATX Specs | | | Motherboard Support | Micro-ATX, Mini-ITX | | External Drive Bays | 2 x 5.25"
2 x 3.5" | | Internal Drive Bays | 2 x 3.5"
1 x 2.5" | | Expansion Slots | 4 x Full Height | | Supported PSU Size | ATX | | | | Fan Mounting (Rear) | 1 x 80 mm
Or
1 x 90 mm
| | Fan Controller Included | No | | | | Connections | 2 x USB Type-A (USB 2.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | No | | Material | Steel | | Security | Kensington Lock Slot, Padlock Loop | | Cable Management Space | None | | Dimensions (W x H x D) | 14.3 x 7.1 x 14.6" / 36.3 x 18.0 x 37.0 cm |
