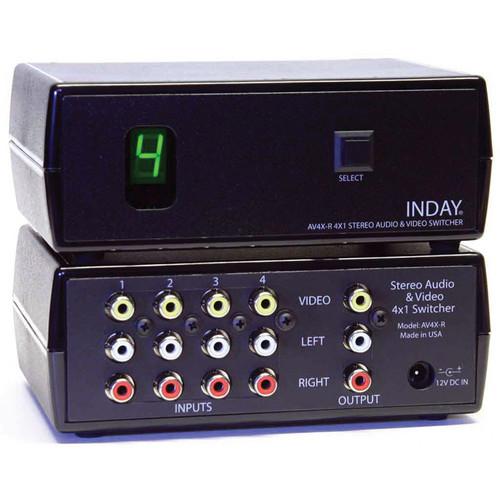

Product description The AV4X-RS 4x1 Video and Stereo Audio Switcher with RS-232 Port from Inday is a four-input to one-output, three-channel switcher. Two channels are dedicated for stereo analog audio and the third channel for video or coax digital audio. The IC’s used for each signal path are specifically designed for the signal type being switched. The result is a very low noise/distortion and flat frequency response output for both audio and video.Typical applications include combining four different A/V sources, such as VCRs, DVD players, and camcorders to one common output. Although the AV4X-RS is primarily used for switching stereo audio and video, the video channel can also be used to switch coaxial digital audio. This arrangement would allow both analog and digital audio to be switched at the same time.Control of your switcher is provided through a front panel switch which cycles through the inputs. It is also used to program the remote control characteristics. The unit also comes with a remote control to directly access any of the four inputs. For advanced integration, the AV4X-RS comes equipped with an RS-232 serial control port that allows the unit to connect to any computer for direct control and status. - One wideband video channel (120 MHz bandwidth)
- Two stereo analog audio channels with low noise/distortion
- Video channel can be used for switching coax digital audio (PCM/DTS/AC3)
- RS-232 serial option for direct computer control
- Easily integrated with other 4X Series components
In the Box Inday AV4X-RS 4x1 Video and Stereo Audio Switcher with RS-232 Port RS-232 Cable Power Supply IR Remote Control Wall Transformer Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Inday AV4X-RS 4x1 Video and Stereo Audio Switcher with RS-232 Port in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersInday AV4X-RS Specs | Audio | Color Coded: White / Red
Unbalanced stereo audio
Distortion: 0.01%
Noise: -88 dB
Nominal Signal: -10 dB
Clipping: +12 dB | | Video | Color Coded: Yellow
Impedance: 75 Ohms
Noise: > 60 dB Below 1Vpp
Frequency Response: DC-140 MHz +/-3 dB | | RS-232 Interface | 3.5 mm Mini stereo Jack
Tip: Tx
Ring: Rx
Sleeve: Gnd | | Power | 12 VDC (Unregulated)
18 VDC Max @ 150 mAh | | Temperature | 32 to 122°F (0 to 50°C) | | Humidity | 0 to 90% (Non-condensing) | | Dimensions (W x L x H) | 4 x 6 x 2" (101.6 x 152.4 x 50.8 mm) |
