User Manual for IndiPRO Tools Compact 95Wh V-Mount Battery with Portable Charger Kit Click to enlarge the picture
Contents of the user manual for the IndiPRO Tools Compact 95Wh V-Mount Battery
- Product category: On Camera Batteries IndiPRO Tools
- Brand: IndiPRO Tools
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IndiPRO Tools On Camera Batteries
|
User manual for the IndiPRO Tools Compact 95Wh V-Mount Battery contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IndiPRO Tools product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IndiPRO Tools user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IndiPRO Tools product will considerably shorten its lifespan!
|

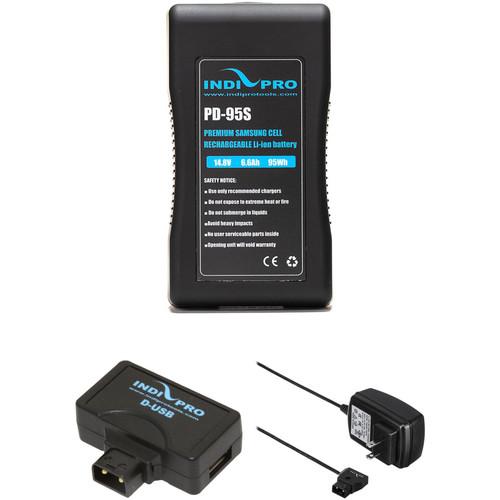

Product description Power your camera or accessories with this IndiPro Tools Compact 95Wh Battery with Portable Charger Kit from . This kit is comprised of a V-mount lithium-ion battery and a portable 16.8V DC wall charger. A D-tap to USB adapter is also included to charge your portable devices. The V-mount battery is also compatible with Indipro Tools chargers. See below for more information on the items included in this kit. - IndiPRO Tools Compact 95Wh V-Mount Li-ion Battery
- INDIPRO TOOLS 95 Wh 14.8V 6.6Ah V MOUNT AND GOLD MOUNT BATTERY
This Compact 95Wh V-Mount Li-ion Battery from IndiPRO Tools outputs 14.8V, has a capacity of 6.6Ah, and supports up to a 10A draw. Its features include a Samsung cell, a weight of slightly more than 1.5 pounds, and a standard D-Tap port for powering accessories via a separately available cable. For quick status checks, an integrated 4-bar LED gauge displays the battery's remaining power. - Compact size suited for use with smaller cameras, monitors, lights, and accessories
- 14.8V, 6.6Ah output with 95Wh capacity
- 4-bar LED remaining-power display
- Standard V-mount compatibility
- 2-pin D-Tap for powering accessories directly from the battery
UPC: 741533994113 - IndiPRO Tools D-USB Adapter
- INDIPRO TOOLS 95 Wh 14.8V 6.6Ah V MOUNT AND GOLD MOUNT BATTERY
Power USB accessories on set with the Indipro Tools D-USB Adapter by plugging it into an available D-tap on your battery. The USB port will output 5 volts of power at up to 1.6 amps, enabling it to power most USB devices on set, including smartphones and some tablets. A D-tap output is also offered, so you can still power you D-tap accessories while the D-USB is in use. UPC: 741533994380 - IndiPRO Tools D-Tap Pro Battery Charger (16.8V, 1A)
- INDIPRO TOOLS 95 Wh 14.8V 6.6Ah V MOUNT AND GOLD MOUNT BATTERY
The 1A IndiPRO Tools D-Tap Pro Battery Charger allows you to conveniently charge select V-Mount or Gold Mount batteries that can be charged via D-Tap from an AC wall outlet. It features a D-Tap connector that plugs right into the battery. Delivering 16.8V and 1A, it charges a 95Wh battery in approximately 5.5 hours. UPC: 741533994533 In the Box - Compact 95Wh V-Mount Li-ion Battery xffvbbcsfwvbzaxqsczecdzsbr
- Limited 2-Year Warranty
- D-Tap Pro Battery Charger (16.8V, 1A)
Includes Free Table of Contents
|
Upload User Manual
Have you got an user manual for the IndiPRO Tools Compact 95Wh V-Mount Battery with Portable Charger Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - IndiPRO Tools Compact 95Wh V-Mount Li-ion Battery
| Mount / Series Type | V-Mount | | Chemistry | Lithium-Ion | | Capacity (Wh) | 95 Wh | | Amp-Hours | 6.6 Ah | | Output Voltage | 14.8 VDC | | Accessory Port | 1 x D-Tap | | Dimensions (W x H x D) | 3.5 x 6.4 x 2.0" / 89.0 x 162.0 x 51.0 mm | | Weight | 1.6 lb / 0.7 kg | | | | Box Dimensions (LxWxH) | 8.05 x 4.7 x 3.55" | - IndiPRO Tools D-USB Adapter
| Power Input | 1x Male D-tap 11-17 V @ 10 A (max) | | Power Output | 1x Female D-tap 11-17 V @ 10 A (max)
1x USB 5 V @ 1.6 A (max) | | | | Box Dimensions (LxWxH) | 4.9 x 3.35 x 1.25" | - IndiPRO Tools D-Tap Pro Battery Charger (16.8V, 1A)
| Connector 1 | US 2-prong AC power plug | | Connector 2 | D-Tap male | | Voltage | 16.8 V, 1 A | | Cable Length | 46" (117 cm) | | Charge Time | Charges 95 Wh battery in approx. 5.5 hours | | | | Box Dimensions (LxWxH) | 5.75 x 3.35 x 3.3" |
