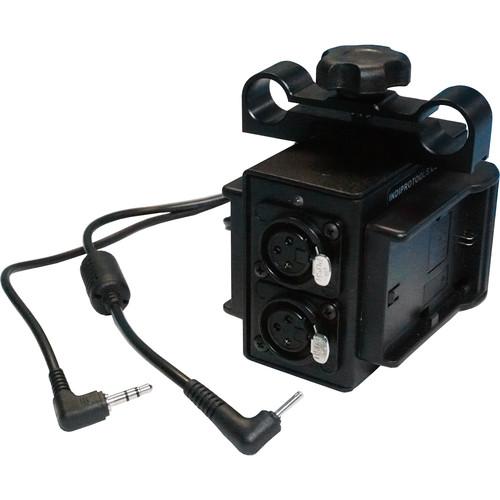

User Manual for IndiPRO Tools Dual LP-E6 Power Grid & XLR Audio Box for Blackmagic Pocket Cinema Camera Click to enlarge the picture
Contents of the user manual for the IndiPRO Tools Dual LP-E6 Power Grid
- Product category: Battery Mounting Plates IndiPRO Tools
- Brand: IndiPRO Tools
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IndiPRO Tools Battery Mounting Plates
|
User manual for the IndiPRO Tools Dual LP-E6 Power Grid contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IndiPRO Tools product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IndiPRO Tools user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IndiPRO Tools product will considerably shorten its lifespan!
|
Product description The Power Grid & XLR Audio Box with Dual LP-E6 Plates for Blackmagic Pocket Cinema Camera from IndiPRO Tools provides power to your Blackmagic Pocket Cinema Camera using two available Canon LP-E6 type batteries (not included), and converts two XLR inputs to a 3.5mm stereo audio output to provide two channels of audio directly to your camera. The Power Grid System incorporates a clamp so you can mount it to LWS 15mm support rods and it features a right-angle power plug to keep the cable neat and snug on the camera.
The Power Grid features a two-sided design that mounts the batteries one on each face, two batteries are required to supply the necessary voltage to power the camera. The batteries securely snap in to the plate, and you must press a small tab to remove them. A blue LED built into the plate lights up to indicate sufficient voltage to power for the camera. When used in conjunction with the camera's internal battery, you can hot swap the batteries without powering down the camera. - Powers your Blackmagic Pocket Camera using two available Canon LP-E6 type batteries.
- The unit incorporates two adapters from XLR to a 3.5mm stereo mini. This allows you to record the signal from two XLR mics in the camera via the stereo input.
- Integrated rod clamp for LWS (light weight standard) 15mm support rods, allows you to mount the Power Grid System in a variety of positions.
- Space saving battery plate that mounts available batteries, sold separately, face to face instead of side-by-side.
- Batteries securely snap into place, and a release tab must be depressed to remove them, which means that the batteries remain attached during normal use.
- A built-in blue power LED provides confirmation that the Power Grid System is supplying enough voltage to power the camera.
UPC: 859576003515 In the Box IndiPRO Tools Dual LP-E6 Power Grid & XLR Audio Box for Blackmagic Pocket Cinema Camera (15mm Rod Bracket) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IndiPRO Tools Dual LP-E6 Power Grid & XLR Audio Box for Blackmagic Pocket Cinema Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIndiPRO Tools PAE6BMP Specs | Battery Mounting | 2 x LP-E6 type | | Power Connector | 1 x Right angled for Blackmagic Pocket Cinema Camera | | Audio | From Mic
2 x 3-pin XLR female
To Camera
1 x 3.5 mm stereo mini jack | | Cable Length | Power: 20" (51 cm)
Audio: 20" (51 cm) | | Dimensions (H x L) | 3.5 x 3.1" (8.9 x 7.9 cm) | | Weight | 0.35 lb (158.8 g) | | | | Package Weight | 0.7 lb | | Box Dimensions (LxWxH) | 4.6 x 4.3 x 4.2" |
