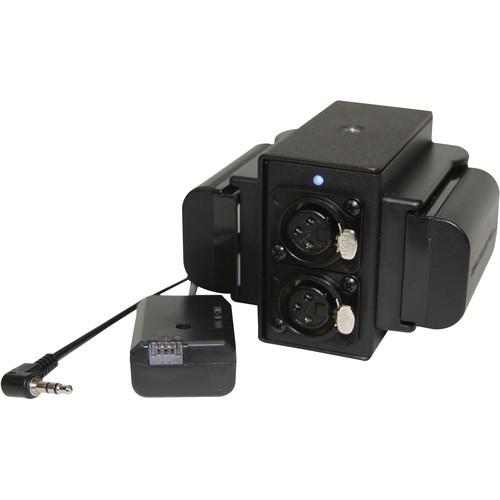

User Manual for IndiPRO Tools Dual LP-E6 Power Grid & XLR Audio Box with NP-FW50 Dummy Battery Click to enlarge the picture
Contents of the user manual for the IndiPRO Tools Dual LP-E6 Power Grid
- Product category: Battery Mounting Plates IndiPRO Tools
- Brand: IndiPRO Tools
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IndiPRO Tools Battery Mounting Plates
|
User manual for the IndiPRO Tools Dual LP-E6 Power Grid contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IndiPRO Tools product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IndiPRO Tools user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IndiPRO Tools product will considerably shorten its lifespan!
|
Product description This Power Grid & XLR Audio Box from IndiPRO Tools allows you to power Sony a7 Series, a6300, and a6500 cameras with two LP-E6 batteries for extended runtimes, as well as run two XLR audio channels directly to the camera. Only one battery is required to supply the necessary 7.2V to the camera, so you can hot-swap batteries without having to power the camera down, and you can keep shooting non-stop as long as you have spares. Batteries are sold separately.
The Power Grid features two LP-E6 battery plates, and connects to the camera via an NP-FW50 dummy battery at the end of an 18" cable. When you attach a battery to the battery plates, a blue LED lights up to confirm that power is being delivered to the camera. The Power Grid also has two 3-pin, XLR audio inputs, and a corresponding 3.5mm stereo mini jack at the end of another 18" cable. A built-in converter sends the two channels of XLR audio, such as from two XLR mics, directly to your camera.
A 1/4"-20 threaded mounting hole is available on top and one on the bottom, allowing you to attach the Power Grid to your rig using any of various optional mounting options, such as a rod clamp. Attached on the back of your rig, the Power Grid can also be used as a counterweight. - Key Features
-
- Dual LP-E6 battery plates to NP-FW50 dummy battery
- Hot-swappable
- Dual 3-pin XLR audio inputs to 3.5mm stereo mini jack
- 18" cable length
- One 1/4"-20 threaded mounting hole on the top, one on the bottom
- Aircraft grade aluminum housing
UPC: 685248988268 In the Box IndiPRO Tools Dual LP-E6 Power Grid & XLR Audio Box with NP-FW50 Dummy Battery Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IndiPRO Tools Dual LP-E6 Power Grid & XLR Audio Box with NP-FW50 Dummy Battery in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIndiPRO Tools PSSA7S Specs | Battery Support | 2 x LP-E6 battery plates (hot-swapping supported) | | Audio Support | 2 x 3-pin XLR female ports | | Camera Connections | NP-FW50 dummy battery
3.5 mm stereo audio mini jack | | Cable Length | Dummy Battery: 18" (45 cm)
3.5 mm Jack: 18" (45 cm) | | Material of Construction | Aircraft grade aluminum housing, PVC battery plates | | Mount Type | 2 x 1/4"-20 threaded holes (one on top, one on bottom) | | Dimensions | 3.5 x 3.1" (9 x 8 cm) | | Weight | 0.4 lb (158.8 g) | | | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 5.7 x 5.4 x 3.3" |
