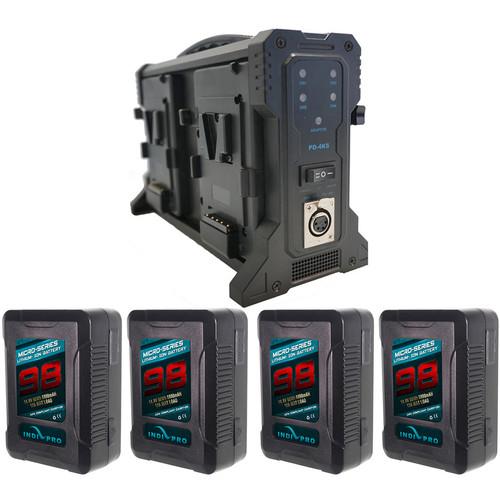

User Manual for IndiPRO Tools Micro-Series 98 4-Battery Kit with Quad Pro Charger

• Product category: On Camera Batteries IndiPRO Tools
• Brand: IndiPRO Tools
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for IndiPRO Tools On Camera Batteries

Product description

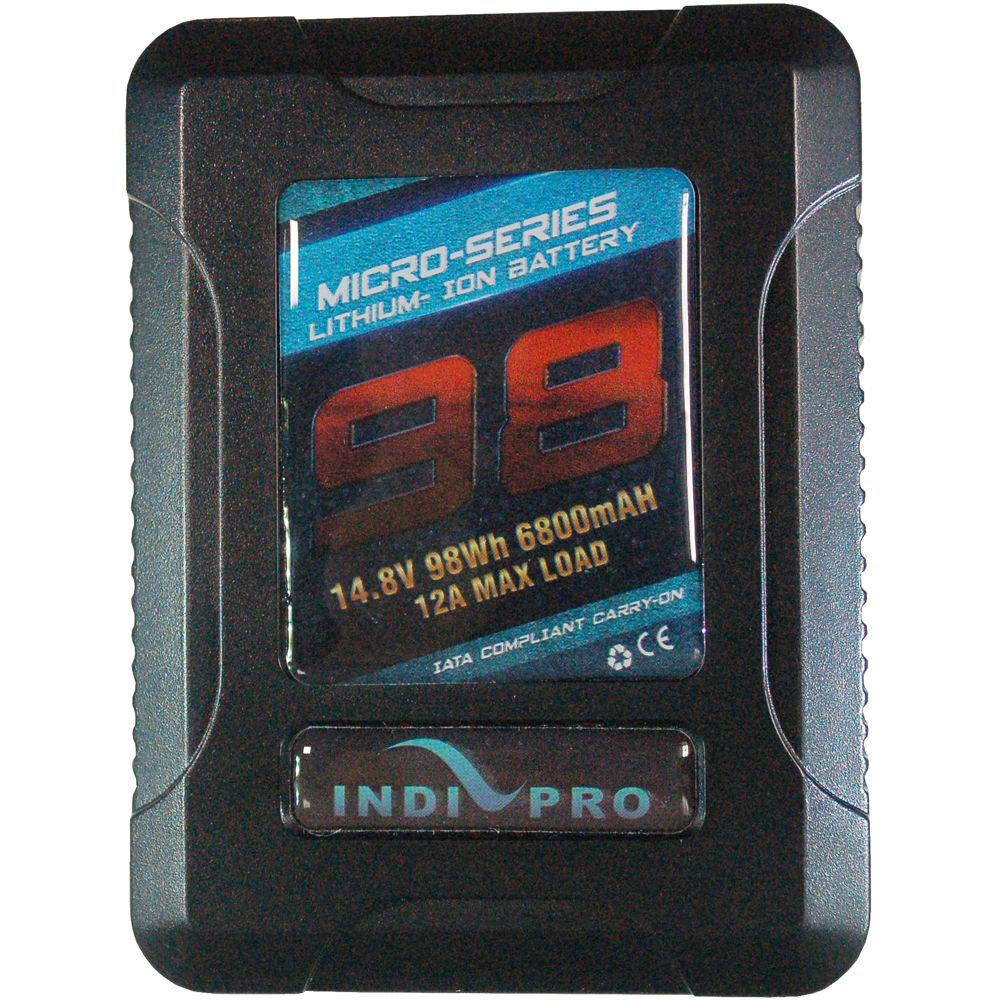

• Micro-Series V-Mount Li-Ion Battery (98Wh) Its small size belies the power of the IndiPRO Tools 98Wh Micro-Series V-Mount Li-Ion Battery, which can handle power draws of up to 12A. This battery is suitable for use on smaller camera bodies, and for a variety of applications that benefit from a small footprint that doesn't sacrifice performance. Its 6.8Ah capacity and 14.8V output are sufficient to power most professional cameras.

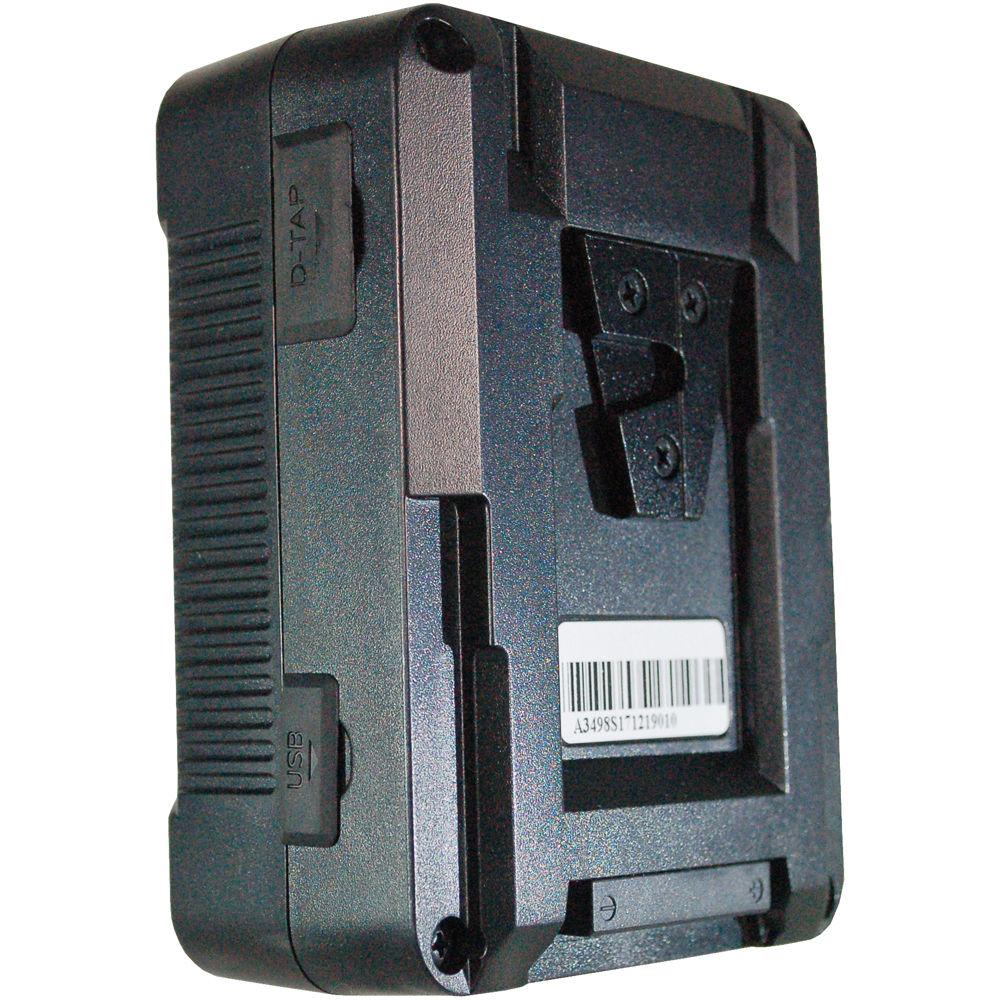

  In addition to the V-mount power output for powering cameras and lights, this Micro-Series battery features both a D-Tap and a USB power output. The D-Tap output can be used to power a light source, monitor, recorder, or other device on your rig while the USB port gives you a convenient way of charging your smartphone and USB accessories while you shoot. A five-LED gauge displays the battery's remaining power.
  • High capacity, small form factor
  • Integrated D-Tap and USB accessory power outlets
  • Battery supports a maximum power draw of 12A
  UPC: 651748820261

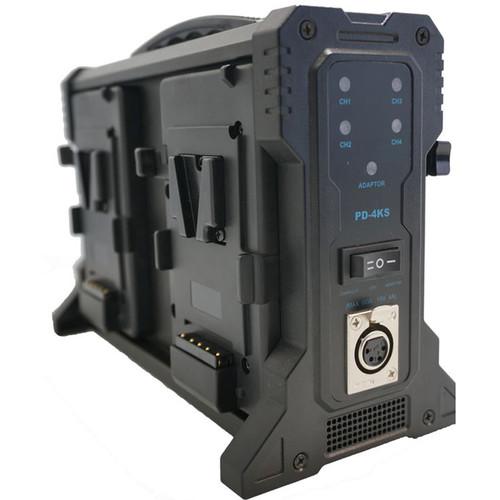

• Quad Pro Battery Charger (V-Mount) Simultaneously charge up to four lithium-ion V-Mount batteries with the dedicated IndiPRO Tools Quad Pro Battery Charger. It delivers 2.5A of power per channel whether charging a single or multiple batteries, and also offers a 4-pin XLR output for powering cameras and lights from an AC outlet.

  The Quad Pro has a portable design, with an ergonomic handle providing for easy transport. LED status indicators let you better manage your batteries, and a power switch is available for turning the charger off when not in use while still keeping it plugged in. The Quad Pro supports 100-240V power input so you can use it worldwide. An XLR cable also comes included.
  Key Features
  • • Simultaneous charging of up to four lithium-ion V-Mount batteries
    • 2.5A per channel
    • 4-pin XLR DC power output
    • Ergonomic handle
    • LED status indicators
    • Power switch
    • 100-240V power input
    • XLR cable included
  UPC: 741533994731

• Limited 2-Year Warranty

• 4-Pin XLR Cable

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Micro-Series V-Mount Li-Ion Battery (98Wh)

  Mount / Series Type	V-Mount
  Chemistry	Lithium-Ion
  Capacity (Wh)	98 Wh
  Amp-Hours	6.8 Ah
  Output Voltage	14.8 VDC
  Maximum Load	12 A
  Accessory Port	1 x D-Tap 1 x USB Type-A
  Dimensions (W x H x D)	4.7 x 3.6 x 2.1" / 11.9 x 9.1 x 5.3 cm
  Weight	1.6 lb / 0.7 kg

  Box Dimensions (LxWxH)	5.2 x 4.2 x 2.7"

• Quad Pro Battery Charger (V-Mount)

  Number of Bays	4
  Mount Type	V-Mount
  Supported Chemistry	Lithium-ion
  AC Input	100-240 VAC, 50-60 Hz, 3.8 A
  Output Charging Power	16.8 V, 2.5 A per channel (whether single or multiple batteries)
  4-Pin XLR DC Output	15 VDC, 4.0 A from AC power outlet
  Dimensions	10 x 4.5 x 7" (25 x 11 x 18 cm)
  Weight	5.9 lb (2.7 kg)

  Box Dimensions (LxWxH)	12.35 x 10.95 x 6.75"
