User manual
IndiPRO Tools Micro-Series 98 4-Battery Kit

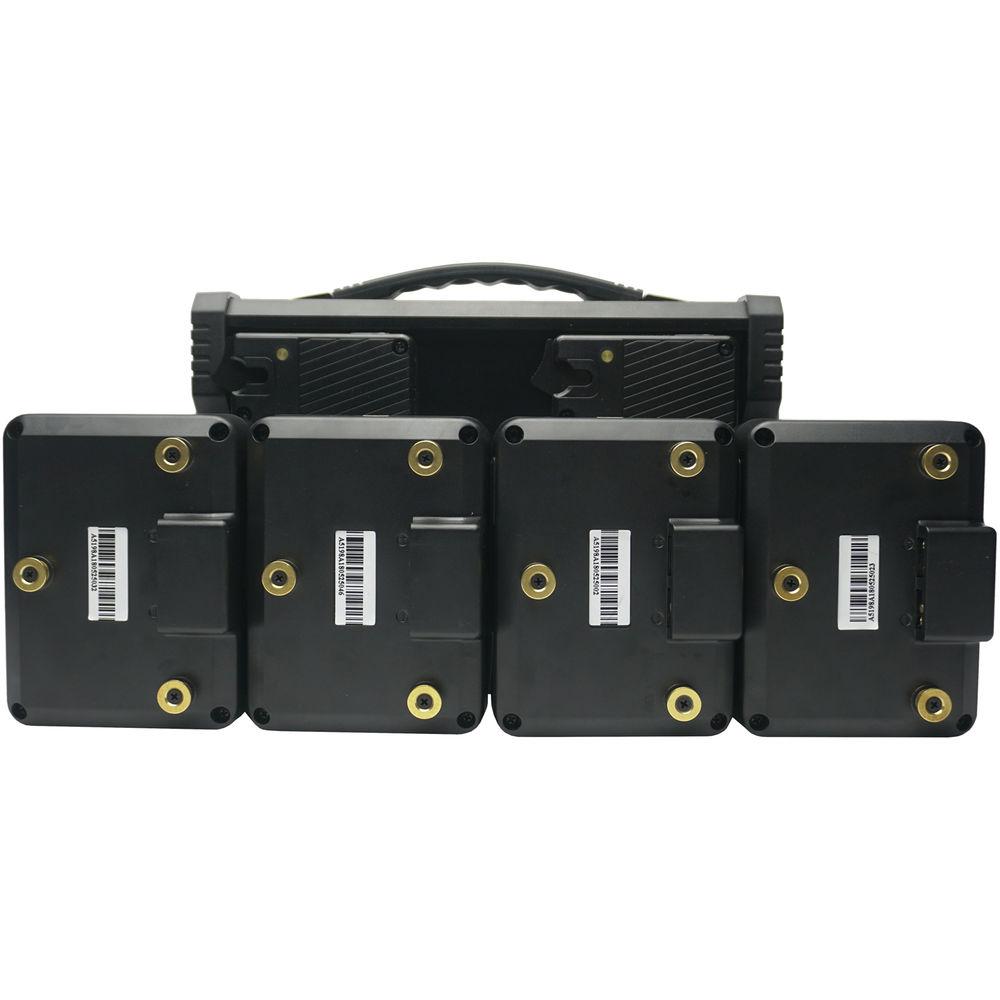

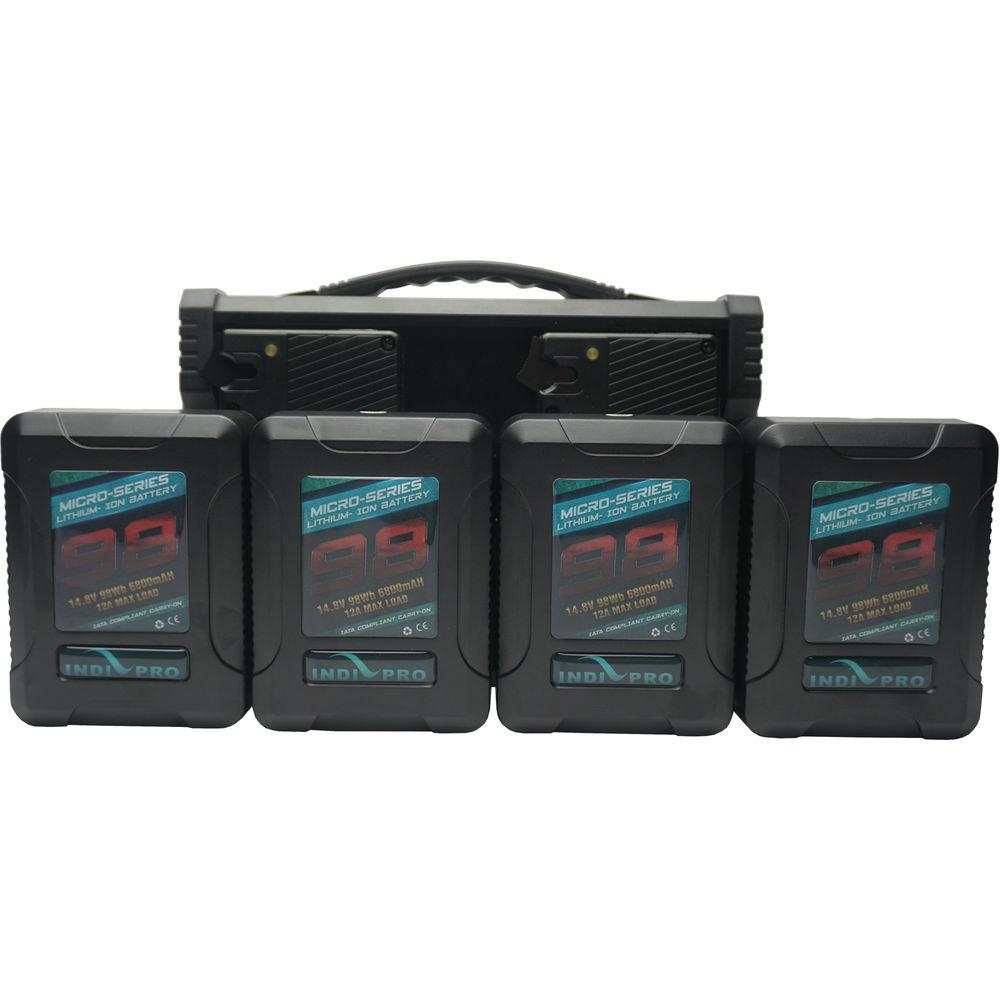

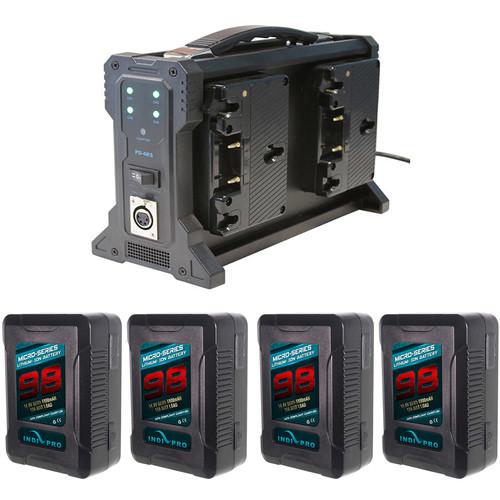

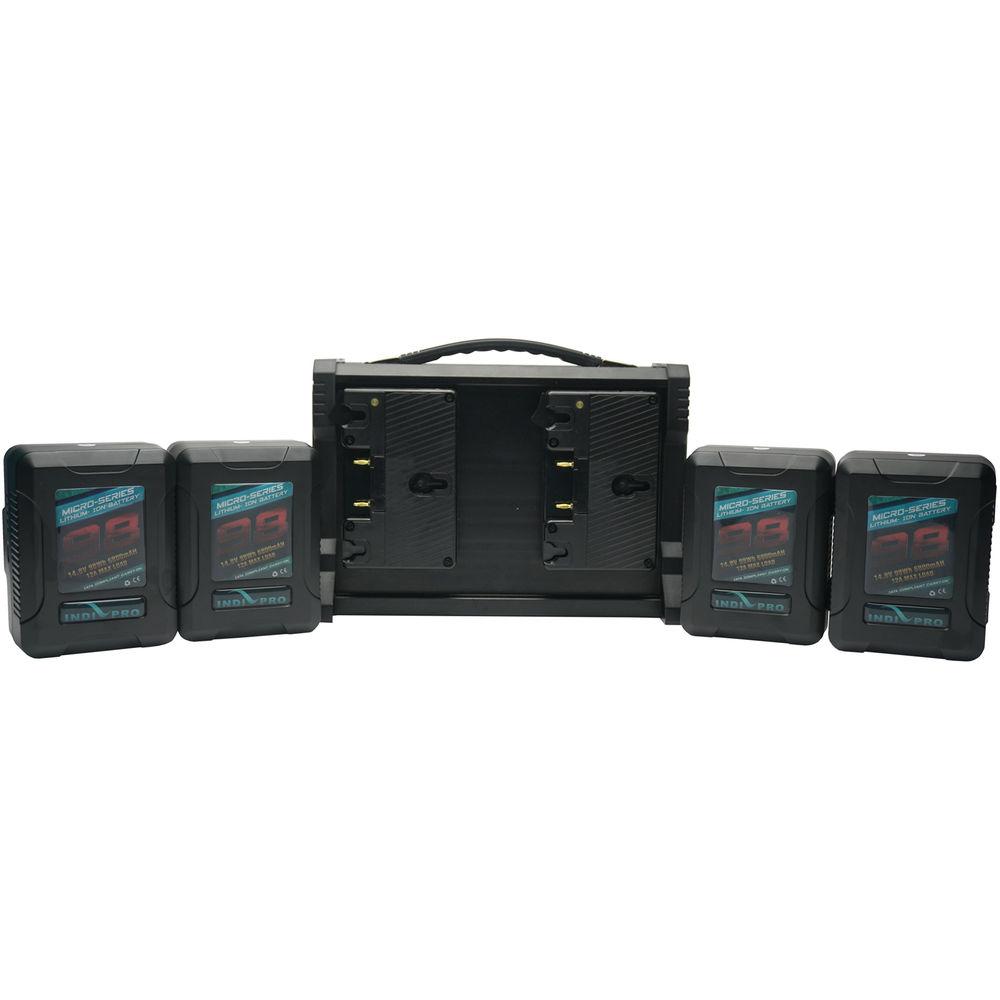

User Manual for IndiPRO Tools Micro-Series 98 4-Battery Kit with Quad Pro Charger

• Product category: On Camera Batteries IndiPRO Tools
• Brand: IndiPRO Tools
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for IndiPRO Tools On Camera Batteries

Product description

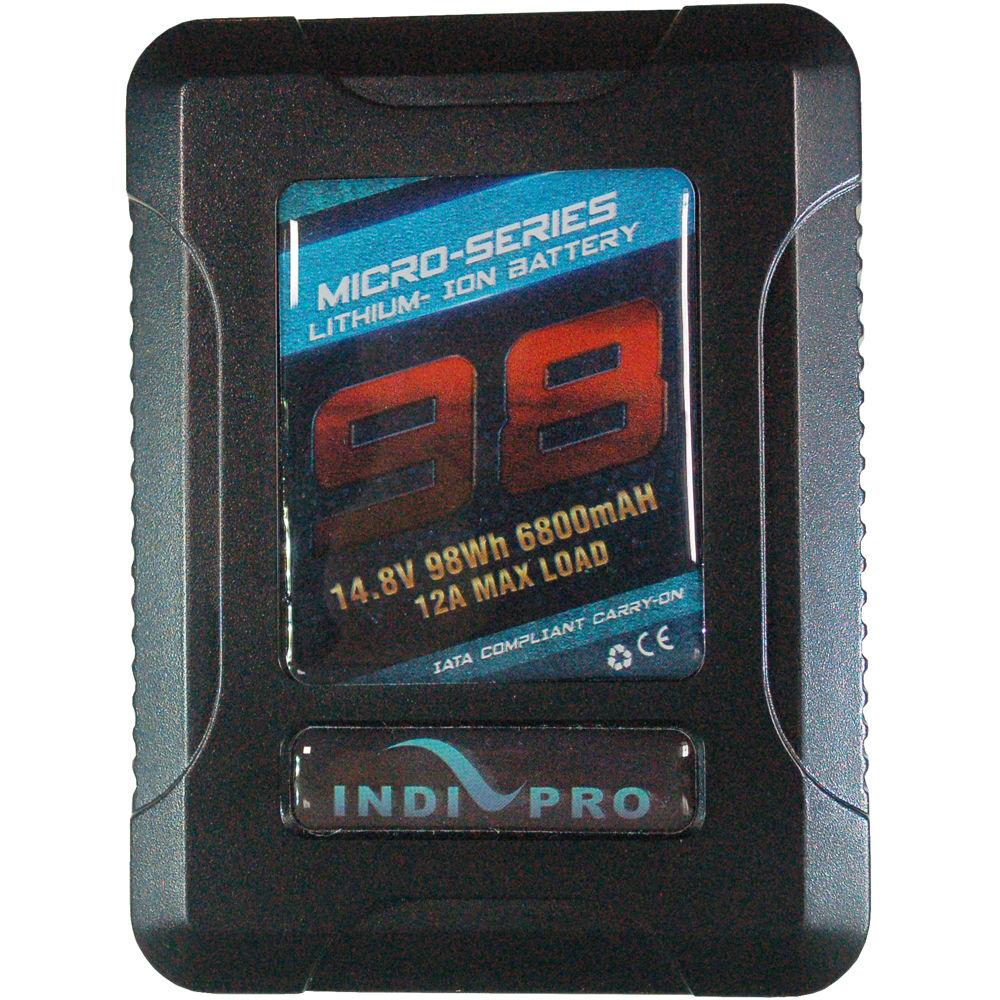

• Micro-Series Gold Mount Li-Ion Battery (98Wh) Its small size belies the power of the IndiPRO Tools 98Wh Micro-Series Gold Mount Li-Ion Battery, which can handle power draws of up to 12A. This battery is suitable for use on smaller camera bodies, and for a variety of applications that benefit from a small footprint that doesn't sacrifice performance. Its 6.8Ah capacity and 14.8V output are sufficient to power most professional cameras.

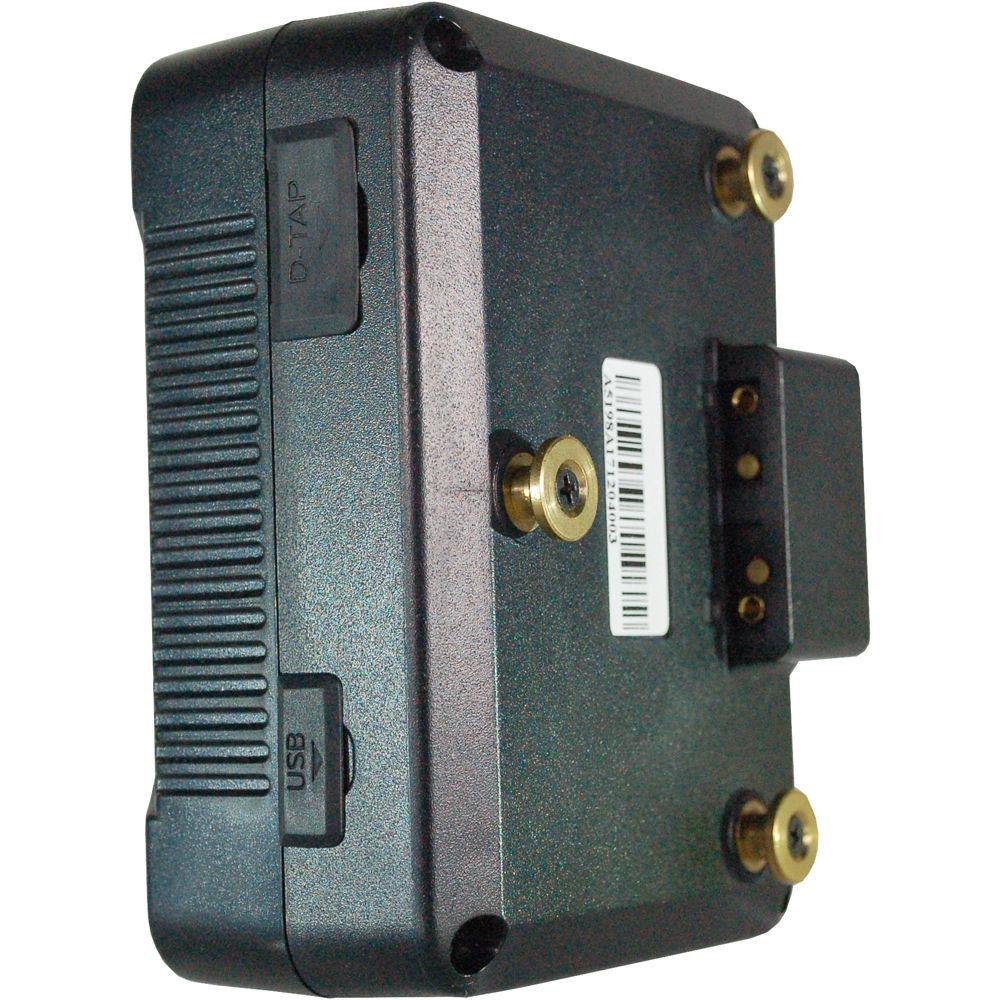

  In addition to the Gold mount power output for powering cameras and lights, this Micro-Series battery features both a D-Tap and a USB power output. The D-Tap output can be used to power a light source, monitor, recorder, or other device on your rig while the USB port gives you a convenient way of charging your smartphone and USB accessories while you shoot. A five-LED gauge displays the battery's remaining power.
  • High capacity, small form factor
  • Integrated D-Tap and USB accessory power outlets
  • Battery supports a maximum power draw of 12A
  UPC: 651748820872

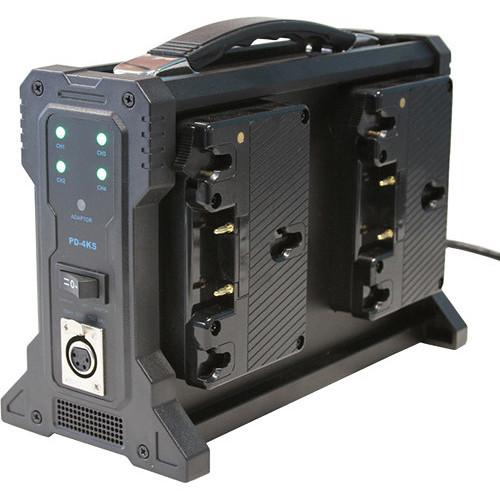

• Quad Pro Battery Charger (Gold Mount) Simultaneously charge up to four lithium-ion Gold Mount batteries with the dedicated IndiPRO Tools Quad Pro Battery Charger. It delivers 2.5A of power per channel whether charging a single or multiple batteries, and also offers a 4-pin XLR output for powering cameras and lights from an AC outlet.

  The Quad Pro has a portable design, with an ergonomic handle providing for easy transport. LED status indicators let you better manage your batteries, and a power switch is available for turning the charger off when not in use while still keeping it plugged in. The Quad Pro supports 100-240V power input so you can use it worldwide. An XLR cable also comes included.
  Key Features
  • • Simultaneous charging of up to four lithium-ion Gold Mount batteries
    • 2.5A per channel
    • 4-pin XLR DC power output
    • Ergonomic handle
    • LED status indicators
    • Power switch
    • 100-240V power input
    • XLR cable included
  UPC: 741533994922

• Limited 2-Year Warranty

• 4-Pin XLR Cable

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Micro-Series Gold Mount Li-Ion Battery (98Wh)

  Mount / Series Type	Gold Mount
  Chemistry	Lithium-Ion
  Capacity (Wh)	98 Wh
  Amp-Hours	6.8 Ah
  Output Voltage	14.8 VDC
  Maximum Load	12 A
  Accessory Port	1 x D-Tap 1 x USB Type-A
  Dimensions (W x H x D)	4.7 x 3.6 x 2.1" / 11.9 x 9.1 x 5.3 cm
  Weight	1.6 lb / 0.7 kg

  Box Dimensions (LxWxH)	5.15 x 4.2 x 2.55"

• Quad Pro Battery Charger (Gold Mount)

  Number of Bays	4
  Mount Type	Gold Mount
  Supported Chemistry	Lithium-ion
  AC Input	100-240 VAC, 50-60 Hz, 3.8 A
  Output Charging Power	16.8 V, 2.5 A per channel (whether single or multiple batteries)
  4-Pin XLR DC Output	15 VDC, 4.0 A from AC power outlet
  Dimensions	10 x 4.5 x 7" (25 x 11 x 18 cm)
  Weight	5.9 lb (2.7 kg)

  Box Dimensions (LxWxH)	12.4 x 10.8 x 6.8"
