User Manual for IndiPRO Tools Micro-Series 98Wh Li-Ion Gold Mount Battery and D-Tap Pro Charger Kit Click to enlarge the picture
Contents of the user manual for the IndiPRO Tools Micro-Series 98Wh Li-Ion Gold Mount
- Product category: On Camera Batteries IndiPRO Tools
- Brand: IndiPRO Tools
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IndiPRO Tools On Camera Batteries
 |
User manual for the IndiPRO Tools Micro-Series 98Wh Li-Ion Gold Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IndiPRO Tools product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IndiPRO Tools user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IndiPRO Tools product will considerably shorten its lifespan!
|

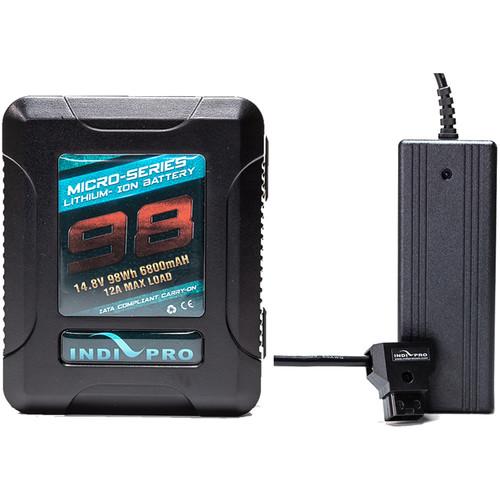

Product description Don't let the small size of this kit from IndiPRO Tools fool you; it provides full-size performance, and includes a Micro-Series 98Wh Gold Mount Li-Ion Battery and a D-Tap Pro Battery Charger. The battery is compact, yet outputs 14.8 VDC, has a 6.8Ah capacity, and supports power draws of up to 12 amps. The charger is small and portable, and charges your battery via its D-Tap output.

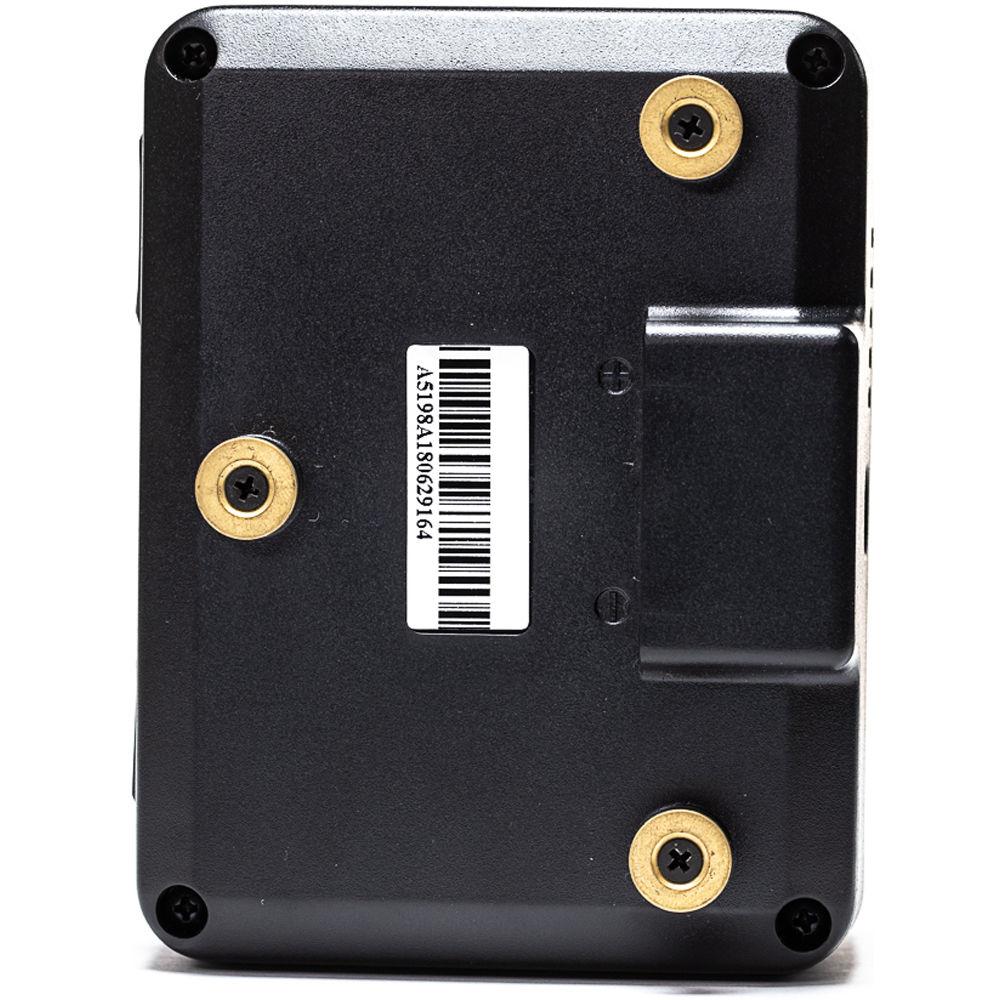

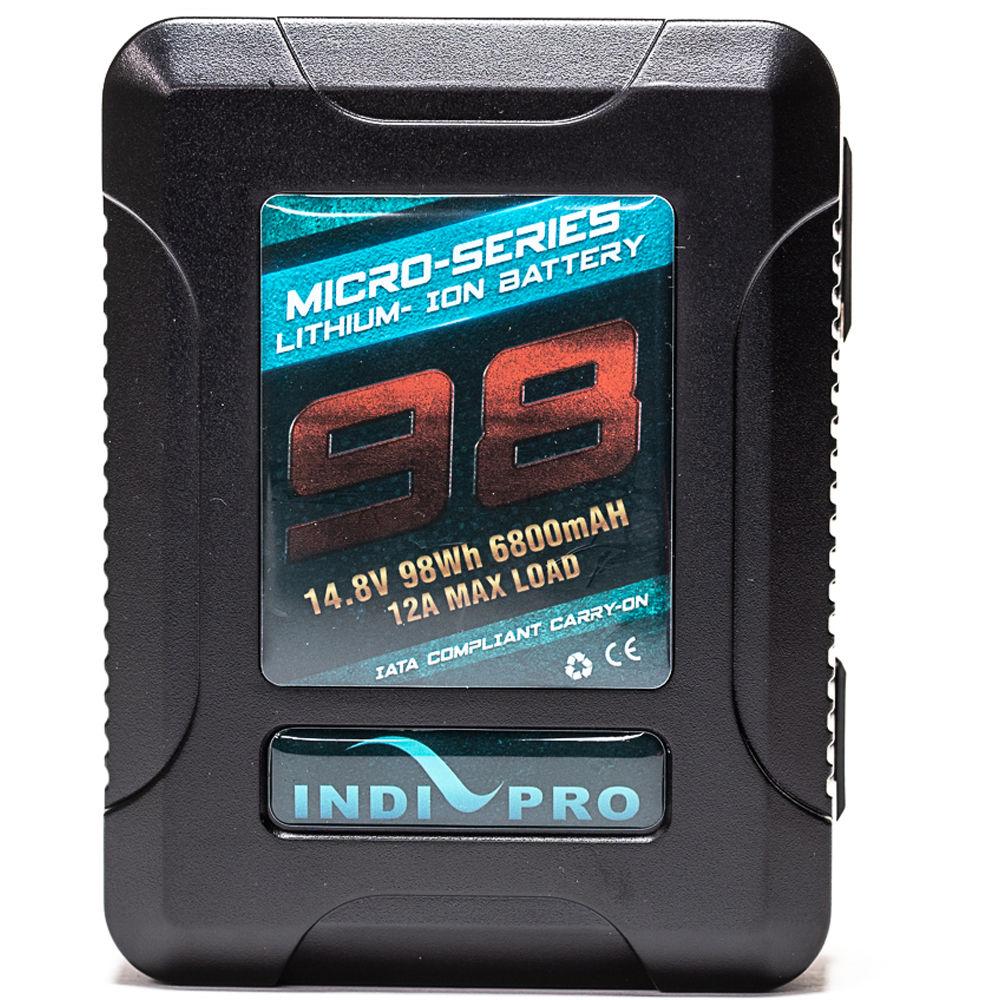

Capable of powering professional cameras and light fixtures, the battery features both a D-Tap and USB power output port for accessories. The Gold mount is the main power output, and is common to many cameras, camera power systems, and larger LED light fixtures. The charger is a worldwide power supply, compatible with AC voltage from 100 to 240, and 50/60 Hz, so you can use it virtually anywhere you need to shoot. See below for more information on the battery and charger included in this kit. - Micro-Series Gold Mount Li-Ion Battery (98Wh) Its small size belies the power of the IndiPRO Tools 98Wh Micro-Series Gold Mount Li-Ion Battery, which can handle power draws of up to 12A. This battery is suitable for use on smaller camera bodies, and for a variety of applications that benefit from a small footprint that doesn't sacrifice performance. Its 6.8Ah capacity and 14.8V output are sufficient to power most professional cameras.

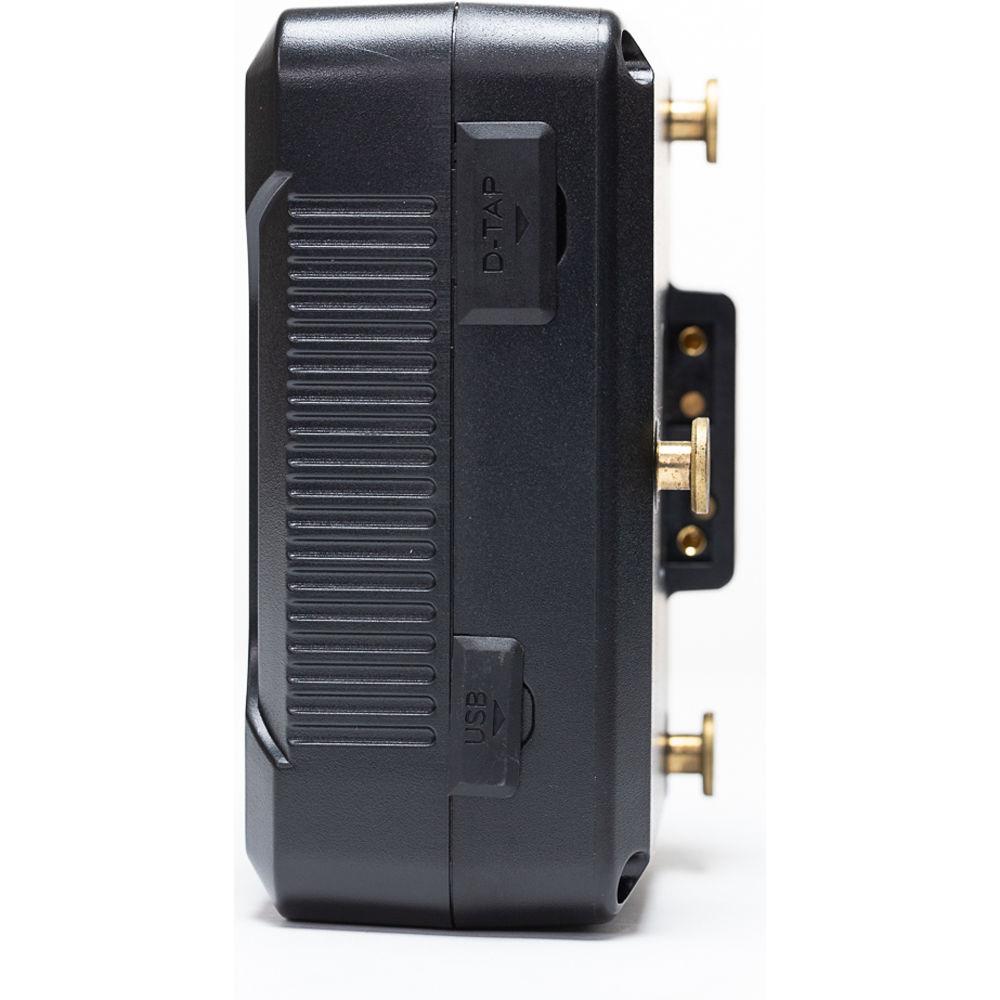

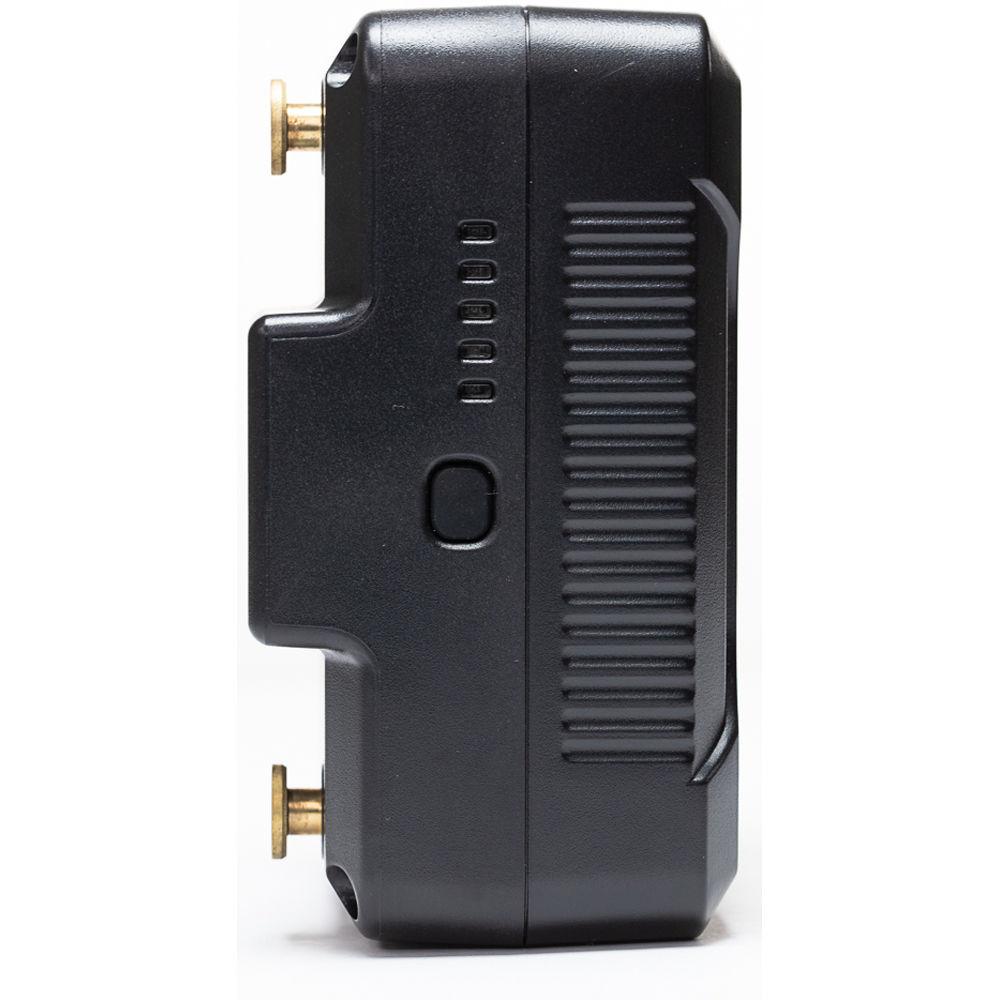

In addition to the Gold mount power output for powering cameras and lights, this Micro-Series battery features both a D-Tap and a USB power output. The D-Tap output can be used to power a light source, monitor, recorder, or other device on your rig while the USB port gives you a convenient way of charging your smartphone and USB accessories while you shoot. A five-LED gauge displays the battery's remaining power. - High capacity, small form factor
- Integrated D-Tap and USB accessory power outlets
- Battery supports a maximum power draw of 12A

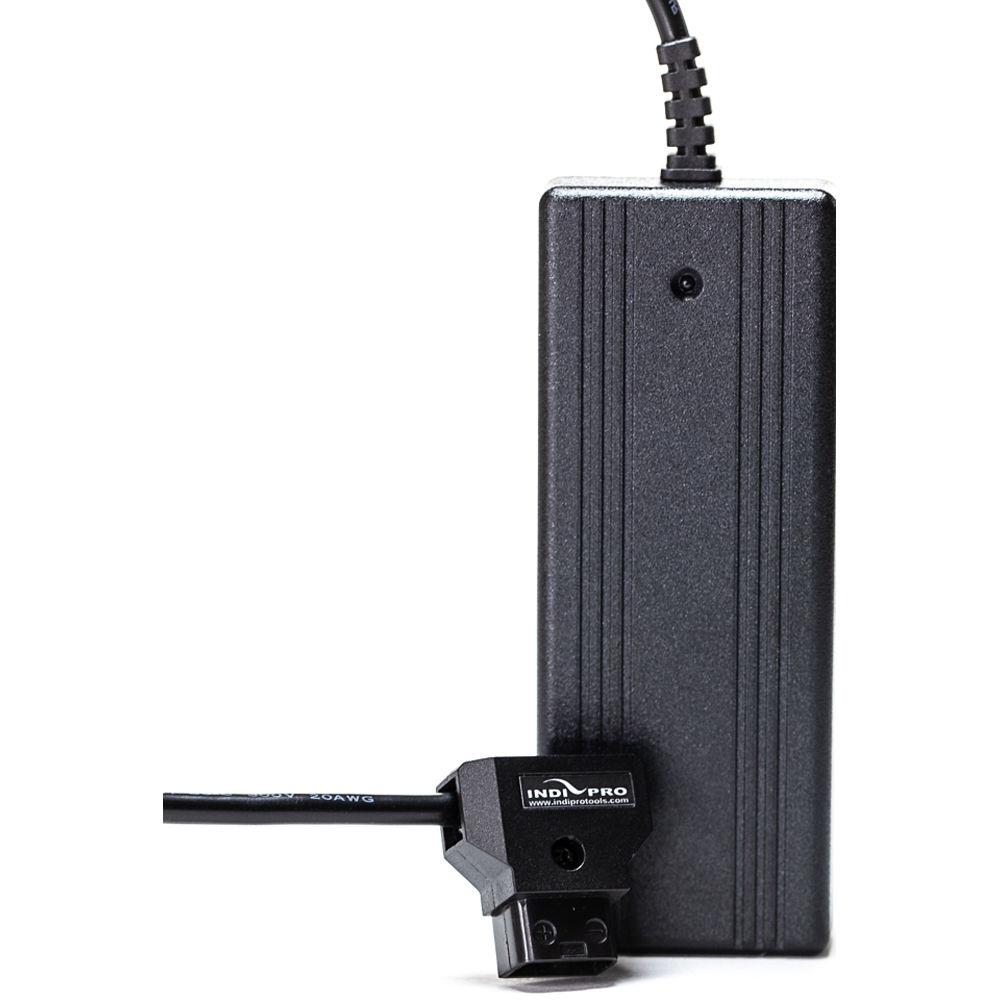

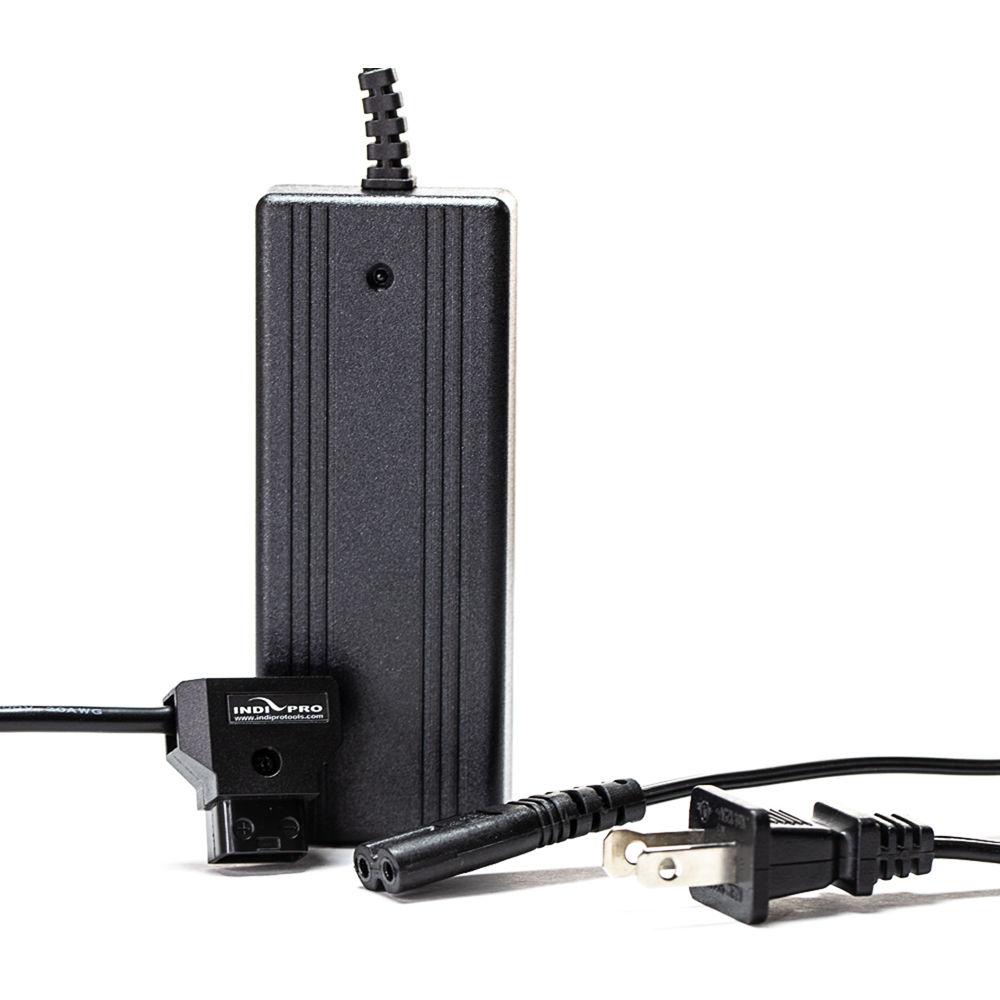

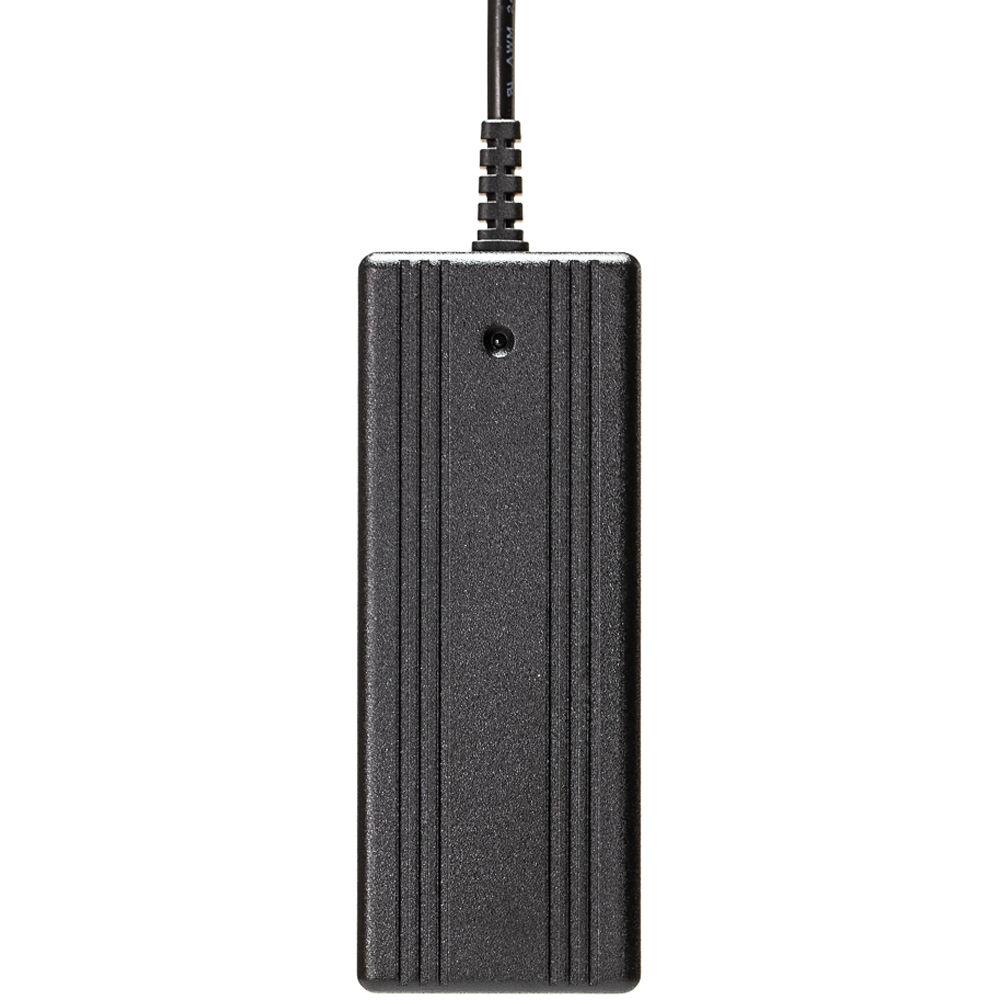

UPC: 651748820872 - D-Tap Pro Battery Charger (16.8V, 2.5A) The 2.5A IndiPRO Tools D-Tap Pro Battery Charger allows you to conveniently charge select V-Mount or Gold Mount batteries that can be charged via D-Tap from an AC wall outlet. It features a D-Tap connector that plugs right into the battery. Delivering 16.8V and 2.5A, it charges a 95Wh battery in approximately 3 hours. UPC: 741533994120
In the Box Bundle Items Micro-Series Gold Mount Li-Ion Battery (98Wh) ydvbbcqscfdbxryqxrdwbf D-Tap Pro Battery Charger (16.8V, 2.5A) Table of Contents
|
Upload User Manual
Have you got an user manual for the IndiPRO Tools Micro-Series 98Wh Li-Ion Gold Mount Battery and D-Tap Pro Charger Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Micro-Series Gold Mount Li-Ion Battery (98Wh)
| Mount / Series Type | Gold Mount | | Chemistry | Lithium-Ion | | Capacity (Wh) | 98 Wh | | Amp-Hours | 6.8 Ah | | Output Voltage | 14.8 VDC | | Maximum Load | 12 A | | Accessory Port | 1 x D-Tap
1 x USB Type-A | | Dimensions (W x H x D) | 4.7 x 3.6 x 2.1" / 11.9 x 9.1 x 5.3 cm | | Weight | 1.6 lb / 0.7 kg | | | | Box Dimensions (LxWxH) | 5.15 x 4.2 x 2.55" | - D-Tap Pro Battery Charger (16.8V, 2.5A)
| Connector 1 | US 2-prong AC power plug | | Connector 2 | D-Tap male | | Voltage | 16.8 V, 2.5 A | | Cable Length | 40" (102 cm) | | Charge Time | Charges 95 Wh battery in approx. 3 hours | | | | Box Dimensions (LxWxH) | 7.6 x 4.9 x 1.7" |
