User Manual for IndiPRO Tools Micro-Series 98Wh Li-Ion V-Mount Battery with Dual V-Mount Battery Charger Kit Click to enlarge the picture
Contents of the user manual for the IndiPRO Tools Micro-Series 98Wh Li-Ion V-Mount
- Product category: On Camera Batteries IndiPRO Tools
- Brand: IndiPRO Tools
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IndiPRO Tools On Camera Batteries
 |
User manual for the IndiPRO Tools Micro-Series 98Wh Li-Ion V-Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IndiPRO Tools product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IndiPRO Tools user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IndiPRO Tools product will considerably shorten its lifespan!
|

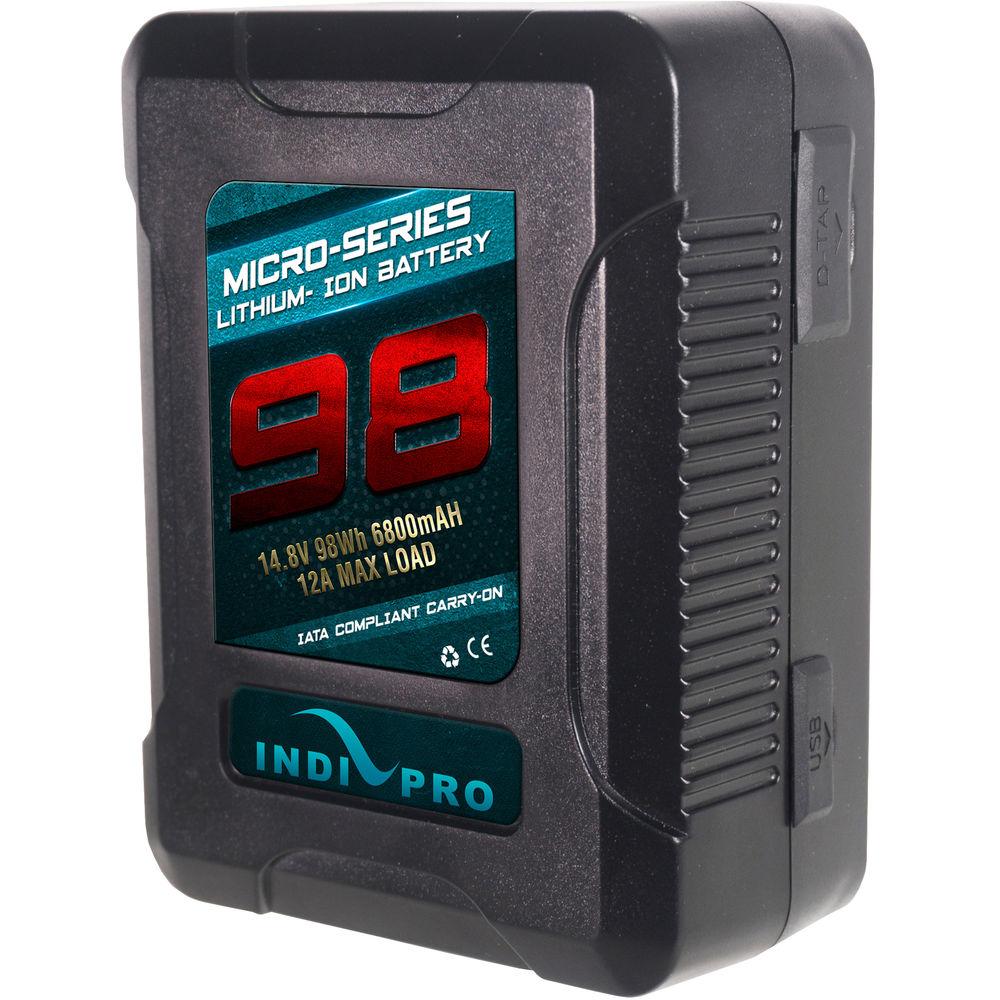

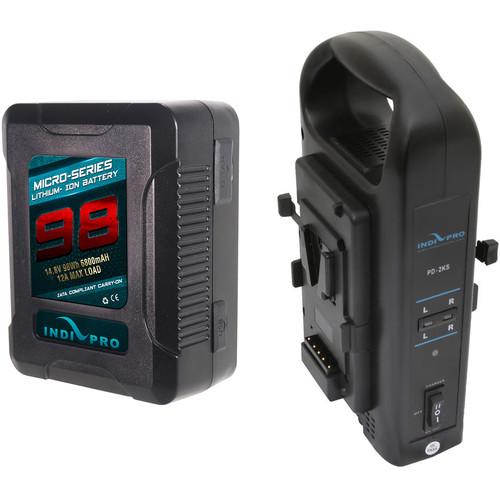

Product description This IndiPRO Micro-Series 98Wh Li-Ion V-Mount Battery with Dual V-Mount Battery Charger Kit includes one IndiPRO Tools Micro-Series 98Wh V-Mount Li-Ion Battery and a V-Mount Dual Battery Charger with XLR Output. The battery features a 6.6Ah capacity and 14.8V output, which are sufficient to power most professional cameras. The built-in 4-LED power gauge lets you see power remaining.
The two-bay charger can simultaneously charge two batteries, and it incorporates a 4-pin XLR power out that can be used to provide camera power. The charger's built-in capacity management system ensures that it will charge your batteries in the shortest amount of time possible. An integrated carry handle makes the charger easy to transport with or without batteries attached. The 3-position power switch lets you select form charge mode, DC output mode, and off. - Micro-Series V-Mount Li-Ion Battery (98Wh) Its small size belies the power of the IndiPRO Tools 98Wh Micro-Series V-Mount Li-Ion Battery, which can handle power draws of up to 12A. This battery is suitable for use on smaller camera bodies, and for a variety of applications that benefit from a small footprint that doesn't sacrifice performance. Its 6.8Ah capacity and 14.8V output are sufficient to power most professional cameras.

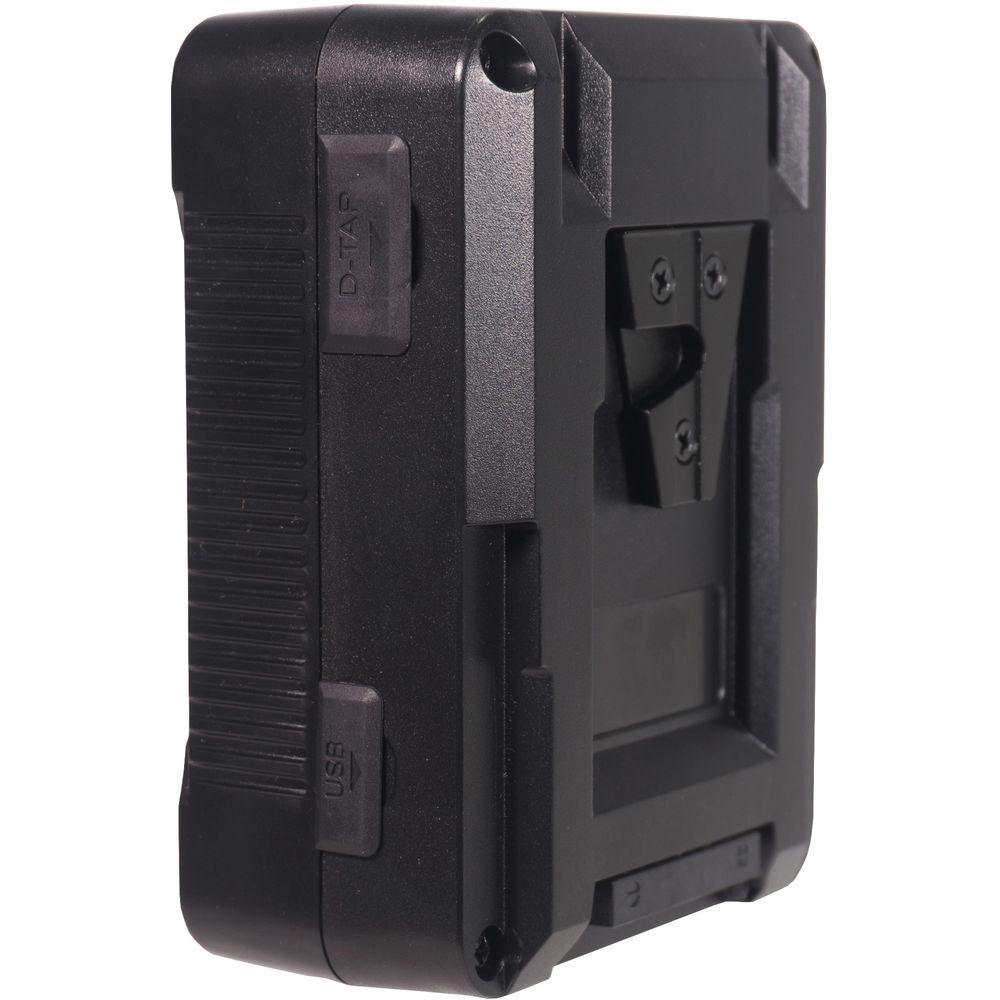

In addition to the V-mount power output for powering cameras and lights, this Micro-Series battery features both a D-Tap and a USB power output. The D-Tap output can be used to power a light source, monitor, recorder, or other device on your rig while the USB port gives you a convenient way of charging your smartphone and USB accessories while you shoot. A five-LED gauge displays the battery's remaining power. - High capacity, small form factor
- Integrated D-Tap and USB accessory power outlets
- Battery supports a maximum power draw of 12A

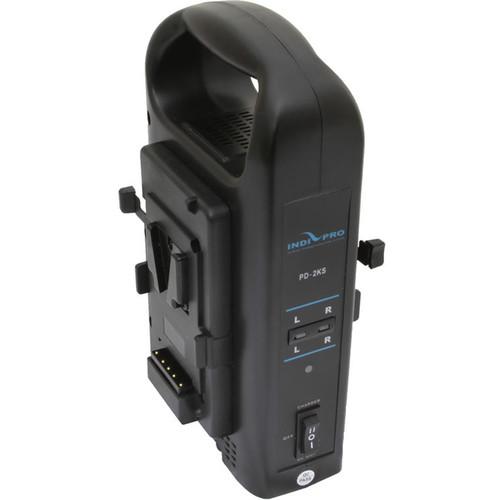

UPC: 651748820261 - V-Mount Dual Battery Charger with XLR Output The portable V-Mount Dual Battery Charger with XLR Output from IndiPRO Tools features a 4-pin XLR output for powering accessories. When in charging mode, an integrated capacity-management system provides the fastest charge possible. This lightweight charger is designed with a built-in carry handle, battery release levers, and a charge/DC-out/off switch.
Features - Charge up to two V-Mount batteries simultaneously
- 4-pin XLR DC output for powering accessories
- Lightweight, portable design with integrated top-handle
- 60 W (15 VDC, 4.0 A) DC output power
UPC: 741533994526 In the Box Bundle Items Micro-Series V-Mount Li-Ion Battery (98Wh) V-Mount Dual Battery Charger with XLR Output Table of Contents
|
Upload User Manual
Have you got an user manual for the IndiPRO Tools Micro-Series 98Wh Li-Ion V-Mount Battery with Dual V-Mount Battery Charger Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Micro-Series V-Mount Li-Ion Battery (98Wh)
| Mount / Series Type | V-Mount | | Chemistry | Lithium-Ion | | Capacity (Wh) | 98 Wh | | Amp-Hours | 6.8 Ah | | Output Voltage | 14.8 VDC | | Maximum Load | 12 A | | Accessory Port | 1 x D-Tap
1 x USB Type-A | | Dimensions (W x H x D) | 4.7 x 3.6 x 2.1" / 11.9 x 9.1 x 5.3 cm | | Weight | 1.6 lb / 0.7 kg | | | | Box Dimensions (LxWxH) | 5.2 x 4.2 x 2.7" | - V-Mount Dual Battery Charger with XLR Output
| Mount Type | V-Mount | | Power Requirements | 90-242 VAC, 47-63 Hz | | Maximum DC Output | 60W (15 VDC, 4.0 A) | | XLR Output | 16.8 VDC, 3.0 A | | Dimensions | 4.6 x 8.9 x 5.5" (11.7 x 22.6 x 14 cm) | | Weight | 2.2 lb (1 kg) | | | | Box Dimensions (LxWxH) | 10.9 x 9.0 x 5.3" |
