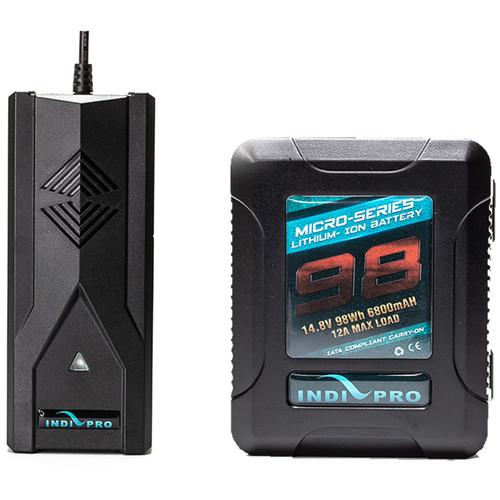

Product description This Micro-Series 98Wh Pro Battery Supercharger Kit from IndiPRO Tools includes a Micro-Series 98Wh Gold mount Li-ion battery and a D-Tap to Pro Battery Supercharger, providing full-size performance with a small-size kit. The battery outputs 14.8 VDC, has a 6.8Ah capacity, and supports power draws of up to 12 amps.

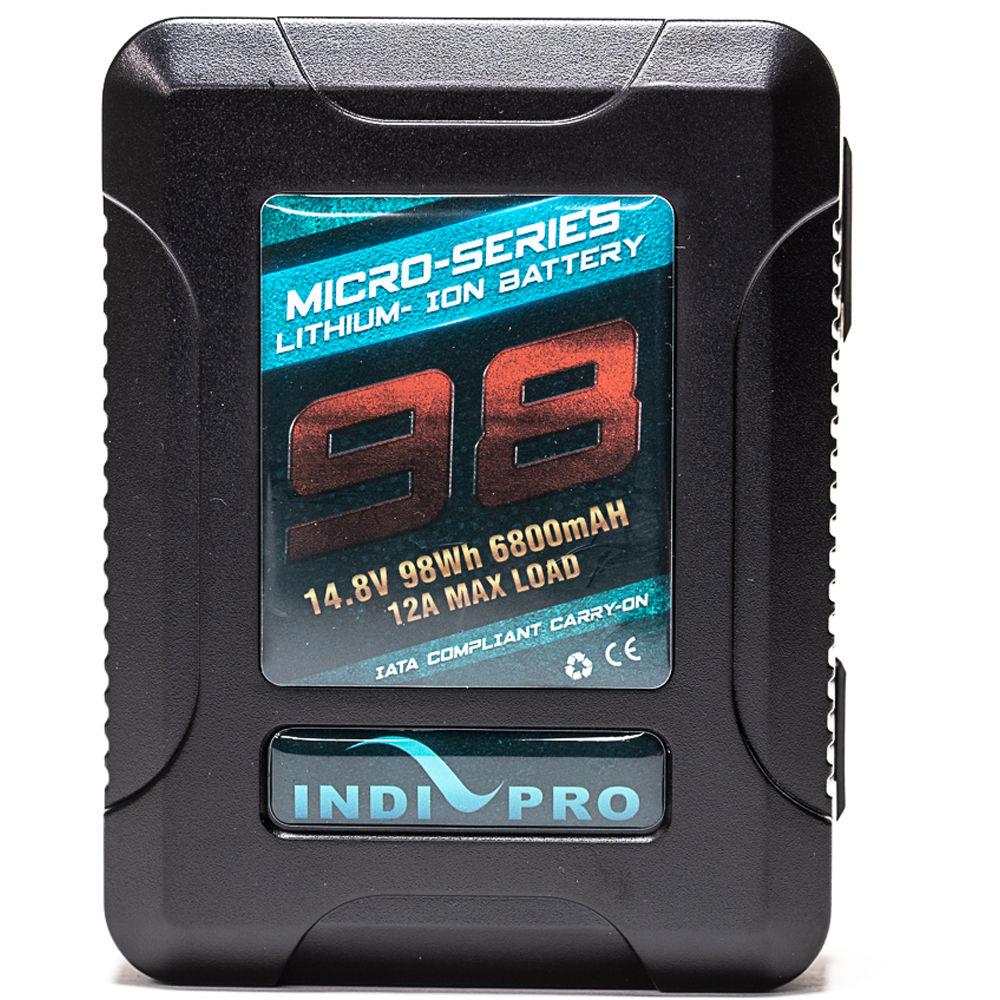

The intelligent charger charges your battery via its D-Tap output and automatically adjusts to the capacity of the battery. It features an automatic heat-triggered fan, an LED display, and protection against short-circuiting. With an 8A and 16.8V output, the Supercharger charges a 95Wh battery in approximately 1.25 hours and a 160Wh unit in about 2 hours. - Micro-Series Gold Mount Li-Ion Battery (98Wh) Its small size belies the power of the IndiPRO Tools 98Wh Micro-Series Gold Mount Li-Ion Battery, which can handle power draws of up to 12A. This battery is suitable for use on smaller camera bodies, and for a variety of applications that benefit from a small footprint that doesn't sacrifice performance. Its 6.8Ah capacity and 14.8V output are sufficient to power most professional cameras.

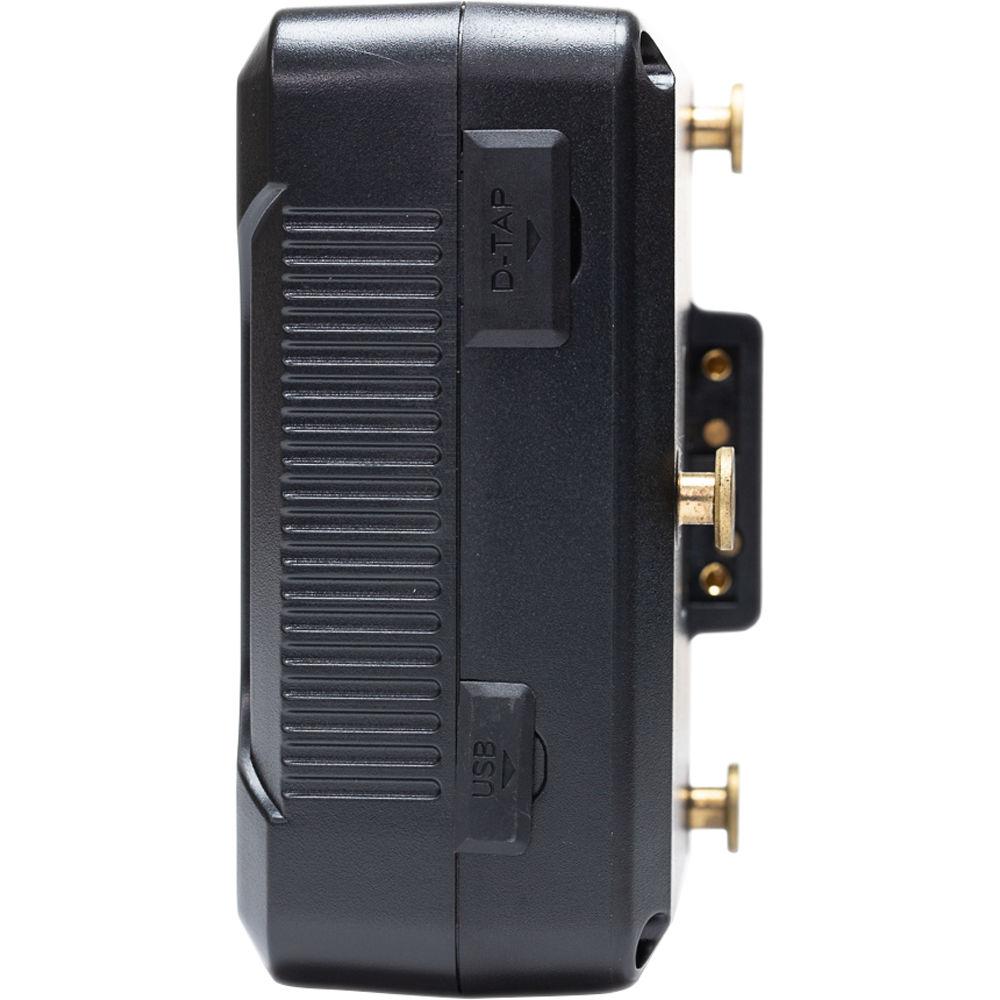

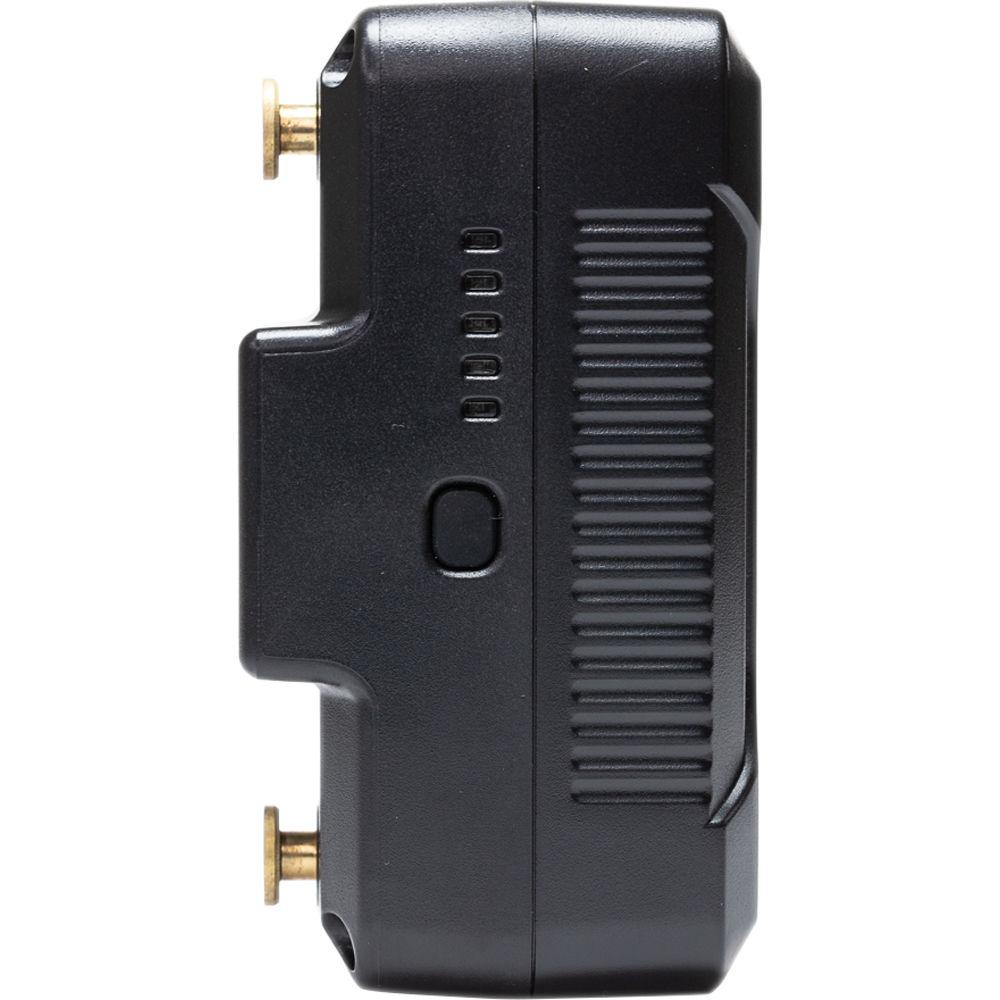

In addition to the Gold mount power output for powering cameras and lights, this Micro-Series battery features both a D-Tap and a USB power output. The D-Tap output can be used to power a light source, monitor, recorder, or other device on your rig while the USB port gives you a convenient way of charging your smartphone and USB accessories while you shoot. A five-LED gauge displays the battery's remaining power. - High capacity, small form factor
- Integrated D-Tap and USB accessory power outlets
- Battery supports a maximum power draw of 12A

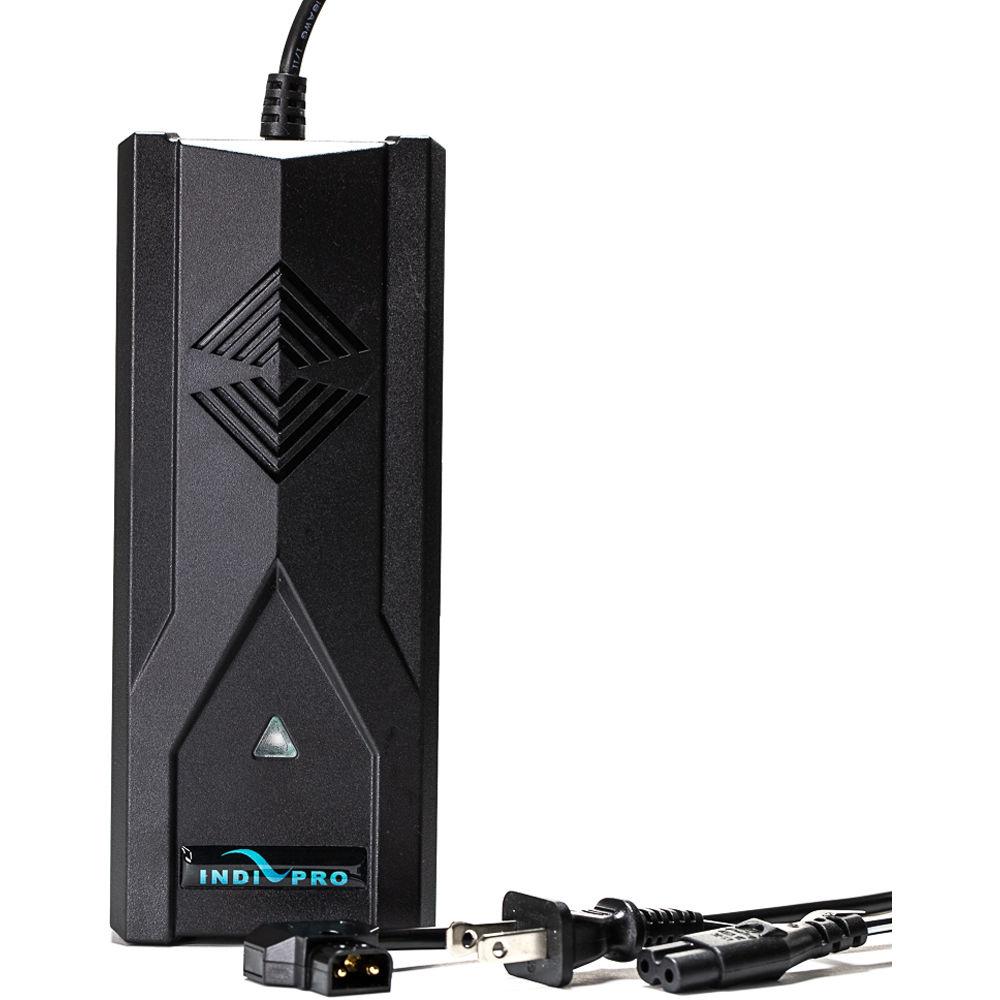

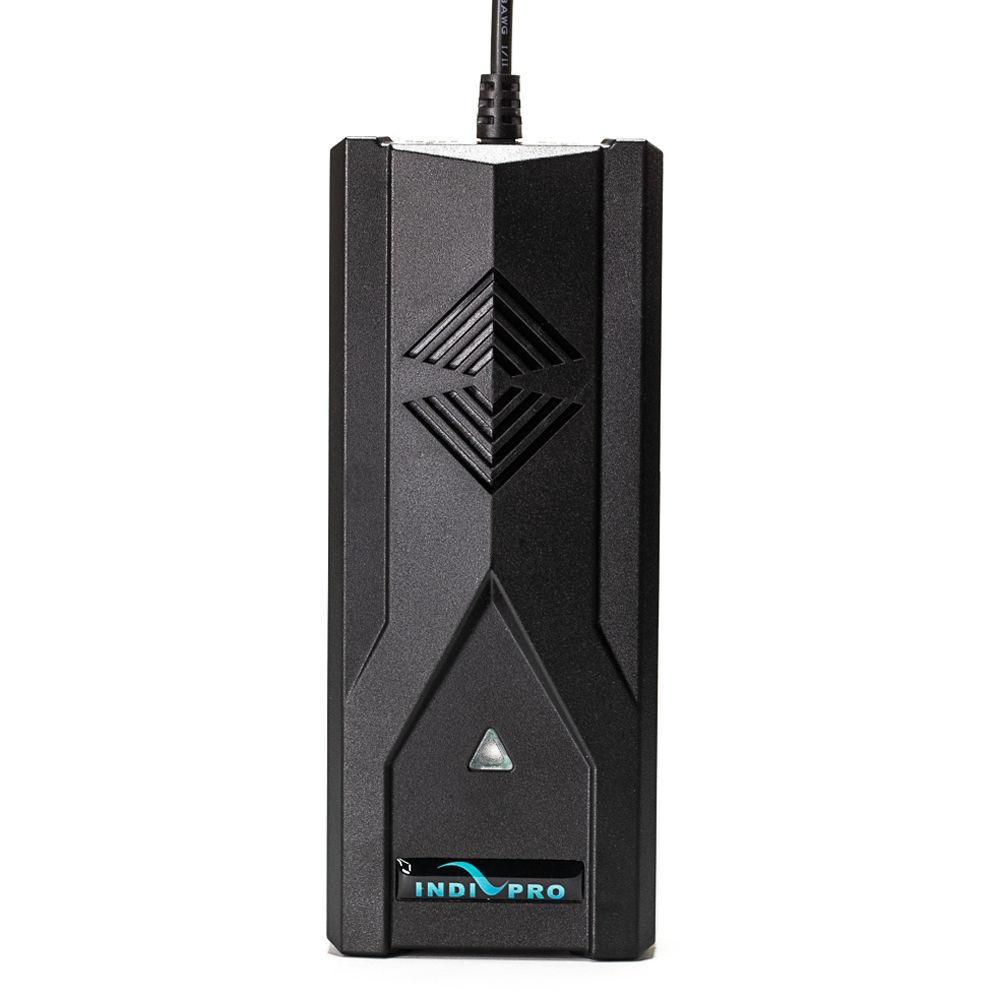

UPC: 651748820872 - D-Tap to Pro Battery Supercharger (8A, 16.8V) The D-Tap to Pro Battery Supercharger from IndiPRO Tools enables you to quickly charge your D-Tap equipped pro-style battery. This intelligent charger automatically adjusts to the capacity of the battery, suiting it to a wide variety of lithium-ion batteries. The Supercharger features an automatic heat-triggered fan, an LED display, and protection against short circuiting. With an 8A, 16.8V output, the Supercharger charges a 95Wh battery in approximately 1.25 hours and a 160Wh unit in about 2 hours.
- Features
-
- Automatically adjusts to your battery's capacity
- Compatible with a wide range of lithium-ion batteries
- Automatically triggered fan dispels heat
- Single D-Tap connector
- LED display
UPC: 651748820773 In the Box Bundle Items Micro-Series Gold Mount Li-Ion Battery (98Wh) uxwyvtevtacxetwxuubbxcvxeyfe D-Tap to Pro Battery Supercharger (8A, 16.8V) Table of Contents
|
Upload User Manual
Have you got an user manual for the IndiPRO Tools Micro-Series 98Wh Pro Battery Supercharger Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Micro-Series Gold Mount Li-Ion Battery (98Wh)
| Mount / Series Type | Gold Mount | | Chemistry | Lithium-Ion | | Capacity (Wh) | 98 Wh | | Amp-Hours | 6.8 Ah | | Output Voltage | 14.8 VDC | | Maximum Load | 12 A | | Accessory Port | 1 x D-Tap
1 x USB Type-A | | Dimensions (W x H x D) | 4.7 x 3.6 x 2.1" / 11.9 x 9.1 x 5.3 cm | | Weight | 1.6 lb / 0.7 kg | | | | Box Dimensions (LxWxH) | 5.15 x 4.2 x 2.55" | - D-Tap to Pro Battery Supercharger (8A, 16.8V)
| Battery Connector | D-Tap male | | Input Voltage | 90-240 VAC | | Maximum Charge Current | 8 A | | Maximum Charging Power | 120 W | | Charging Voltage | 16.8 V | | Typical Charging Time | 95 Wh Battery: 1 hour, 15 minutes
130 Wh Battery: 1 hour, 45 minutes
160 Wh Battery: 2 hours
190 Wh Battery: 2 hours, 40 minutes
230 Wh Battery: 3 hours, 10 minutes | | Dimensions (LxWxH) | 7.3 x 2.9 x 1.8" / 18.5 x 7.4 x 4.6 cm | | Weight | 1.2 lb / 0.5 kg | | | | Box Dimensions (LxWxH) | 9.0 x 9.0 x 7.0" |
