User Manual for IndiPRO Tools Micro-Series 98Wh V-Mount Battery Kit for Sony PXW-FS7 Camera Click to enlarge the picture
Contents of the user manual for the IndiPRO Tools Micro-Series 98Wh V-Mount Battery
- Product category: On Camera Batteries IndiPRO Tools
- Brand: IndiPRO Tools
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IndiPRO Tools On Camera Batteries
 |
User manual for the IndiPRO Tools Micro-Series 98Wh V-Mount Battery contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IndiPRO Tools product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IndiPRO Tools user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IndiPRO Tools product will considerably shorten its lifespan!
|

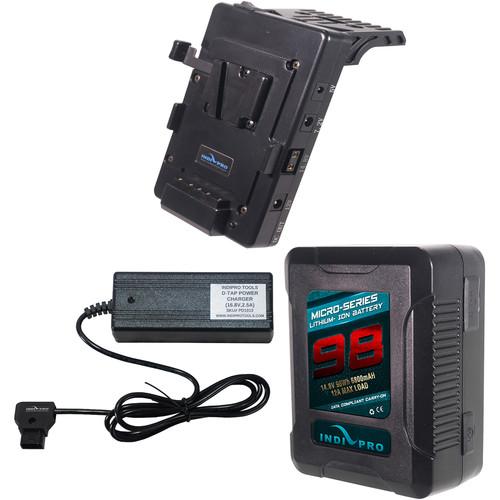

Product description This Micro-Series V-Mount Kit from IndiPRO Tools includes a 98Wh V-Mount Li-ion Battery, a D-Tap Pro Battery Charger, and a V-Mount Battery Plate for Sony PXW-FS7 Camera Systems.

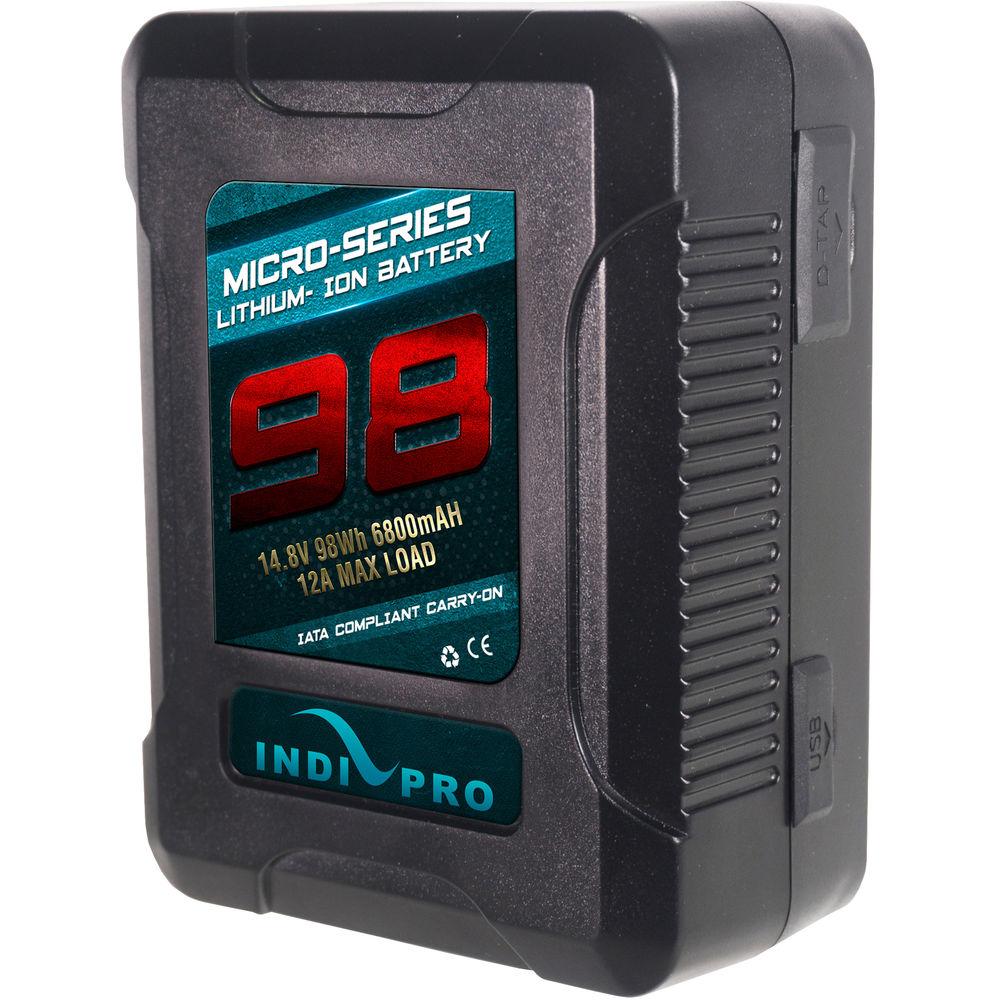

Small yet powerful, the Micro-Series 98Wh V-Mount Battery can handle power draws of up to 12A. Its 6.8Ah capacity and 14.8V output are amply sufficient to power your Sony PXW-FS7 and several onboard accessories. In addition to the V-mount output for powering your camera, the battery is equipped with D-Tap and USB power ports. A five-LED gauge provides visual indication of remaining battery life.
The Pro Battery Charger plugs into the Micro-Series V-Mount Battery via a D-Tap connection, allowing you to recharge your battery from an AC outlet. The charger is lightweight at 0.5 lb and delivers an output of 16.8V. It comes with a power cord.
A single-battery powering solution for your Sony PXW-FS7, the V-Mount Battery Plate enables you to power various onboard accessories along with your camera from a single Micro-Series V-Mount battery while preserving the camera's handheld capabilities. The plate passes your battery's power through the D-Tap connection and provides separate regulated 5, 7.2, and 12 VDC outputs. Five cables are included so you can connect a device to each output. - Micro-Series V-Mount Li-Ion Battery (98Wh) Its small size belies the power of the IndiPRO Tools 98Wh Micro-Series V-Mount Li-Ion Battery, which can handle power draws of up to 12A. This battery is suitable for use on smaller camera bodies, and for a variety of applications that benefit from a small footprint that doesn't sacrifice performance. Its 6.8Ah capacity and 14.8V output are sufficient to power most professional cameras.

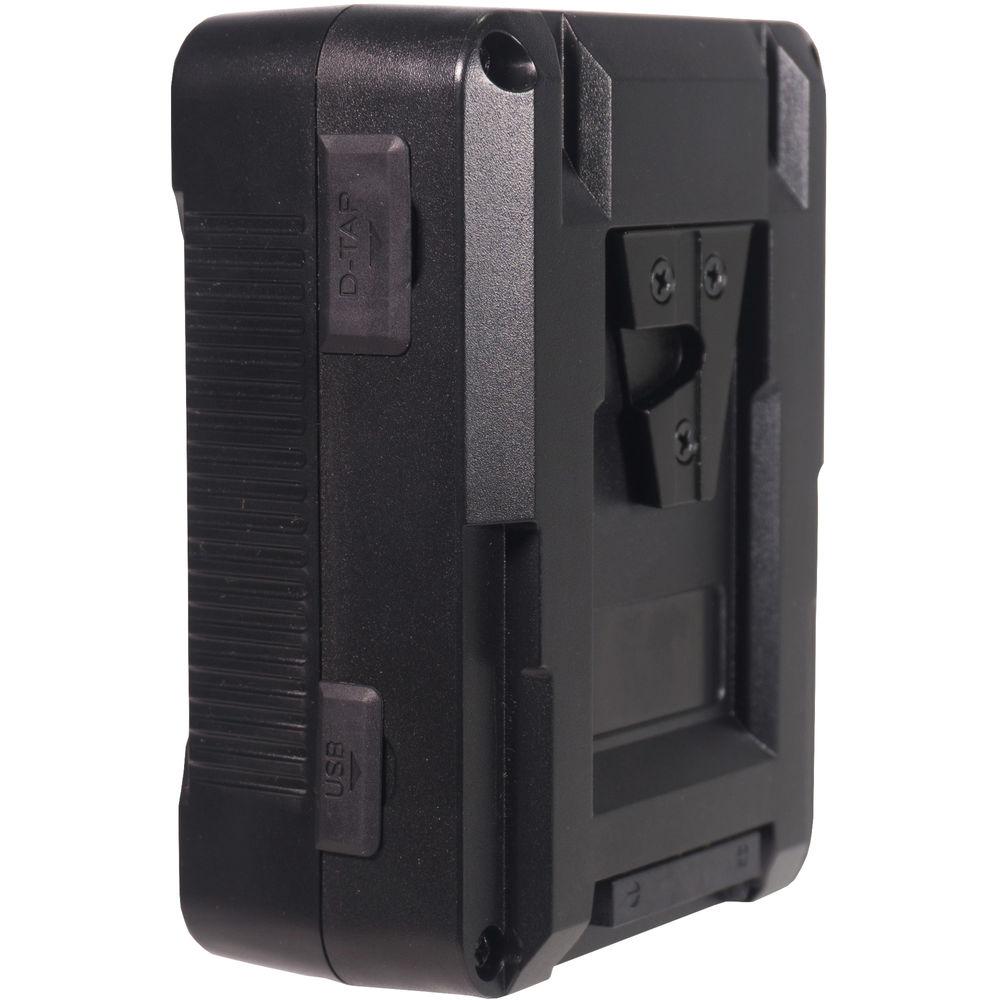

In addition to the V-mount power output for powering cameras and lights, this Micro-Series battery features both a D-Tap and a USB power output. The D-Tap output can be used to power a light source, monitor, recorder, or other device on your rig while the USB port gives you a convenient way of charging your smartphone and USB accessories while you shoot. A five-LED gauge displays the battery's remaining power. - High capacity, small form factor
- Integrated D-Tap and USB accessory power outlets
- Battery supports a maximum power draw of 12A

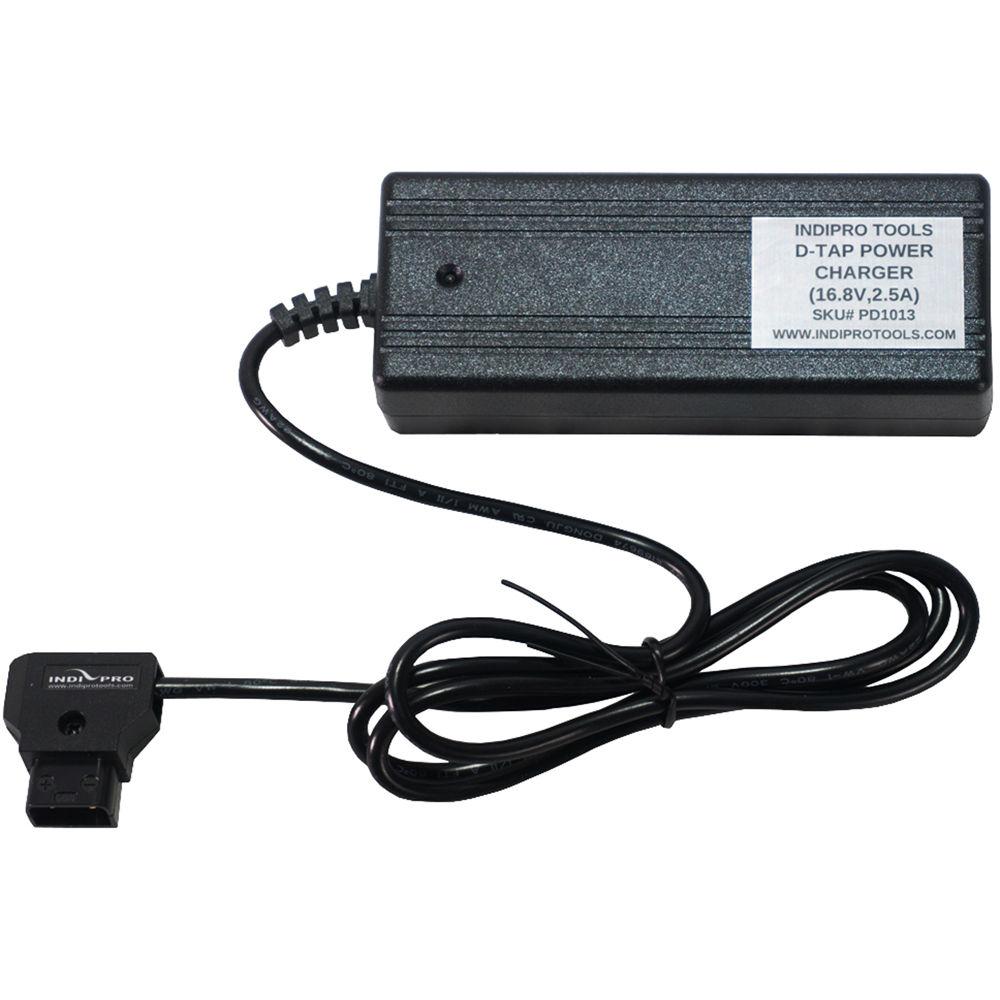

UPC: 651748820261 - D-Tap Pro Battery Charger (16.8V, 2.5A) The 2.5A IndiPRO Tools D-Tap Pro Battery Charger allows you to conveniently charge select V-Mount or Gold Mount batteries that can be charged via D-Tap from an AC wall outlet. It features a D-Tap connector that plugs right into the battery. Delivering 16.8V and 2.5A, it charges a 95Wh battery in approximately 3 hours. UPC: 741533994120

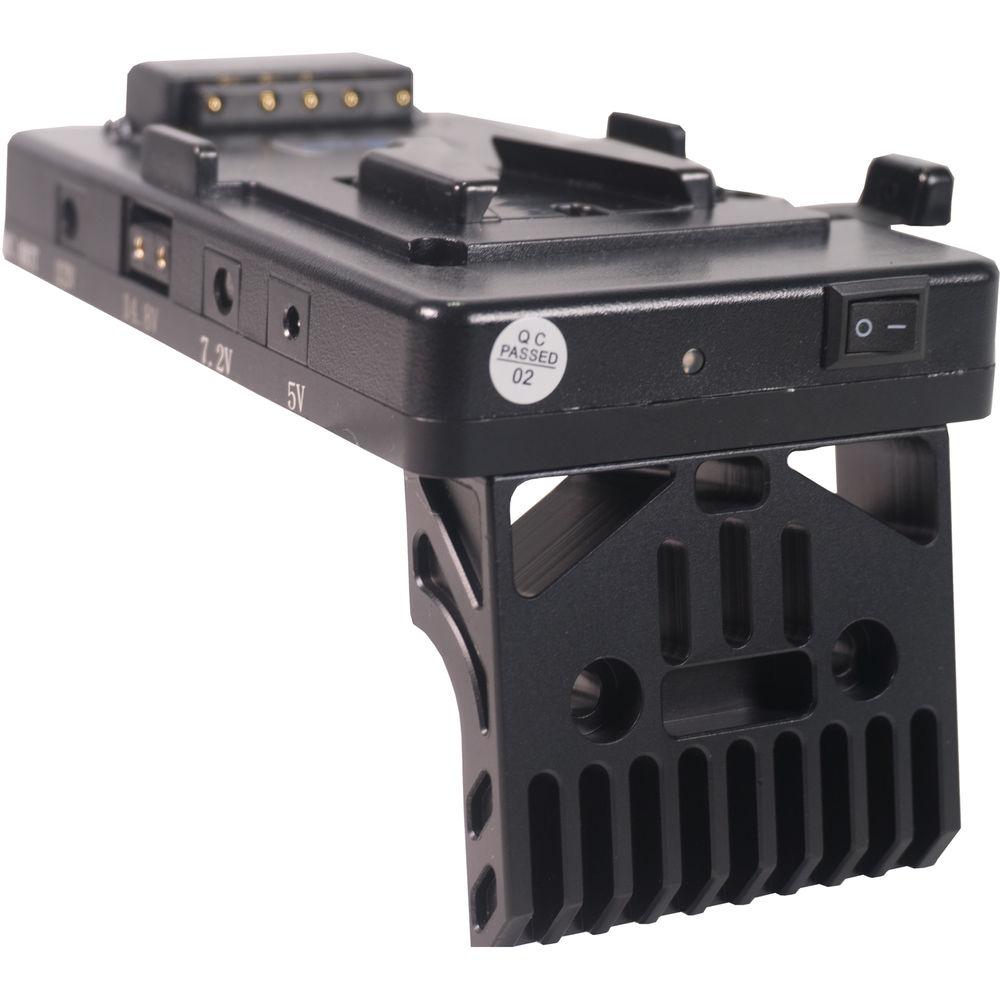

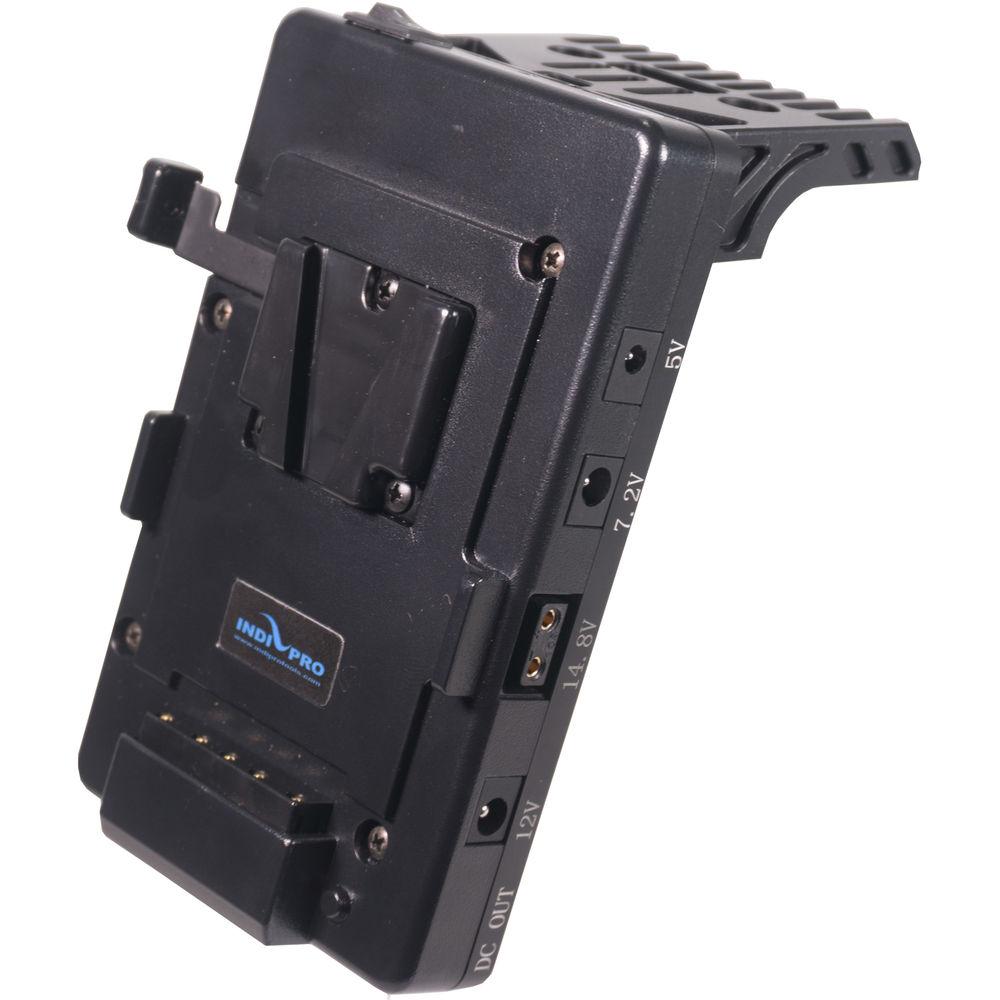

- V-Mount Battery Plate for Sony FS7 Designed specifically to integrate into your Sony PXW-FS7 camera, the IndiPro Tools V-Mount Battery Plate provides you with a way to power your camera and onboard accessories from a single V-Mount battery. The battery plate solidly attaches to your FS7, allowing you to mount optional large capacity V-Mount batteries on the back of the camera without significantly altering the balance. Built-in power ports support D-Tap as well as common DC voltage outputs.
Using this battery plate with optional V-Mount batteries allows you to power the camera and onboard accessories using only one battery, instead of using many smaller DV style batteries. This single battery powering solution preserves the handheld capabilities of your camera, as opposed to the effect of weight and balance shifts caused by multiple batteries. The plate passes your battery's power through to the D-Tap, providing separate regulated 5 VDC, 7.2 VDC, and 12 VDC outputs. It includes five cables so you can connect a device to each power output. - Provides secure battery attachment for optional V-Mount batteries without significantly altering the camera's footprint.
- Integrated on/off switch allows you to power down to conserve battery without removing the battery.

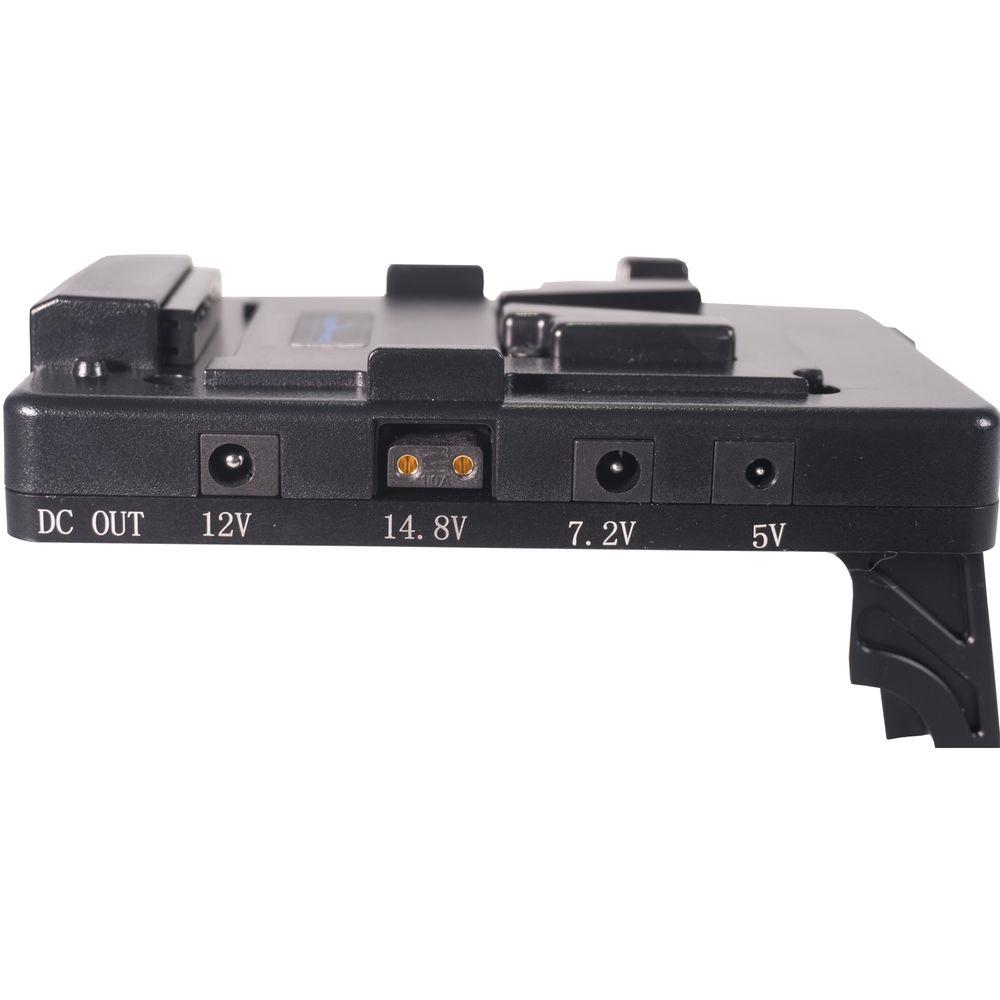

- Battery plate provides pass-through battery power to a D-Tap output, regulated 5 VDC, 7.2 VDC, and 12 VDC power outputs for powering an optional camera and accessories.
- Includes five cables:
- 5 VDC cable
- 5 VDC frequency divider cable
- 12 VDC
- 2.5mm barrel to LP-E6 dummy battery cable
UPC: 651748820322 In the Box Bundle Items Micro-Series V-Mount Li-Ion Battery (98Wh) fcrffafqtsverwvubydevz D-Tap Pro Battery Charger (16.8V, 2.5A) V-Mount Battery Plate for Sony FS7 - 5 VDC Frequency Divider Cable
- 2.5mm to LP-E6 Type Dummy Battery Cable
- Limited 18-Month Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the IndiPRO Tools Micro-Series 98Wh V-Mount Battery Kit for Sony PXW-FS7 Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Micro-Series V-Mount Li-Ion Battery (98Wh)
| Mount / Series Type | V-Mount | | Chemistry | Lithium-Ion | | Capacity (Wh) | 98 Wh | | Amp-Hours | 6.8 Ah | | Output Voltage | 14.8 VDC | | Maximum Load | 12 A | | Accessory Port | 1 x D-Tap
1 x USB Type-A | | Dimensions (W x H x D) | 4.7 x 3.6 x 2.1" / 11.9 x 9.1 x 5.3 cm | | Weight | 1.6 lb / 0.7 kg | | | | Box Dimensions (LxWxH) | 5.2 x 4.2 x 2.7" | - D-Tap Pro Battery Charger (16.8V, 2.5A)
| Connector 1 | US 2-prong AC power plug | | Connector 2 | D-Tap male | | Voltage | 16.8 V, 2.5 A | | Cable Length | 40" (102 cm) | | Charge Time | Charges 95 Wh battery in approx. 3 hours | | | | Box Dimensions (LxWxH) | 7.6 x 4.9 x 1.7" | - V-Mount Battery Plate for Sony FS7
| Battery Plate Type | Integrated V-Mount plate | | Power Outputs | 1 x 5 VDC
1 x 7.2 VDC
1 x 12 VDC
1 x D-Tap | | Dimensions | 5.6 x 3.9 x 3.5" / 142.2 x 99 x 88.9 mm | | Weight | 0.8 lb / 0.4 kg | | | | Box Dimensions (LxWxH) | 9.5 x 5.3 x 5.0" |
