Product description Power your Blackmagic Pocket Camera and accessories from a compact brick battery with the Micro-Series V-Mount 98Wh Blackmagic Pocket Camera Kit from IndiPRO Tools.

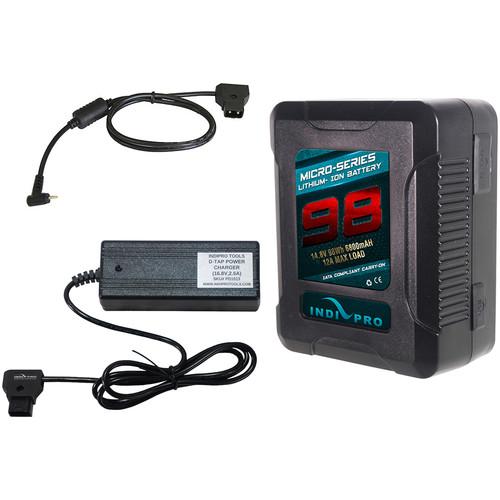

The kit includes the Micro-Series 98Wh V-Mount Li-ion Battery, a 24" D-Tap to DC power cable for connecting the battery to the camera, and the portable D-Tap Pro Battery Charger that plugs into an AC wall outlet to charge the battery. Add a V-mount battery plate, sold separately, for mounting the battery to your rig, and you're good to go. Various V-mount plates are available from IndiPRO tools to suit your needs.

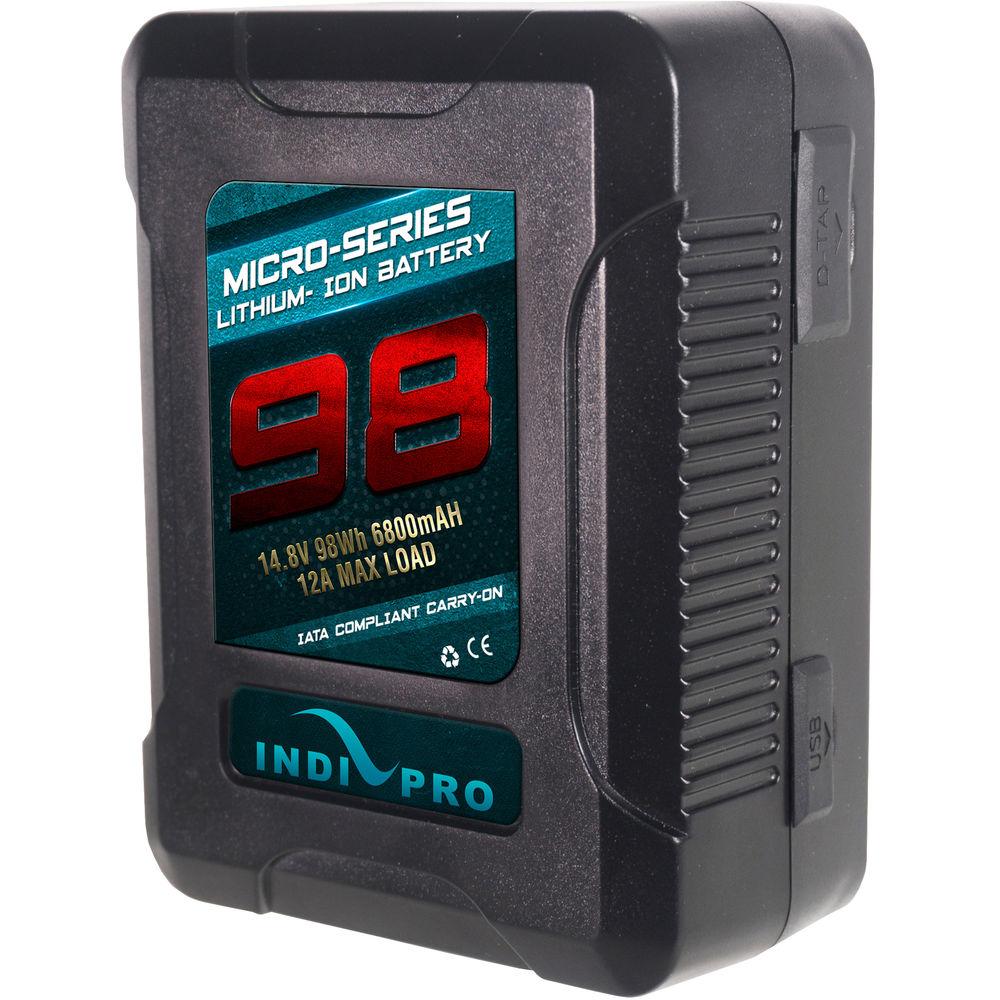

The Micro-Series 98Wh battery has a mini design with full-size features. It outputs 14.8 VDC and has a 6.8Ah capacity, and supports power draws up to 12 amps. It also offers D-Tap and USB outputs for simultaneously powering accessories/mobile devices along with your camera, and provides a 5-LED power gauge for monitoring remaining battery life. - Micro-Series V-Mount Li-Ion Battery (98Wh) Its small size belies the power of the IndiPRO Tools 98Wh Micro-Series V-Mount Li-Ion Battery, which can handle power draws of up to 12A. This battery is suitable for use on smaller camera bodies, and for a variety of applications that benefit from a small footprint that doesn't sacrifice performance. Its 6.8Ah capacity and 14.8V output are sufficient to power most professional cameras.

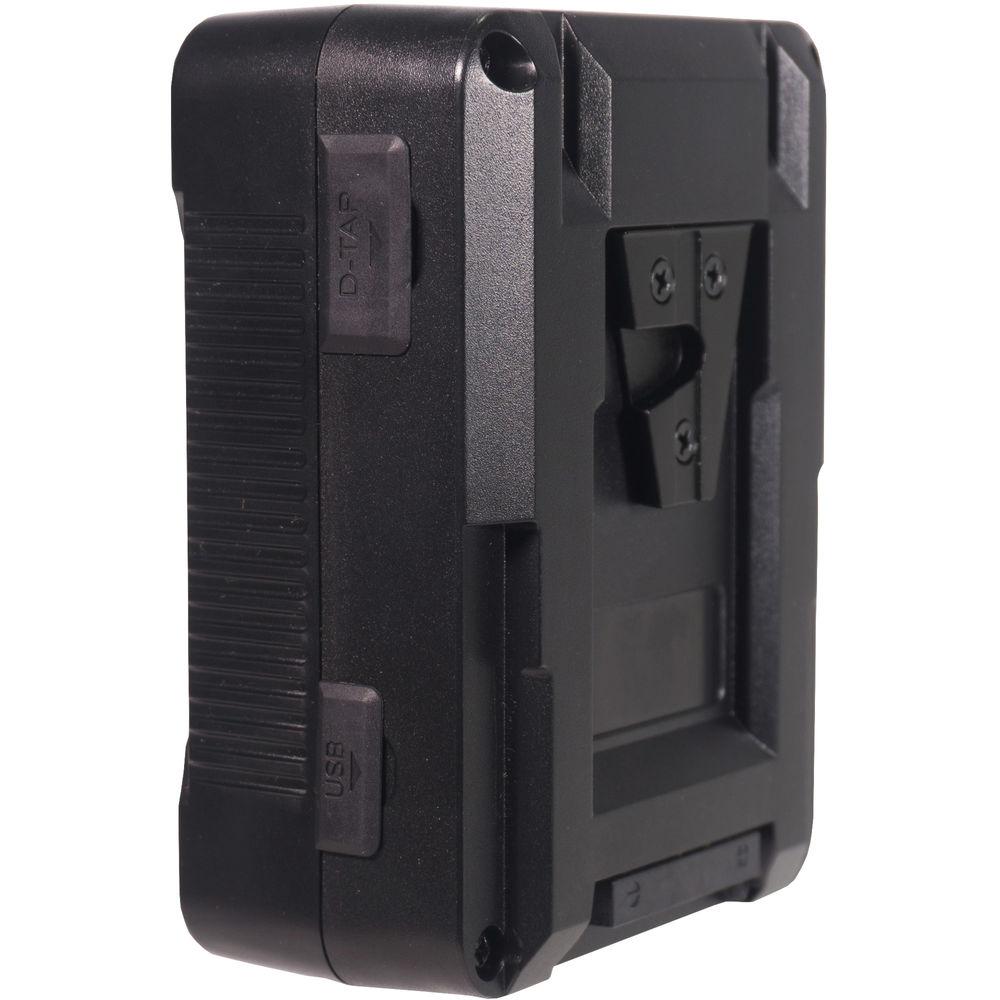

In addition to the V-mount power output for powering cameras and lights, this Micro-Series battery features both a D-Tap and a USB power output. The D-Tap output can be used to power a light source, monitor, recorder, or other device on your rig while the USB port gives you a convenient way of charging your smartphone and USB accessories while you shoot. A five-LED gauge displays the battery's remaining power. - High capacity, small form factor
- Integrated D-Tap and USB accessory power outlets
- Battery supports a maximum power draw of 12A

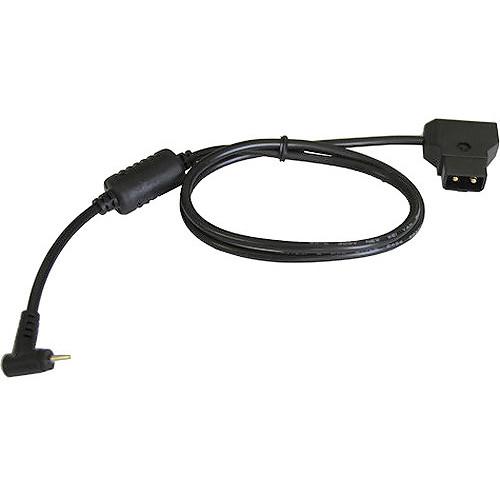

UPC: 651748820261 - 24" Power Cable, P-Tap to Blackmagic Pocket Camera The IndiPro Tools 24" Power Cable, P-Tap to Blackmagic Pocket Camera provides a power cable that allows you to power the Blackmagic Pocket Camera from an available power source with a standard P-Tap connector. The cable is 24" long and made from 18-gauge stranded copper wire. The right angle power connector to the camera keeps the cable neat and out of the way.
- Supports 12 to 18 volts DC, with up to 5 amp draw.
- The cable features a P-Tap connector on one end, and a coaxial connector on the other. The coax connector plugs into the Pocket Camera, and provides power to your camera from an available power supply or battery.

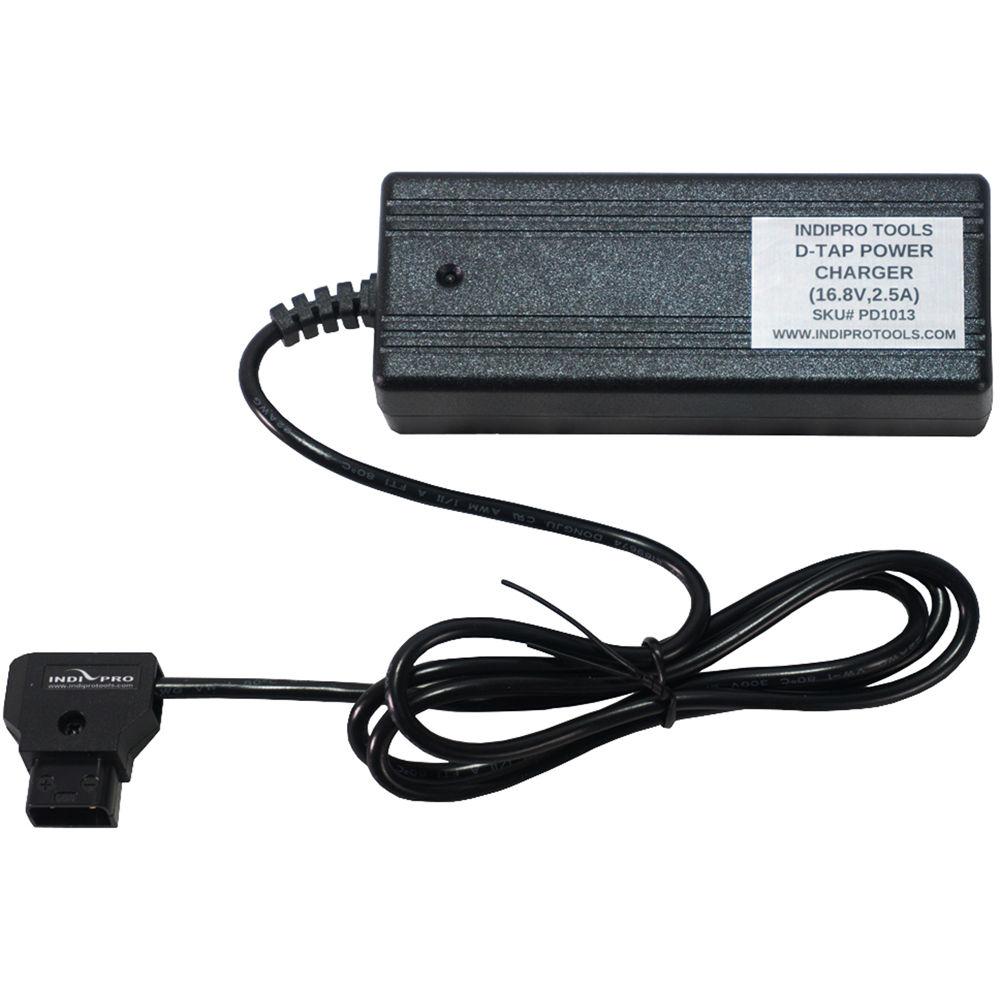

UPC: 859576003102 - D-Tap Pro Battery Charger (16.8V, 2.5A) The 2.5A IndiPRO Tools D-Tap Pro Battery Charger allows you to conveniently charge select V-Mount or Gold Mount batteries that can be charged via D-Tap from an AC wall outlet. It features a D-Tap connector that plugs right into the battery. Delivering 16.8V and 2.5A, it charges a 95Wh battery in approximately 3 hours. UPC: 741533994120
In the Box Bundle Items Micro-Series V-Mount Li-Ion Battery (98Wh) cssauwcucsaqtrvwfwayts 24" Power Cable, P-Tap to Blackmagic Pocket Camera cssauwcucsaqtrvwfwayts D-Tap Pro Battery Charger (16.8V, 2.5A) Table of Contents
|
Upload User Manual
Have you got an user manual for the IndiPRO Tools Micro-Series V-Mount 98Wh Blackmagic Pocket Camera Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Micro-Series V-Mount Li-Ion Battery (98Wh)
| Mount / Series Type | V-Mount | | Chemistry | Lithium-Ion | | Capacity (Wh) | 98 Wh | | Amp-Hours | 6.8 Ah | | Output Voltage | 14.8 VDC | | Maximum Load | 12 A | | Accessory Port | 1 x D-Tap
1 x USB Type-A | | Dimensions (W x H x D) | 4.7 x 3.6 x 2.1" / 11.9 x 9.1 x 5.3 cm | | Weight | 1.6 lb / 0.7 kg | | | | Box Dimensions (LxWxH) | 5.2 x 4.2 x 2.7" | - 24" Power Cable, P-Tap to Blackmagic Pocket Camera
| Diameter | 18 AWG (0.824 mm) | | Operating Temperature | Max: 140°F (60°C) | | Length | 24" (0.6 m) | | | | Box Dimensions (LxWxH) | 4.7 x 3.3 x 2.5" | - D-Tap Pro Battery Charger (16.8V, 2.5A)
| Connector 1 | US 2-prong AC power plug | | Connector 2 | D-Tap male | | Voltage | 16.8 V, 2.5 A | | Cable Length | 40" (102 cm) | | Charge Time | Charges 95 Wh battery in approx. 3 hours | | | | Box Dimensions (LxWxH) | 7.6 x 4.9 x 1.7" |
