User Manual for IndiPRO Tools Micro-Series V-Mount 98Wh Sony a7 Kit Click to enlarge the picture
Contents of the user manual for the IndiPRO Tools Micro-Series V-Mount 98Wh Sony
- Product category: On Camera Batteries IndiPRO Tools
- Brand: IndiPRO Tools
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IndiPRO Tools On Camera Batteries
 |
User manual for the IndiPRO Tools Micro-Series V-Mount 98Wh Sony contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IndiPRO Tools product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IndiPRO Tools user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IndiPRO Tools product will considerably shorten its lifespan!
|
Product description Power your a7S / a7R and accessories from a compact brick battery with the Micro-Series V-Mount 98Wh Sony a7 Kit from IndiPRO Tools.

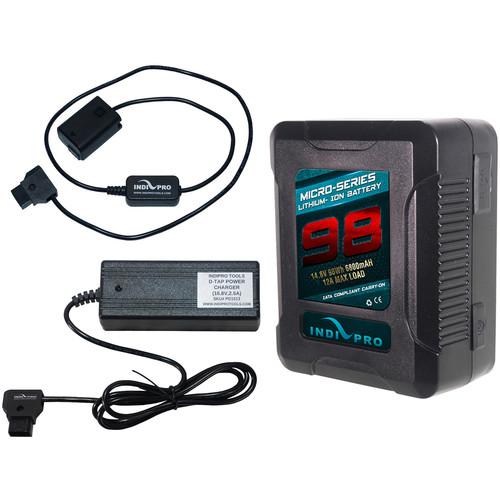

The kit includes the Micro-Series 98Wh V-Mount Li-ion Battery, a regulated 30" D-Tap to Dummy Battery Cable for connecting the battery to the camera, and the portable D-Tap Pro Battery Charger that plugs into an AC wall outlet to charge the battery. Add a V-mount battery plate, sold separately, for mounting the battery to your rig, and you're good to go. Various V-mount plates are available from IndoPRO tools to suit your needs.

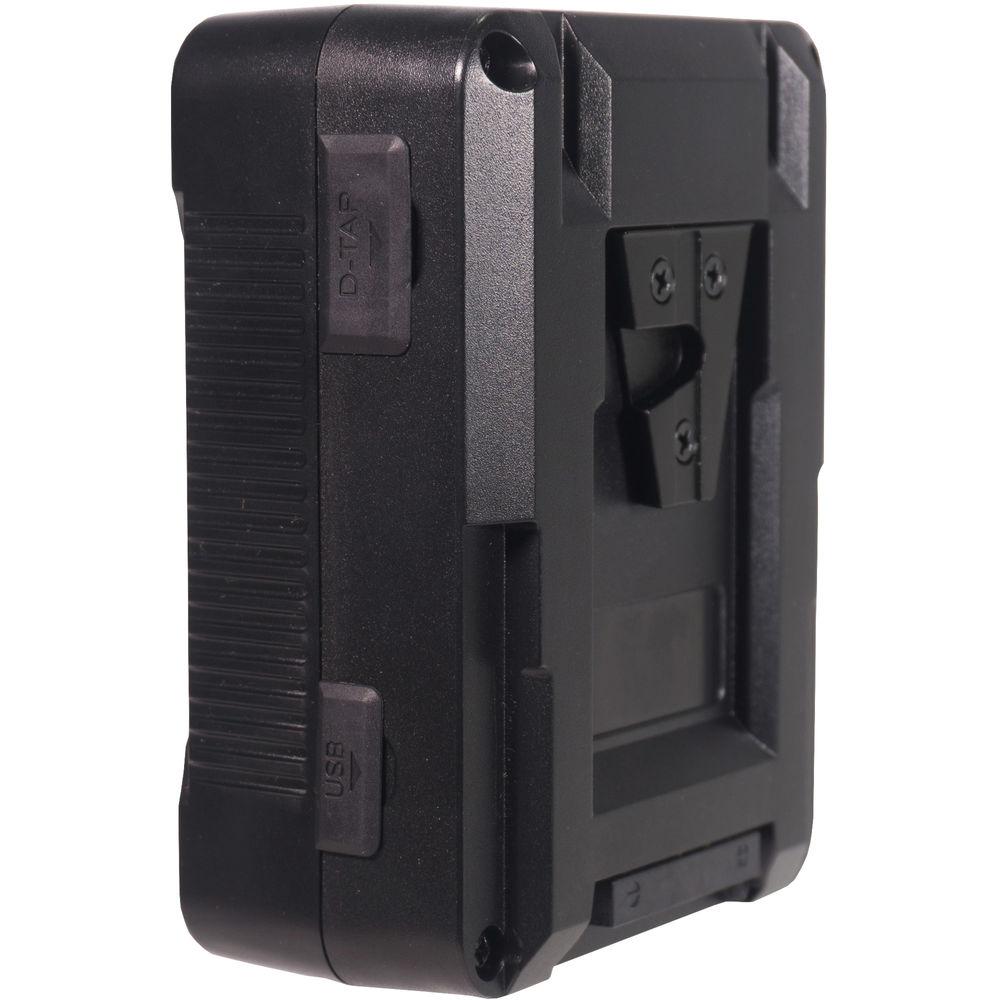

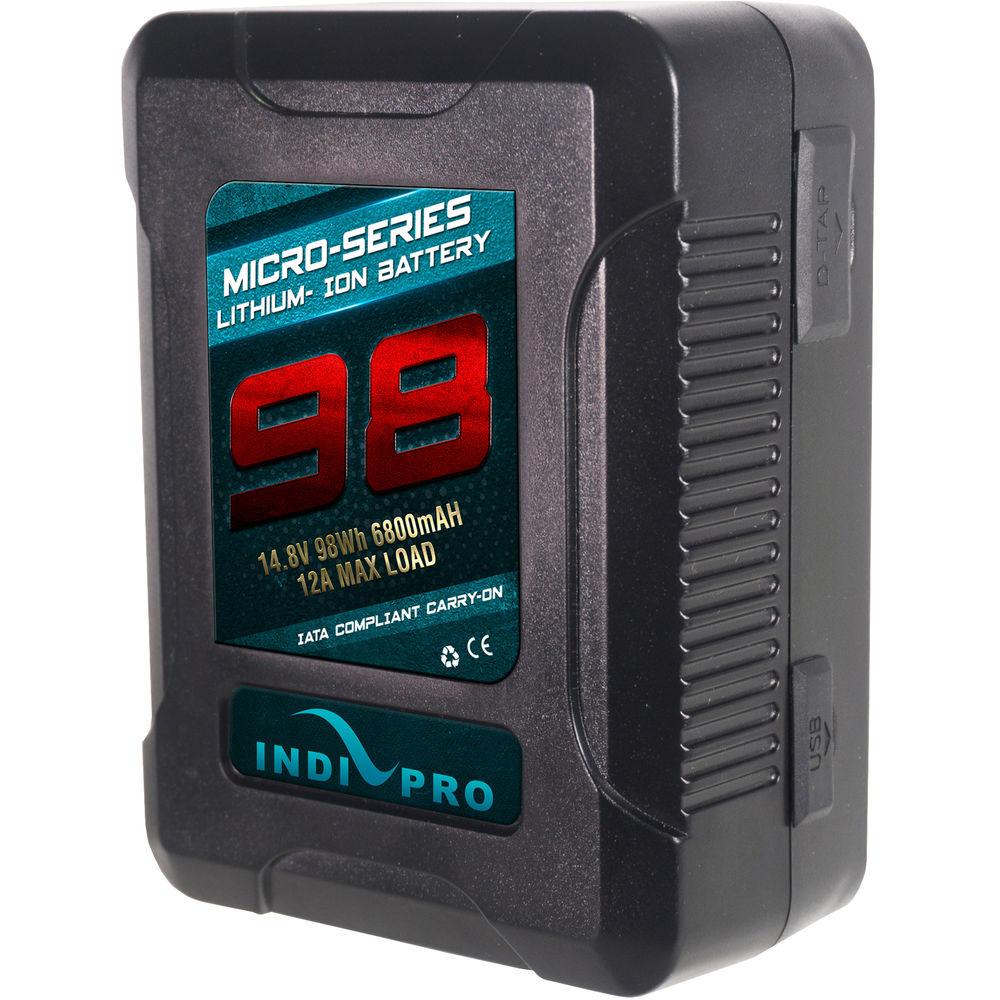

The Micro-Series 98Wh battery has a mini design with full-size features. It outputs 14.8 VDC and has a 6.8Ah capacity, and supports power draws up to 12 amps. It also offers D-Tap and USB outputs for simultaneously powering accessories/mobile devices along with your camera, and provides a 5-LED power gauge for monitoring remaining battery life. - Micro-Series V-Mount Li-Ion Battery (98Wh) Its small size belies the power of the IndiPRO Tools 98Wh Micro-Series V-Mount Li-Ion Battery, which can handle power draws of up to 12A. This battery is suitable for use on smaller camera bodies, and for a variety of applications that benefit from a small footprint that doesn't sacrifice performance. Its 6.8Ah capacity and 14.8V output are sufficient to power most professional cameras.
In addition to the V-mount power output for powering cameras and lights, this Micro-Series battery features both a D-Tap and a USB power output. The D-Tap output can be used to power a light source, monitor, recorder, or other device on your rig while the USB port gives you a convenient way of charging your smartphone and USB accessories while you shoot. A five-LED gauge displays the battery's remaining power. - High capacity, small form factor
- Integrated D-Tap and USB accessory power outlets
- Battery supports a maximum power draw of 12A

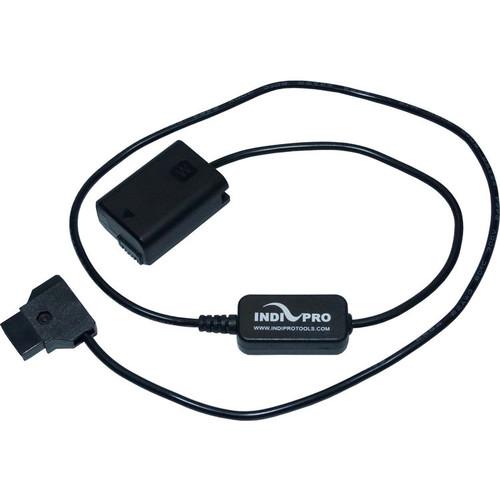

UPC: 651748820261 - D-Tap to Sony a7 Series Dummy Battery Cable (Regulated, 30") This 30" D-Tap to a7 Series Dummy Battery Cable from IndiPRO Tools allows you to power the Sony a7 Series cameras from any power source with a D-Tap input and 11 - 19V output. It is an inline regulated cable that produces no heat and cause no video noise in the camera.

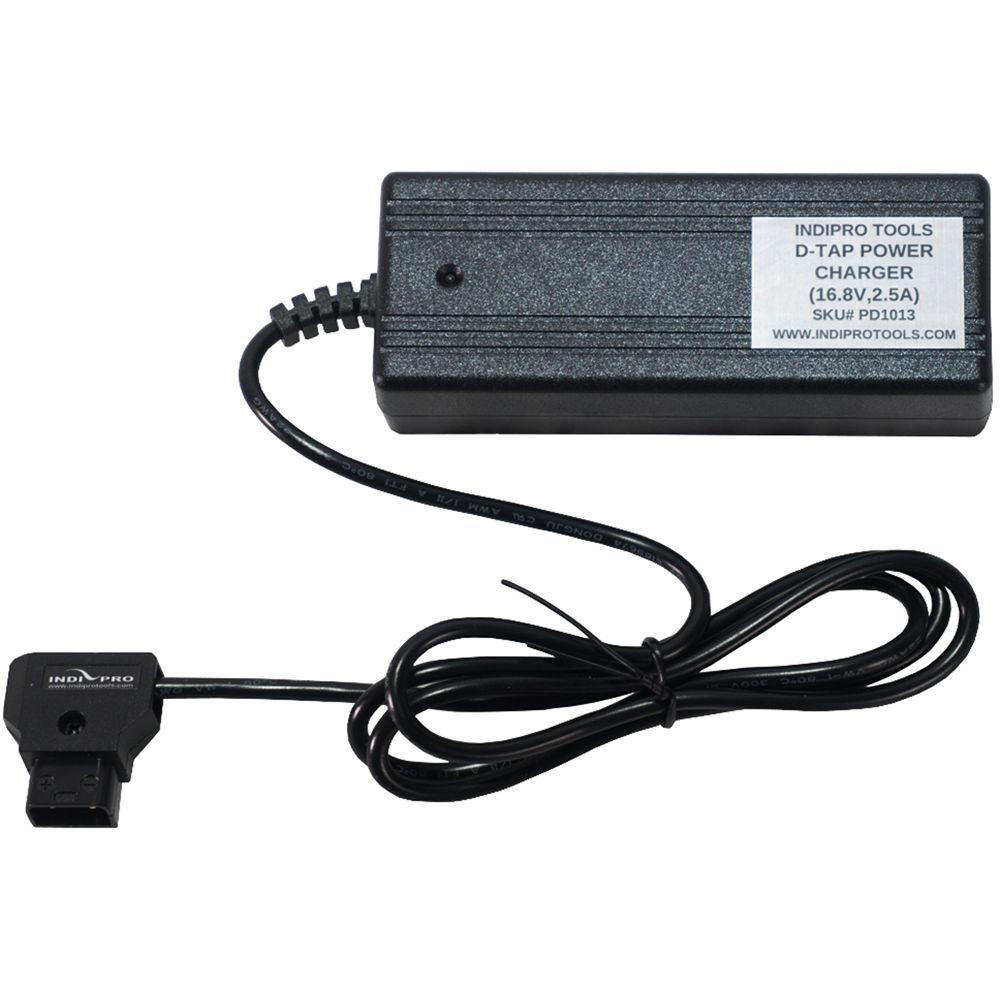

The dummy battery end is compatible with the Sony a7, a7S, a7R, and a7 II, a7S II, and a7R II cameras. UPC: 859576003010 - D-Tap Pro Battery Charger (16.8V, 2.5A) The 2.5A IndiPRO Tools D-Tap Pro Battery Charger allows you to conveniently charge select V-Mount or Gold Mount batteries that can be charged via D-Tap from an AC wall outlet. It features a D-Tap connector that plugs right into the battery. Delivering 16.8V and 2.5A, it charges a 95Wh battery in approximately 3 hours. UPC: 741533994120
In the Box Bundle Items Micro-Series V-Mount Li-Ion Battery (98Wh) svasvwyzstsffevyfbcy D-Tap to Sony a7 Series Dummy Battery Cable (Regulated, 30") D-Tap Pro Battery Charger (16.8V, 2.5A) Table of Contents
|
Upload User Manual
Have you got an user manual for the IndiPRO Tools Micro-Series V-Mount 98Wh Sony a7 Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Micro-Series V-Mount Li-Ion Battery (98Wh)
| Mount / Series Type | V-Mount | | Chemistry | Lithium-Ion | | Capacity (Wh) | 98 Wh | | Amp-Hours | 6.8 Ah | | Output Voltage | 14.8 VDC | | Maximum Load | 12 A | | Accessory Port | 1 x D-Tap
1 x USB Type-A | | Dimensions (W x H x D) | 4.7 x 3.6 x 2.1" / 11.9 x 9.1 x 5.3 cm | | Weight | 1.6 lb / 0.7 kg | | | | Box Dimensions (LxWxH) | 5.2 x 4.2 x 2.7" | - D-Tap to Sony a7 Series Dummy Battery Cable (Regulated, 30")
| Length | 30" (76 cm) | | Connector 1 | D-Tap connector | | Connector 2 | Dummy battery for a7, a7S, a7R, a7 II, a7S II, and a7R II | | Power Compatibility | Operates on 11-19 V | | Weight | 3.2 oz / 90.7 g | | | | Box Dimensions (LxWxH) | 7.25 x 4.6 x 1.5" | - D-Tap Pro Battery Charger (16.8V, 2.5A)
| Connector 1 | US 2-prong AC power plug | | Connector 2 | D-Tap male | | Voltage | 16.8 V, 2.5 A | | Cable Length | 40" (102 cm) | | Charge Time | Charges 95 Wh battery in approx. 3 hours | | | | Box Dimensions (LxWxH) | 7.6 x 4.9 x 1.7" |
