User Manual for IndiPRO Tools Portable 3G-SDI Splitter 1x2 Click to enlarge the picture
Contents of the user manual for the IndiPRO Tools Portable 3G-SDI Splitter 1x2
- Product category: Distribution Amplifiers (DA's) IndiPRO Tools
- Brand: IndiPRO Tools
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IndiPRO Tools Distribution Amplifiers (DA's)
 |
User manual for the IndiPRO Tools Portable 3G-SDI Splitter 1x2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IndiPRO Tools product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IndiPRO Tools user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IndiPRO Tools product will considerably shorten its lifespan!
|

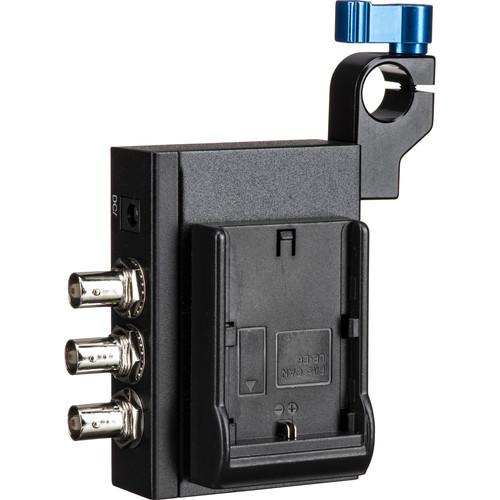

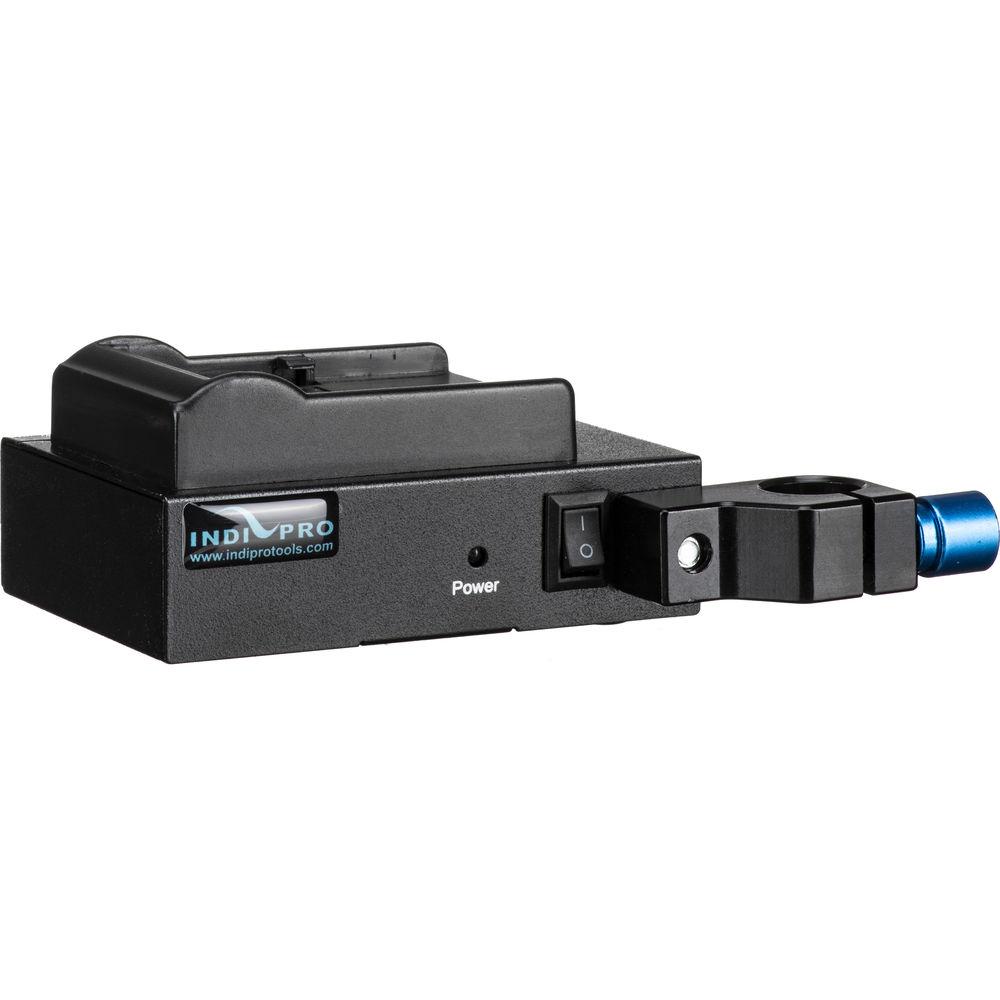

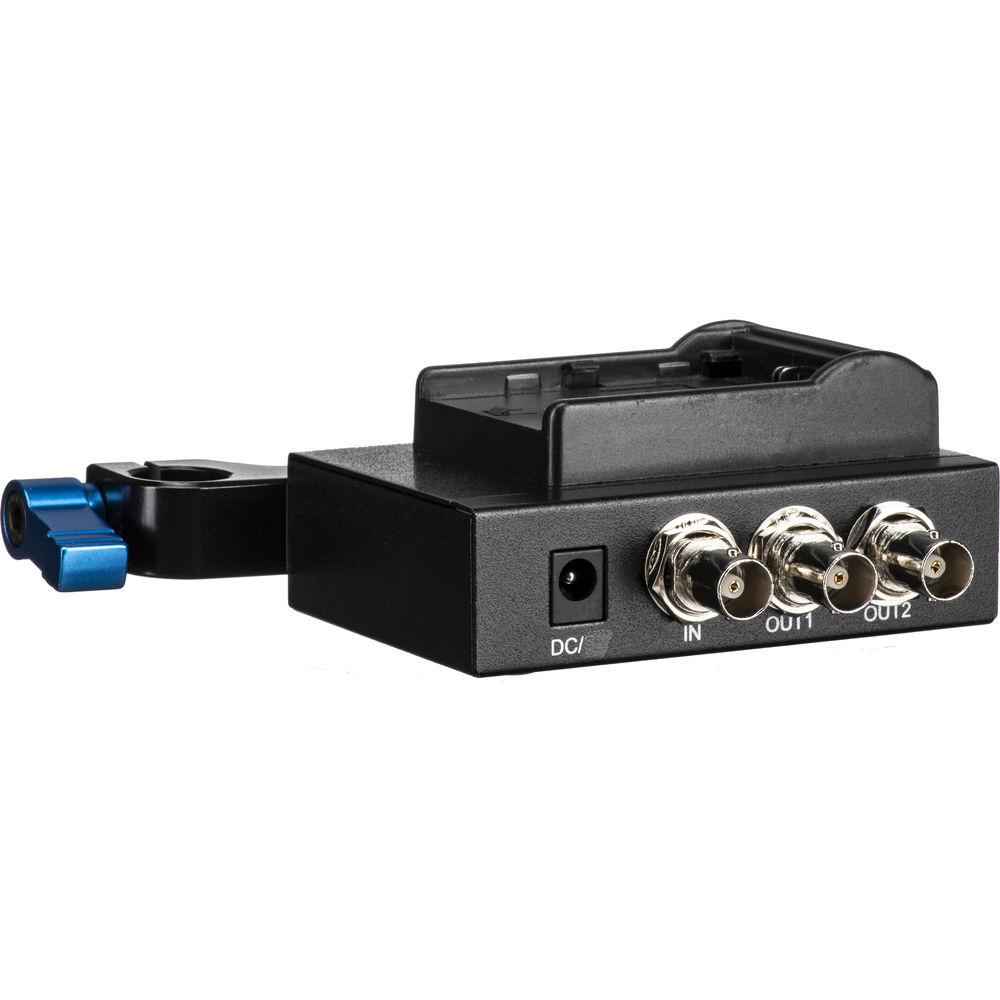

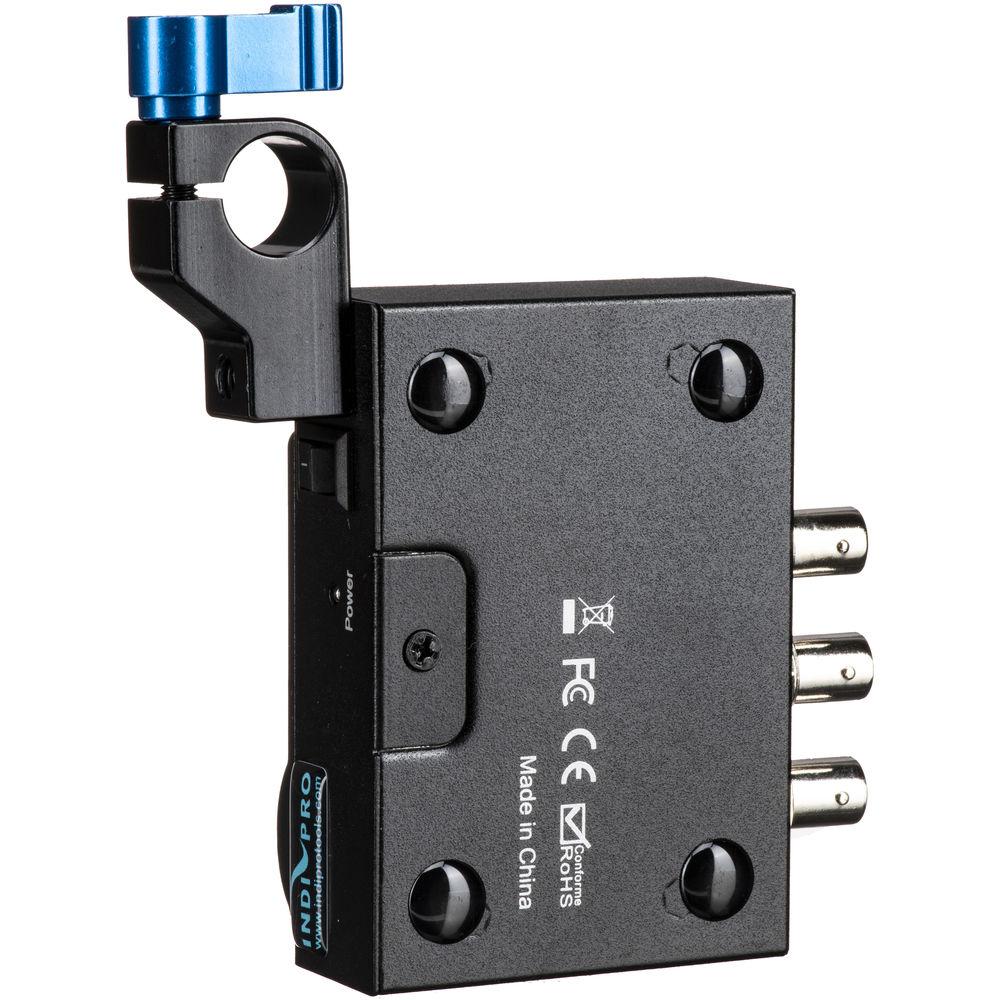

Product description Offering a 15mm rod clamp and the ability to use LP-E6 or brick batteries, the IndiPRO Tools SDI Splitter 1x2, designed to professional SMPTE standards, can unobtrusively be mounted on your rig to provide continuous 3G-SDI signal distribution, such as to two SDI monitors. Integrated equalizer circuitry allows for longer cable runs than in a non-powered splitter on both the input and outputs.
Featuring an LP-E6 battery plate and requiring very little power, this splitter can be powered by a standard-size Canon LP-E6 battery for over 10 hours. Also featuring a regulated 2.1mm power input, it can alternatively be powered by a P-Tap-equipped brick battery via a 2.1mm to P-Tap converter cable. The 2.1mm input supports 5V-18V of power. Batteries and cables are sold separately. The housing and rod clamp are aluminum and the BNC connectors are gold plated. - Key Features
-
- Single 15mm rod clamp
- LP-E6 battery plate
- Regulated 2.1mm power input supporting P-Tap converter cables
- 10+ hours of operation on standard-size LP-E6 battery
- Designed to professional SMPTE standards
- Equalized for longer cable runs
- Aluminum housing and rod clamp
- Gold plated BNC connectors
UPC: 859576003812 In the Box IndiPRO Tools Portable 3G-SDI Splitter 1x2 Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IndiPRO Tools Portable 3G-SDI Splitter 1x2 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIndiPRO Tools SDIX2 Specs | Input | 1x 3G/HD/SD-SDI | | Output | 2x 3G/HD/SD-SDI | | Power | 1x LP-E6 battery plate
1x 2.1 mm barrel plug (regulated 5-18 VAC) | | Supported Resolutions | 525i, 625i, 720p @ 24/25/30/50/60 Hz, 1080i @ 50/60 Hz, 1080p @ 24/25, 1080p @ 50/60 Hz | | Supported Color Space | RGB or YCbCr 4:4:4 sampled, YCbCr 4:2:2 sampled | | Supported Data Rates | 270 Mbps - 2.97 Gbps | | Supported Color Depth | 8-bit, 10-bit, 12-bit Deep Color | | Supported Standards | 3G-SDI (ST 424), HD-SDI (ST 292), SD-SDI (ST 259) standards | | Dimensions | 7.1 x 4.9 x 2.4" (18 x 12.4 x 6 cm) | | Weight | 1 lb (.45 kg) | | | | Package Weight | 0.8 lb | | Box Dimensions (LxWxH) | 6.7 x 5.4 x 3.3" |
