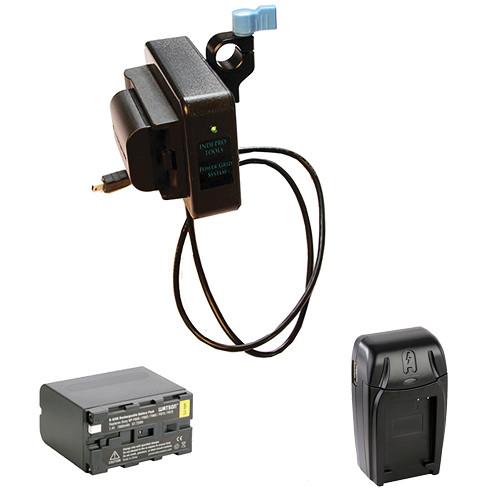

Product description This IndiPro Tools Power Grid System Sony L Series Type Battery Plate and Battery for GoPro Kit is assembled by to provide you with a battery plate system and a battery that powers your GoPro camera with an external battery. The battery plate converts the voltage from the Sony L series type battery to the 5VDC required to run available GoPro cameras. The plate clamps to 15mm LWS support rods, and features a green LED that indicates sufficient power is available to run the camera.
The included Lithium-Ion battery features a capacity of 7800mAh, providing more run time than the available GoPro's replaceable internal battery. The kit also includes a compact AC/DC charger that accepts worldwide power standards. The kit also includes a DC car adapter, so you can charge your battery while driving from one location to another. - IndiPRO Tools Power Grid System Single Sony-L Type Battery Plate for GoPro The Power Grid System Single Sony-L Type Battery Plate for GoPro from IndiPro Tools allows you to power your GoPro camera using an available Sony L-Series type battery. The unit converts the voltage of the Sony L-Series type battery to regulated 5VDC power for the GoPro. The battery plate incorporates a clamp so you can mount it to LWS 15mm support rods, and it features a mini USB connector that connects to the camera's power port.
The battery (not included) snaps in to the plate, and it stays secure during normal use, as you must press a small tab to remove the battery. A green LED built into the plate lights up to indicate sufficient voltage to power the camera. The Power Grid System is made in the USA. - Powers your GoPro camera using a single available Sony L-Series type battery.
- Integrated single rod clamp for 15mm support rods, allows you to mount the Power Grid System in a variety of positions.
- Battery securely snaps into place and a release tab must be depressed to remove them, which means that the battery remains attached during normal use.
- A built-in green power LED provides confirmation that the Power Grid System is supplying enough voltage to power the camera.
UPC: 859576003447 - Watson NP-F975 Lithium-Ion Battery Pack (7.4V, 7800mAh) The Watson NP-F975 Lithium-Ion Battery Pack works with the same cameras as the Sony NP-F970 series batteries. This replacement battery pack features a capacity of 7800mAh, 7.4V of output power, and 57.72 watt hours. Small and lightweight, lithium-ion batteries can be charged or discharged at any time without developing memory effects.
- Compatible Cameras
- Sony
- DCR-SD1000
- DCR-SR40
- DCR-TRV900
- DCR-VX2000
- DCR-VX2100
- DCR-VX2200
- HDR-AX2000
- HDR-FX1
- HDR-FX7
- HDR-FX1000
- HVR-HD1000
- HVR-V1
- HVR-Z1
- HVR-Z5
- HVR-Z7
- HXR-MC1500
- HXR-MC2000
- HXR-NX5
- HXR-NX5R
- NEX-EA50
- NEX-FS100
- NEX-FS700
UPC: 847628541078 - Watson Compact AC/DC Charger for L & M Series Batteries This versatile Compact AC/DC Charger from Watson charges all Sony L & M series type lithium-ion batteries via the included dedicated battery plate. The charger runs on 100 to 240 VAC power, allowing for worldwide use. It features a fold-out 2-prong US plug and is supplied with a European plug adapter as well as a 12 VDC car charger that plugs into a cigarette lighter. This makes the charger ideal for use both at home and on the road.
The Compact AC/DC Charger features a USB power output that allows you to charge and power MP3 players, phones, digital cameras, and other devices with a USB power input--even while charging your camera or camcorder batteries. With its easily interchangeable plate, the charger can also be used for other battery models via the purchase of an additional battery adapter plate. - Compatibility
- Compatible with any Sony NP-F550, NP-F570, NP-F730H, NP-F750, NP-F770, NP-F930, NP-F950, NP-F960, NP-F970, NP-FM30, NP-FM50, NP-FM500H, NP-FM55H, NP-FM70, NP-FM90, NP-FM91, NP-QM71, NP-QM71D, NP-QM91, NP-QM91D type batteries.
- Compact
- Charger features a fold-out AC plug for easy storage and travel.
- Versatile
-
- Comes with an included Euro plug adapter for charging in Europe.
- Included DC adapter with car lighter plug lets you charge while on the road.
- USB Output
- Charge or supply power for MP3 devices, mobile phones, digital cameras, and other related devices with a USB power input.
- Safety Features
- The charger features protection against overcharging and overheating.
UPC: 847628541566 In the Box - Power Grid System Single Sony-L Type Battery Plate for GoPro evyssceswsdzyyazsaucqfqaysfww
- Limited 1-Year Warranty
- Watson - NP-F975 Lithium-Ion Battery Pack (7.4V, 7800mAh)
- Watson - Compact AC/DC Charger for L & M Series Batteries
Table of Contents
|
Upload User Manual
Have you got an user manual for the IndiPRO Tools Power Grid System Sony L Series Type Battery Plate and Battery for GoPro Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - IndiPRO Tools Power Grid System Single Sony-L Type Battery Plate for GoPro
| Battery Mounting | Sony L-Series type | | Power Connector | 1 x Mini USB power connect for GoPro camera | | Output Voltage | 5VDC regulated | | Dimensions (H x L) | 3.2 x 4" (8.1 x 10.1 cm) | | Weight | 0.4 lb (181.4 g) | | | | Box Dimensions (LxWxH) | 6.6 x 5.4 x 3.3" | - Watson NP-F975 Lithium-Ion Battery Pack (7.4V, 7800mAh)
| Mount / Series Type | Sony L-Series | | Chemistry | Lithium-Ion | | Capacity (Wh) | 57.72 Wh | | Amp-Hours | 7800 mAh | | Output Voltage | 7.4 VDC | | Dimensions (W x H x D) | 2.8 x 1.5 x 2.4" / 70.0 x 39.0 x 60.0 mm | | Weight | 10.3 oz / 292 g | | | | Box Dimensions (LxWxH) | 5.4 x 2.9 x 1.9" | - Watson Compact AC/DC Charger for L & M Series Batteries
| Power Input | 100-240 VAC, 50/60 Hz, 100 mA (max), 12/24 VDC | | Power Output | 4.2-8.4 VDC, 800 mA (max) | | Additional Output | USB 2.0, 5 VDC, 1 A (max), for charging USB devices | | Charging Time | 2-6 hours | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Dimensions | 2 x 1.3 x 3.5" (5.1 x 3.3 x 9 cm) | | Weight | 3.1 oz (88 g) | | | | Box Dimensions (LxWxH) | 7.05 x 4.15 x 2.9" |
