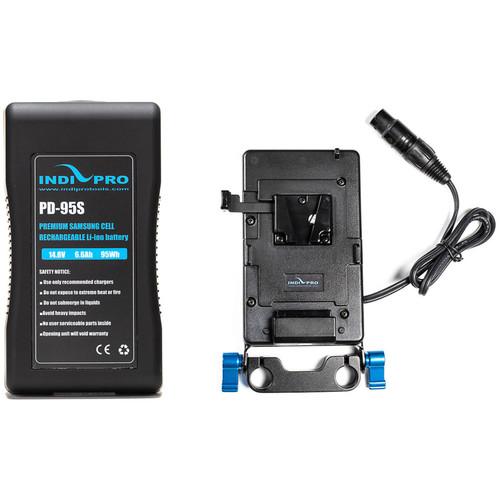

User Manual for IndiPRO Tools V-Mount Battery and Plate with 4-Pin XLR Kit Click to enlarge the picture
Contents of the user manual for the IndiPRO Tools V-Mount Battery and Plate
- Product category: On Camera Batteries IndiPRO Tools
- Brand: IndiPRO Tools
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IndiPRO Tools On Camera Batteries
|
User manual for the IndiPRO Tools V-Mount Battery and Plate contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IndiPRO Tools product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IndiPRO Tools user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IndiPRO Tools product will considerably shorten its lifespan!
|
Product description Keep your camera or 4-pin XLR-compatible accessories powered with this V-Mount Battery and Plate Kit from IndiPro Tools. Included in this kit is a 95 Wh Lithium-Ion V-Mount battery along with a battery plate. The plate has an integrated 20" cable with a Neutrik 4-pin XLR connector on the end as well as a D-tap connection. This kit can be easily integrated into an existing 15mm LWS system with the included rod bracket. - IndiPRO Tools Compact 95Wh V-Mount Li-ion Battery
- INDIPRO TOOLS 95 Wh 14.8V 6.6Ah V MOUNT AND GOLD MOUNT BATTERY
This Compact 95Wh V-Mount Li-ion Battery from IndiPRO Tools outputs 14.8V, has a capacity of 6.6Ah, and supports up to a 10A draw. Its features include a Samsung cell, a weight of slightly more than 1.5 pounds, and a standard D-Tap port for powering accessories via a separately available cable. For quick status checks, an integrated 4-bar LED gauge displays the battery's remaining power. - Compact size suited for use with smaller cameras, monitors, lights, and accessories
- 14.8V, 6.6Ah output with 95Wh capacity
- 4-bar LED remaining-power display
- Standard V-mount compatibility
- 2-pin D-Tap for powering accessories directly from the battery
UPC: 741533994113 - IndiPRO Tools V-Mount Plate for 4-Pin XLR Cameras & Devices (15mm Rod Bracket)
- INDIPRO TOOLS 95 Wh 14.8V 6.6Ah V MOUNT AND GOLD MOUNT BATTERY
Add V-Mount battery support to 4-pin XLR cameras and devices with this V-Mount Plate from IndiPRO Tools. It connects to the camera using a Neutrik 4-pin XLR connector at the end of a 20" cable, and attaches to your rig via a 15mm LWS rod bracket provided on the bottom. Attached on the back of your rig, it can also be used as a counterweight. The plate features a D-Tap output for powering 12-16V accessories simultaneously with the camera. - Key Features
-
- Neutrik 4-pin XLR connector for compatible cameras and devices
- 15mm LWS rod mount bracket
- D-Tap output
- 20" cable
UPC: 741533994458 In the Box - Compact 95Wh V-Mount Li-ion Battery ssxysxefwwyvrwrbucwefqtutz
- Limited 2-Year Warranty
- V-Mount Plate for 4-Pin XLR Cameras & Devices (15mm Rod Bracket)
Table of Contents
|
Upload User Manual
Have you got an user manual for the IndiPRO Tools V-Mount Battery and Plate with 4-Pin XLR Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - IndiPRO Tools Compact 95Wh V-Mount Li-ion Battery
| Mount / Series Type | V-Mount | | Chemistry | Lithium-Ion | | Capacity (Wh) | 95 Wh | | Amp-Hours | 6.6 Ah | | Output Voltage | 14.8 VDC | | Accessory Port | 1 x D-Tap | | Dimensions (W x H x D) | 3.5 x 6.4 x 2.0" / 89.0 x 162.0 x 51.0 mm | | Weight | 1.6 lb / 0.7 kg | | | | Box Dimensions (LxWxH) | 8.05 x 4.7 x 3.55" | - IndiPRO Tools V-Mount Plate for 4-Pin XLR Cameras & Devices (15mm Rod Bracket)
| Battery Plate Type | V-Mount | | Connection to Camera | 1 x Neutrik 4-pin XLR connector for 4-pin XLR cameras and devices | | D-Tap Output | 1 x D-Tap for accessories requiring 12-16 V | | Mount Type | 15 mm LWS rod bracket | | Cable Length | 20" (51 cm), integrated cable | | Material of Construction | PVC Gold Mount plate
Aircraft-grade aluminum back plate
Aluminum rod mount | | Dimensions | 6.1 x 3.6 x 1" (15.5 x 9 x 2.5 cm) | | Weight | 0.4 lb (181 g) | | | | Box Dimensions (LxWxH) | 10.6 x 5.4 x 2.3" |
