User Manual for IndiPRO Tools V-Mount Battery Plate for Sony FS7 Click to enlarge the picture
Contents of the user manual for the IndiPRO Tools V-Mount Battery Plate for
- Product category: Battery Mounting Plates IndiPRO Tools
- Brand: IndiPRO Tools
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IndiPRO Tools Battery Mounting Plates
 |
User manual for the IndiPRO Tools V-Mount Battery Plate for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IndiPRO Tools product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IndiPRO Tools user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IndiPRO Tools product will considerably shorten its lifespan!
|

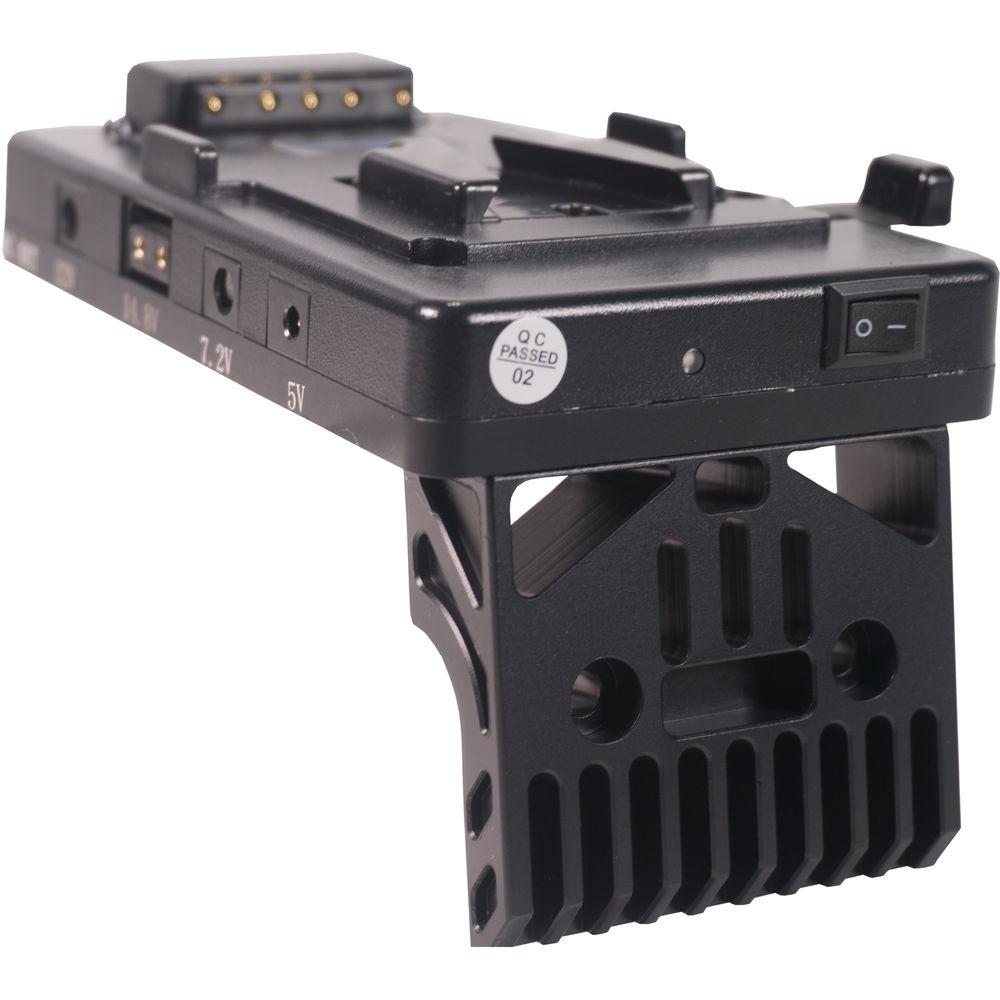

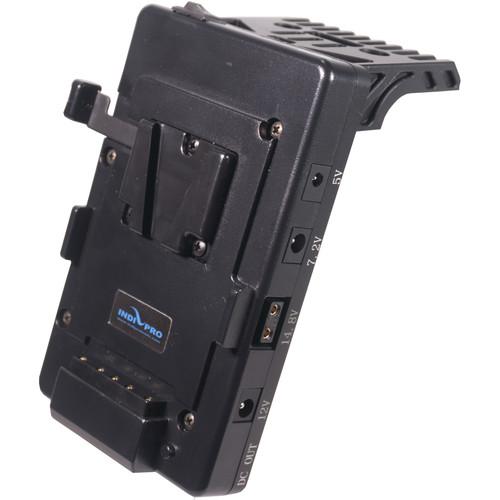

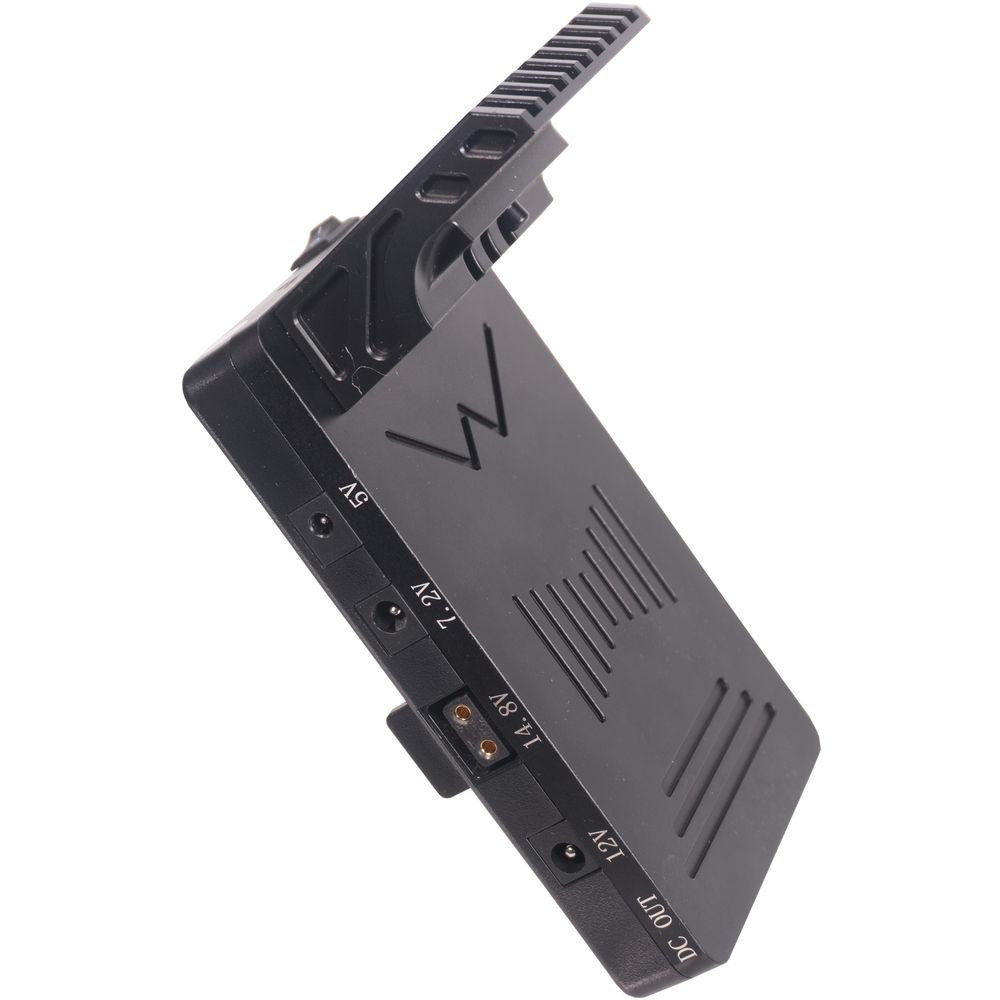

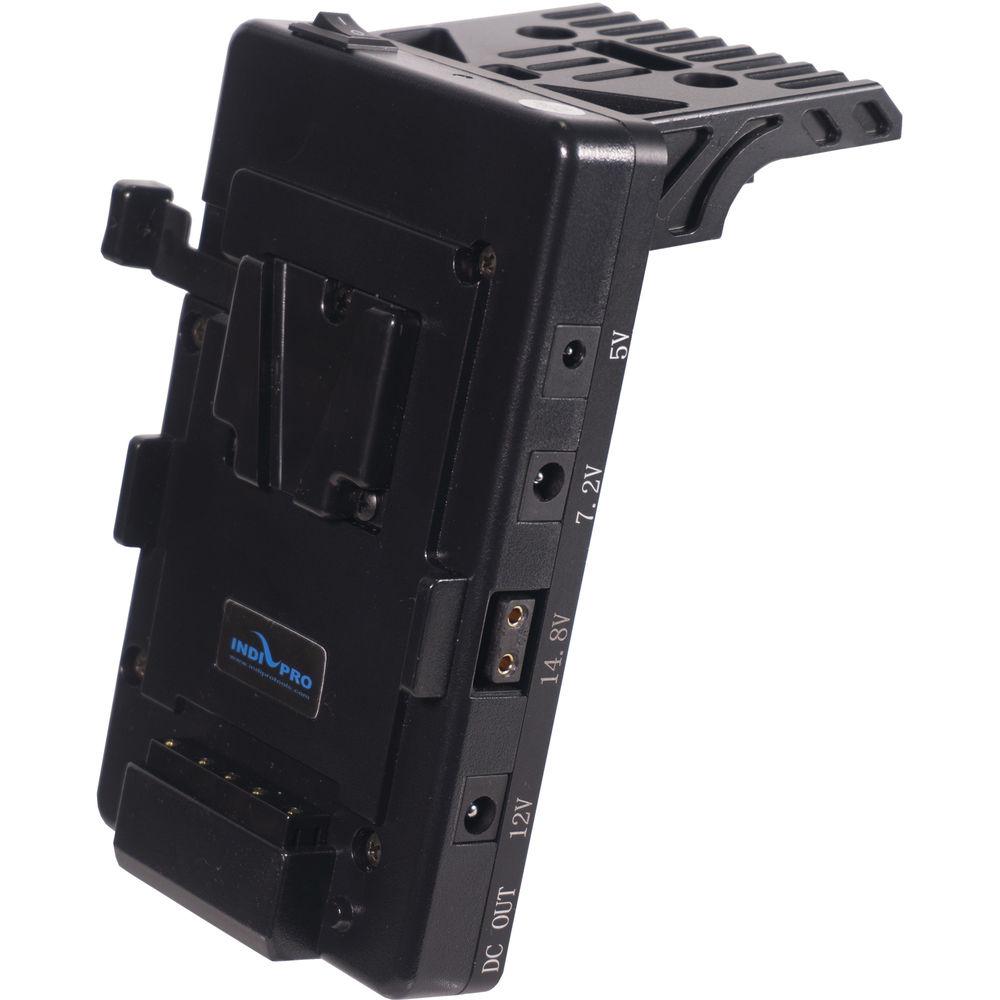

Product description Designed specifically to integrate into your Sony PXW-FS7 camera, the IndiPro Tools V-Mount Battery Plate provides you with a way to power your camera and onboard accessories from a single V-Mount battery. The battery plate solidly attaches to your FS7, allowing you to mount optional large capacity V-Mount batteries on the back of the camera without significantly altering the balance. Built-in power ports support D-Tap as well as common DC voltage outputs.
Using this battery plate with optional V-Mount batteries allows you to power the camera and onboard accessories using only one battery, instead of using many smaller DV style batteries. This single battery powering solution preserves the handheld capabilities of your camera, as opposed to the effect of weight and balance shifts caused by multiple batteries. The plate passes your battery's power through to the D-Tap, providing separate regulated 5 VDC, 7.2 VDC, and 12 VDC outputs. It includes five cables so you can connect a device to each power output. - Provides secure battery attachment for optional V-Mount batteries without significantly altering the camera's footprint.

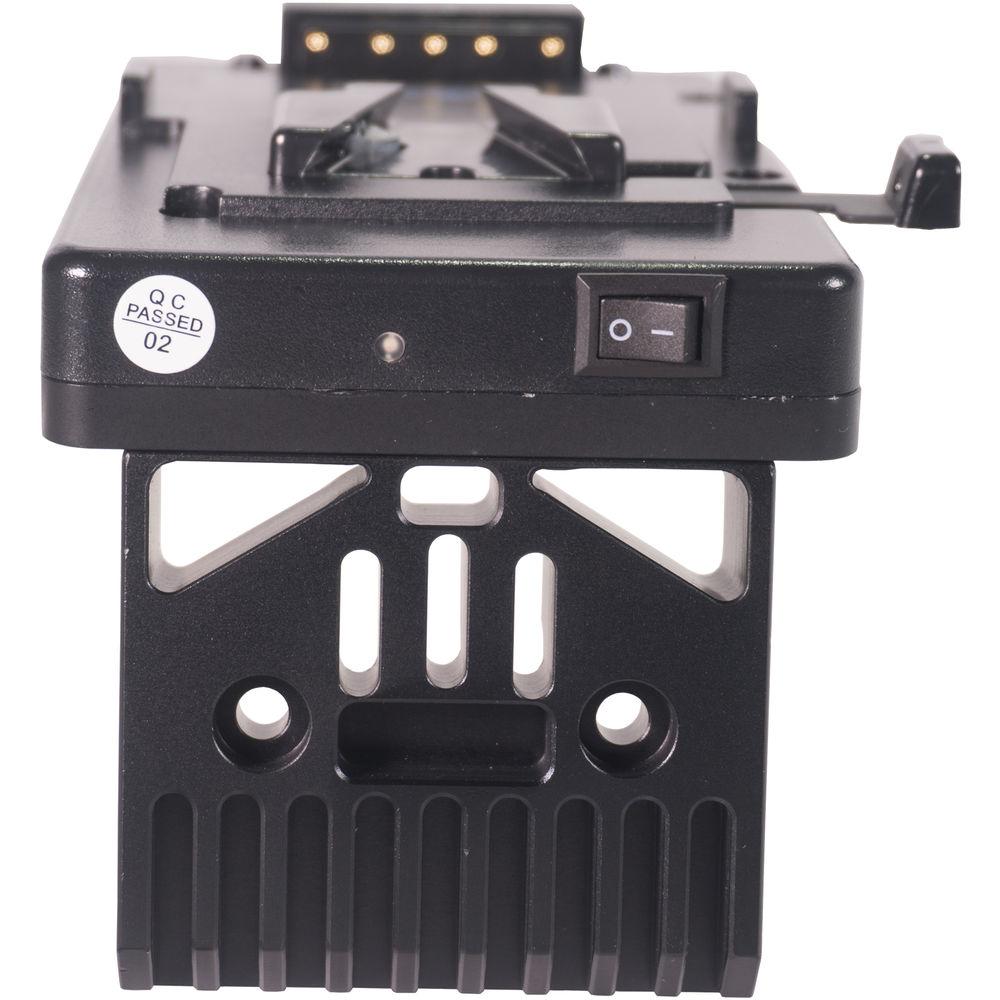

- Integrated on/off switch allows you to power down to conserve battery without removing the battery.

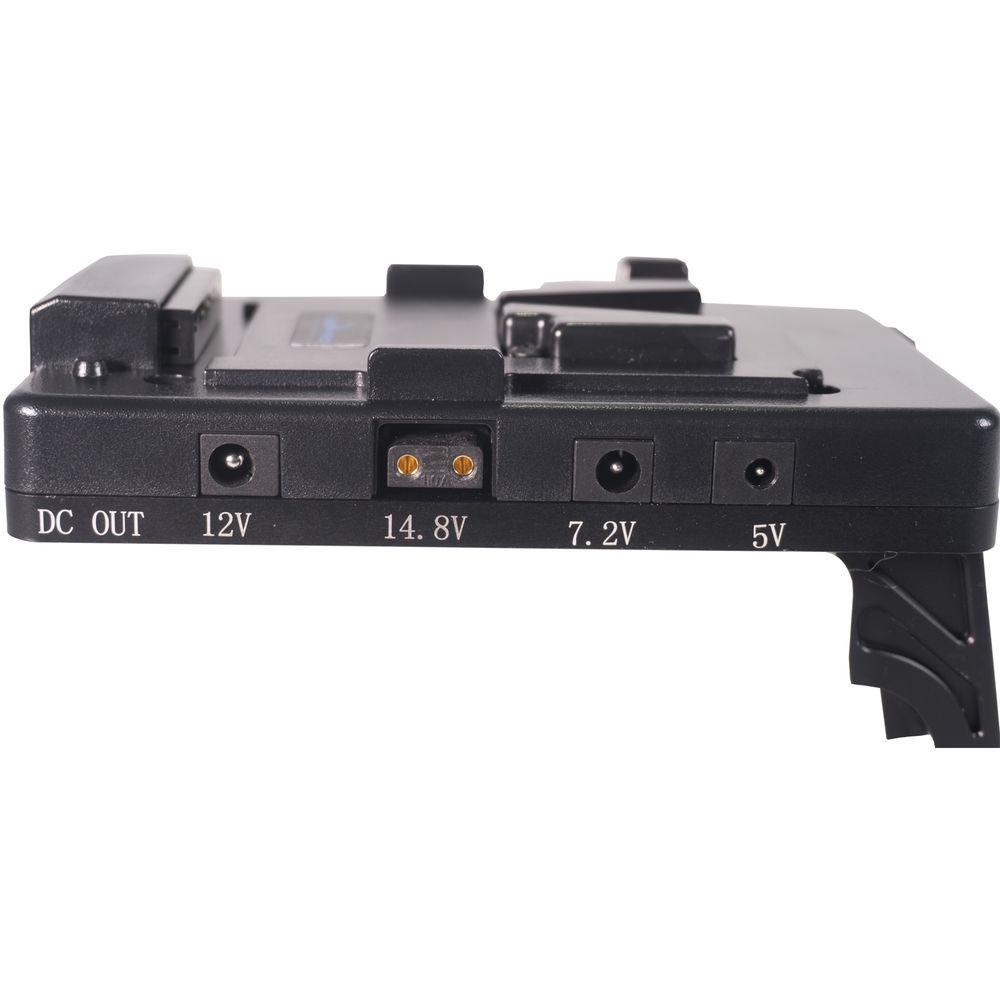

- Battery plate provides pass-through battery power to a D-Tap output, regulated 5 VDC, 7.2 VDC, and 12 VDC power outputs for powering an optional camera and accessories.

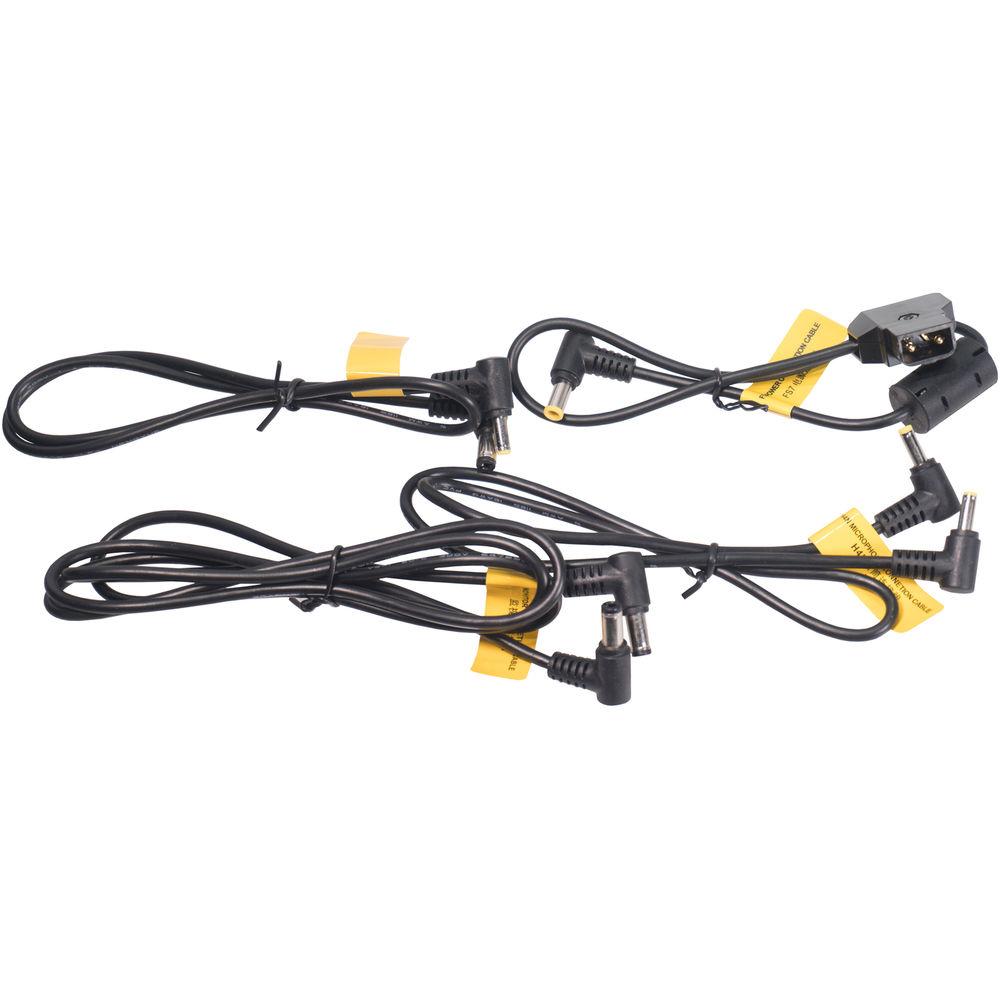

- Includes five cables:
- 5 VDC cable
- 5 VDC frequency divider cable
- 12 VDC
- 2.5mm barrel to LP-E6 dummy battery cable

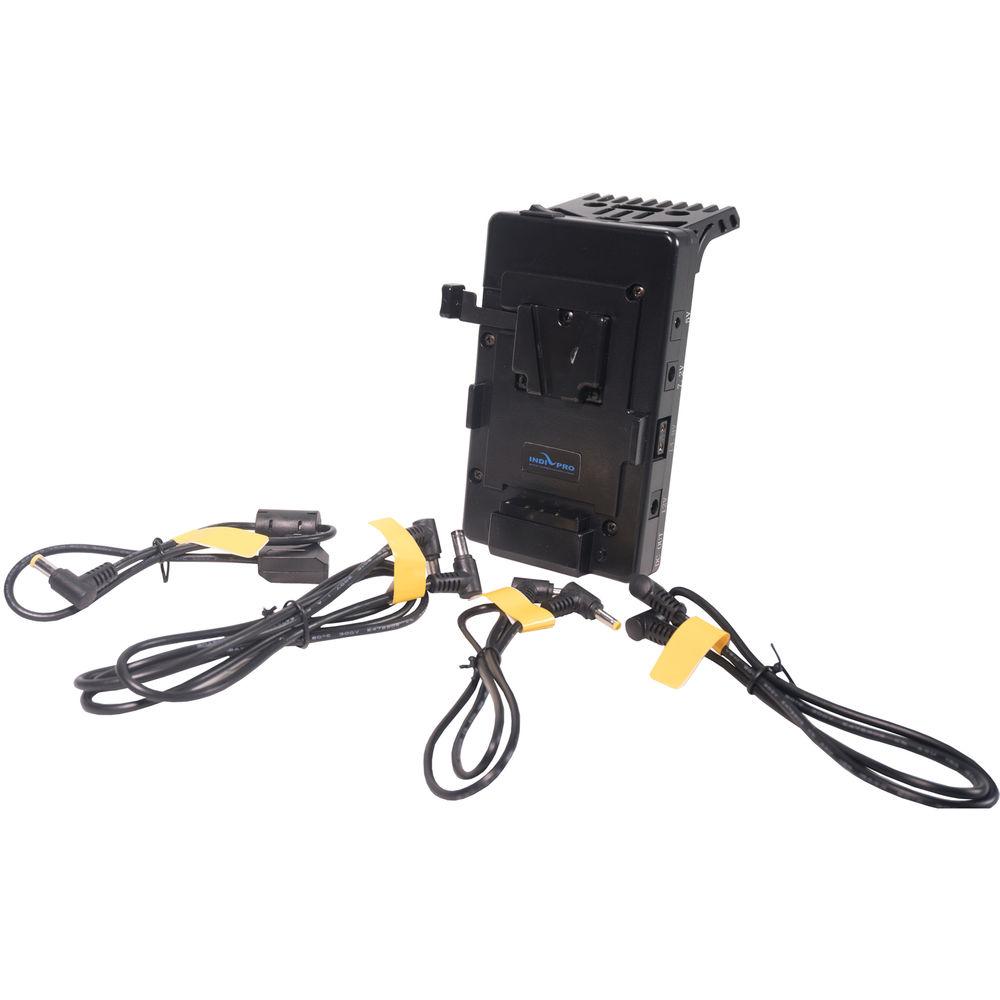

UPC: 651748820322 In the Box IndiPRO Tools V-Mount Battery Plate for Sony FS7 5 VDC Cable 5 VDC Frequency Divider Cable 12 VDC Cable D-Tap to FS7 Power Cable 2.5mm to LP-E6 Type Dummy Battery Cable Limited 18-Month Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IndiPRO Tools V-Mount Battery Plate for Sony FS7 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIndiPRO Tools PDVFS7 Specs | Battery Plate Type | Integrated V-Mount plate | | Power Outputs | 1 x 5 VDC
1 x 7.2 VDC
1 x 12 VDC
1 x D-Tap | | Dimensions | 5.6 x 3.9 x 3.5" / 142.2 x 99 x 88.9 mm | | Weight | 0.8 lb / 0.4 kg | | | | Package Weight | 1.75 lb | | Box Dimensions (LxWxH) | 9.5 x 5.3 x 5.0" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 06 owners. Add your rating and experience with the product.
