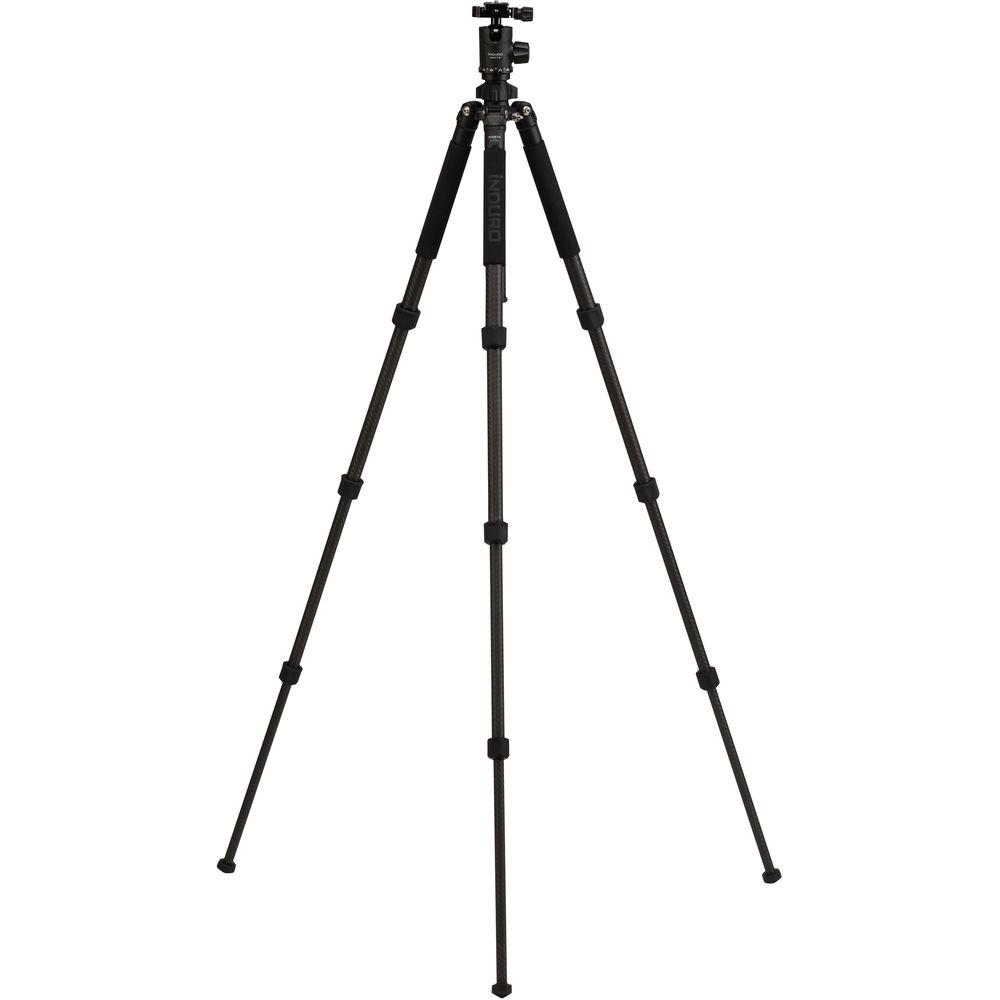

User Manual for Induro GTT104M1 Grand Turismo Series 1 Stealth Carbon Fiber Tripod with BHM1 Ball Head Click to enlarge the picture
Contents of the user manual for the Induro GTT104M1 Grand Turismo Series 1
- Product category: Tripods with Heads Induro
- Brand: Induro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Induro Tripods with Heads
 |
User manual for the Induro GTT104M1 Grand Turismo Series 1 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Induro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Induro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Induro product will considerably shorten its lifespan!
|

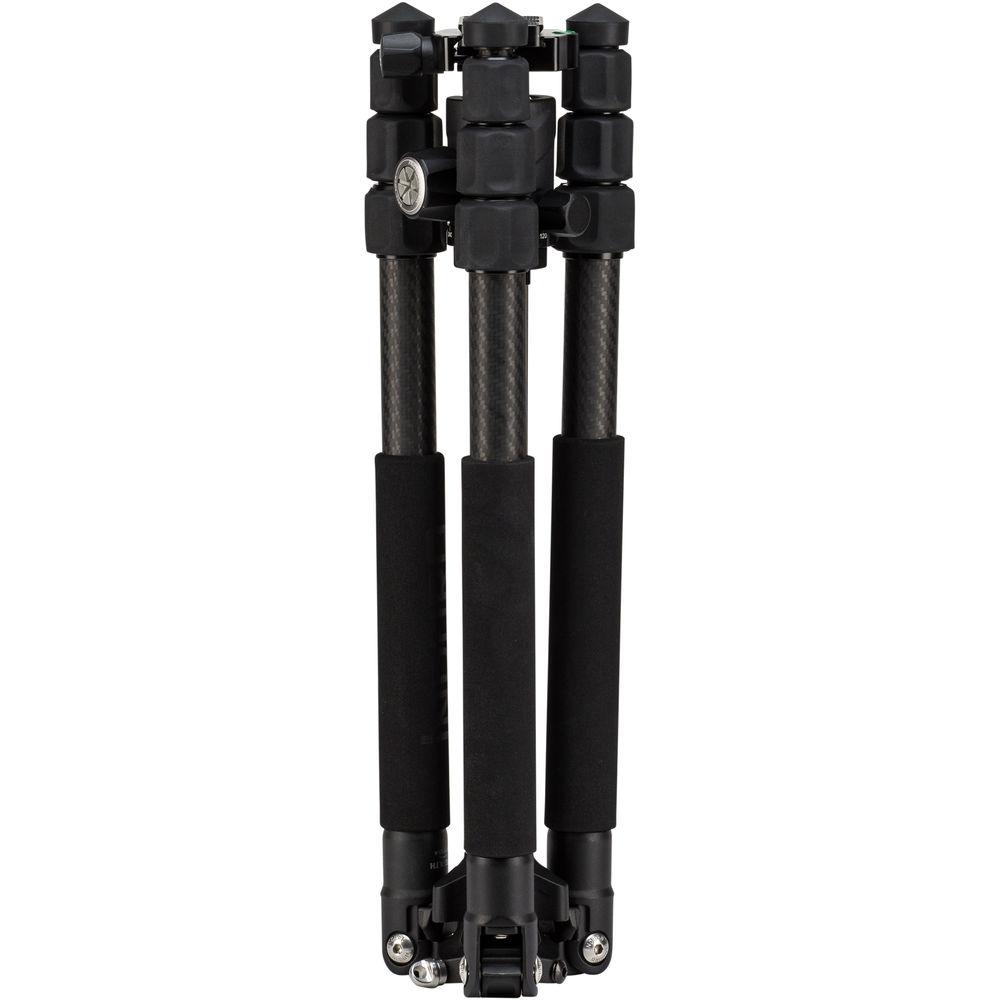

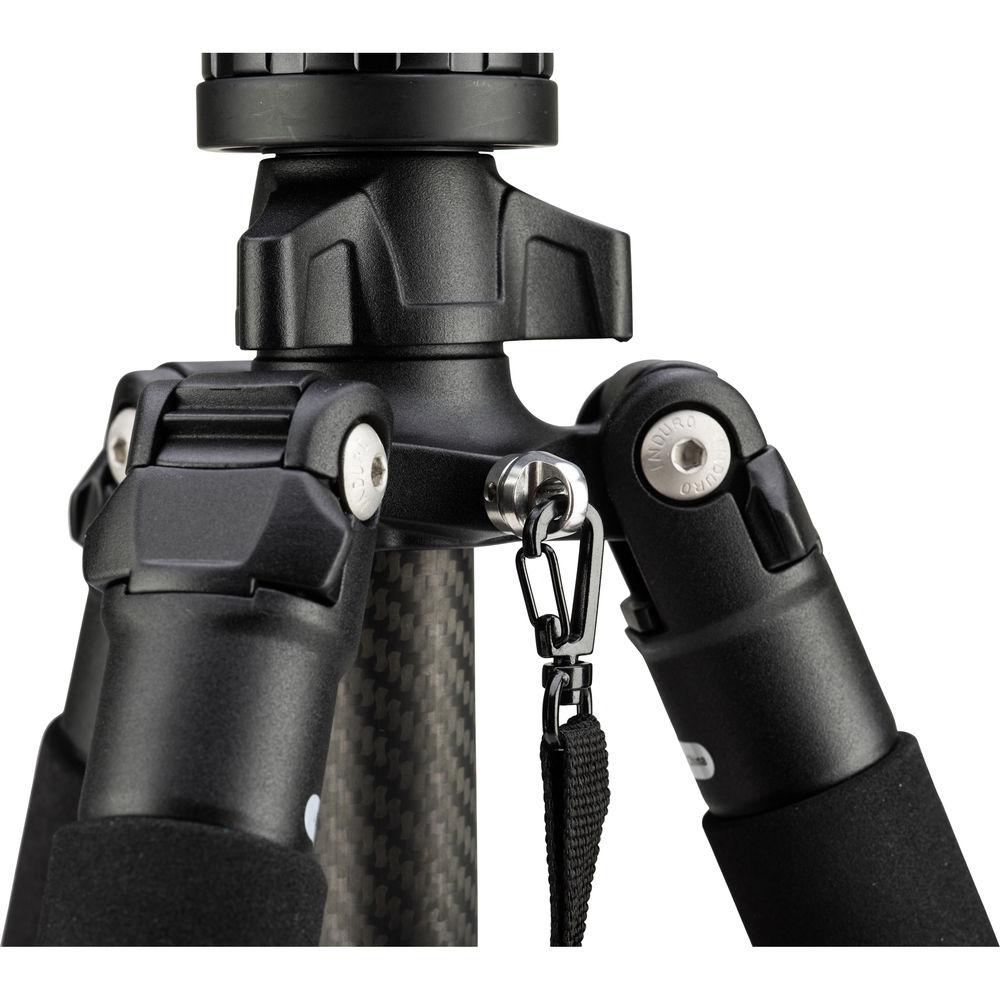

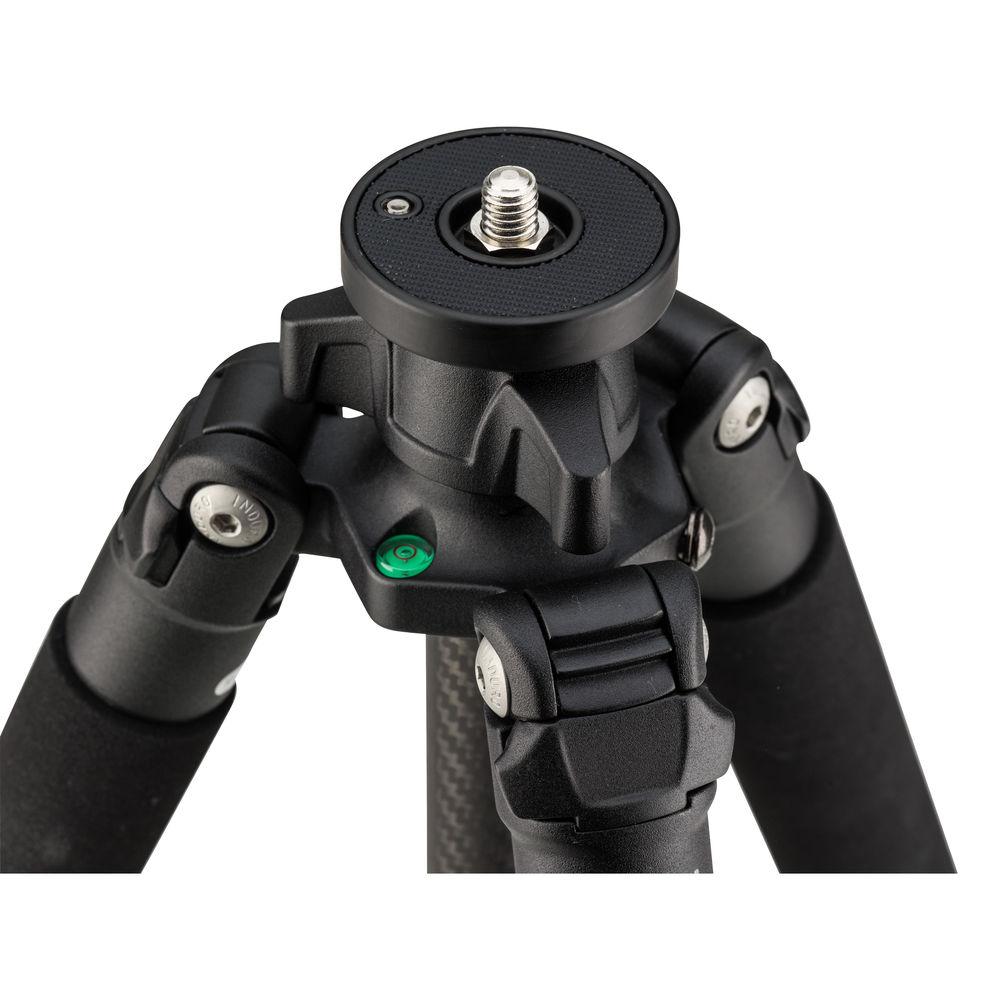

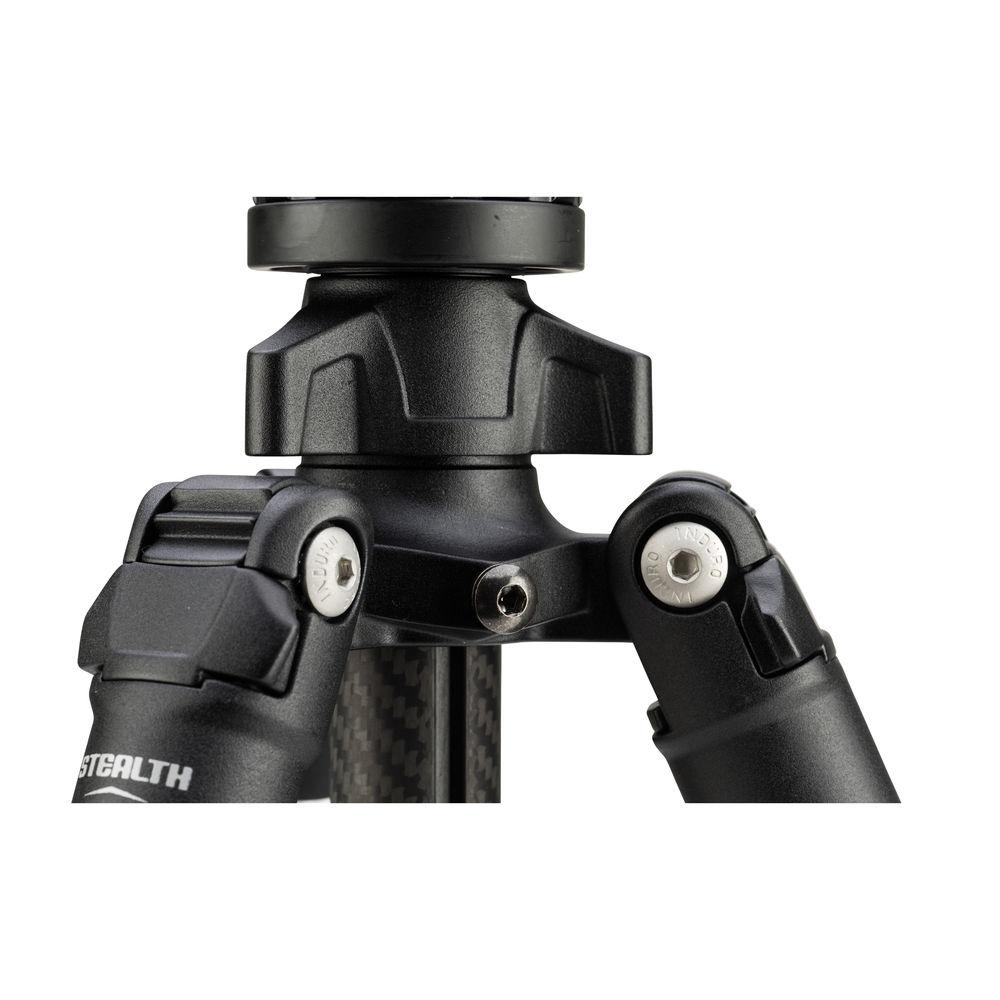

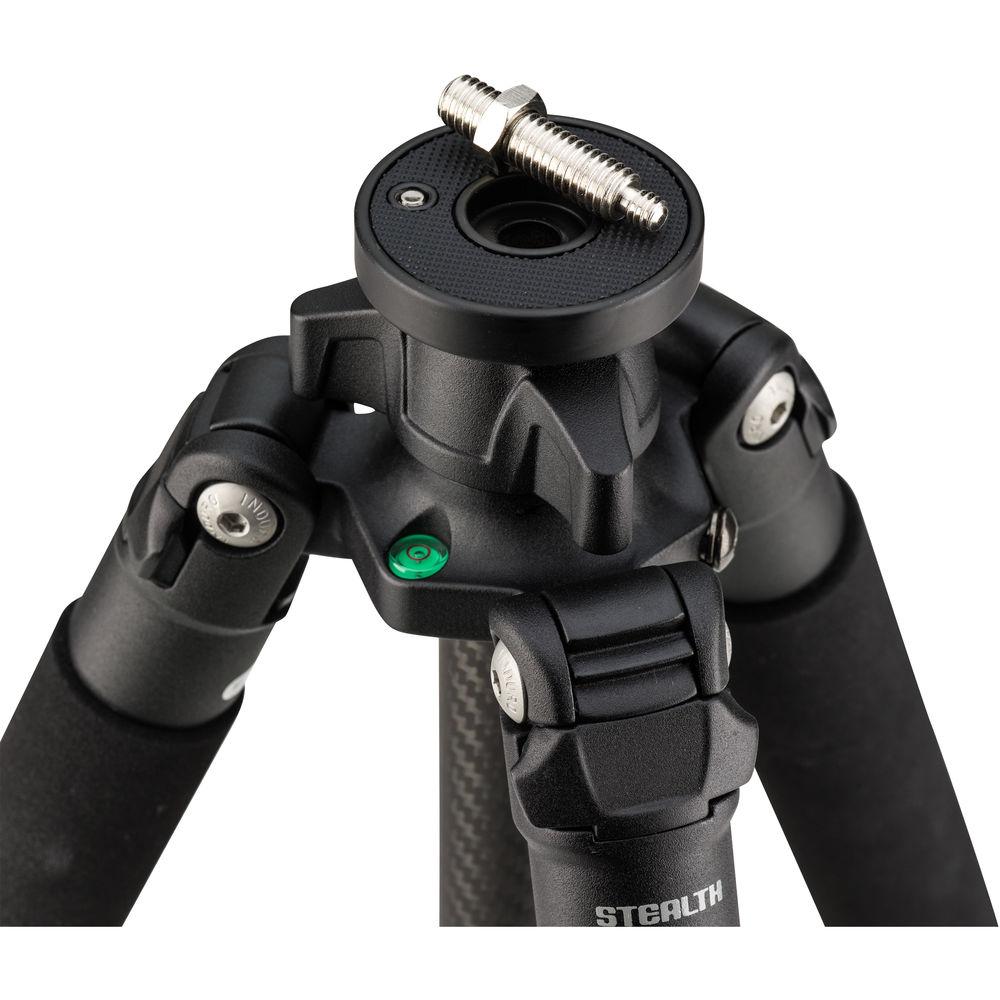

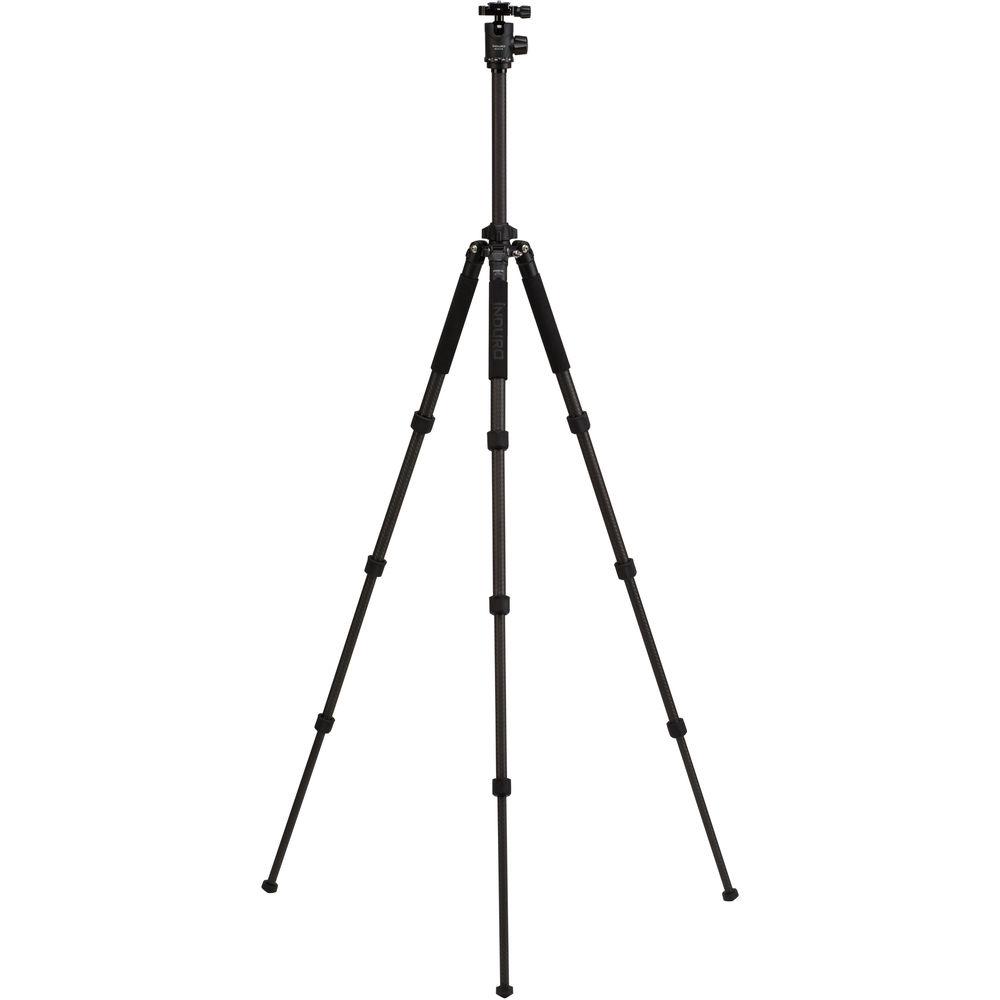

Product description Time-Lapse Tips and Tools Read More Designed for the road, the GTT104M1 Grand Turismo Series 1 Stealth Carbon Fiber Tripod with BHM1 Ball Head has a slim profile with reverse folding legs that ensure it is as compact as possible, folding up to 22.8" during transit. The legs are made from a strong, lightweight carbon fiber material for the ultimate in portability with a weight of just 3.5 lb, and the BHM series ball head ensures versatility. The tripod is capable of holding a hefty setup with a load capacity of 22.0 lb and offers a short center column to offer a maximum height of 62.6". The legs are optimized for fast operation with twist locks for going from the minimum height of 17.3" up to the maximum of 52.4" without the center column. Additionally, it comes with a carrying case for convenience.

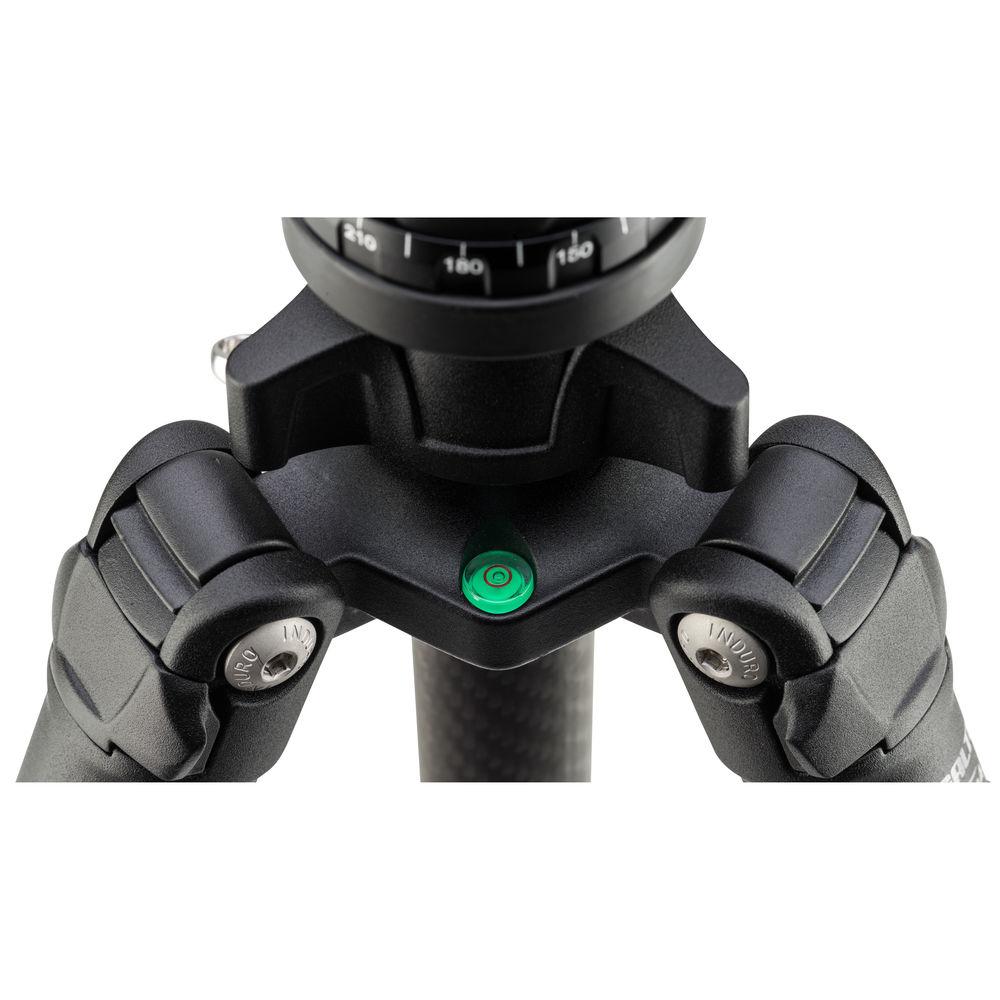

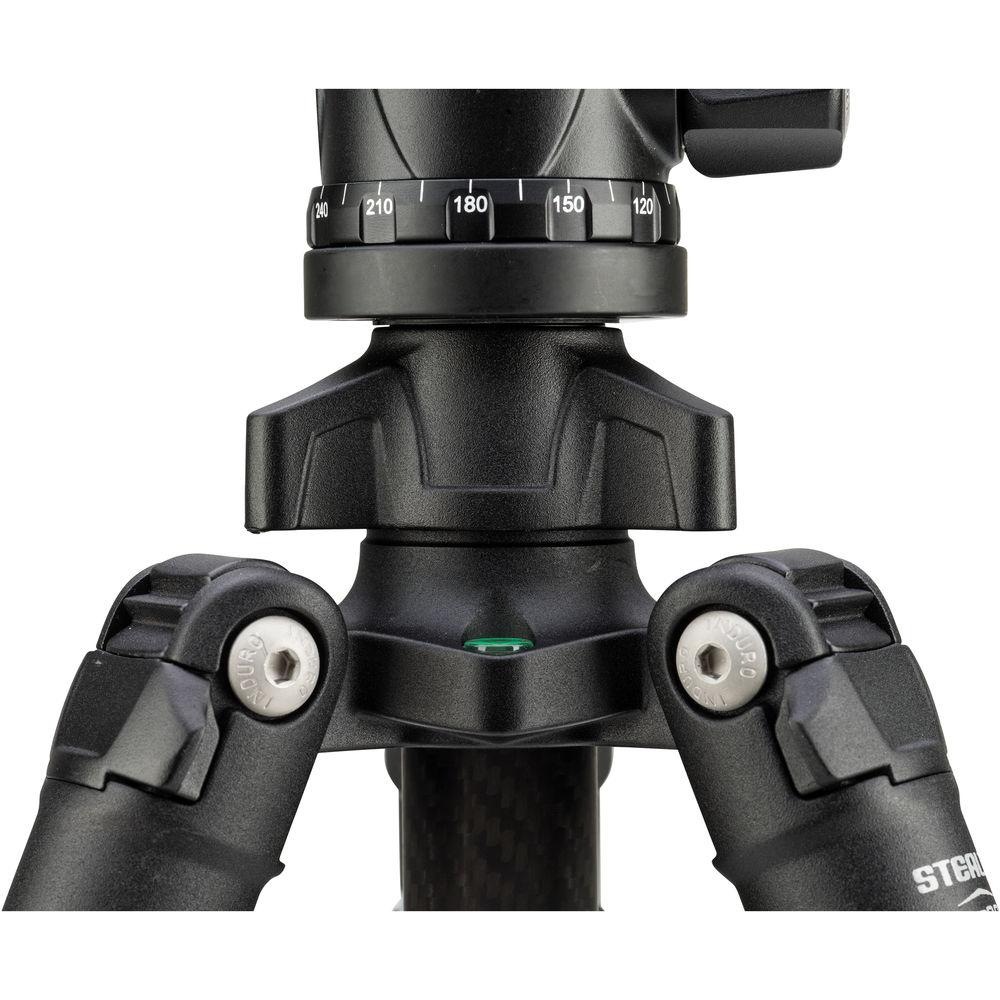

The included BHM1 Ball Head offers a versatile setup for quickly setting up and leveling your camera. It has a large locking knob to control the movement of the ball, and a separate lock to control the 360° panning motion. An integrated lock limiter tension disk allows you to fine-tune the ball's movement, and properly balance the tension with the weight of your gear. An Arca-type compatible quick release plate with a 1/4"-20 camera mounting screw is included with the ball head, and a bubble level on the clamp allows you to align your camera with the horizon. In the Box Induro GTT104M1 Grand Turismo Series 1 Stealth Carbon Fiber Tripod with BHM1 Ball Head Short Center Column BHM1 Ball Head zradzdvdrxdudtdurrzeazwf Carrying Case Limited 5-Year Warranty Extendable to 10 Years with Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Induro GTT104M1 Grand Turismo Series 1 Stealth Carbon Fiber Tripod with BHM1 Ball Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersInduro GTT104M1 Specs | | | Head Type | Ball Head | | Base Mount | 3/8"-16 Thread | | | | Load Capacity | 22 lb / 10 kg | | Maximum Working Height | 62.6" / 159 cm | | Minimum Working Height | 17.3" / 44 cm | | Folded Length | 22.8" / 58 cm | | Materials | Carbon Fiber | | Weight | 3.5 lb / 1.6 kg | | | | Leg Lock Type | Twist Lock | | Independent Leg Spread | Yes | | Leg Sections | 4 | | | | Center Column Sections | 1 | | Center Column Extension Type | Rapid | | Lateral / 90-Degree Center Column | No | | | | Package Weight | 6.65 lb | | Box Dimensions (LxWxH) | 20.0 x 6.2 x 6.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 30 owners. Add your rating and experience with the product.
