User Manual for InFocus IN1116 2400-Lumen WXGA 3D DLP Projector Click to enlarge the picture
Contents of the user manual for the InFocus IN1116 2400-Lumen WXGA 3D DLP
- Product category: Multimedia Projectors InFocus
- Brand: InFocus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for InFocus Multimedia Projectors
 |
User manual for the InFocus IN1116 2400-Lumen WXGA 3D DLP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any InFocus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official InFocus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a InFocus product will considerably shorten its lifespan!
|
Product description - InFocus IN1116, IN1118HD Mobile Projector Overview
The InFocus IN1116 2400-Lumen WXGA 3D DLP Projector offers detailed image viewing in a compact design. This projector delivers up to 2400 lumens of brightness, supports 3D compatibility via HDMI 1.4, and sports a WXGA 1280 x 800 native resolution. It is powered by a DLP chip system, and the lamp features a life of up to 10,000 hours in Eco mode and 6000 hours in Normal mode. Additionally, this model offers a 1.18 to 1.54:1 throw ratio for varied placement options.

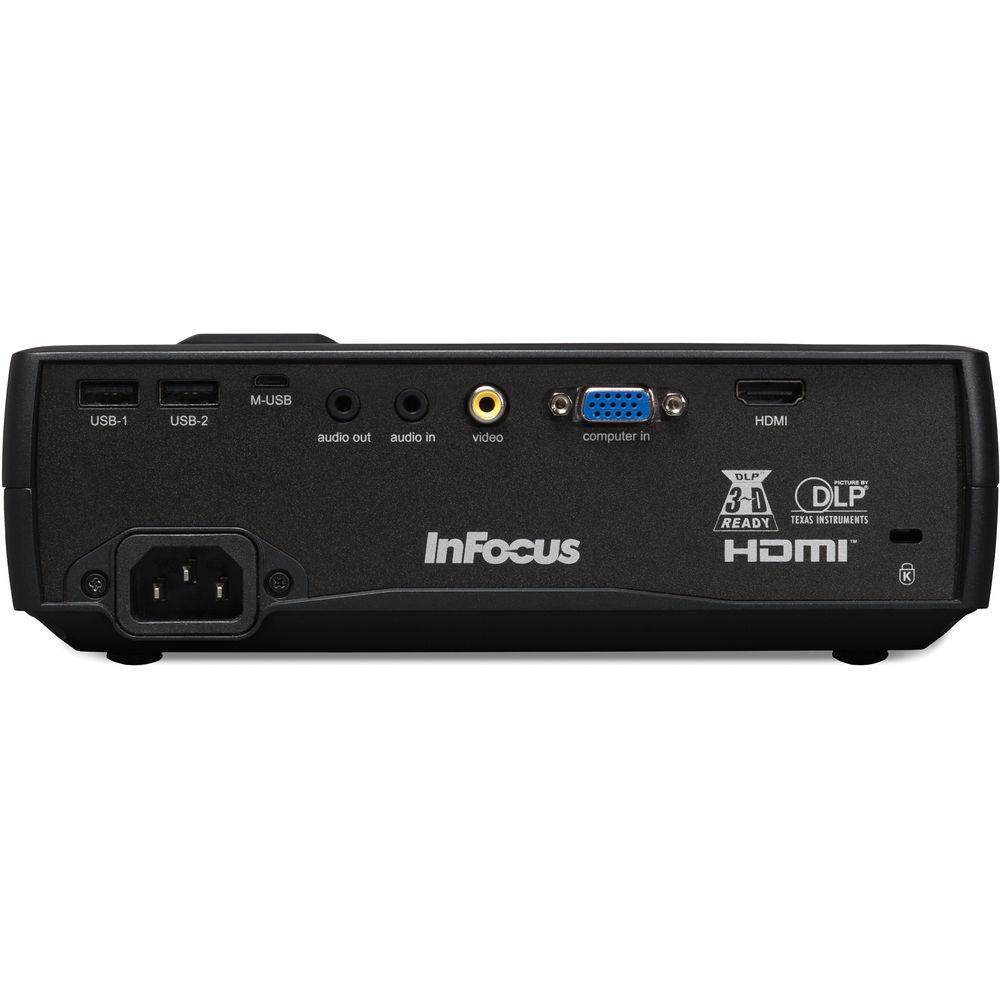

At 3.5 lb, the IN1116 is light enough for portable use. Additionally, it offers a variety of connectivity options including HDMI, VGA, composite video, analog audio input and output, and dual USB ports. A 2W mono speaker is built into the projector for audio playback. It can be controlled by the included IR remote control or by Ethernet. In addition to the remote, the projector also includes a carrying case, VGA cable, and 1/8" stereo audio cable. - Designed for the Road
- The projector has a recessed lens to keep it safe from impact. Plus, its smooth exterior leaves nothing to snag or break off when taking it in and out of a bag.
- Display from No Device at All
- Project images, audio, and video directly from the projector's onboard 4GB of memory. Just load it and go.
- Carry Easily and Connect Quickly
- At only 3.5 lb, it's easy to pack and carry and connects with your notebook or tablet via HDMI or USB in seconds to present HD quality video.
UPC: 797212983343 In the Box InFocus IN1116 2400-Lumen WXGA 3D DLP Projector Remote Control VGA Cable 1/8" A/V Cable Carrying Case AC Power Cord Limited 2-Year Warranty on Projector Limited 6-Month Warranty on Lamp Limited 90-Day Warranty on Accessories Table of Contents
|
Upload User Manual
Have you got an user manual for the InFocus IN1116 2400-Lumen WXGA 3D DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersInFocus IN1116 Specs | | | Display System | 0.65" DLP | | Native Chip Resolution | 1280 x 800 (WXGA) | | Supported Resolutions | Maximum: WUXGA - 1920 x 1200 | | Max Brightness | 2400 Lumens
1800 Lumens | | Offset | 15% vertical | | Aspect Ratio | Native: 16:10
Supported: 4:3
Supported: 16:9 | | Dynamic Contrast Ratio | 14,000:1 | | Color Wheel | 6-Segment (R/G/B/W/Y/C) | | Scan | Horizontal: 15 to 91 kHz
Vertical: 24 to 120 Hz | | | | Optical Zoom | 1.3x | | Throw Distance | 3.281 - 32.808' / 1 - 10 m | | Throw Ratio | 1.18 - 1.54:1 | | Projection Size | 30 - 353.75" / 76.20 - 898.52 cm | | | | Keystone Correction | Vertical: ± 40° | | Built-In Speaker | Yes (Mono) | | Speaker Power | 2W | | | | Inputs/Outputs | 1 x HDMI (HDMI Type-A) Audio, Video Input
1 x VGA (DE-15) Video Input
2 x USB 2.0 (USB Type-A) Control, Data Input
1 x USB 2.0 (Micro-USB) Control, Data, Service Input
1 x Composite (RCA) Video Input
1 x 1/8" / 3.5 mm Mini Audio Input
1 x 1/8" / 3.5 mm Mini Audio Output | | Memory Card Slot | None | | | | Light Source | Lamp (1 x UHP) | | Lamp Power | 50 W
170 W | | Expected Lamp Life | Medium Brightness: 6000 Hours
Low Brightness: 10,000 Hours | | Fan Noise | Low Brightness: 27 dB
Medium Brightness: 30 dB | | Security | Cable Lock Slot | | Supported Audio File Types | AAC, MP3, RM, WAV, WMA | | Supported Document File Types | DAT, DOC, DOCX, PDF, PPT, PPTX, XLS, XLSX | | Supported Photo File Types | BMP, JPEG, PNG | | Supported Video File Types | 3GP, AVI, MKV, MOV, MP4, MPEG, RMVB, TS, VOB, WMV | | Supported Languages | Arabic
Czech
Danish
Dutch
English
Finnish
French
German
Hungarian
Indonesian
Italian
Korean
Norwegian
Persian
Polish
Portuguese
Romanian
Russian
Simplified Chinese
Spanish
Traditional Chinese
Turkish
Vietnamese | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Standby Mode (Lamp Off): <0.5 W
Low Brightness: 180 W
Medium Brightness: 220 W | | Max Operating Altitude | 7500' / 2286 m | | Dimensions (W x H x D) | 8.8 x 3.1 x 7.3" / 223.5 x 78.7 x 185.4 mm | | Weight | 3.5 lb / 1.6 kg | | | | Package Weight | 5.9 lb | | Box Dimensions (LxWxH) | 14.9 x 12.4 x 6.5" |
