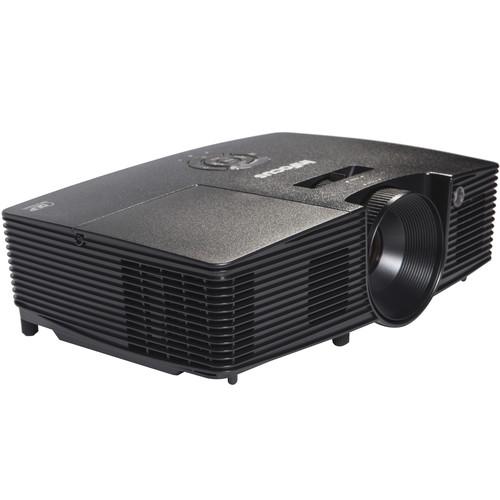

User Manual for InFocus IN116xa 3800-Lumen WXGA DLP Projector Click to enlarge the picture
Contents of the user manual for the InFocus IN116xa 3800-Lumen WXGA DLP Projector
- Product category: Multimedia Projectors InFocus
- Brand: InFocus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for InFocus Multimedia Projectors
|
User manual for the InFocus IN116xa 3800-Lumen WXGA DLP Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any InFocus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official InFocus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a InFocus product will considerably shorten its lifespan!
|
Product description Enjoy clear images in a variety of room conditions with the InFocus IN116xa 3800-Lumen WXGA DLP Projector. Its 3800 lumens of brightness and 26,000:1 dynamic contrast ratio combine to produce bright, detailed images in rooms with ambient light. The WXGA 1280 x 800 native resolution helps ensure that both text and graphics appear clear at most viewing distances. RCA composite video, S-video, two HDMI, and two VGA inputs are onboard to offer a variety of connection options for both new and legacy equipment. A VGA cable and IR remote are included as an added convenience. - Designed for a Long Lamp Life
- The lamp in the IN116xa can last up to 15,000 hours in Dynamic Mode. With no filters to replace, this helps achieve a low total cost of ownership.
- Enhanced Brightness and Dynamic Contrast
- The IN116xa features up to 3800 lumens of brightness and a dynamic contrast ratio of 26,000:1 for white whites, dark blacks, and overall enhanced image sharpness. Preset modes further enhance image quality on beige walls, whiteboards, or blackboards.
- Presentation and Setup Features
- Equipped with AV Mute, test patterns, image shift, and other features, the IN116xa delivers your content without a complicated setup process.
- 3D Ready
- The IN116xa supports multiple forms of 3D, including Blu-ray, 3D broadcasting, video games, and computer connectivity. All your audience needs are optional 144 Hz DLP Link 3D glasses to synchronize with the image for a 3D experience.
- Lightweight Design for Easy Portability
- At just 7.3 lb, the IN116xa can be moved from location to location easily.
- BrilliantColor Technology
- BrilliantColor technology is designed to produce accurate and vivid colors.
UPC: 797212987549 In the Box InFocus IN116xa 3800-Lumen WXGA DLP Projector Remote Control VGA Cable Power Cord Limited 2-Year Warranty on Projector Limited 6-Month Warranty on Lamp Limited 90-Day Warranty on Included Accessories More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the InFocus IN116xa 3800-Lumen WXGA DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersInFocus IN116XA Specs | | | Display System | 0.65" DLP | | Native Chip Resolution | 1280 x 800 (WXGA) | | Supported Resolutions | Maximum: WUXGA - 1920 x 1200 | | Max Brightness | 3800 Lumens | | Offset | 12% | | Aspect Ratio | Native: 16:10
Supported: 16:9
Supported: 4:3 | | Dynamic Contrast Ratio | 26,000:1 | | DLP Link 3D | Yes | | Color Wheel | 6-Segment | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Horizontal: 31.469 to 97.551 kHz
Vertical: 56 to 85 Hz or 120 Hz | | | | Focus | Manual | | Optical Zoom | Manual: 1.1x | | Throw Distance | 3.61 - 32.81' / 1.1 - 10 m | | Throw Ratio | 1.55 - 1.7:1 | | Projection Size | 33 - 300" / 83.82 - 762.00 cm | | | | Keystone Correction | Vertical: ± 40° | | Ceiling Mountable | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 3W | | Wireless LAN / Wi-Fi | None | | | | Light Source | Lamp | | Lamp Power | 195 W | | Expected Lamp Life | Full Brightness: 5000 Hours
Medium Brightness: 6000 Hours
Low Brightness: 15,000 Hours | | Fan Noise | Full Brightness: 31 dB
Low Brightness: 28 dB | | Supported Languages | Arabic
Czech
Dutch
English
French
German
Hindi
Hungarian
Indonesian
Italian
Japanese
Korean
Malaysian
Norwegian
Polish
Portuguese
Romanian
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish
Vietnamese | | Max Operating Altitude | 10000' / 3048 m | | Operating Temperature | 32 to 73°F / 0 to 23°C | | Dimensions (W x H x D) | 8.8 x 4.0 x 12.4" / 22.4 x 10.2 x 31.5 cm | | Weight | 7.3 lb / 3.31 kg | | | | Package Weight | 7.2 lb | | Box Dimensions (LxWxH) | 15.5 x 10.8 x 6.0" |
