Product description - InFocus IN110xv Series Projectors

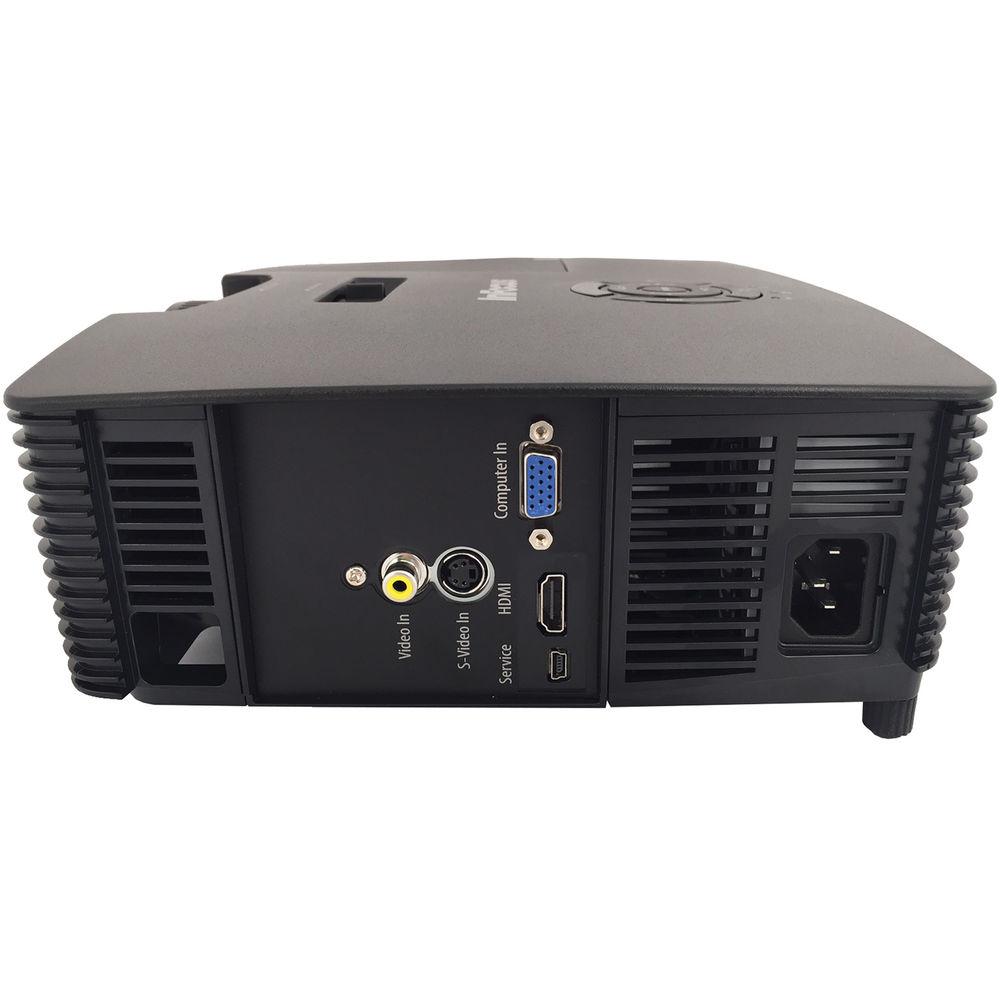

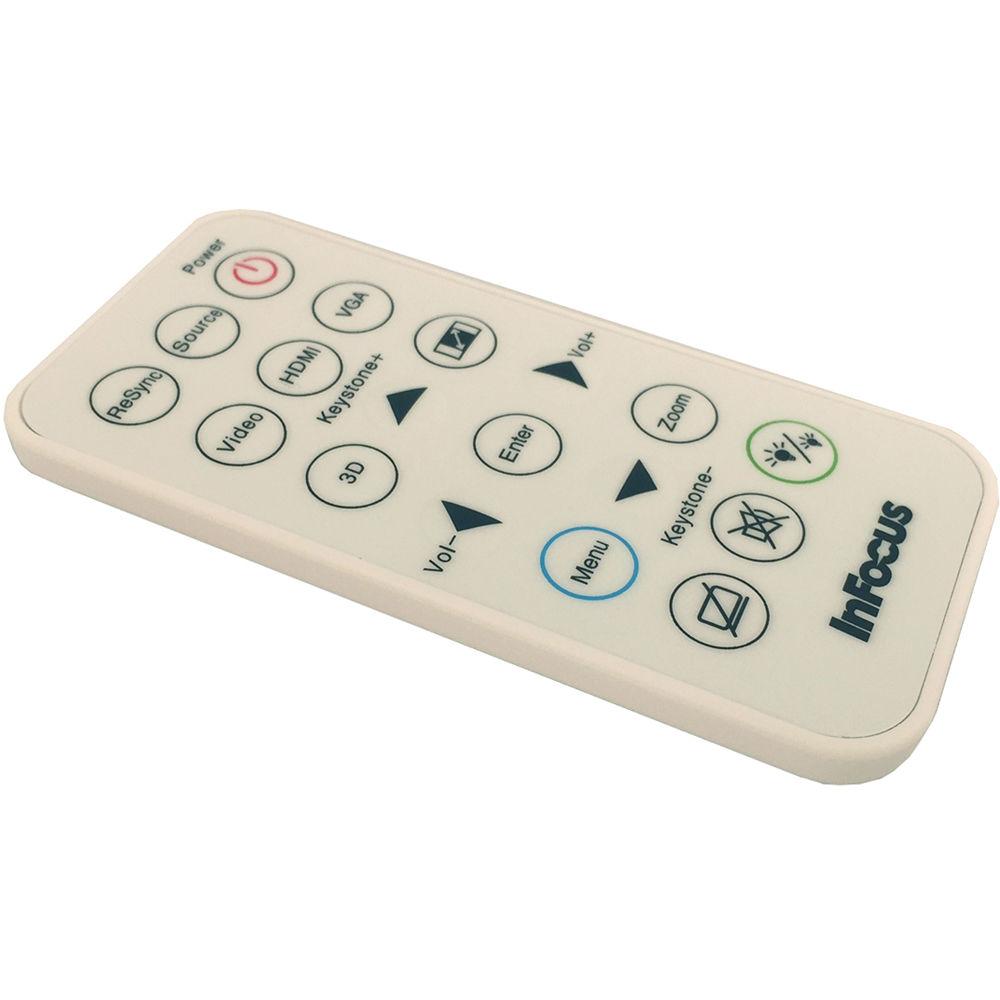

Enjoy clear images in a variety of room conditions with the InFocus IN116xv 3800-Lumen WXGA DLP Projector. Its 3800 lumens of brightness and 26,000:1 dynamic contrast ratio combine to produce bright, detailed images in rooms with ambient light. The WXGA 1280 x 800 native resolution helps ensure that both text and graphics appear clear at most viewing distances. HDMI, RCA composite video, S-video, and VGA inputs are onboard to offer a variety of connection options for both new and legacy equipment. A VGA cable and IR remote are included as an added convenience. - Up to 15,000-Hour Lamp Life
- The lamp in the IN116xv lasts up to 15,000 hours in Dynamic Mode. With no filters to replace, this means a low total cost of ownership.
- Enhanced Brightness and Contrast
- The IN116xv outputs up to 3800 lumens of brightness with a 26,000:1 dynamic contrast ratio for whiter whites, darker blacks, and overall enhanced image sharpness. Preset modes augment image quality on beige walls, whiteboards, or blackboards.
- Presentation and Setup Features
- Equipped with AV Mute, test patterns, image shift, and other features, the IN116xv is designed to deliver your content without a complicated setup.
- 3D-Ready
- The IN116xv supports multiple formats of 3D, including Blu-ray, 3D broadcasting, video games, and computer connectivity. All you need for a 3D experience are the optional 144 Hz DLP Link 3D glasses, which seamlessly synchronize with the image.
- Additional Features
-
- Compact, lightweight (5.5 lb) design for easy portability
- Enhanced color reproduction with BrilliantColor technology
UPC: 797212987570 In the Box InFocus IN116xv 3800-Lumen WXGA DLP Projector Remote Control VGA Cable Power Cord Limited 2-Year Warranty on Projector Limited 6-Month Warranty on Lamp Limited 90-Day Warranty on Included Accessories Table of Contents
|
Upload User Manual
Have you got an user manual for the InFocus IN116xv 3800-Lumen WXGA DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersInFocus IN116XV Specs | | | Display System | 0.65" DLP | | Native Chip Resolution | 1280 x 800 (WXGA) | | Supported Resolutions | Maximum: WUXGA - 1920 x 1200 | | Max Brightness | 3800 Lumens | | Offset | 12% | | Aspect Ratio | Native: 16:10
Supported: 4:3
Supported: 16:9 | | Dynamic Contrast Ratio | 26,000:1 | | DLP Link 3D | Yes | | Color Wheel | 6-Segment | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Horizontal: 31.469 to 97.551 kHz
Vertical: 56 to 85 Hz or 120 Hz | | | | Focus | Manual | | Optical Zoom | Manual: 1.1x | | Throw Distance | 3.61 - 32.81' / 1.1 - 10 m | | Throw Ratio | 1.55 - 1.7:1 | | Projection Size | 27.5 - 300" / 69.85 - 762.00 cm | | | | Keystone Correction | Vertical: ± 40° | | Ceiling Mountable | Yes | | Wireless LAN / Wi-Fi | No, Optional Adapter Available | | | | Light Source | Lamp | | Lamp Power | 195 W | | Expected Lamp Life | Full Brightness: 5000 Hours
Medium Brightness: 6000 Hours
Low Brightness: 15,000 Hours | | Fan Noise | Full Brightness: 31 dB
Low Brightness: 28 dB | | Supported Languages | Arabic
Czech
Dutch
English
French
German
Hindi
Hungarian
Indonesian
Italian
Japanese
Korean
Malaysian
Norwegian
Polish
Portuguese
Romanian
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish
Vietnamese | | Max Operating Altitude | 10000' / 3048 m | | Operating Temperature | 32 to 73°F / 0 to 22°C | | Dimensions (W x H x D) | 12.4 x 4.0 x 8.8" / 315.0 x 101.6 x 223.5 mm | | Weight | 5.5 lb / 2.5 kg | | | | Package Weight | 7.3 lb | | Box Dimensions (LxWxH) | 15.6 x 11.1 x 6.2" |
