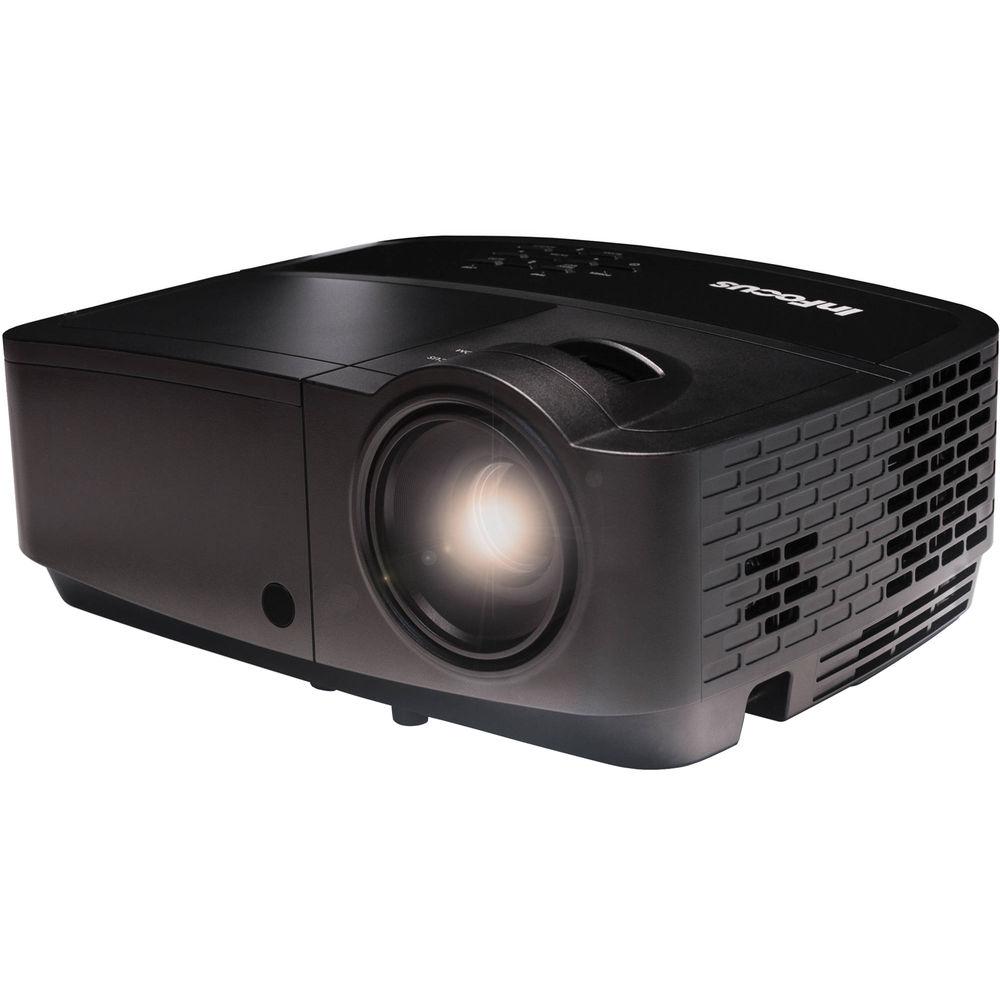

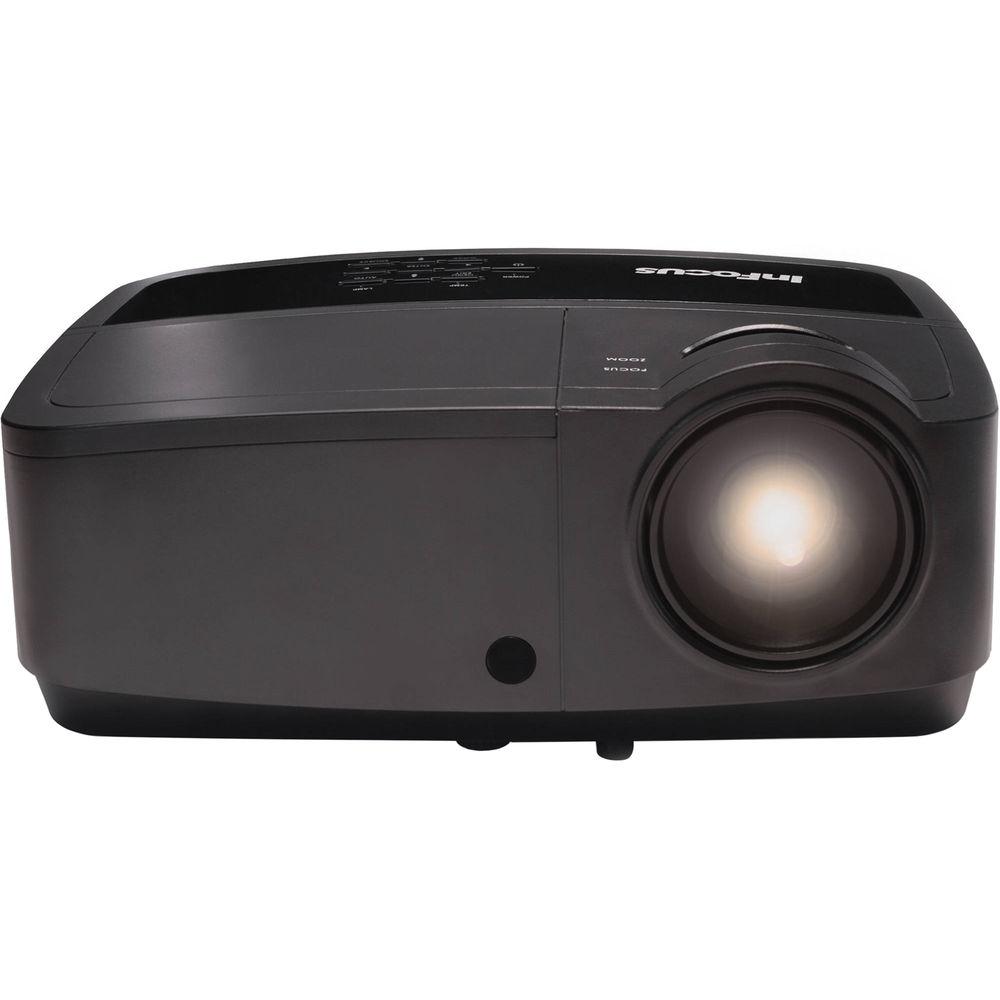

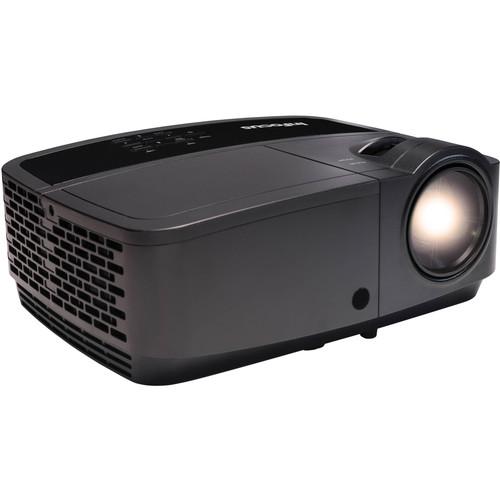

User Manual for InFocus IN126x 4200-Lumen WXGA DLP Projector Click to enlarge the picture
Contents of the user manual for the InFocus IN126x 4200-Lumen WXGA DLP Projector
- Product category: Multimedia Projectors InFocus
- Brand: InFocus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for InFocus Multimedia Projectors
 |
User manual for the InFocus IN126x 4200-Lumen WXGA DLP Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any InFocus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official InFocus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a InFocus product will considerably shorten its lifespan!
|
Product description Enjoy clear images, even in rooms with ambient light, with the InFocus IN126x 4200-Lumen WXGA DLP Projector. Its 4200 lumens of brightness can overcome ambient light in many situations, while its 15,000:1 contrast ratio will help enhance detail in dark areas of the image without reducing overall brightness. Its WXGA 1280 x 800 native resolution will ensure that text is clear at most viewing distances.

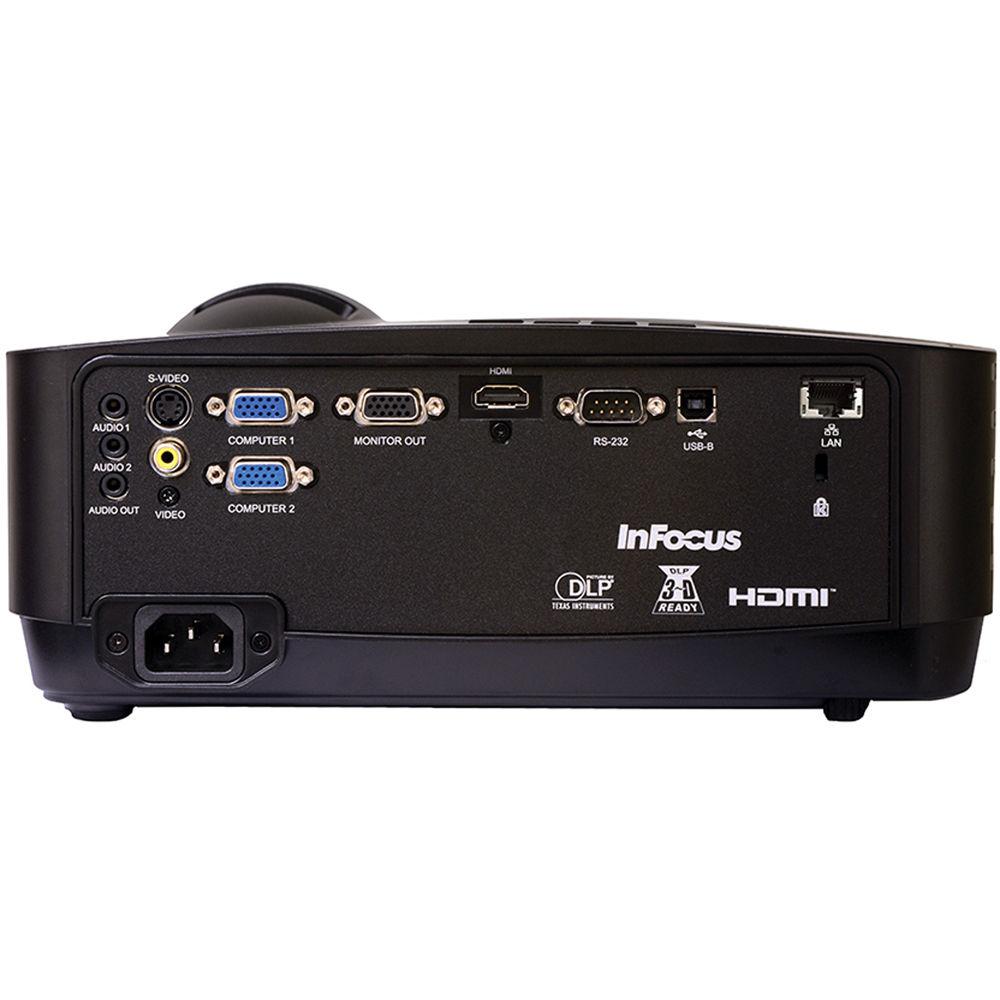

The IN126x supports 3D content via its HDMI input and also features an S-Video, RCA composite video, and two VGA inputs. Its 3.5mm audio input and 10W built-in speaker will eliminate the need for external speakers, but its 3.5mm audio output will allow you to connect to a separate audio system if you prefer. The IN126x is controllable by Crestron and AMX systems via its RS-232 and LAN ports. - Its common 1.47 to 1.83:1 throw ratio is designed to make it easy to replace an existing projector
- 4200 lumens of brightness to help deliver clear images with or without the lights on
- 15,000:1 contrast ratio for enhanced sharpness with darker blacks and whiter whites
- Instantly stop projecting from the remote to lengthen lamp life and save money and energy with Eco Blanking
- RS-232 and LAN ports allow it to be auto-discovered and controlled by Crestron RoomView and AMX Device Discovery room control systems
- Built-in speaker and 3.5mm audio out port provide audio
- Average lamp life is 5000 hours in Eco Blanking mode, 3500 hours when in Eco Mode, and 2000 hours in Normal Mode
- No filters to clean or replace
- Enhanced images and colors with DLP technology with BrilliantColor implementation
- Preset modes give you optimal image quality on a beige wall, whiteboard, blackboard, or other surface
- Ready for your 3D content from Blu-ray, computers, cable boxes, and more
- HDMI connectivity along with VGA, composite, and S-Video inputs
UPC: 797212982032 In the Box InFocus IN126x 4200-Lumen WXGA DLP Projector Remote Control VGA Cable Power Cord Limited 2-Year Warranty on Projector Limited 6-Month Warranty on Lamp Limited 90-Day Warranty on Included Accessories Table of Contents
|
Upload User Manual
Have you got an user manual for the InFocus IN126x 4200-Lumen WXGA DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersInFocus IN126x Specs | | | Display System | DLP | | Native Chip Resolution | 1280 x 800 (WXGA) | | Max Brightness | 4200 Lumens | | Offset | 15% | | Aspect Ratio | Native: 16:10
Supported: 4:3 | | Contrast Ratio | 15000:1 | | DLP Link 3D | Yes | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Horizontal: 15 to 91 kHz
Vertical: 24 to 120 Hz | | | | Focus | Manual | | Lens Shift | None | | Optical Zoom | 1.24x | | Throw Ratio | 1.47 - 1.83:1 | | | | Keystone Correction | Vertical: ± 40° | | Built-In Speaker | Yes (Mono) | | Speaker Power | 10W | | Closed Captioning | Yes | | | | Lamp Power | 220 W
65 W | | Expected Lamp Life | Medium Brightness: 2000 Hours
Low Brightness: 5000 Hours | | Fan Noise | Medium Brightness: 34 dB
Low Brightness: 32 dB | | Security | Cable Lock Slot
Keypad Lock
Security Bar | | Supported Languages | Arabic
Czech
Danish
Dutch
English
Finnish
French
German
Hungarian
Indonesian
Italian
Korean
Norwegian
Persian
Polish
Portuguese
Romanian
Russian
Simplified Chinese
Spanish
Swedish
Traditional Chinese
Turkish
Vietnamese | | Max Operating Altitude | 10000' / 3048 m | | Dimensions (W x H x D) | 11.5 x 3.9 x 8.7" / 29.2 x 9.9 x 22.1 cm | | Weight | 5.1 lb / 2.3 kg | | | | Package Weight | 7.95 lb | | Box Dimensions (LxWxH) | 14.6 x 12.0 x 7.8" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 69 owners. Add your rating and experience with the product.
