Product description - InFocus IN128HDx Network HD Projector Overview
Enjoy bright, detailed images with the InFocus IN128HDX 4000-Lumen Full HD 3D DLP Projector. It delivers up to 4000 lumens of brightness for enhanced viewing in bright rooms. The projector supports 3D via HDMI and sports a 1920 x 1080 native resolution. It is powered by a DLP chip system, and the lamp features a lifespan up to 5000 hours in Eco Blanking mode and 2000 hours in Bright mode. The 1.15 to 1.5:1 throw ratio allows for various placement options.

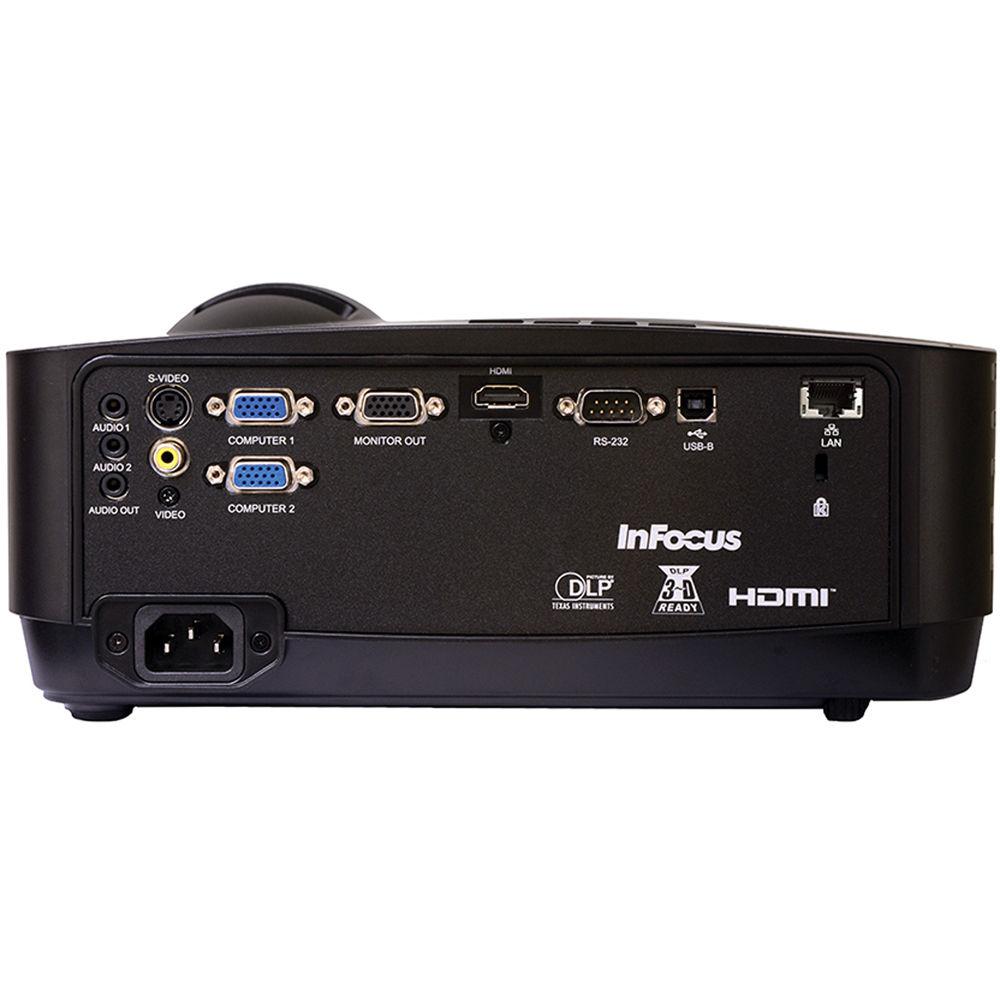

The IN128HDX offers a variety of connectivity options including HDMI, composite video, S-Video, and two VGA inputs, plus an analog audio input and output. A 10W mono speaker is built into the projector for audio playback. It can be controlled by the included IR remote or by Ethernet with Crestron or AMX functionality. In addition to the remote, a VGA cable is included for out-of-the-box connection to your computer. - High Brightness and High Contrast
- The 4000-lumen brightness will give you bright and clear images, and the 15000:1 contrast ratio adds sharpness with darker blacks and whiter whites. Presenters can also instantly dim the projector with the remote control to divert the audience's attention onto the presenter and extend lamp life.
- 3D
- The IN128HDX supports multiple forms of 3D from sources like Blu-ray, 3D broadcasting, videogames, and computer connectivity. All your audience needs are 144 Hz DLP Link 3D glasses to seamlessly synchronize with the image for a 3D experience.
- Eco Blanking Saves Money
- Instantly dim the screen to divert your audience's attention onto you with the Eco Blanking feature on the remote control. Activate this feature when the projector isn't being used and lower the lamp's power usage down to 30%. This saves energy and extends the life of the lamp, which saves you money.
- Sound That Fills the Room
- Sound meets images with a 10W speaker that makes sure your audience doesn't miss a moment. Closed captioning capabilities ensure everyone can learn and understand more clearly.
- Networking
- The IN128HDX is Crestron RoomView and AMX Device Discovery ready. Simply use the RJ45 connection to access these networking features.
- Additional Features
-
- High brightness at 4000 lumens
- High 15000:1 contrast ratio
- Compact and lightweight for easy portability
- Accurate and vivid color reproduction with BrilliantColor technology
- HDMI connectivity
- Blu-ray 3D capable via HDMI
UPC: 797212982025 In the Box InFocus IN128HDX 4000-Lumen Full HD 3D DLP Projector Remote Control VGA Cable Power Cord Limited 2-Year Warranty on Projector Limited 6-Month Warranty on Lamp Limited 90-Day Warranty on Accessories Table of Contents
|
Upload User Manual
Have you got an user manual for the InFocus IN128HDX 4000-Lumen Full HD 3D DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersInFocus IN128HDX Specs | | | Display System | DLP | | Native Chip Resolution | 1920 x 1080 (Full HD) | | Supported Resolutions | Maximum: WUXGA - 1920 x 1200 | | Max Brightness | 3200 Lumens
4000 Lumens | | Offset | 15% | | Aspect Ratio | Native: 16:9
Supported: 4:3
Supported: 16:10 | | Contrast Ratio | 15000:1 | | DLP Link 3D | Yes | | Color Wheel | 6-Segment (R, G, B, W, Y, C) | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Horizontal: 15 to 91 kHz
Vertical: 24 to 120 Hz | | | | Focus | Manual | | Lens Shift | None | | Optical Zoom | 1.3x | | Throw Ratio | 1.15 - 1.5:1 | | | | Keystone Correction | Vertical: ± 40° | | Ceiling Mountable | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 10W | | Closed Captioning | Yes | | | | Lamp Power | 260 W
220 W
65 W | | Expected Lamp Life | Low Brightness: 5000 Hours
Full Brightness: 2000 Hours | | Fan Noise | Low Brightness: 32 dB
Full Brightness: 34 dB | | Security | Cable Lock Slot
Keypad Lock
Security Bar | | Supported Languages | Arabic
Czech
Danish
Dutch
English
Finnish
French
German
Hungarian
Indonesian
Italian
Korean
Norwegian
Persian
Polish
Portuguese
Romanian
Simplified Chinese
Spanish
Swedish
Traditional Chinese
Turkish
Vietnamese | | Max Operating Altitude | 10000' / 3048 m | | Dimensions (W x H x D) | 11.5 x 3.9 x 8.7" / 29.2 x 9.9 x 22.1 cm | | Weight | 5.1 lb / 2.3 kg | | | | Package Weight | 8.0 lb | | Box Dimensions (LxWxH) | 14.4 x 12.2 x 7.9" |
