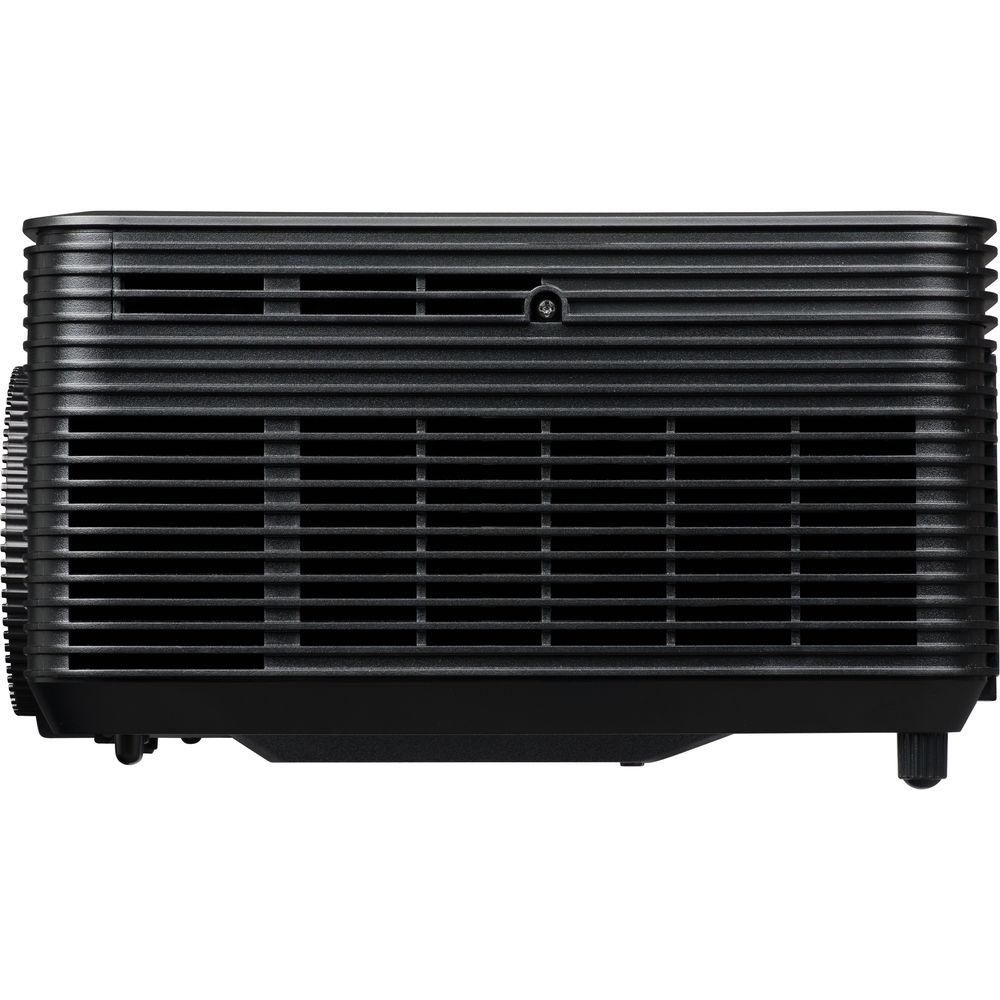

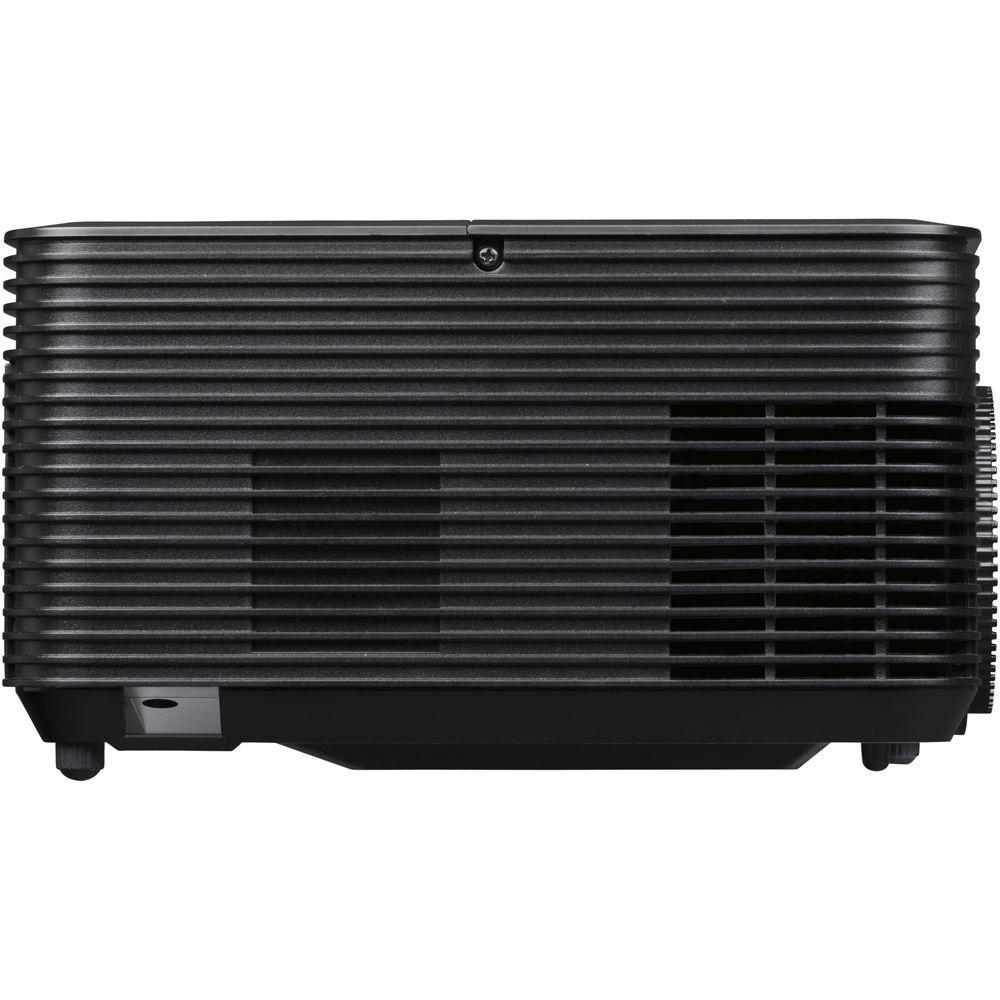

User Manual for InFocus IN134 4000-Lumen XGA DLP Projector Click to enlarge the picture
Contents of the user manual for the InFocus IN134 4000-Lumen XGA DLP Projector
- Product category: Multimedia Projectors InFocus
- Brand: InFocus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for InFocus Multimedia Projectors
 |
User manual for the InFocus IN134 4000-Lumen XGA DLP Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any InFocus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official InFocus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a InFocus product will considerably shorten its lifespan!
|
Product description - InFocus IN130 Series Projectors

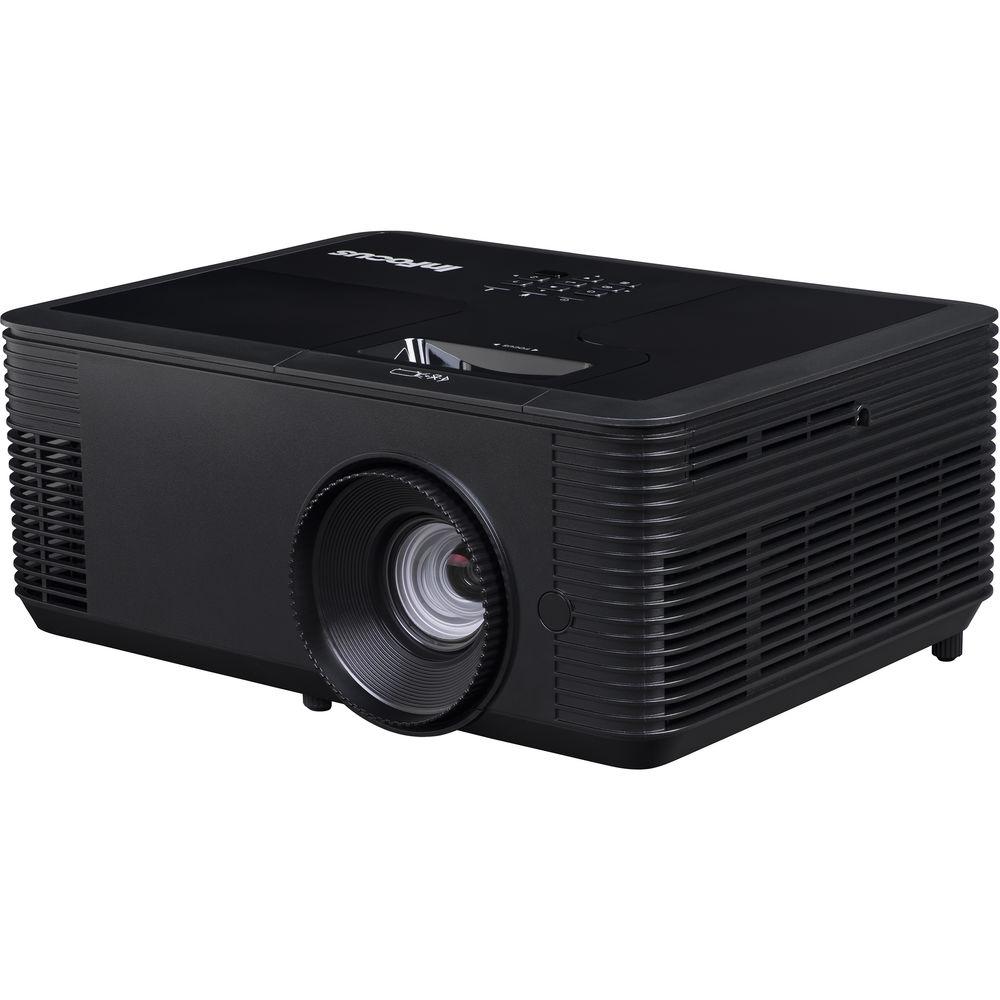

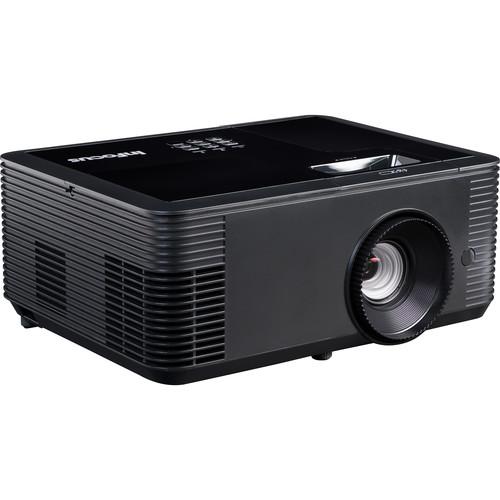

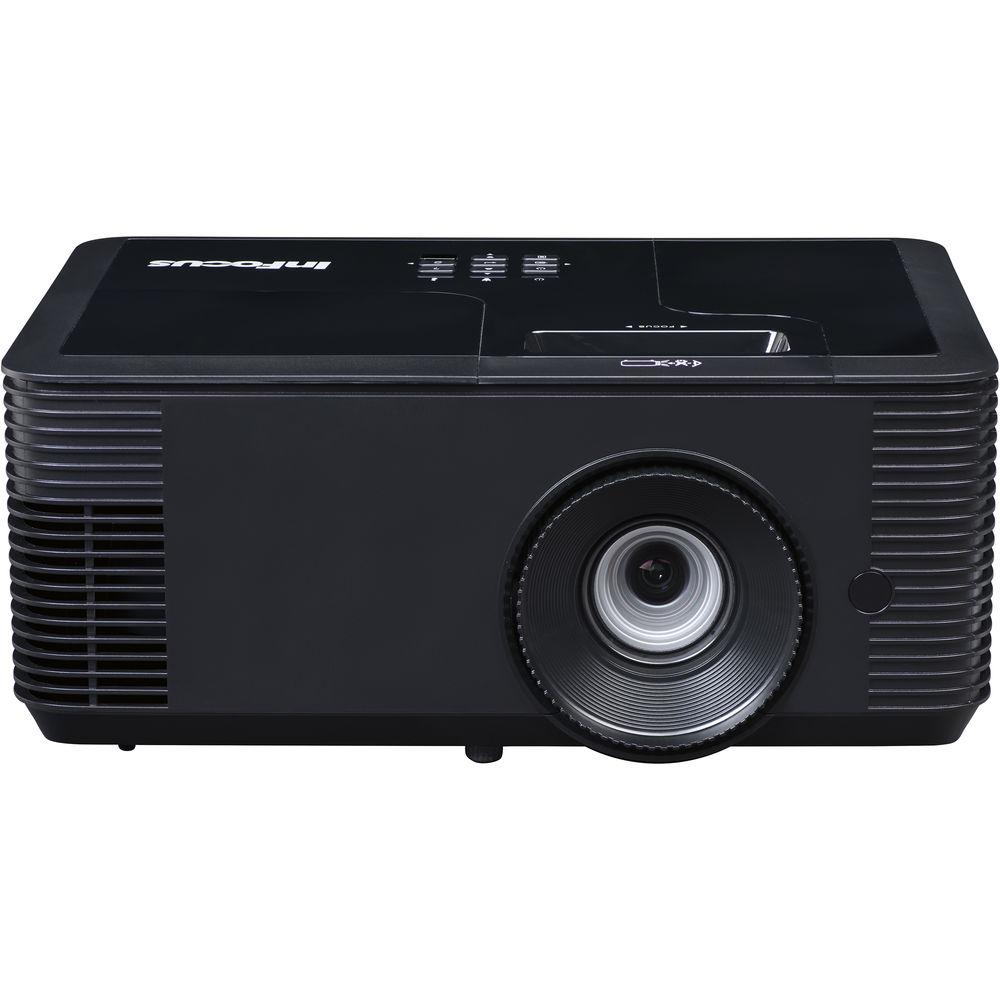

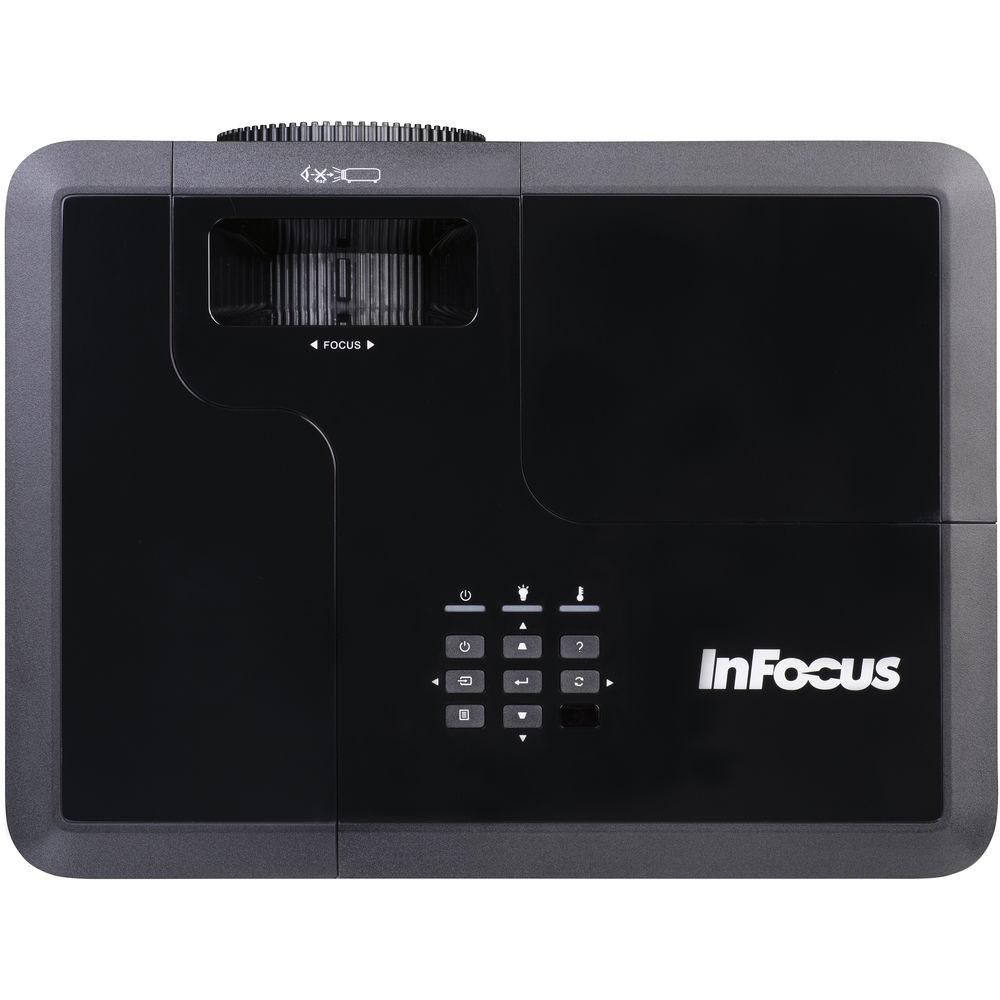

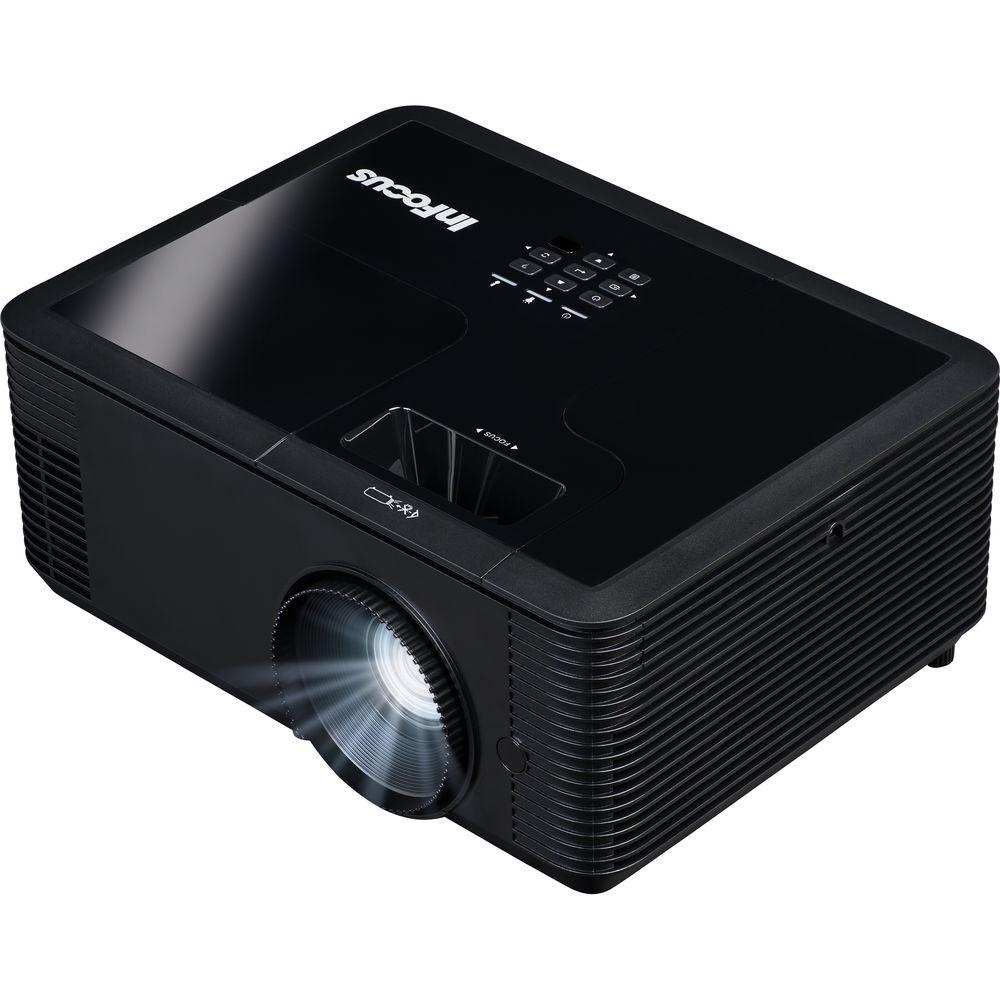

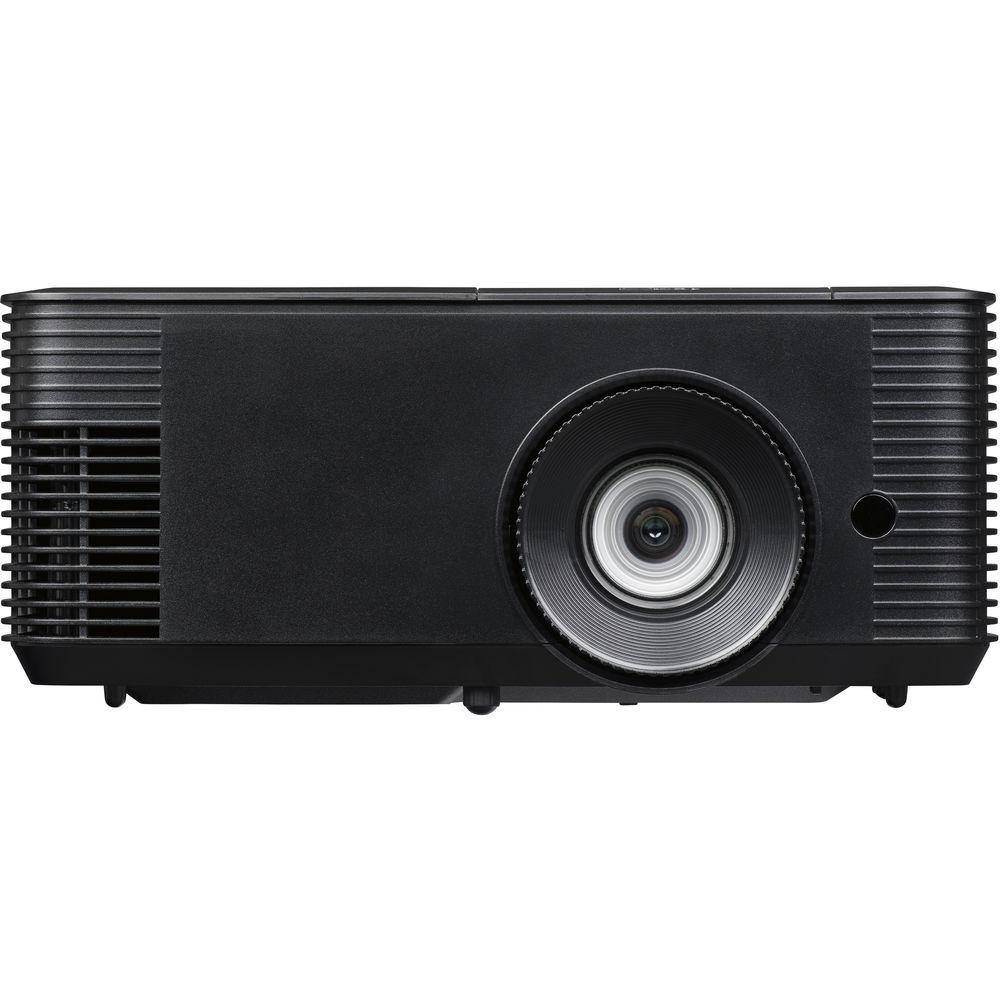

Enjoy clear images, even in rooms with ambient light, with the InFocus IN134 4000-Lumen XGA DLP Projector. Its 4000 lumens of brightness can overcome ambient light in many situations, while its 28,500:1 dynamic contrast ratio will help enhance detail in dark areas of the image without reducing overall brightness. Its XGA 1024 x 768 native resolution will ensure that text is clear at most viewing distances.
The IN134 supports 3D content via its HDMI inputs and also features an RCA composite video and a VGA input. One of the HDMI inputs is hidden within a compartment that also houses a USB power port for connecting a compatible streaming device. Its 1/8" audio input and 10W built-in speaker will eliminate the need for external speakers, while its 1/8" audio output will allow you to connect to a separate audio system if you prefer. The IN134 is controllable by Crestron and AMX systems or InFocus ProjectorNet 4.1 software. - Add Smart Connectivity via the TechStation

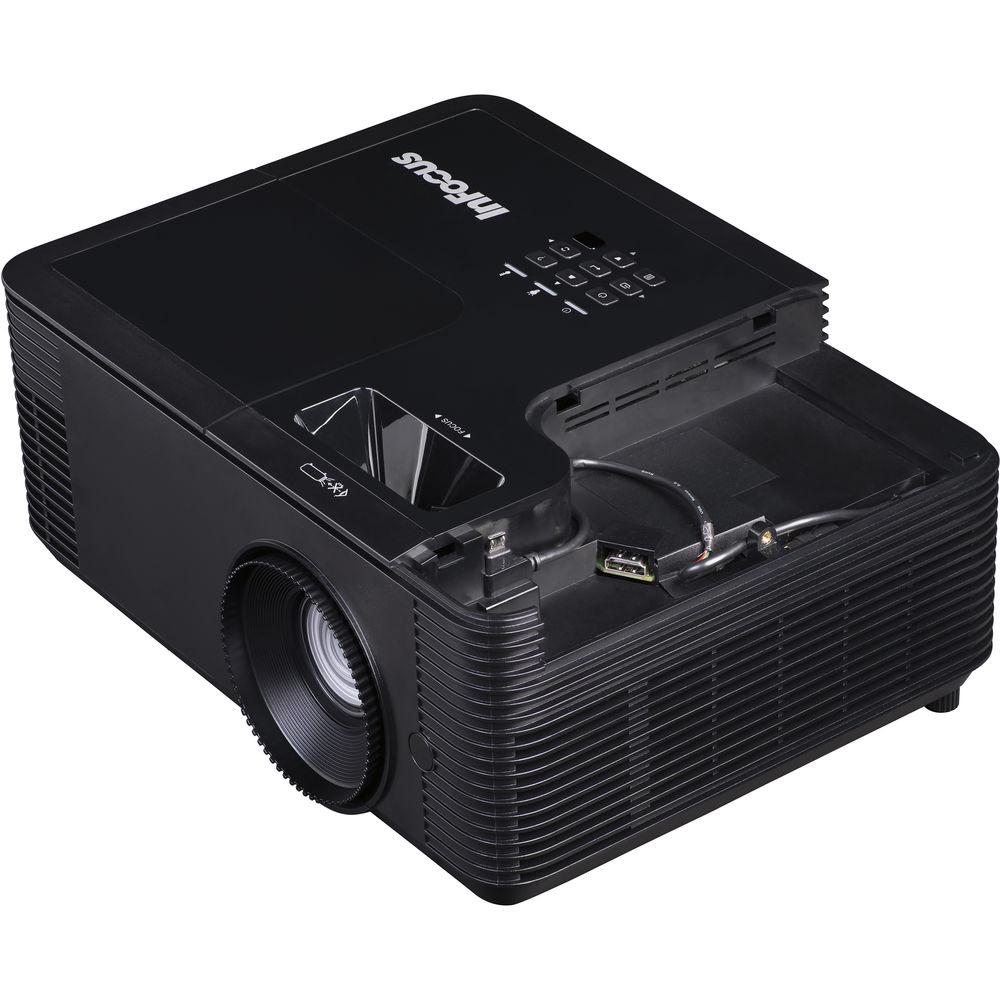

- With an HDMI 1.4 port and a variety of device compatibility, the TechStation enables more effective learning by working with the tools you already use. After connecting your device, close the TechStation's lid to create an all-in-one solution for streaming audio and video. Compatible streaming devices include the Google Chromecast Ultra, Intel Computer Stick, Asus Chromebit, Amazon Fire TV Stick, Android Stick, and more.
- Low-Noise Design
- With a noise level of only 21 dB in Eco mode, Smooth Flow technology, a cooling-efficient enclosure, and low-noise bearings, the IN134 is designed to operate quietly.
- Energy-Saving Features
- The IN134 features a lamp life of up to 15,000 hours and has no filters to clean or replace. The TI DLP chip helps eliminate image decay over time, so your projector can last longer. Activate Dynamic Mode to dim the image when the projector isn't in use to further conserve the life of the projector.
- BrilliantColor DLP Technology
- BrilliantColor DLP imaging enables over 1 billion colors to be produced by the projector to help ensure lifelike color accuracy and vibrant presentations on whiteboards, blackboards, or beige walls in nearly any light.
- 3D Support
- Get your audience more engaged with support for multiple 3D source types, including Blu-ray, broadcast TV, video games, and computer connectivity; compatible glasses are sold separately.
- Designed for Easy Installation and Management
- Install and manage the projector over your network with the free ProjectorNet 4.1 software from InFocus, or use Crestron Roomview or AMX Device Discovery.
UPC: 797212988973 In the Box InFocus IN134 4000-Lumen XGA DLP Projector IR Remote Control HDMI Cable HDMI Extension Cable Power Cord Limited 2-Year Warranty on Projector Limited 6-Month Warranty on Lamp Table of Contents
|
Upload User Manual
Have you got an user manual for the InFocus IN134 4000-Lumen XGA DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersInFocus IN134 Specs | | | Display System | DLP | | Native Chip Resolution | 1024 x 768 (XGA) | | Supported Resolutions | Maximum: Full HD 1080p - 1920 x 1080 | | Max Brightness | 4000 Lumens | | Offset | 115% ± 5% vertical | | Aspect Ratio | Native: 4:3
Supported: 16:9
Supported: 16:10
Supported: 2.35:1
Supported: 1:1
Supported: 2:1
Supported: 13:9
Supported: 15:9
Supported: 5:4 | | Dynamic Contrast Ratio | 28,500:1 | | DLP Link 3D | Yes | | Color Wheel | 6-Segment (R/G/B/W/Y/C) | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Horizontal: 31.5 to 97.6 kHz

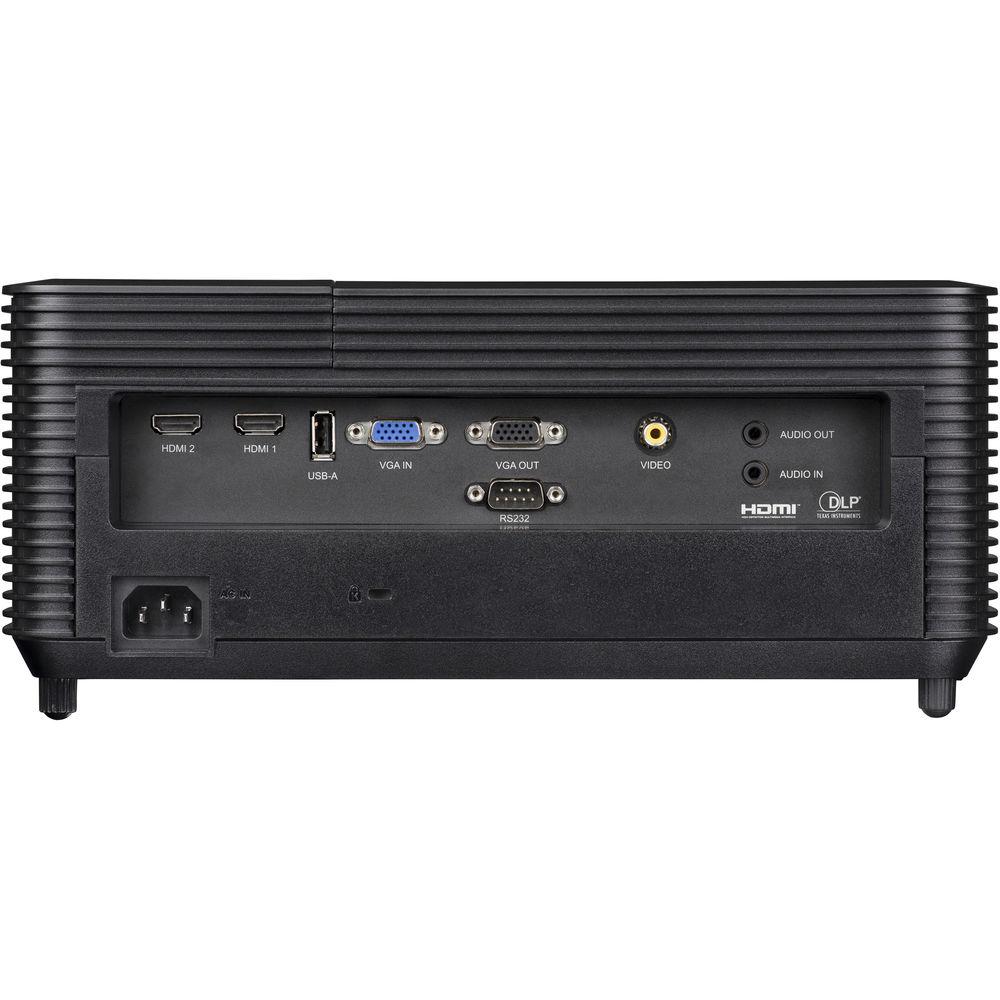

Vertical: 56 to 120 Hz | | | | Focus | Manual | | Lens | f/2.41 - 2.53 | | Throw Distance | 3.281 - 39.37' / 1 - 12 m | | Throw Ratio | 1.94 - 2.16:1 | | Projection Size | 22 - 244" / 55.88 - 619.76 cm | | | | Keystone Correction | Vertical: ± 40° | | Ceiling Mountable | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 10W | | | | Inputs/Outputs | 3 x HDMI (HDMI Type-A) Audio, Video Input
1 x VGA (DE-15) Video Input
1 x VGA (DE-15) Video Output
1 x Composite (RCA) Video Input
1 x 1/8" / 3.5 mm Mini Audio Input
1 x 1/8" / 3.5 mm Mini Audio Output
1 x USB 2.0 (Micro-USB) Power Output
1 x USB 2.0 (USB Type-A) Audio, Control, Power, Service, Video
1 x RS-232 (DE-9) Control | | | | Light Source | Lamp | | Lamp Power | 220 W | | Expected Lamp Life | Full Brightness: 5500 Hours
Medium Brightness: 10,000 Hours
Low Brightness: 15,000 Hours | | Fan Noise | Low Brightness: 21 dB | | Security | Cable Lock Slot | | Supported Languages | Arabic
Czech
Danish
Dutch
English
Farsi
Finnish
French
German
Hindi
Hungarian
Indonesian
Italian
Japanese
Korean
Norwegian
Polish
Portuguese
Romanian
Russian
Simplified Chinese
Spanish
Thai
Traditional Chinese
Turkish
Vietnamese | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 300 W
Low Brightness: 220 W
Standby Mode (Lamp Off): 1.8 W | | Max Operating Altitude | 10000' / 3048 m | | Operating Temperature | 41 to 104°F / 5 to 40°C | | Dimensions (W x H x D) | 12.3 x 4.9 x 9.3" / 31.2 x 12.4 x 23.6 cm | | Weight | 7.1 lb / 3.22 kg | | | | Package Weight | 9.65 lb | | Box Dimensions (LxWxH) | 15.5 x 13.0 x 7.5" |
