User Manual for InFocus IN3144 5000-Lumen XGA DLP Projector Click to enlarge the picture
Contents of the user manual for the InFocus IN3144 5000-Lumen XGA DLP Projector
- Product category: Multimedia Projectors InFocus
- Brand: InFocus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for InFocus Multimedia Projectors
 |
User manual for the InFocus IN3144 5000-Lumen XGA DLP Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any InFocus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official InFocus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a InFocus product will considerably shorten its lifespan!
|
Product description Show crisp, vibrant presentations even in well-lit settings with the InFocus IN3144 5000-Lumen XGA DLP Projector. Its 5000 lumens of brightness helps ensure that your content is clear in classrooms and boardrooms, even with ambient light. The XGA 1024 x 768 native resolution helps keep text and graphics clear at most viewing distances.

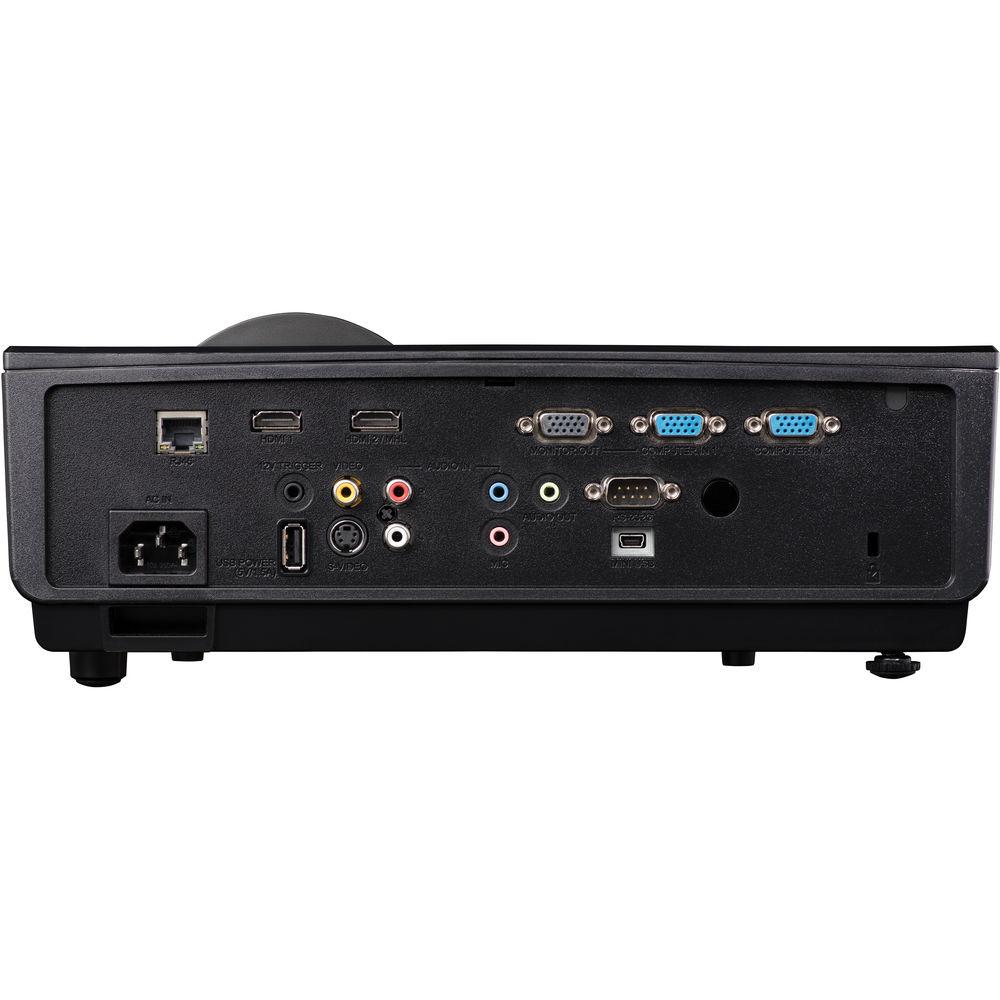

RCA composite video, S-video, two HDMI, and two VGA inputs are onboard to offer a multitude of connection options for both new and legacy equipment. Its VGA output enables you to daisy-chain multiple projectors so they can all show the same content, and an analog audio input and output let audio accompany your video. A VGA cable and IR remote are included as an added convenience. - Designed for Enhanced Connectivity
- The IN3144 features two HDMI ports, two VGA inputs, S-Video, composite video, a microphone input, and multiple audio inputs, allowing you to project from a variety of sources.
- Engineered for High Brightness and Augmented Color
- With 5000 lumens of brightness, a six-segment color wheel, and BrilliantColor DLP imaging, the IN3144 can produce big, bright, colorful images, even with ambient light in the room. The 1.5x zoom and 1.83 to 2.75:1 throw ratio allows it to fit a variety of installation requirements.
- Network Support and Control
- Remotely manage and support your projector from a single computer via your existing network with the free InFocus ProjectorNet 4.0 software. Crestron Roomview enables virtually instant, intuitive operation, without a control processor or custom programming. AMX Device Discovery lets an AMX controller detect the projector dynamically and configure it for the remote control.
- 3D-Capable
- The IN3144 incorporates 3D Triple Flash technology and supports 3D signals over HDMI from Blu-ray, broadcast, video games, and NVIDIA 3DTV computer connectivity. 144 Hz DLP Link 3D glasses are required to view 3D content and are sold separately.
UPC: 797212987716 In the Box InFocus IN3144 5000-Lumen XGA DLP Projector Remote Control VGA Cable Power Cord Limited 2-Year Warranty on Projector Limited 6-Month Warranty on Lamp Limited 90-Day Warranty on Included Accessories More from Manufacturer wuxtwvrfasfcstfxrscxvdeacvy Table of Contents
|
Upload User Manual
Have you got an user manual for the InFocus IN3144 5000-Lumen XGA DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersInFocus IN3144 Specs | | | Display System | DLP | | Native Chip Resolution | 1024 x 768 (XGA) | | Supported Resolutions | Maximum: Full HD 1080p - 1920 x 1080 | | Max Brightness | 5000 Lumens | | Offset | 14% | | Aspect Ratio | Native: 4:3
Supported: 16:9
Supported: 16:10
Supported: 2.35:1 | | DLP Link 3D | Yes | | Color Wheel | 6-Segment | | Color Depth | 8-Bit (16.78 Million Colors) | | | | Focus | Manual | | Optical Zoom | Manual: 1.5x | | Throw Distance | 3.281 - 32.808' / 1 - 10 m | | Throw Ratio | 1.83 - 2.75:1 | | Projection Size | 22 - 270" / 55.88 - 685.80 cm | | | | Ceiling Mountable | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 10W | | Wireless LAN / Wi-Fi | No, Optional Adapter Available | | | | Light Source | Lamp | | Lamp Power | 310 W | | Expected Lamp Life | Full Brightness: 3500 Hours
Medium Brightness: 4500 Hours
Low Brightness: 6000 Hours | | Fan Noise | Full Brightness: 40 dB
Low Brightness: 32 dB | | Security | Cable Lock Slot | | Supported Languages | Arabic
Czech
Danish
Dutch
English
Finnish
French
German
Hungarian
Indonesian
Italian
Korean
Norwegian
Persian
Polish
Portuguese
Russian
Simplified Chinese
Spanish
Swedish
Traditional Chinese
Turkish
Vietnamese | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 410 W | | Max Operating Altitude | 10000' / 3048 m | | Operating Temperature | 41 to 104°F / 5 to 40°C | | Dimensions (W x H x D) | 12.4 x 5.0 x 8.5" / 31.5 x 12.7 x 21.6 cm | | Weight | 6.9 lb / 3.1 kg | | | | Package Weight | 10.25 lb | | Box Dimensions (LxWxH) | 15.1 x 12.1 x 7.8" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 79 owners. Add your rating and experience with the product.
