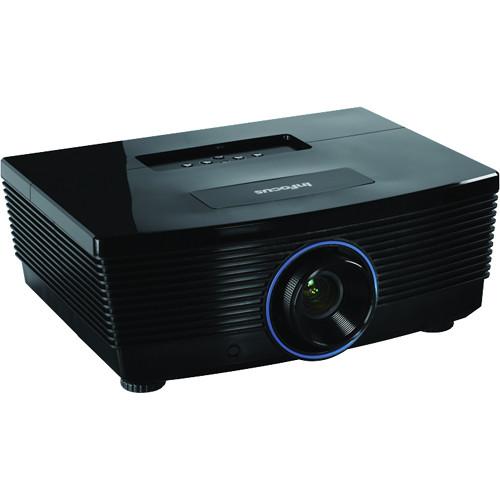

User Manual for InFocus IN5312a 6000-Lumen XGA DLP Projector Click to enlarge the picture
Contents of the user manual for the InFocus IN5312a 6000-Lumen XGA DLP Projector
- Product category: Multimedia Projectors InFocus
- Brand: InFocus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for InFocus Multimedia Projectors
 |
User manual for the InFocus IN5312a 6000-Lumen XGA DLP Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any InFocus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official InFocus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a InFocus product will considerably shorten its lifespan!
|
Product description Show crisp, vibrant presentations even in well-lit settings with the InFocus IN5312a 6000-Lumen XGA DLP Projector. Its 6000 lumens of brightness combined with its 2000:1 contrast ratio will help ensure that both bright and dark areas of images are detailed. The XGA 1024 x 768 native resolution will help keep text and graphics clear at most viewing distances.

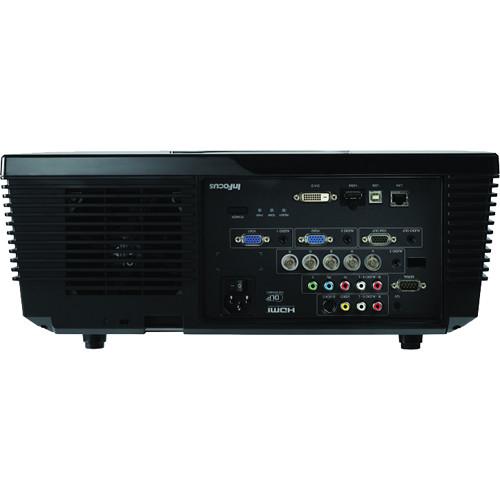

HDMI, DVI-D, DisplayPort, 5-BNC, RCA component video, RCA composite video, S-video, and two VGA inputs are onboard to offer a multitude of connection options for both new and legacy equipment. Its VGA output enables you to daisy-chain multiple projectors so they can all show the same content, and an analog audio input and output lets audio accompany your video. A VGA cable and IR remote are included as an added convenience. - Lens Shift
- Horizontal and vertical lens shift help you get the image to where it needs to be, providing extra flexibility for projector placement.
- Rated for 24/7-Use
- The IN5312a is filter-free and rated for 24/7 fail-safe operation. Also, lamp replacement is simplified thanks to the ceiling-accessible lamp door.
- Digital Inputs
- The IN5312a features HDMI, DVI-D, and DisplayPort inputs for enhanced digital source connectivity.
- RGBHV/YPbPr BNC Inputs
- The IN5312a is compatible with Extron, Kramer, In-Line, and other switching and signal processing equipment.
- Control It Your Way
- Use the RS232C port to integrate the IN5312a to your room control systems such as Crestron, AMX, SPcontrols, and others. You can instead use the RJ45 port to interface with your network control system such as Crestnet, AMX Device Discovery, and InFocus ProjectorNet.
- Designed with High Brightness
- The 6000-lumen brightness of the IN5312a can display crisp, detailed images, even in bright rooms. Its single-lamp design helps simplify maintenance and reduce maintenance costs.
- Control and Monitor Over Your Network
- You can remotely access and control the projector over a standard LAN/WAN, including scheduling startup and shutdown times to save energy and lamp life.
- Installation Friendly
- The IN5312a is designed to fit into a 2 x 2' ceiling tile space, making it compatible with various in-ceiling mounts.
- 3D Support
- The IN5312a supports 3D from sources such as Blu-ray, 3D broadcasting, video games, and NVIDIA 3DTV computers. It is compatible with separately sold 144 Hz DLP Link 3D glasses, or you can connect an optional 3D emitter to the built-in 3D Sync port.
- Optional Lenses
- The lens included with the IN5312a can be swapped out for an optional short-throw or long-throw lens to help facilitate installation in various venue types. Lens replacement is designed to be easy – just pull one out and snap the other into place.
- Wireless Presentation-Ready
- The separately sold InFocus LiteShow wireless adapter will help free you from cables and speed up your setup time. Switch presenters quickly and transmit data, audio, and video at ranges up to 300'.
UPC: 797212981042 In the Box InFocus IN5312a 6000-Lumen XGA DLP Projector Remote Control VGA Cable Lens Cap Power Cord Limited 2-Year Warranty on Projector Limited 6-Month Warranty on Lamp Limited 90-Day Warranty on Included Accessories User Manual PDF 6mbbbvxbrtstcwcbbdywsvbar Table of Contents
|
Upload User Manual
Have you got an user manual for the InFocus IN5312a 6000-Lumen XGA DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersInFocus IN5312a Specs | | | Display System | 1-Chip 0.7" DC3 DMD DLP | | Native Chip Resolution | 1024 x 768 (XGA) | | Supported Resolutions | Maximum: Full HD 1080p - 1920 x 1080 | | Max Brightness | 6000 Lumens | | Aspect Ratio | Native: 4:3
Supported: 16:9
Supported: 16:10 | | Contrast Ratio | 2000:1 | | DLP Link 3D | Yes | | Color Depth | 8-Bit (16.78 Million Colors) | | Scan | Horizontal: 15 - 91.4 kHz
Vertical: 50 - 120 Hz | | | | Focus | Manual | | Lens Shift | Vertical: -40 to 0%
Horizontal: ± 5% | | Optical Zoom | Manual: 1.25x | | Throw Ratio | 1.6 - 2:1 | | | | Keystone Correction | Vertical: ± 40° | | Digital Zoom | None | | Ceiling Mountable | Yes | | Built-In Speaker | Yes (Stereo) | | Speaker Power | 6W | | Wireless LAN / Wi-Fi | No, Optional Adapter Available | | | | Light Source | Lamp (1 x UHP) | | Lamp Power | 370 W | | Expected Lamp Life | Low Brightness: 3500 Hours
Medium Brightness: 2500 Hours
Full Brightness: 1500 Hours | | Fan Noise | Medium Brightness: 34 dB
Low Brightness: 31 dB | | Security | Cable Lock Slot
Keypad Lock
Security Bar | | Supported Languages | Danish
Dutch
English
Finnish
French
German
Italian
Korean
Norwegian
Polish
Portuguese
Russian
Simplified Chinese
Spanish
Swedish
Traditional Chinese
Turkish | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | Medium Brightness: <450 W
Low Brightness: 340 W
Standby Mode (Lamp Off): <0.5 W | | Max Operating Altitude | 7500' / 2286 m | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Dimensions (W x H x D) | 16.9 x 6.9 x 13.3" / 42.9 x 17.5 x 33.8 cm | | Weight | 19.00 lb / 8.62 kg | | | | Package Weight | 26.0 lb | | Box Dimensions (LxWxH) | 21.0 x 17.5 x 13.0" |
