User Manual for InFocus IN5316HDa 5000-Lumen Full HD DLP Projector Click to enlarge the picture
Contents of the user manual for the InFocus IN5316HDa 5000-Lumen Full HD DLP
- Product category: Multimedia Projectors InFocus
- Brand: InFocus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for InFocus Multimedia Projectors
 |
User manual for the InFocus IN5316HDa 5000-Lumen Full HD DLP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any InFocus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official InFocus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a InFocus product will considerably shorten its lifespan!
|

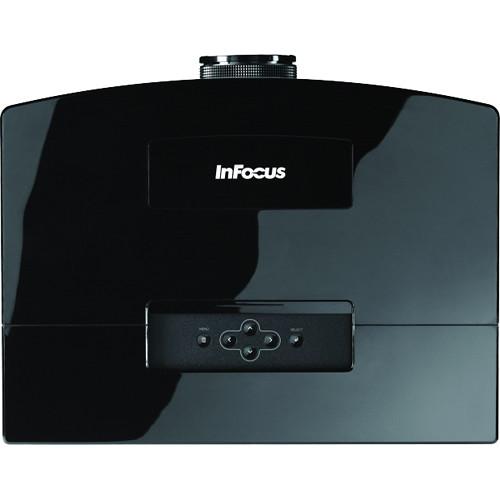

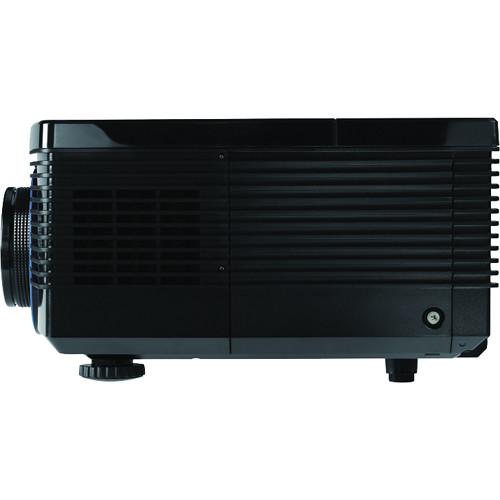

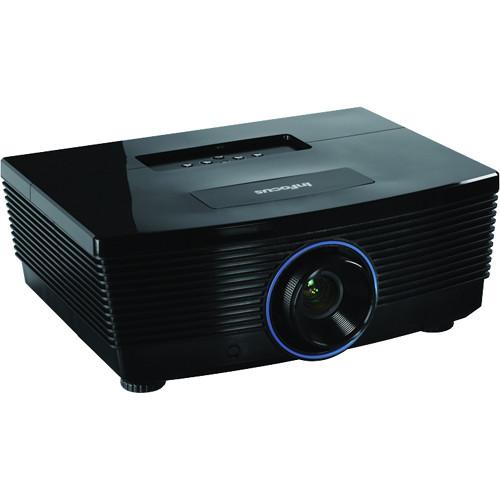

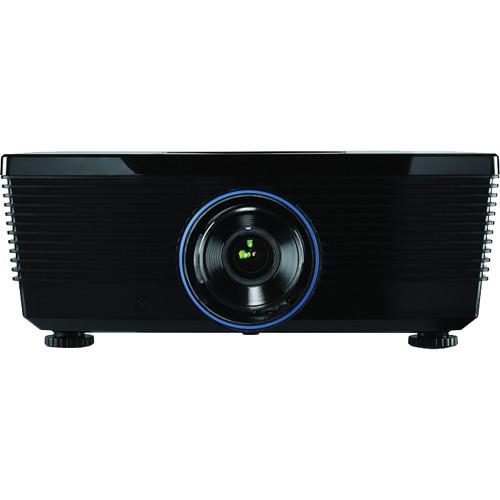

Product description - InFocus IN5316HDa HD Projector
Enjoy bright 1080p video with the InFocus IN5316HDa Full HD DLP Projector. Its 5000 lumens of brightness paired with its 2000:1 contrast ratio will overcome ambient light in many situations and produce bright images with enough contrast to discern necessary details. The 1.54 to 1.93:1 throw ratio will allow you to place it near the back of the room without losing focus.

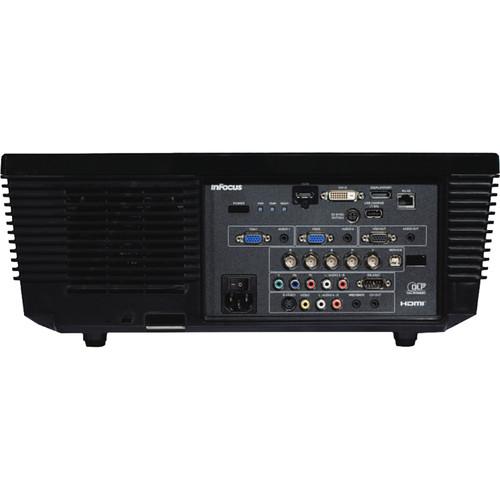

The IN5316HDa features a plethora of inputs, including HDMI, component, composite, 5-BNC, and VGA, plus a VGA output for daisy-chaining to other projectors or displays. The analog audio input allows it to provide sound from the built-in 3W stereo speakers, and the analog audio output will allow you to forward the sound to another device. It is controllable via Ethernet, RS-232, or the included IR remote. - 1080p (1920 x 1080) resolution
- Three lens choices: included standard lens, and optional short throw and long throw
- HDMI, DisplayPort, and 5 BNC inputs
- Fits easily into a 2 x 2-foot ceiling tile
- 24/7 rated; no filters to clean or replace
- Full 3D support for computers, Blu-ray, cable boxes, and more
- 3D ready, plus 3D sync port for your 3D emitter and its compatible glasses
- DVI-D input to meet signal amplification and switching requirements
- Single-lamp design with easily accessible lamp door for easy and economical maintenance
UPC: 797212981059 In the Box InFocus IN5316HDa 5000-Lumen Full HD DLP Projector Remote Control VGA Cable Power Cord Limited 2-Year Warranty on Projector Limited 6-Month Warranty on Lamp User Manual PDF 7.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the InFocus IN5316HDa 5000-Lumen Full HD DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersInFocus IN5316HDA Specs | | | Display System | 1-Chip 0.65" DMD DLP | | Native Chip Resolution | 1920 x 1080 (Full HD) | | Supported Resolutions | VGA
SVGA
XGA
WXGA
WXGA+
SXGA
WSXGA+
UXGA
Full HD 1080p
WUXGA | | Max Brightness | 5000 Lumens
4200 Lumens | | Offset | 10% | | Aspect Ratio | Native: 16:9 | | Contrast Ratio | 2000:1 | | DLP Link 3D | Yes | | Scan | Horizontal: 31 - 91.4 kHz or 15 kHz
Vertical: 47 - 120 kHz or 24 kHz | | | | Focus | Manual | | Lens Shift | Horizontal: + 5%
Vertical: 0 to 40% | | Optical Zoom | Manual: 1.25x | | Throw Distance | 4.9 - 23' / 1.494 - 7.01 m | | Throw Ratio | 1.54 - 1.93:1 | | Projection Size | 35.1 - 205" / 89.15 - 520.70 cm | | | | Keystone Correction | Manual-Vertical: ± 40° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes (Stereo) | | Speaker Power | 6W | | Closed Captioning | Yes | | Wireless LAN / Wi-Fi | No, Optional Adapter Available Optional wireless LAN adapter sold separately. | | | | Lamp Power | 370 W
330 W
280 W | | Expected Lamp Life | Medium Brightness: 1500 Hours
Low Brightness: 3500 Hours | | Fan Noise | Medium Brightness: 34 dB
Low Brightness: 31 dB | | Security | Cable Lock Slot | | Supported Languages | Arabic
Czech
Danish
Dutch
English
Finnish
French
German
Greek
Hebrew
Hungarian
Indonesian
Italian
Japanese
Korean
Norwegian
Persian
Polish
Portuguese
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish
Vietnamese | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 480 W
Medium Brightness: 430 W
Low Brightness: 370 W
Standby Mode (Lamp Off): <0.5 W | | Dimensions (W x H x D) | 16.9 x 13.3 x 6.9" / 42.9 x 33.8 x 17.5 cm | | Weight | 19.0 lb / 8.6 kg | | | | Package Weight | 28.45 lb | | Box Dimensions (LxWxH) | 20.9 x 17.4 x 12.7" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 69 owners. Add your rating and experience with the product.
