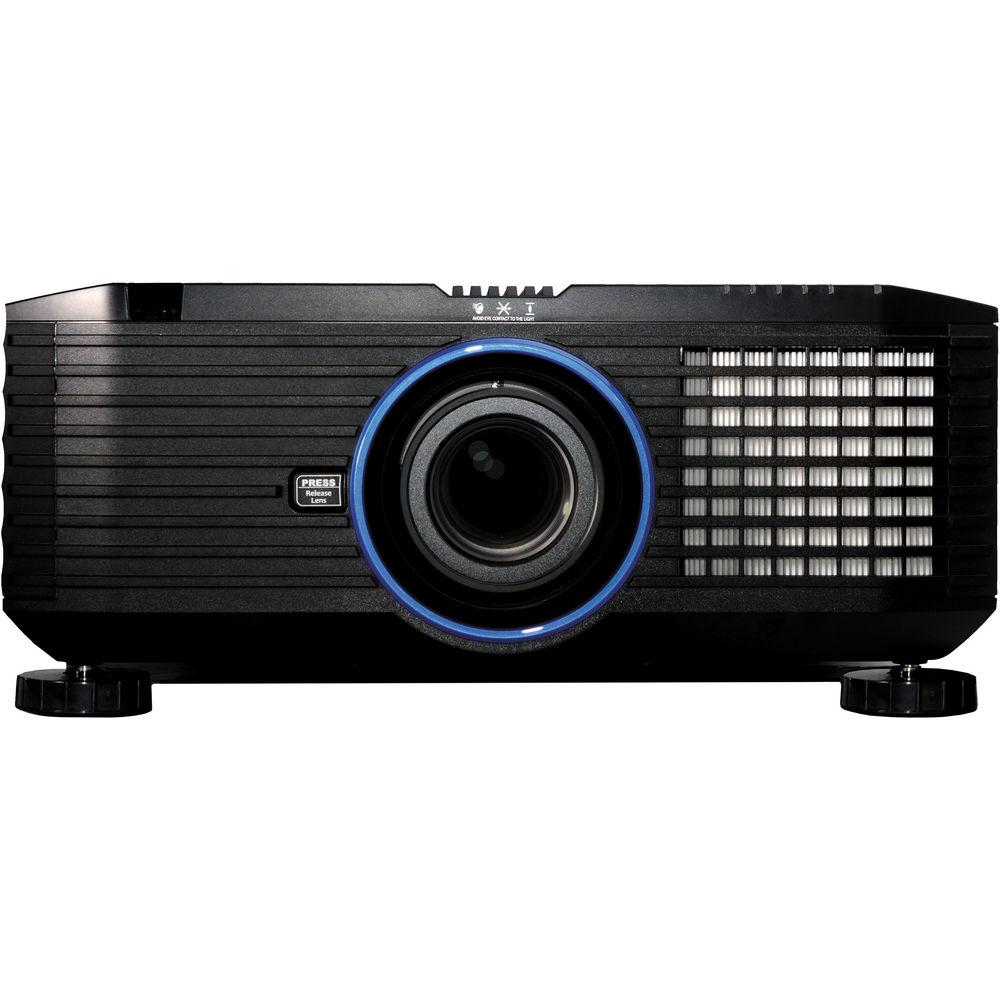

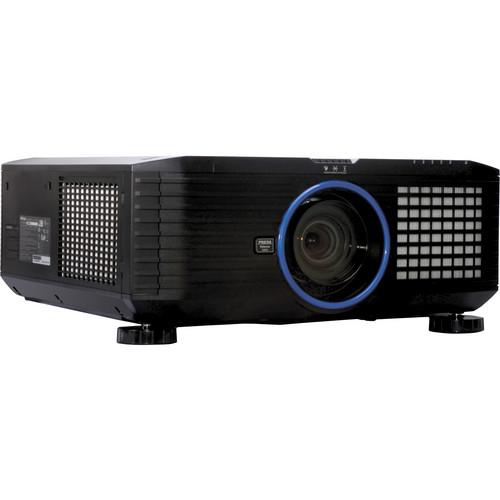

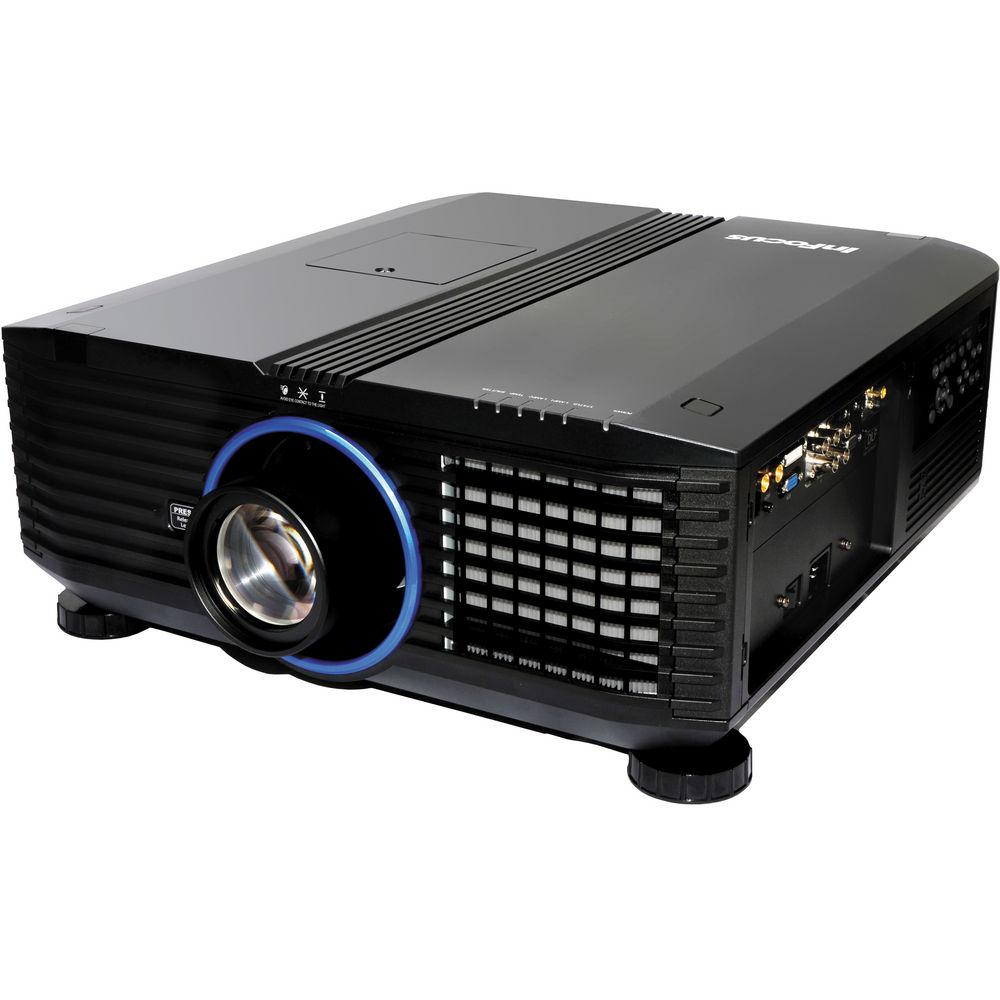

User Manual for InFocus IN5554L WXGA DLP Dual Lamp Projector Click to enlarge the picture
Contents of the user manual for the InFocus IN5554L WXGA DLP Dual Lamp
- Product category: Multimedia Projectors InFocus
- Brand: InFocus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for InFocus Multimedia Projectors
 |
User manual for the InFocus IN5554L WXGA DLP Dual Lamp contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any InFocus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official InFocus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a InFocus product will considerably shorten its lifespan!
|
Product description The IN5554L WXGA DLP Dual Lamp Projector from InFocus is DLP based a single chip design. Thanks to its 0.65" DLP DMD imaging panel (the part that forms the image) it can crank out true-to-life pictures. They can be in the NTSC, PAL or SECAM video systems or the full gamut of high definition HD formats including 720p, 1080i and 1080p.The DLP projector shines a brightness of up to 7000 ANSI lumens and a 2400:1 contrast ratio. It works just as well in a home media room as it does in a brightly-lit classroom, auditorium or lecture hall. This projector can operate just about anywhere in the world. It can handle power from 100 to 240 VAC at 50 or 60 Hz. Its on-screen display offers 16 menu languages to choose from.The IN5554L offers a dual lamp design. Dual lamps give you fail-safe backup, with a choice between single or dual mode. And with the rear lamp door, it's easy to replace the lamp even while the product is installed.This particular projector does not come with any lens, however, InFocus offers six interchangeable lenses so you can project your image the size you want from wherever you want. The lenses are easy to install and includes 10 memory options so you can save your options like zoom, focus, and lens shift. - High Brightness
- Get ready for images even at extra-large sizes and in ambient light, thanks to a brightness of up to 7000 lumens and contrast of 2400:1
- Dual Lamps
- Dual lamps give you fail-safe backup, with a choice between single or dual mode. And with the rear lamp door, it's easy to replace the lamp even while the product is installed. The dual lamps are liquid-cooled and 24/7 capable
- High Resolution
- Take care of the little details with WXGA native resolution that maxes out at 1280 x 800
- User-Replaceable Color Wheels
- The projector combines a six-segment color wheel with the DLP technology and InFocus BrilliantColor implementation. Two user-replaceable color wheels ship with the projector, so you can choose the color best for your application - accurate colors or very bright
- Six Interchangeable Lenses
- Project your image the size you want - from wherever you want - with your choice of six lenses, ranging from short-throw to ultra-long-throw projection. Switch with just the push of a button, and then use the motorized lens shift to position your image precisely. Once you get it right, save the zoom, focus, and lens shift into one of 10 memory locations
- PiP
- Display two distinct sources simultaneously, a capability ideal for viewing multiple presentations, video conferencing, and distance learning. Switch sources and choose between five different PiP placement options, including side-by-side horizontal and a small secondary source image displayed on the top or bottom
- Image Blending
- Quickly line up and blend the projectors (requires more than one projector to do this) with onboard mixing to adjust the brightness of the overlap and create one big smooth image, edge to edge
- Image Warping
- For rental and staging applications, your projection surface may be round or curved-but that doesn't mean your image has to be. Adjust keystone, rotation, pincushion/barrel, and corner positions to ensure your images are perfect even when your surface isn't
- 360-Degree Projection
- Broaden the view to 360 degrees for unique applications in auditoriums, visitor centers and museums where the room might not be the usual box. The projector can also project in Portrait format
- Approvals
- Argentina, Australia, Austria, Belgium, Bolivia, Brazil, Brunei, Bulgaria, Canada, China, Columbia, Costa Rica, Cyprus, Czech Republic, Denmark, Ecuador, Egypt, Fiji, Finland, France, Germany, Greece, Hungary, India, Indonesia, Ireland, Italy, Japan, Jamaica
- Projector Presets
- User, Presentation, Video, Bright, ISF Day, ISF Night, WhiteBoard, BlackBoard, Beige Wall
UPC: 797212967183 In the Box InFocus IN5554L WXGA DLP Dual Lamp Projector 2 x SP-LAMP-082 Replacement Projector Lamp VGA Cable Remote Control (No Batteries) Power Cord Presentation Color Wheel (RYGCWB) Cinema Correct Color Wheel (RGBCMY) Limited 3-Year Warranty on Projector Limited 6-Month Warranty on Lamp Limited 3-Year Warranty on Projector User Manual PDF 11.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the InFocus IN5554L WXGA DLP Dual Lamp Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersInFocus IN5554L Specs | | | Display System | 1-Chip 0.65" DLP | | Native Chip Resolution | 1280 x 800 (WXGA) | | Max Brightness | 7000 Lumens
6200 Lumens
6400 Lumens
5140 Lumens The first set of brightness values is achieved using the Presentation color wheel; the second set with the Cinema Correct color wheel. | | Aspect Ratio | Native: 16:10
Supported: 4:3
Supported: 5:4
Supported: 16:9
Supported: 16:10
Supported: 1.85:1
Supported: 2.35:1 | | Contrast Ratio | 2400:1 | | DLP Link 3D | None | | Color Wheel | 6-Segment (R, G, B, W, Y, C) | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Vertical: 48 to 120 kHz
Horizontal: 15 to 108 kHz | | | | Lens Shift | Vertical: 20 to 60%
Horizontal: ± 10% | | Projection Size | 50 - 300" / 127.00 - 762.00 cm | | | | Keystone Correction | Vertical: ± 30°

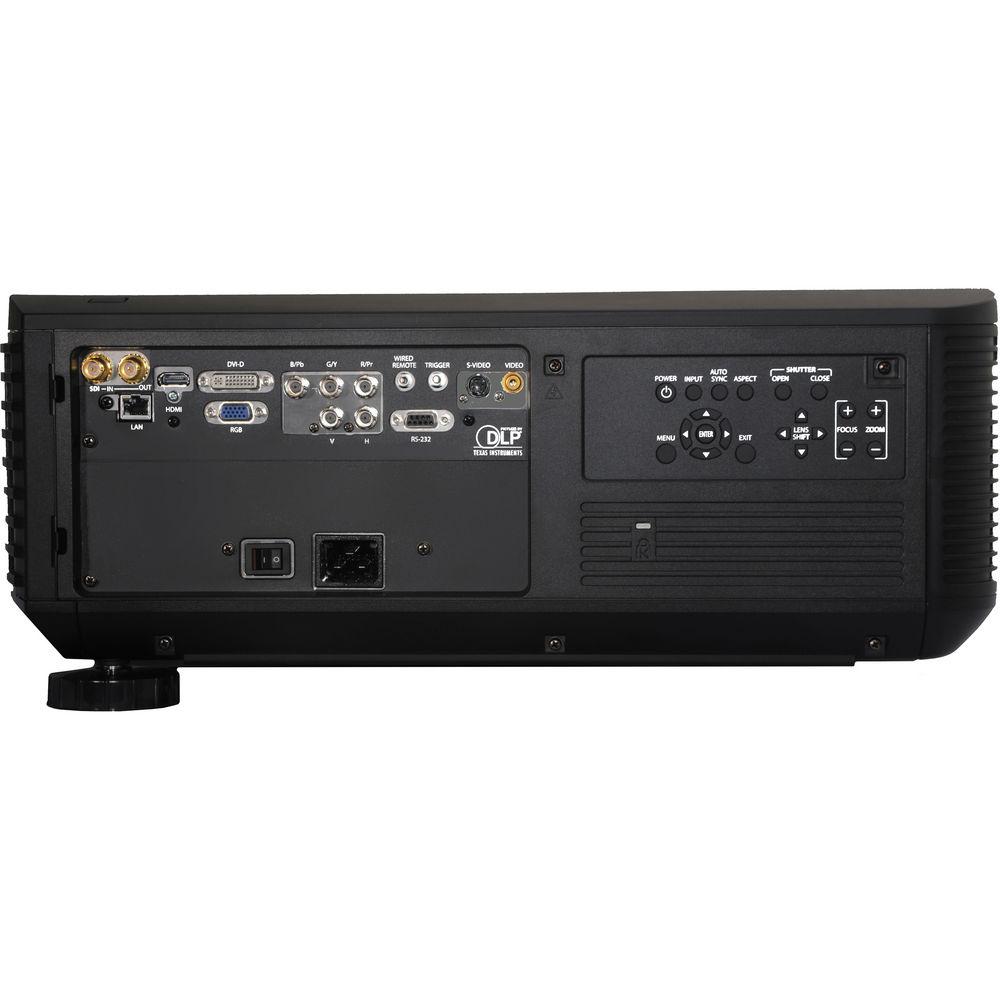

Horizontal: ± 30° | | Picture-in-Picture | Yes | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | None | | | | Inputs/Outputs | 1 x 3G-SDI (BNC) Video (Input)
1 x 3G-SDI (BNC) Video (Output)
1 x HDMI Audio/Video (Input)
1 x DVI-D Video (Input)
1 x VGA (DE-15) Video (Input)
1 x 5BNC Video (Input)
1 x Composite (RCA) Audio (Input)
1 x S-Video (4-Pin DIN) Video (Input)
1 x Ethernet (RJ45) LAN
1 x 12 V Trigger Service
1 x RS-232C (Unspecified Connector) Control | | | | Lamp Power | 400 W 2 x 400 W lamps | | Expected Lamp Life | Medium Brightness: 2000 Hours
Low Brightness: 2500 Hours | | Fan Noise | Medium Brightness: 43 dB
Low Brightness: 39 dB | | Security | Cable Lock Slot
Password Protection | | Supported Languages | Arabic
Dutch
English
Finnish
French
German
Indonesian
Italian
Korean
Norwegian
Polish
Portuguese
Russian
Simplified Chinese
Spanish
Swedish | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Medium Brightness: 960 W
Low Brightness: 760 W
Standby Mode (Lamp Off): <0.5 W | | Max Operating Altitude | 7500' / 2286 m | | Temperature | Operating
41 to 104°F (5 to 40°C)
Humidity: 5 - 95% | | Dimensions (W x H x D) | 20.0 x 8.3 x 20.9" / 508.0 x 210.8 x 530.9 mm | | Weight | 44.1 lb / 20.0 kg |
