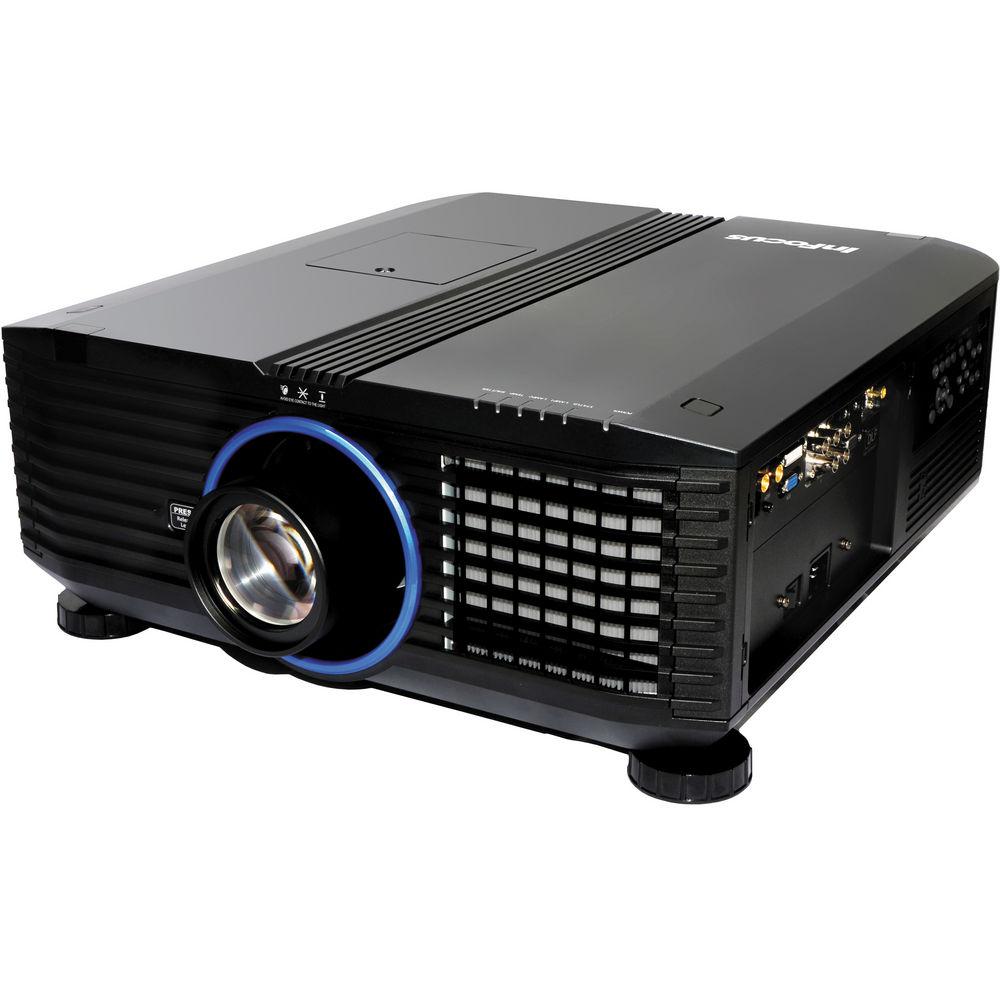

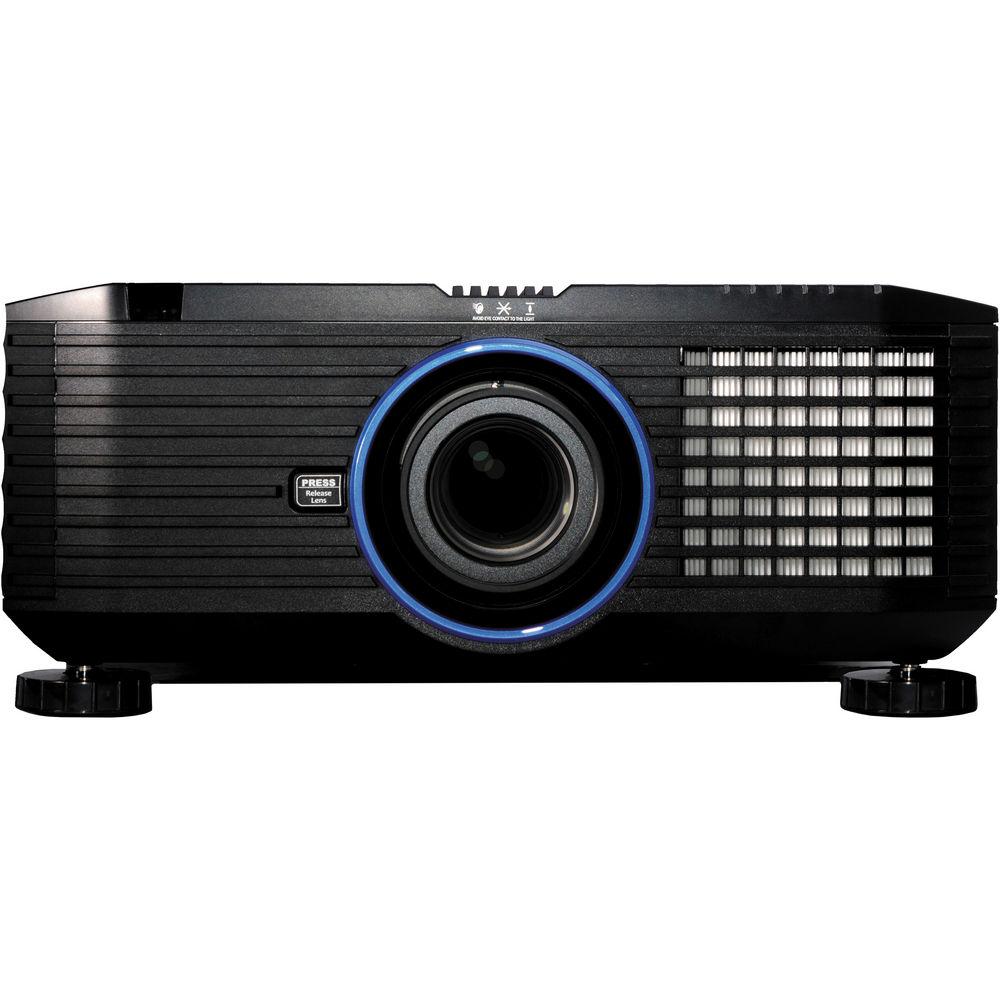

User Manual for InFocus IN5555L WUXGA DLP Dual Lamp Projector Click to enlarge the picture
Contents of the user manual for the InFocus IN5555L WUXGA DLP Dual Lamp
- Product category: Multimedia Projectors InFocus
- Brand: InFocus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for InFocus Multimedia Projectors
 |
User manual for the InFocus IN5555L WUXGA DLP Dual Lamp contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any InFocus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official InFocus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a InFocus product will considerably shorten its lifespan!
|
Product description With 7000 lumens of brightness and a 2400:1 contrast ratio, the IN5555L WUXGA DLP Dual Lamp Projector from InFocus can light up any medium to large home room, school room or board room even with a lot of ambient light to contend with. The projector has a 100 to 240 volt 50/60Hz power supply and it can accept and project NTSC, PAL and SECAM signals, so it can be used just about anywhere in the world. The IN5555L is an HDTV projector capable of 720p, 1080i and 1080p in addition to SDTV (standard) and EDTV (enhanced) resolutions. It's also compatible with dozens of PC and Mac display standards. The projector offers six lens options from short-throw to ultra-long-throw projection. With just the push of a button, you can switch the motorized lens shift to position your image precisely. The projector's internal memory lets you can save the zoom, focus, and lens shift settings from the last time you used it. Lastly, the IN5555L is compatible with any network control system using Telnet protocol, including Crestnet, AMX Device Discovery, and InFocus ProjectorNet. - High Brightness
- With 7000 lumens and a contrast ratio of 2400:1, this projector will make the most out of any image in the most demanding ambient light conditions
- WUXGA Resolution
- With WUXGA (1920 x 1200) native resolution, the projector will present even the most demanding applications, like CAD, schematics, and high-def video in strong detail
- Dual Lamp Technology
- Dual lamps give you fail-safe backup, with a choice between single or dual mode. It's easy to replace the lamps even while the projector is installed, thanks to the rear lamp door
- User-Replaceable Color Wheels
- The projector combines a six-segment color wheel with DLP technology and BrilliantColor implementation. Two user-replaceable color wheels ship with the projector, so you can choose the color that best suits your applications
- Six Interchangeable Lenses
- Project your image in the size you want from wherever you want, with your choice of six optional lenses; they range from short-throw to ultra-long-throw. The motorized lens shift lets you position the image precisely and once you get it right, you can save the zoom, focus, and lens shift settings in one of 10 memory locations
- PiP
- Display two distinct sources simultaneously. Switch sources and choose between five different PiP placement options, including side-by-side horizontal and a small secondary source image displayed on the top or bottom
- Image Blending
- Quickly line up and blend the projectors with onboard mixing to adjust the brightness of the overlap and create one big smooth image, edge to edge
- Image Warping
- For rental and staging applications, your projection surface may be round or curved, but that doesn't mean your image has to be. Adjust keystone, rotation, pincushion/barrel, and corner positions to ensure your images are perfect even when your surface isn't
- 360° Projection
- Broaden the view to 360° for unique applications in environments where the room might not be the usual box. The IN5555L can also project in portrait format

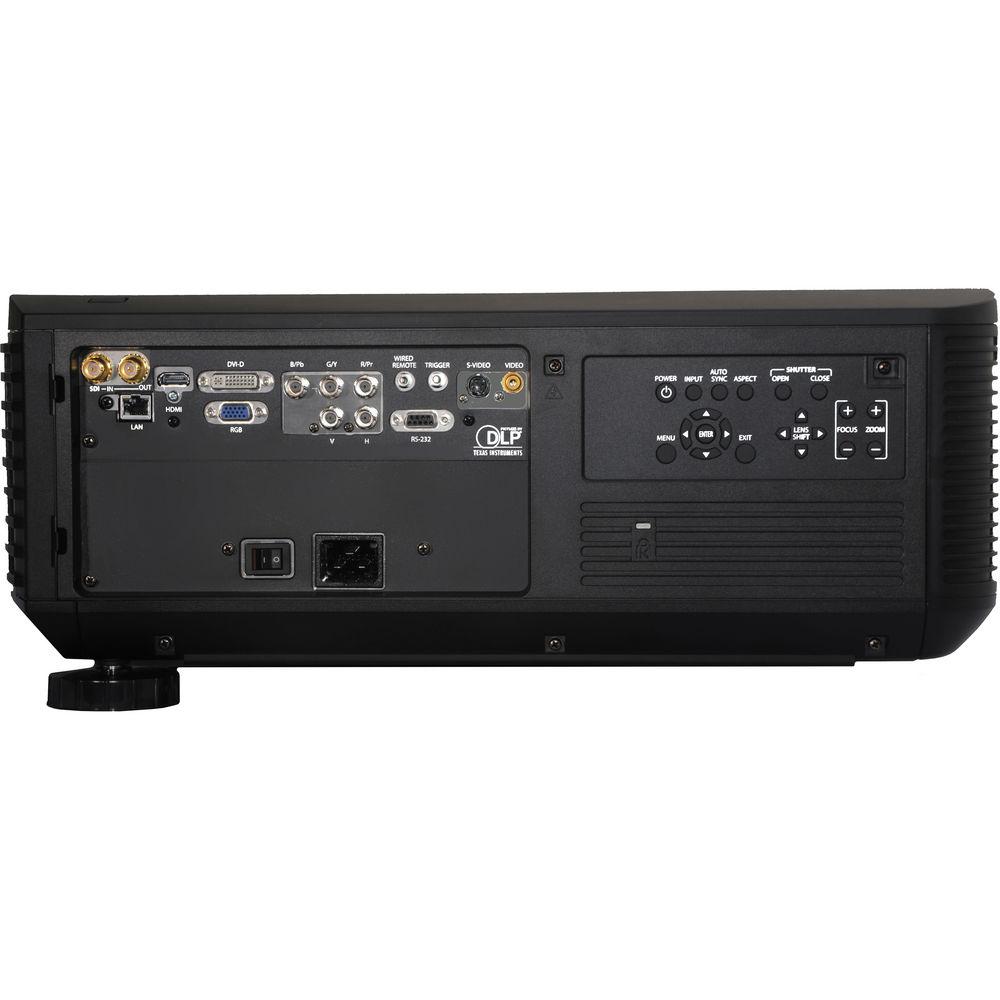

Connections - HDMI V1.4 Video
- HDMI 1.4 provides one-cable projection of HD-quality video and audio from a variety of sources
- 3G-SDI Interface
- The 3G-SDI high-definition serial digital interface provides an increase in bandwidth over previous technology. The upgrade allows both higher resolution and frame rates through a single connection
- 5 BNC (RGBHV, YPbPr)
- The 5 BNC input can handle all leading professional switching and signal processing equipment from manufacturers including Extron, Kramer and In-Line. Industry-standard 5 BNC ensures a solid and reliable connection
- RS-232 Control
- Use the RS-232 port to add the projector to your room control system. Manage your projector instantly and intuitively with your choice of serial control devices from Crestron, AMX, and SPcontrols
- RJ-45 Telnet Network Control
- The projector is compatible with any network control system using the Telnet protocol. They include Crestnet, AMX Device Discovery, and InFocus ProjectorNet. The built-in Web control panel lets network administrators remotely access and control the projector over standard LAN/WAN for messaging, scheduling, and performance
- Wired Remote
- Run a small cable up to 100' (30.5 m) to plug into the remote control that ships with the unit. You'll enjoy instant system control with wired device reliability
- Additional Features and Specs
- Closed captioning: Yes
PC and Mac compatible
Color wheel: 6-segment "Presentation" (RYGCWB) and 6-segment "Cinema Correct" (RGBCMY) Projection presets: User, presentation, video, bright, ISF day, ISF night, whiteboard, blackboard, beige wall
Approvals: Argentina, Australia, Austria, Belgium, Bolivia, Brazil, Brunei, Bulgaria, Canada, China, Columbia, Costa Rica, Cyprus, Czech Republic, Denmark, Ecuador, Egypt, Fiji, Finland, France, Germany, Greece, Hungary, India, Indonesia, Ireland, Italy, Japan, Jamaica
Menu languages: English, French, German, Spanish, Italian, Norwegian, Dutch, Simplified Chinese, Korean, Swedish, Russian, Finnish, Polish, Arabian, Indonesian, Portuguese UPC: 797212967190 In the Box InFocus IN5555L WUXGA DLP Dual Lamp Projector (No Lens) Remote Control VGA Cable Power Cord Documentation Limited 2-Year Warranty on Projector Limited 6-Month Warranty on Lamp User Manual PDF 11.7mbxyqayvddwvybvzrducqda Table of Contents
|
Upload User Manual
Have you got an user manual for the InFocus IN5555L WUXGA DLP Dual Lamp Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersInFocus IN5555L Specs | | | Display System | 1-Chip 0.67" DLP | | Native Chip Resolution | 1920 x 1200 (WUXGA) | | Max Brightness | 7000 Lumens
6200 Lumens | | Aspect Ratio | Native: 16:10
Supported: 4:3
Supported: 16:9
Supported: 1.85:1
Supported: 2.35:1 | | Contrast Ratio | 2400:1 | | DLP Link 3D | None | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Horizontal: 15 - 108 kHz
Vertical: 48 - 120 kHz | | Focus | Manual | | | | Keystone Correction | Vertical: ± 30°
Horizontal: ± 30° | | Picture-in-Picture | Yes | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | None | | | | Light Source | Lamp (2 x UHP) | | Lamp Power | 400 W | | Expected Lamp Life | Medium Brightness: 2000 Hours
Low Brightness: 2500 Hours | | Fan Noise | Medium Brightness: 43 dB
Low Brightness: 39 dB | | Security | Cable Lock Slot
Password Protection | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Low Brightness: 760 W
Medium Brightness: 960 W
Standby Mode (Lamp Off): <0.5 W | | Max Operating Altitude | 7500' / 2286 m | | Dimensions (W x H x D) | 20.0 x 8.3 x 20.9" / 508.0 x 210.8 x 530.9 mm | | Weight | 44.1 lb / 20.0 kg | | | | Package Weight | 61.7 lb | | Box Dimensions (LxWxH) | 28.0 x 25.25 x 15.0" |
