User Manual for InFocus LiteShow 4 DB Dual Band Wireless Presentation Adapter Click to enlarge the picture
Contents of the user manual for the InFocus LiteShow 4 DB Dual Band
- Product category: Projector Accessories InFocus
- Brand: InFocus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for InFocus Projector Accessories
 |
User manual for the InFocus LiteShow 4 DB Dual Band contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any InFocus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official InFocus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a InFocus product will considerably shorten its lifespan!
|

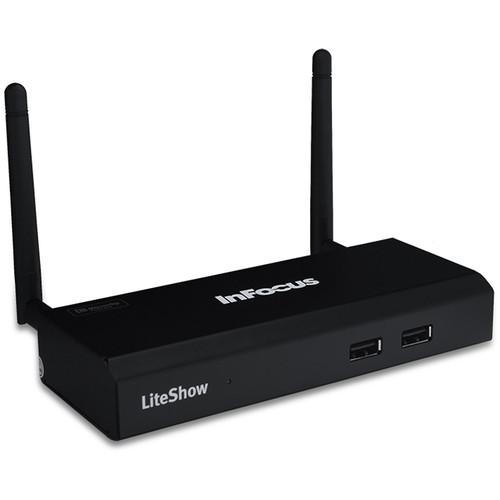

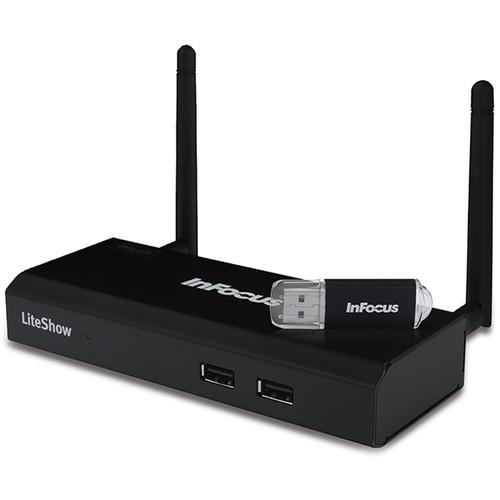

Product description The InFocus LiteShow 4 DB+ Dual Band Wireless Presentation Adapter turns any display or projector with an HDMI or VGA input, into a wireless, networked display. You have multiple options for connecting your computer or mobile device to the LiteShow. You can download the Windows or Mac OS LiteShow utility, plug in the included LiteShow USB drive, run the free iOS or Android MirrorOp app, or use AirPlay. Once connected, you can display and control a presentation as if you were physically connected to the display or projector. If you happen to have a touch display, then you can control everything straight from the display.
The LiteShow 4 DB+ also makes it easy and convenient for guests to present. A visitor simply has to connect the LiteShow's USB drive to their laptop, and they can start presenting right away. No need for special admin rights or software installations. The 4 DB+ has the ability to act as a wireless network access point too, so while connected, guests can enjoy access to the internet while your network assets remain private. However, when you're connected with your network credentials, you can control presentations while still maintaining access to network assets, such as email and shared folders.
The Presentation Adapter utilizes dual band technology, transmitting wirelessly on either the 2.4 GHz or 5 GHz bands for up to 300 Mb/s data transfer rates. It supports the 802.11 b/g/n and 802.11a with MIMO WiFi protocols, but if needed, you can connect the LiteShow via the 10/100 Mb/s Ethernet port. - Easy Collaboration
- The Moderator and QuadView features allow up to four computers to connect to the display at the same time and lets you control which computer (or computers) is displayed. It's ideal for web meetings, teamwork and classroom projects.
- Long Range & High Speed Flexibility
- Dual Band wireless technology allows you to broaden your wireless experience while minimizing wireless interference. The 2.4 GHz band reaches up to 300', so you can connect from a different room, while the 5 GHz band offers faster, uninterrupted connections and transfer speeds up to 300 Mb/s.

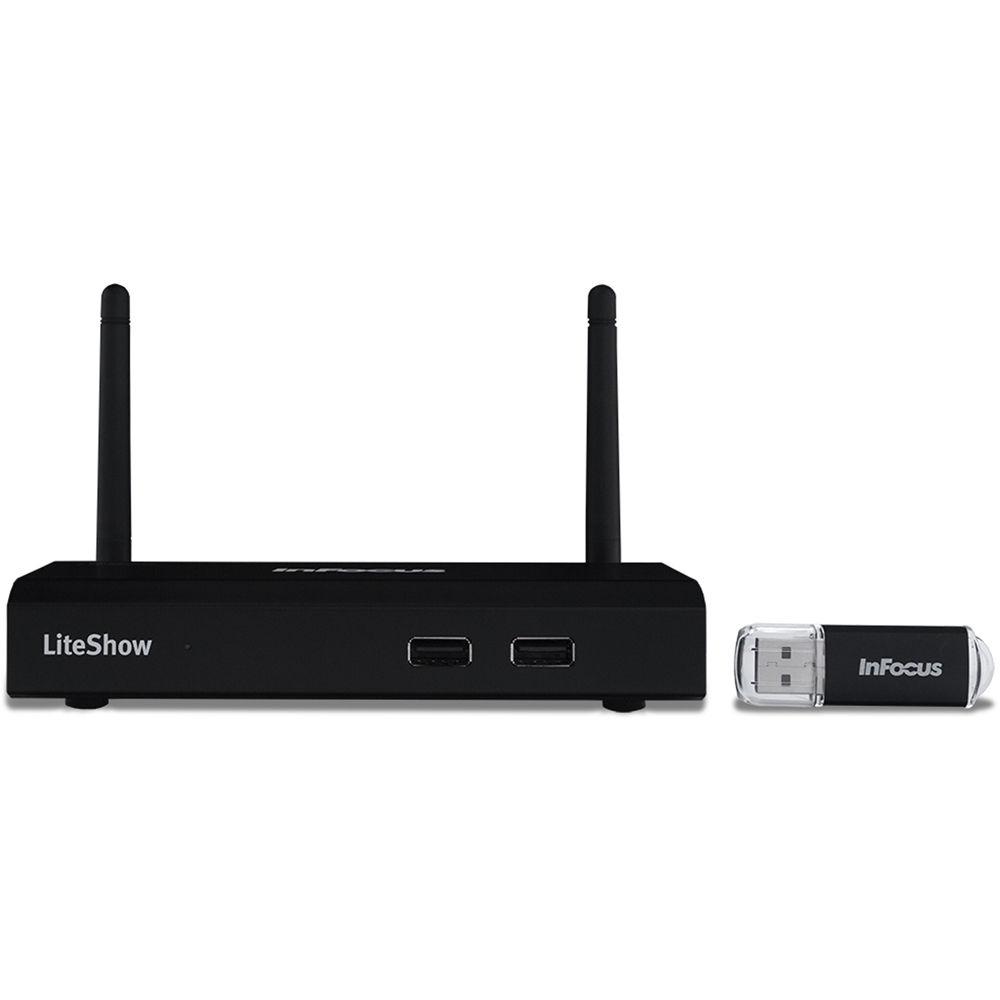

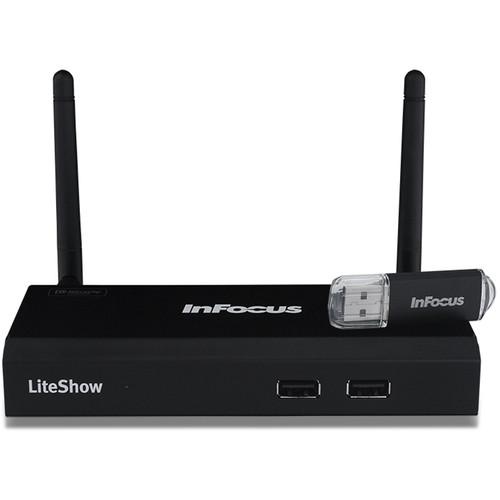

UPC: 797212988348 In the Box InFocus LiteShow 4 DB+ Dual Band Wireless Presentation Adapter LiteShow USB Drive Power Supply with Regional Adapters Wall Mount Bracket Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the InFocus LiteShow 4 DB Dual Band Wireless Presentation Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersInFocus LiteShow 4 Specs | Data Transfer Rate | LAN: 10/100 Mb/s
Wireless: Up to 300 Mb/s | | Connectivity | 2.4 GHz 802.11 b/g/n
5 GHz 802.11a (2 dipole antenna)
1 x RJ-45 (10Base-TX)
1 x VGA
1 x HDMI
3 x USB Type-A
1 x 3.5 mm audio out | | Wireless Range | Up to 300' / 91.44 m | | Resolution Support | 800 x 600
1024 x 768
1280 x 720 (720p)
1280 x 800
1360 x 768
1440 x 900
1600 x 1200
1920 x 1080 (1080p) | | PC Resolutions | SVGA (800 × 600)
XGA (1024 × 768)
SXGA (1280 × 1024)
WXGA (1280 × 768 & 1280 × 800)
WSXGA (1440 × 900 & 1600 × 1024)
UXGA (1600 × 1200)
WUXGA (1920 × 1200)
QXGA (2048 × 1536) | | Wi-Fi Protocols | 2.4 GHZ 802.11 b/g/n
5 GHz 802.11a with MIMO | | Wireless Security | IEEE Standard 64/128-bit WEP, WPA, WPA2-PSK, WPA-Enterprise & WPA2-Enterprise | | Video and Audio Performance | MPEG1
MPEG2
MPEG4
DivX 3/4/5
Xvid
WMV 9
MP3
WMA | | Display Compatibility | Any display with a VGA or HDMI input connection | | Software System Requirements | LiteShow Manager: Microsoft Windows (Windows 7, 8 & 10 32/64 bit); Mac OS X 10.7 or later
MirrorOp: iOS 3.2, Android 4.0 & Chrome
Presentation to Go: Wireless up to 300 Mb/s
PtG Converter: Windows (Windows 7/8 32/64 bit, XP Service Pack 2 or later) Office 2003 or 2007 | | Dimension (W x D x H) | 5.9 x 3.8 x 1.1" / 15.0 x 9.7 x 2.8 cm | | Weight | 1.9 lb / 0.9 kg | | | | Package Weight | 1.85 lb | | Box Dimensions (LxWxH) | 8.7 x 8.6 x 2.7" |
