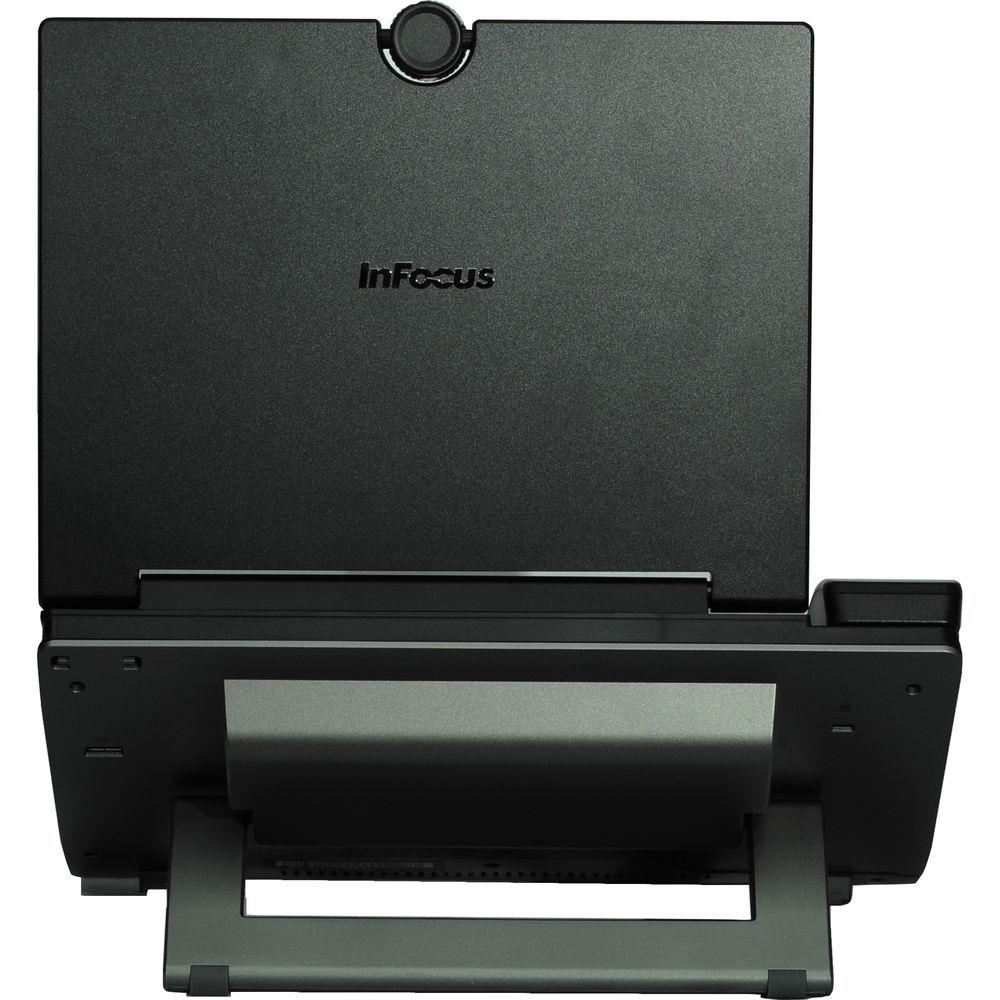

User Manual for InFocus MVP100 IP Video Phone Click to enlarge the picture
Contents of the user manual for the InFocus MVP100 IP Video Phone
- Product category: Telephones InFocus
- Brand: InFocus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for InFocus Telephones
 |
User manual for the InFocus MVP100 IP Video Phone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any InFocus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official InFocus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a InFocus product will considerably shorten its lifespan!
|
Product description The InFocus MVP100 IP Video Phone features an easily adjustable 10” color HD display and 720p camera for comfortable visual communication. The built-in wide-band speaker and high dynamic range microphone ensure clear conversations. In addition, you can also use your headset.
The MVP100 IP Phone can be managed and controlled via the InFocus Web portal. You can manage your phone contacts and automatically sync them to your phone, and even enable features such as call forwarding and password protection, all from the Web.
The video phone is ready for easy mass deployment in the office, and can be easily provisioned and managed by IT, just like any other business IP phone. The phone can also be password protected, so outgoing calls and contact information can be secure while users are away. Note: The InFocus 121 Video Calling service is necessary for using this phone. One year free subscription is included. Thereafter, a yearly subscription fee will be applicable. General - 10" HD display and 720p camera are both adjustable for comfortable visual communication
- Make calls to-or answer calls from-any phone (with optional PSTN service, available separately)
- Seamless video conferencing with InFocus Mondopad (sold separately)
- Uses standard SIP protocol
- Ready to make calls when you plug it in with the included one year free subscription of InFocus 121 video calling
- Call transfer, forwarding, and hold
- PoE function and SD card slot
- Compatible with the InFocus ConX Group Videoconferencing cloud-based group video conferencing service (available separately)
IT-Friendly Management - Designed for easy mass deployment and easy management
- Seamlessly integrate into business environments as a remotely controlled asset like any other IP phone
- Password protected so outgoing calls and contact information can be secure while users are away
HD Quality Video and Audio - Easily adjustable 10" color display and 720p HD camera provide a view of the caller and the caller's view of you
- Built-in wide-band speaker and high dynamic range microphone ensure clear conversations
- You can also use your headset for conversations
Remote Access via Web Portal - IT and users can manage and support their MVP100 phone via a comprehensive Web portal
- You can manage your phone contacts and automatically sync them to your phone and even enable features such as call forwarding and password protection, all from the Web
InFocus 121 Video Calling - One-year free subscription included
- Cloud-based video calling service allows you to make video calls with MVP100 Video Phone
- High-quality video dial tone on demand (always on)
- Connect one-on-one with almost any video conferencing system
- Easy to Use: Just dial a phone number or email address
- No premises infrastructure such as Gatekeepers, SIP Proxies, or Gateways required
UPC: 797212965691 In the Box InFocus MVP100 IP Video Phone Limited 1-Year Warranty Brochure PDF 126.9kb Table of Contents
|
Upload User Manual
Have you got an user manual for the InFocus MVP100 IP Video Phone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersInFocus MVP100 Specs | Display | Type: 10.1" color (16:9) TFT-LCD
Resolution: WXGA (1366 x 768)
Manual brightness, contrast, 256K color RGB | | Camera | Resolution: 1280 x 720 @ 30 fps
Sensor: 1/2.7" CMOS sensor
Focus: Fixed focus, nominal focus distance of 24.00" (60.96 cm)
Ambient light frequency detection
Automatic and manual brightness/white balance | | Controls | Navigation buttons and scroll wheel
Numeric keypad
User quick keys and programmable soft keys | | Phone Features | HD video calls
Audio and video conferencing capable
Google Talk capable
Message center
Call transfer
Call forwarding
Call Hold
Local and enterprise directory
IT can easily provision and manage | | Audio Standards | G.722.1, G.711 | | Language Support | English | | Audio Features | Wideband 155 to 20 kHz speaker phone
Wideband 10 kHz handset
RJ9 headset port
Acoustic echo cancellation
Background noise suppression
Automatic gain control and noise reduction | | Video Standards | H.264 AVC | | Video Features | Native 16:9 widescreen aspect ratio, PIP (Picture in Picture) | | Video Resolutions | Transmit and Receive: 176 x 144 @ 30 fps (QCIF), 352 x 288 @ 30 fps (CIF), 512 x 288 @ 30 fps (288p), 576 x 448 @ 30 fps (448p), 640 x 480 @ 30 fps (VGA), 704 x 480 @ 30 fps (4SIF), 704 x 576 @ 30 fps (4CIF), 768 x 448 @ 30 fps (w448p), 1280 x 720 @ 30 fps (720p)

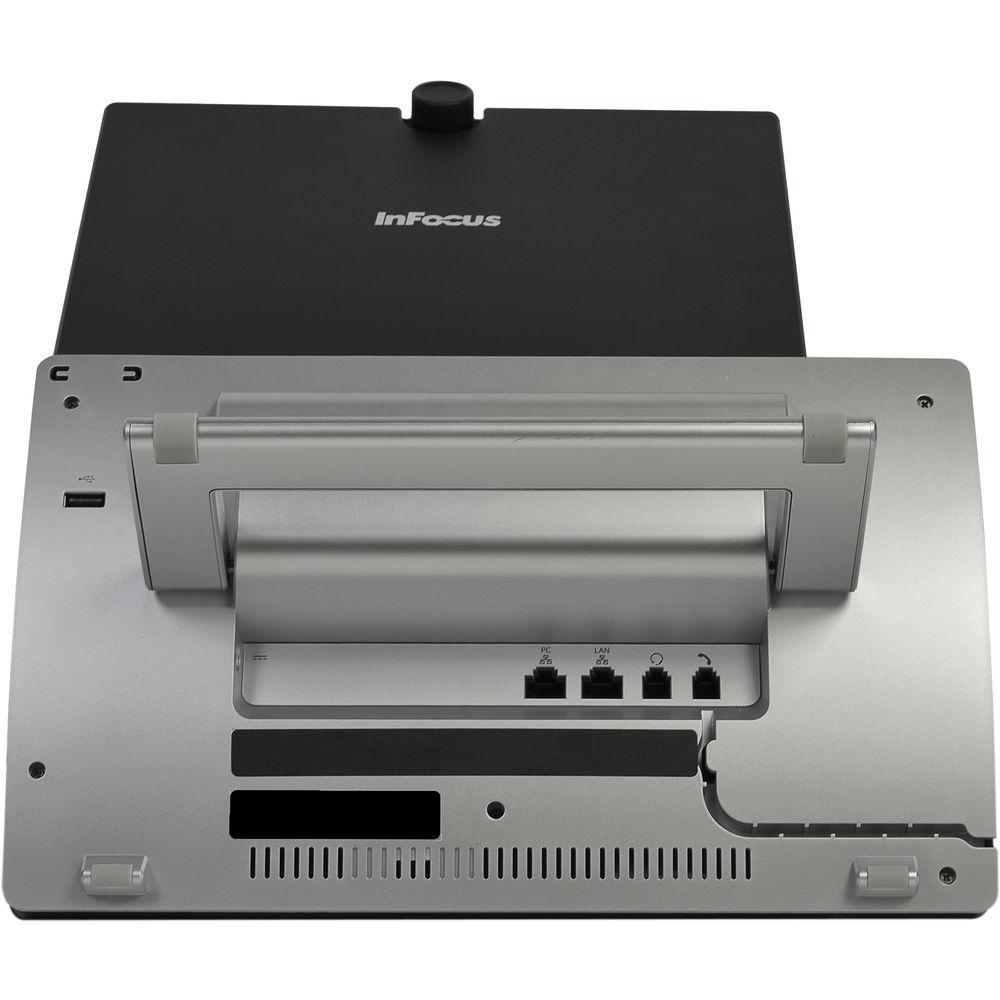

Additional Receive: 352 x 240 @ 30 fps (SIF) | | Ports | RJ-45 Ethernet for connection to network
RJ-45 Ethernet for connection to PC
RJ-9 Handset port
RJ-9 Headset port
USB 2.0 port
SD card slot | | Input Power | 90 to 240 VAC, 50/60 Hz
12VDC
PoE 802.3af | | Regulatory | FCC part 15 class B, CE Mark, European low voltage directive, European EMC directive, UL approval, WEEE, RoHS | | Dimensions (W x D x H) | 12.1 x 6.9 x 13.0" (307.0 x 175.0 x 330.0 mm) | | Weight | 4.2 lb (1.9 kg) |
