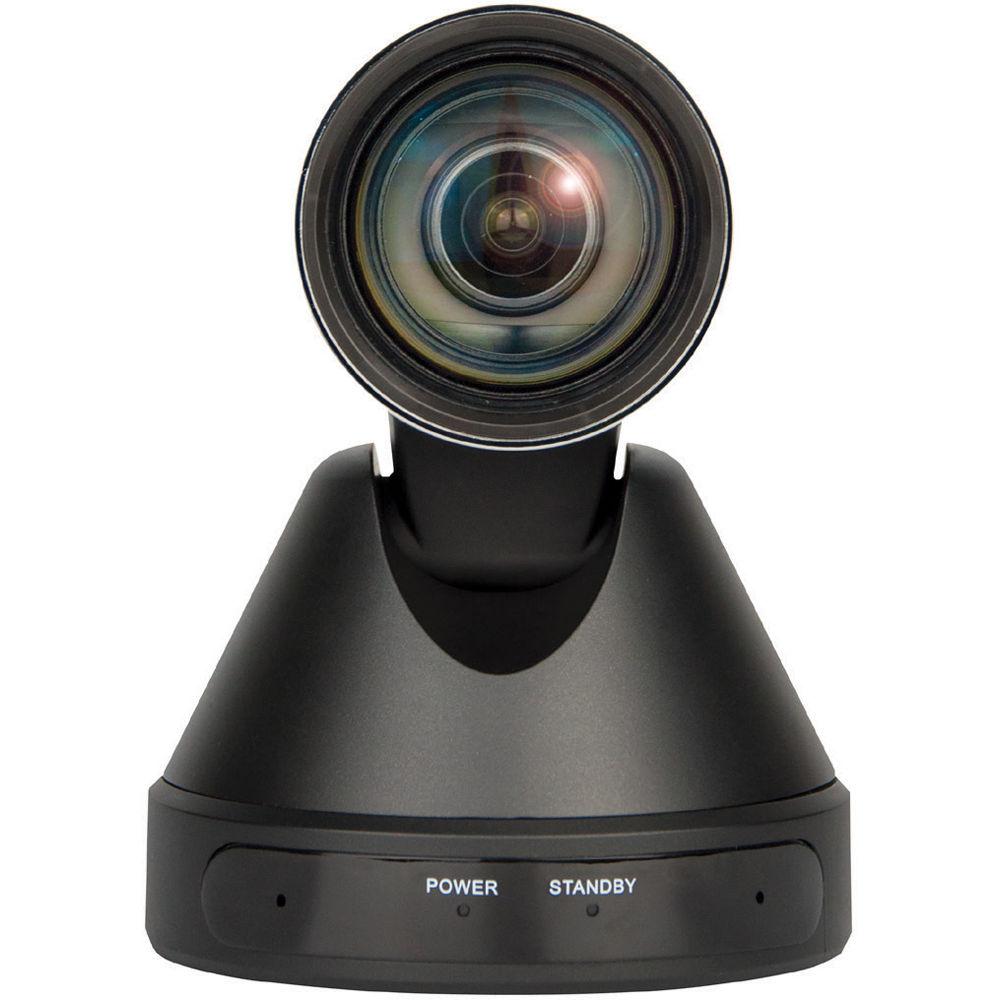

User Manual for InFocus RealCam 2MP PTZ Camera Click to enlarge the picture
Contents of the user manual for the InFocus RealCam 2MP PTZ Camera
- Product category: PTZ Cameras InFocus
- Brand: InFocus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for InFocus PTZ Cameras
 |
User manual for the InFocus RealCam 2MP PTZ Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any InFocus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official InFocus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a InFocus product will considerably shorten its lifespan!
|

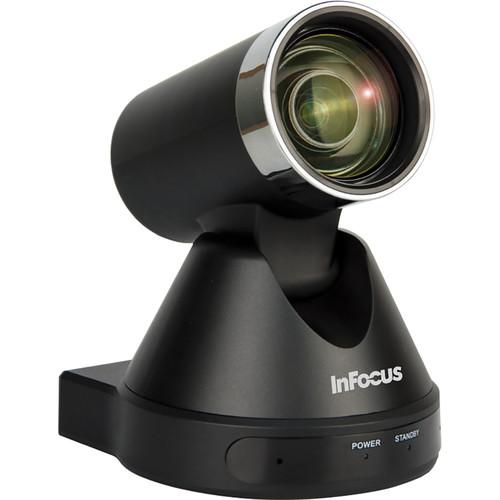

Product description The RealCam 2MP PTZ Camera from InFocus features a 1/2.7" progressive scan CMOS sensor and 3.5-42.3mm varifocal lens for capturing videos at a maximum resolution of 1920 x 1080. The pan/tilt action offers a wide coverage area, making the camera suitable for capturing extensive areas. The 255 position presets make it quick and easy to access the accurate settings for pan, tilt, and zoom, focus position, exposure mode, and white balance mode. The RealCam works with ConX Video Meeting, Microsoft Lync, Skype, and GoToMeeting. You can plug the camera directly into a Mondopad or other PC with USB 3.0, without requiring a separate capture device. The Thunder speakerphone (sold separately) can be connected to the camera for clear sound and images during your video calls. You can connect the Thunder to a Mondopad via USB or to a notebook, tablet, or mobile phone via Bluetooth. Compatible Systems - Microsoft, Skype for Business Adobe Connect, Citrix GoToMeeting, LifeSize ClearSea, Avistar C3, Cisco Jabber, Skype, Polycom Real Presence Desktop, Radvision Scopia Desktop, Google Hangout, InFocus Mondopad, and ConX Video Meeting software
General - Supports full 1080p HD resolution
- Pan, tilt, and zoom using the included remote control
- 12x optical zoom and 32x digital zoom
- Connect your PC with any software or operating system via USB
- Pan angle of -170 to 170°
- USB 3.0 and USB 2.0 compatibility
- RS-232 control or USB UVC compatibility
UPC: 797212986221 In the Box InFocus RealCam 2MP PTZ Camera Power Cord USB Cable Serial Cable Remote Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the InFocus RealCam 2MP PTZ Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersInFocus INA-PTZ-4 Specs | | | Video System | HD: 1080p 60, 50, 30, 25; 720p 60, 50, 30, 25 | | Sensor | 1/2.7", CMOS | | Effective Pixels | 1920 x 1080, 2.07 MP | | Scanning Mode | Progressive | | Lens | 12x
3.5-42.3mm
f/1.8-2.8 | | Zoom | 12x optical, 32x digital | | Minimum Illumination | 0.05 lux at (f/1.8, AGC ON) | | Shutter | 1/30 to 1/10000 sec | | White Balance | Auto, Indoor, Outdoor, One Push, Manual | | Backlight Compensation | Supported | | Digital Noise Reduction | 2D and 3D digital noise reduction | | Video S/N Ratio | ≥55 dB | | Horizontal Angle of View | 72.5 to 6.9° | | Vertical Angle of View | 44.8 to 3.9° | | Rotation Range | Horizontal: ±170°
Vertical: ±30° | | Speed Range | Pan: 1.7 to 100°/s

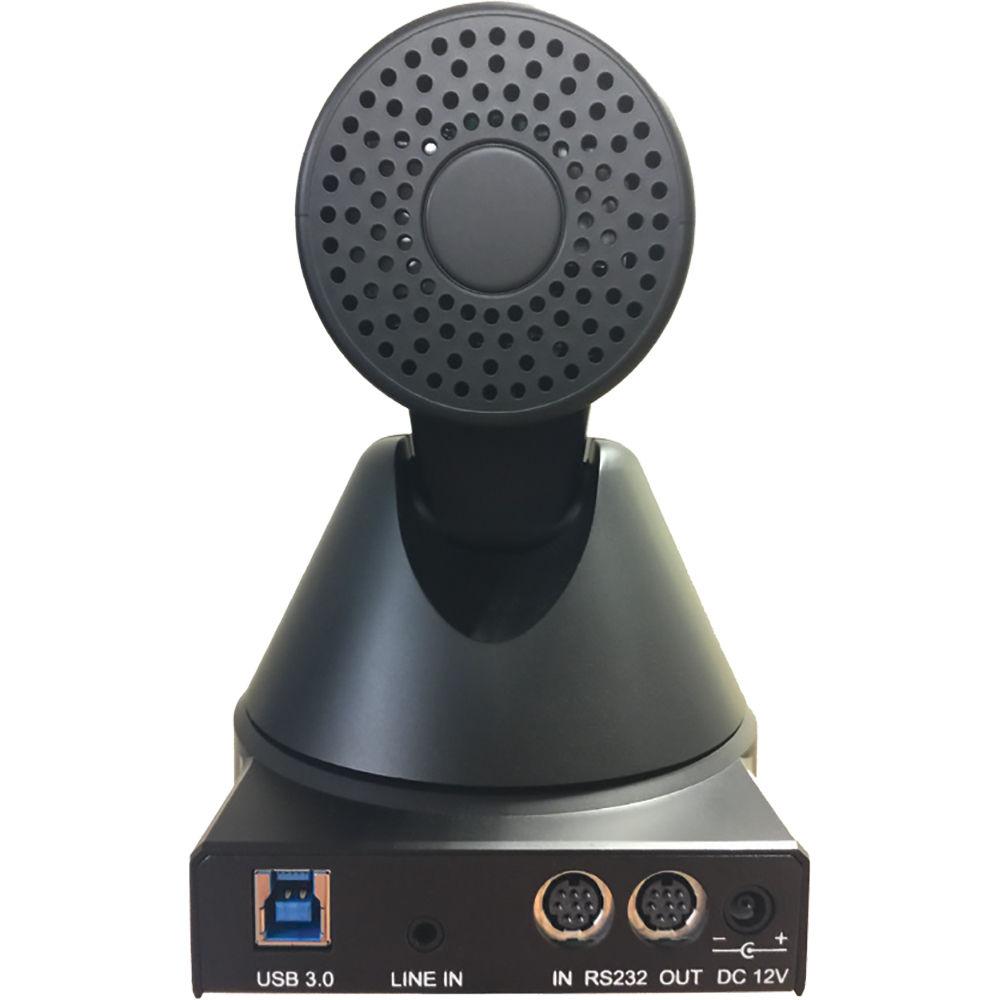

Tilt: 1.7 to 69.9°/s | | Image Flip | Horizontal and vertical supported | | Image Freeze | Supported | | Number of Presets | 255 | | Preset Accuracy | 0.1° | | Operating System | Windows 7, Windows 8, Windows 10, Mac OS X | | Color System | YUV 4:2:2 / H.264 / MJPEG | | | | Audio Input | 1-Channel 3.5 mm, line In | | USB | 1 x USB 3.0 Type-B Female jack | | Input | 1 x RS-232 8-pin Mini DIN
Maximum Distance: 98.43' (30 m)
Protocol: VISCA / Pelco-D / Pelco-P | | Output | 1 x RS-232 8-pin Mini DIN
Maximum Distance: 98.43' (30 m)
Protocol: VISCA network use only | | Video Format | USB 3.0 : 1080p 60, 50, 30, 25; 720p 60, 50, 30, 25
USB 2.0 : 1080p 30, 25, 15, 10; 720p 30, 25; 960 x 540p 30, 25; 640 x 360p 60, 50 | | Communication Protocol | USB Video: UVC 1.0 to UVC 1.5 | | PTZ Control | Supported via UVC | | Power Connector | JEITA type (IN 12 VDC) | | | | Input Voltage | 12 VDC | | Current Consumption | 1 A (maximum) | | Power Consumption | 12 W (maximum) | | Operating Temperature | 14 to 104°F (-10 to 40°C) | | Storage Temperature | 104 to 140°F (-40 to 60°C) | | Certifications | Camera: FCC, CE, IC
Power Supply: CB, UL, CCC | | Dimensions | 5 x 4.6 x 6.1" (127 x 117 x 155 mm) | | Weight | 2 lb (0.91 kg) | | | | Package Weight | 5.05 lb | | Box Dimensions (LxWxH) | 10.0 x 9.2 x 9.2" |
