User Manual for Innovative Dimmers Cintenna RX5-90S Wireless 5-Pin DMX Receiver Click to enlarge the picture
Contents of the user manual for the Innovative Dimmers Cintenna RX5-90S Wireless 5-Pin
- Product category: DMX Devices Innovative Dimmers
- Brand: Innovative Dimmers
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Innovative Dimmers DMX Devices
 |
User manual for the Innovative Dimmers Cintenna RX5-90S Wireless 5-Pin contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Innovative Dimmers product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Innovative Dimmers user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Innovative Dimmers product will considerably shorten its lifespan!
|

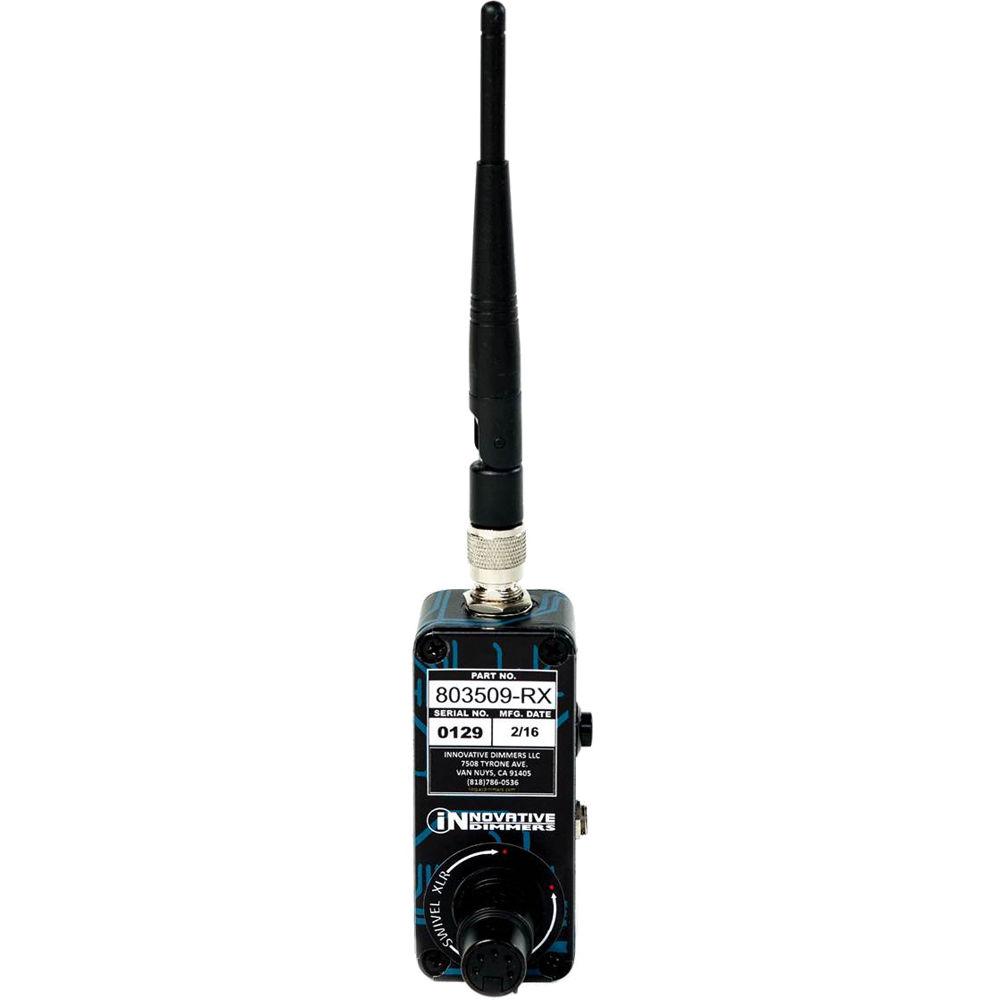

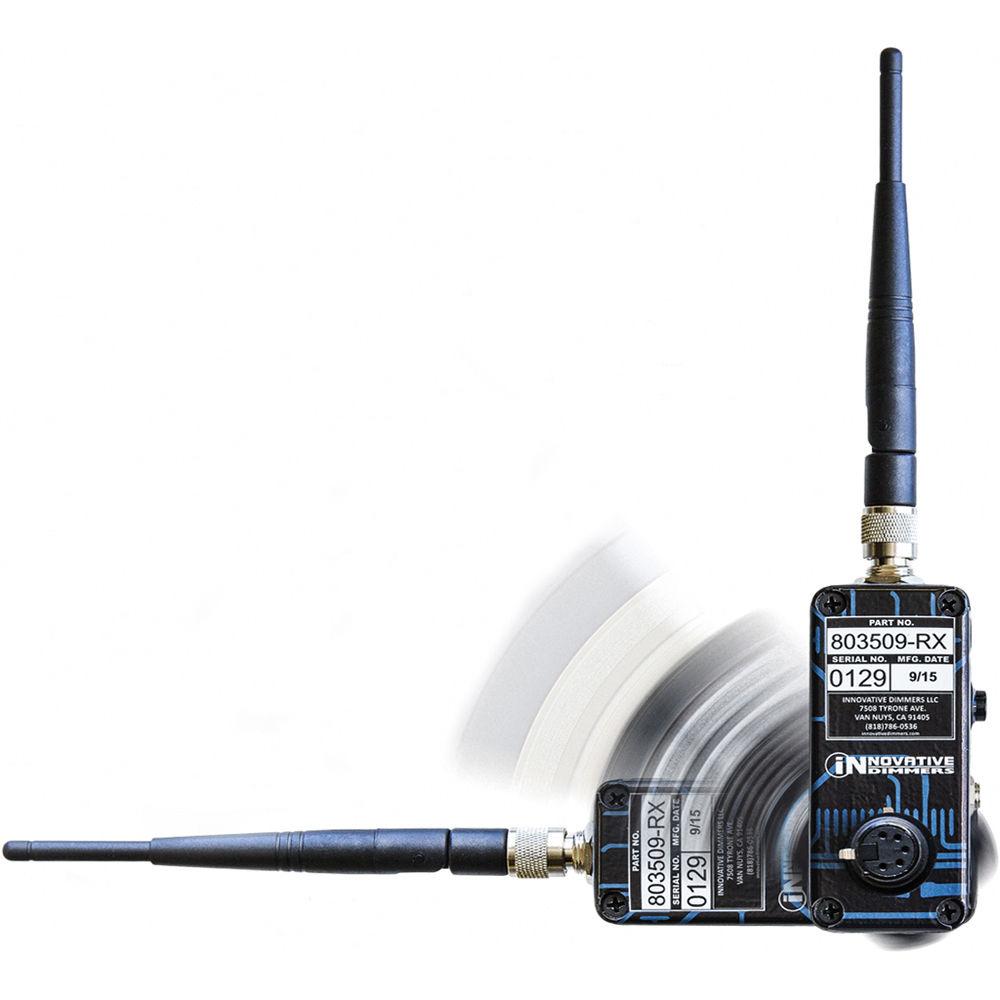

Product description The Cintenna RX5-90S Wireless 5-Pin DMX Swivel Receiver from Innovative Dimmers is a small and powerful DMX receiver housed in a rugged cast-aluminum enclosure, capable of wirelessly receiving 1 DMX universe (512 channels) from up to a 1/4 mile, with 128-bit encryption. The receiver automatically senses the transmitter and connects without buttons. Its frequency-hopping technology ensures a reliable connection, even in environments with high usage of cell phones and other wireless devices. The unique "swivel" feature allows the right-angle XLR connector to turn 270 degrees, making the Cintenna adaptable to almost any light. You can spin the Cintenna out of the way to avoid interfering with the pan and tilt of the light or other inputs or controls. A power supply is included with this unit. - Benefits
-
- Plugs directly into your light with no cables, truly wireless
- Small but mighty. At 3.5 x1.5 x 1.25" it's the smallest CRMX on the market
- Lumen Radio CRMX technology
- Receives one DMX universe (512 channels)
- 128-bit encryption
- 1/4 mile range
- Intelligent frequency hopping (2.4 GHz)
- Auto connect with Cintenna transmitters
- Error-correction technology
- Accepts 5-30 VDC for use with a range of power supplies or batteries
- 2.5mm power supply connector for North American power supplies
- Option for USB power supply adapter (available separately)
- Rugged cast-aluminum enclosure for long life
- RDM enabled when used with a Lumen Radio Nova FX or TX2
- LED status lights show power and DMX connection
- Ideal for use with battery-powered lights
- Designed to work well in data-rich environments around cell phones and other wireless devices
- QR code gives DMX wireless set up instructions
UPC: 857830006005 In the Box Innovative Dimmers Cintenna RX5-90S Wireless 5-Pin DMX Receiver (Swivel) Power Supply for Cintenna rdyvxfxxsevwfddsu Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Innovative Dimmers Cintenna RX5-90S Wireless 5-Pin DMX Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersInnovative Dimmers RX5-90S Specs | DMX Channels | 1 x Universe: 512 channels | | Connector | Output: XLR 5-Pin | | Wireless Range | 1/4 mile (402 m) | | Power Requirements | Input Voltage: 5-30 VDC
Connector: 2.5 mm, barrel-type | | Encryption | 128-bit | | Material | Cast aluminum | | LED Indicators | Shows power and DMX connection | | Dimensions | 3.5 x 1.5 x 1.25" (8.9 x 3.8 x 3.2 cm) | | Weight | Not specified by manufacturer | | | | Package Weight | 0.7 lb | | Box Dimensions (LxWxH) | 7.5 x 5.3 x 2.9" |
