User Manual for INOGENI Cam 200 4:1 HDMI VGA Camera Switch with USB 3.1 Gen 1 Output Click to enlarge the picture
Contents of the user manual for the INOGENI Cam 200 4:1 HDMI VGA
- Product category: Routers & Switchers INOGENI
- Brand: INOGENI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for INOGENI Routers & Switchers
 |
User manual for the INOGENI Cam 200 4:1 HDMI VGA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any INOGENI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official INOGENI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a INOGENI product will considerably shorten its lifespan!
|

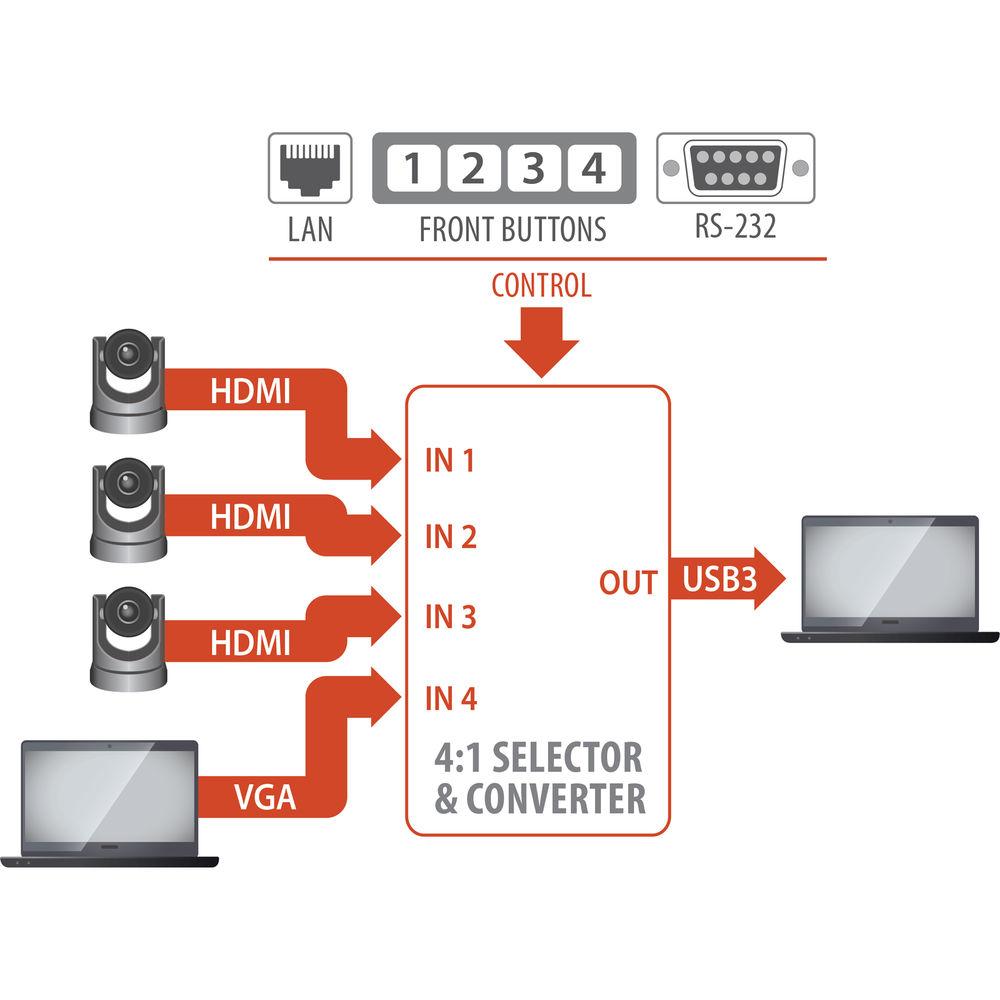

Product description Plug your HDMI and VGA video sources into the Inogeni Cam 200 4:1 HDMI/VGA Camera Switch with USB 3.0 Output and quickly switch between sources with a less than 0.2 second switching response time. The Cam 200 inputs HD video over HDMI and VGA, and outputs over USB 3.0. Inputs 1 through 3 support HDMI signals up to 1080p60, and the fourth input is a VGA connector that supports VGA and DVI video up to 1920 x 1200. Embedded audio is routed to the output from the selected input (audio follows video). To control the I/O routing, use the simple front-panel controls, or connect a software/hardware control via RS-232 and Ethernet terminals. Scenarios where this switcher would be useful include convention centers, presentation areas, meeting rooms, and more, where HDMI and VGA inputs are necessary, and the video needs to travel via USB 3.0. - Connectivity
-

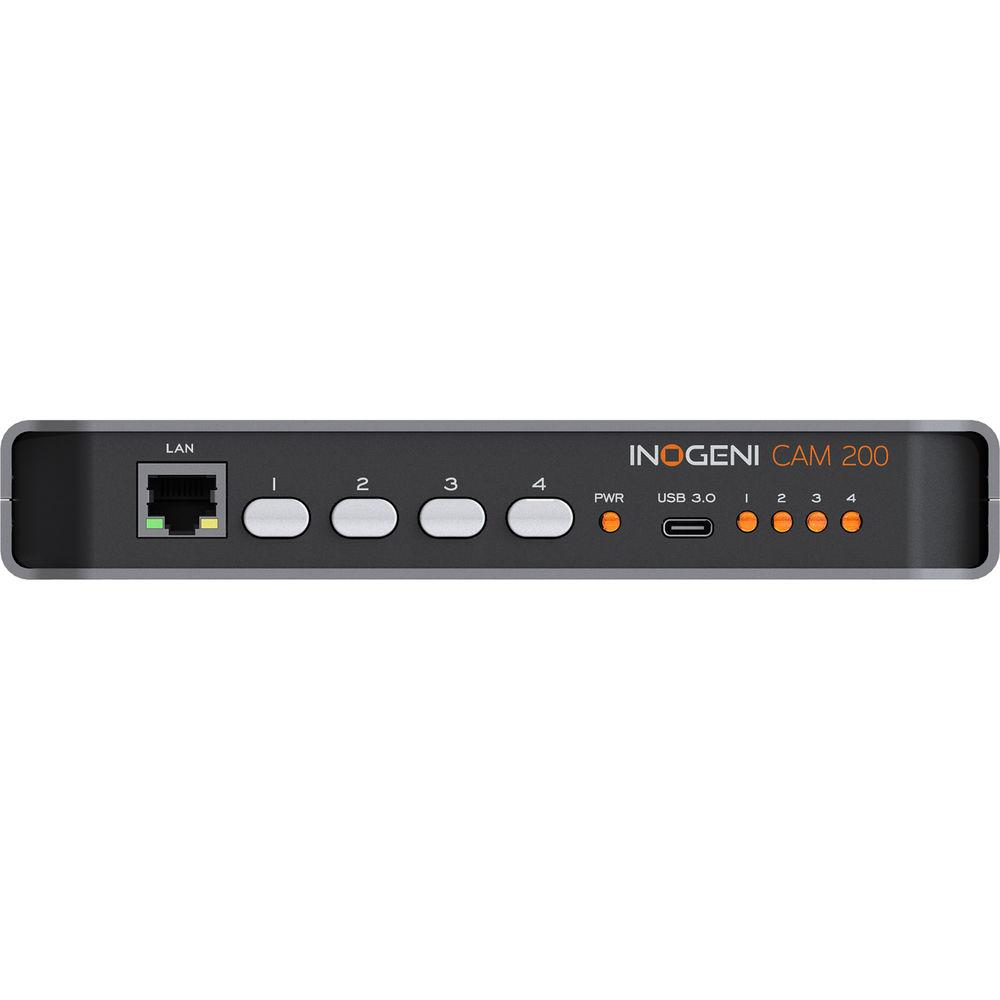

- In addition to the front panel selector switches, you can control the CAM200 via Ethernet or RS-232 control.
- You can control the CAM200 via USB 3.0 using the INOGENI Control App, which must be sourced separately.
- Video output is over the USB 3.0 Type-C connector.
- Frame Buffer
- The CAM200 integrates a scaler and frame buffer to ensure a smooth glitch-free switch that provides a continuous data stream, which helps avoid dropouts, black frames, and other glitches that will disturb the program.
- APP Compatibility
- It has been tested and found compatible with the following:
- Skype
- Quicklaunch
- Hangouts
- ZOOM
- Vidyo
- Livecast
- vMix
- DVI
- The VGA input will accept DVI signals, but it requires a DVI-I to VGA adapter, which is not included and must be sourced separately.
UPC: 040232633867 In the Box INOGENI Cam 200 4:1 HDMI/VGA Camera Switch with USB 3.1 Gen 1 Output Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the INOGENI Cam 200 4:1 HDMI VGA Camera Switch with USB 3.1 Gen 1 Output in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

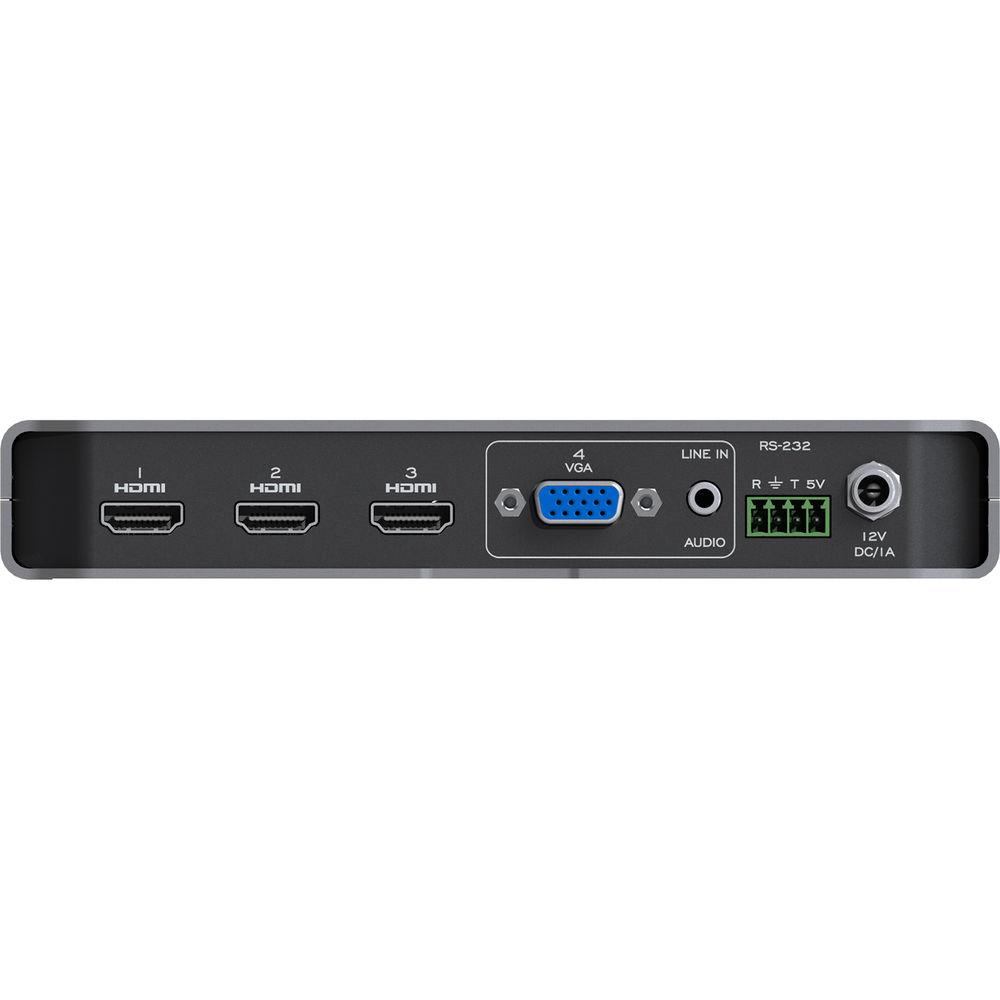

Technical parametersINOGENI CAM200 Specs | Inputs | 3 x HDMI type A
1 x VGA
1 x Line-in (audio) | | Outputs | 1 x USB 3.0 | | Other I/O | 1 x Ethernet
1 x USB 3.0
1 x D-sub 9-pin (RS-232) | | Video Input Format | HDMI:
Up to 1080p60
VGA
Up to 1920 x 1200 | | Audio Input Format | HDMI: Embedded PCM
Analog: Line-in | | Video Output Format | USB 3.0 uncompressed 1080p60 | | Audio Output Format | USB 3.0 PCM stereo (audio follow input) | | Power | 12 VDC, 500 mA | | Environmental | Operating Temperature: 32 to 113°F / 0 to 45°C
Storage Temperature: -40 to 221°F / -40 to 105°C
Humidity: 0-90%, non-condensing | | Dimensions | 7.3 x 4.3 x 1.2" / 18.5 x 11.2 x 3.0 cm | | Weight | 16.5 oz / 469 g | | | | Package Weight | 1.35 lb | | Box Dimensions (LxWxH) | 9.9 x 7.1 x 3.3" |
