User Manual for INOGENI CAM 300 4x1 HDMI USB 2.0 Camera Switcher Click to enlarge the picture
Contents of the user manual for the INOGENI CAM 300 4x1 HDMI USB
- Product category: Routers & Switchers INOGENI
- Brand: INOGENI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for INOGENI Routers & Switchers
 |
User manual for the INOGENI CAM 300 4x1 HDMI USB contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any INOGENI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official INOGENI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a INOGENI product will considerably shorten its lifespan!
|

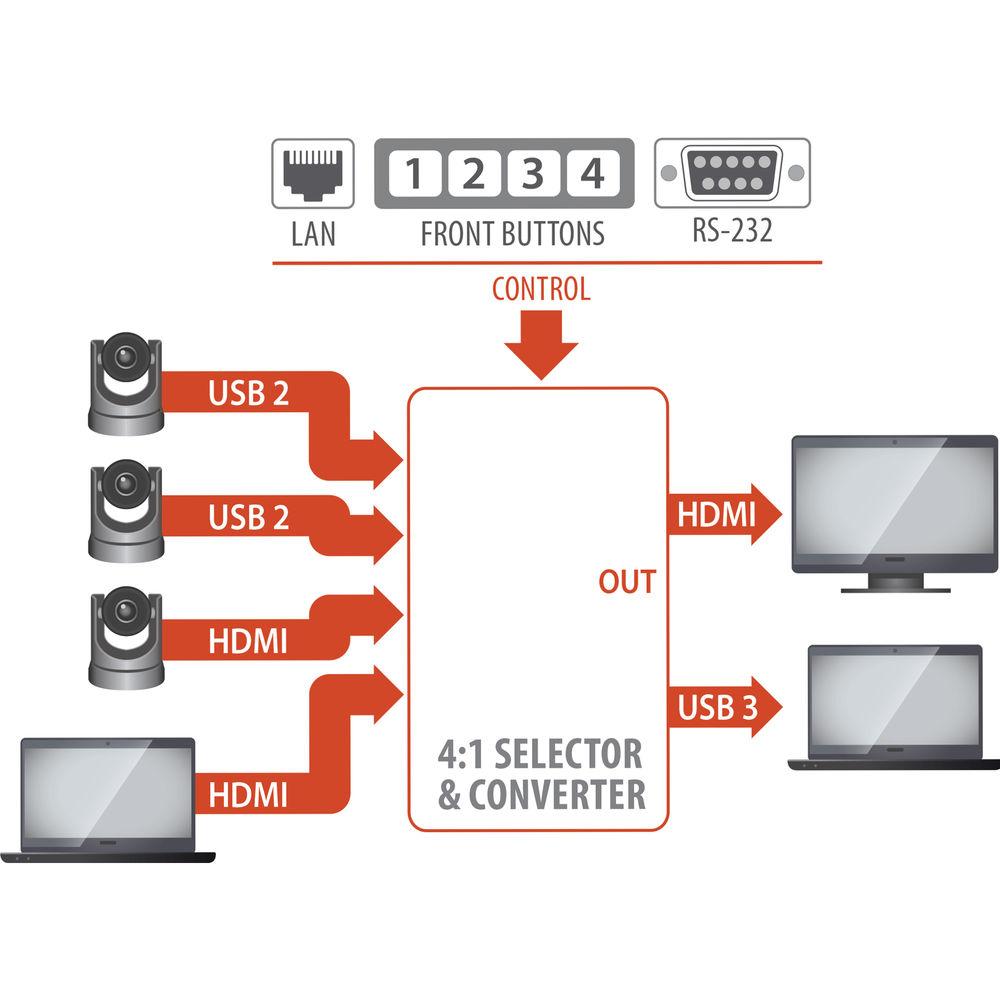

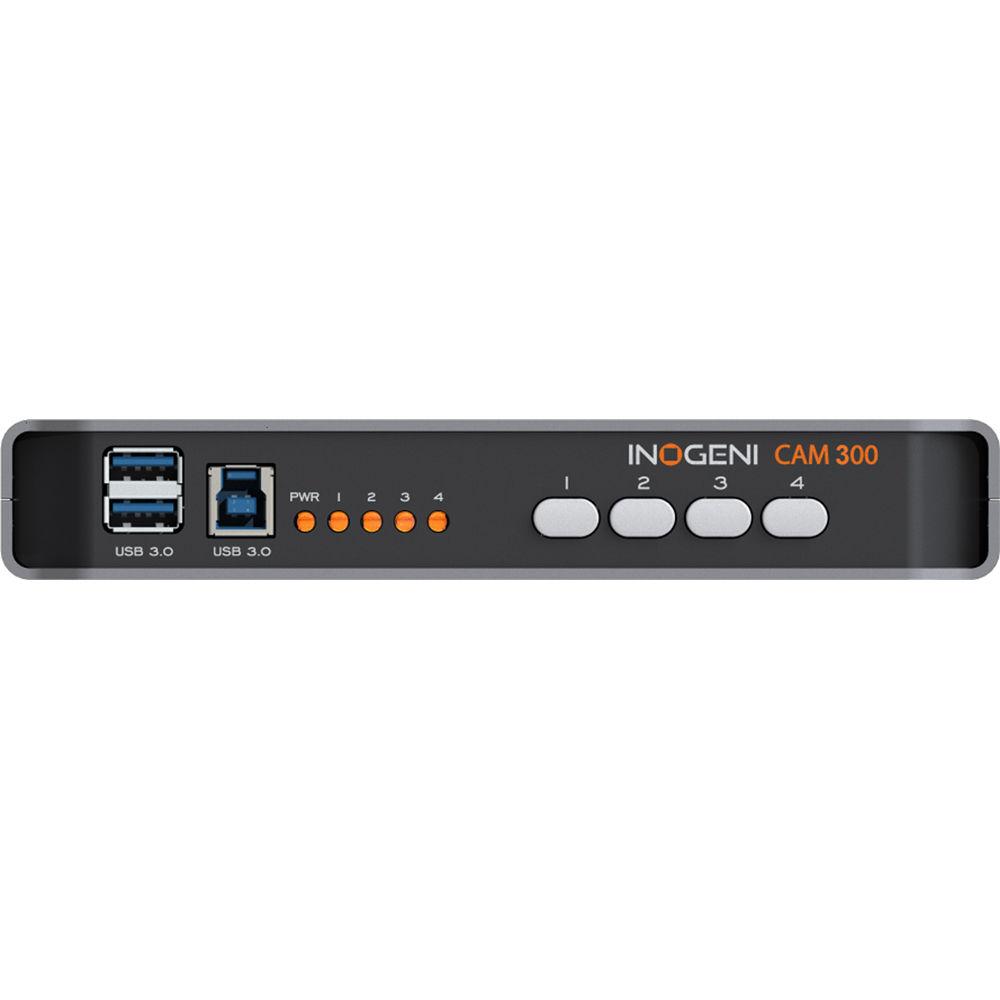

Product description Plug your USB and HDMI video sources into the Inogeni CAM 300 4x1 HDMI/USB 2.0 Camera Switcher and achieve quick camera switching to both HDMI and USB outputs. Inputs 1 and 2 are USB 2.0 and they accept USB cameras that output MJPEG or H.264 video. Video from the USB ports is decoded and output via the HDMI and USB ports as uncompressed video. Inputs 3 and 4 are full-sized HDMI inputs that accept video up to 1080p30 in resolution. Embedded audio is routed to the both HDMI and USB outputs from the selected input (audio follows video). To control the I/O routing, use the simple front-panel controls, or connect a software/hardware control via RS-232 and Ethernet terminals. Two full-size USB 3.0 ports are built-in to the CAM 300 for connecting further USB accessories to your host system. Scenarios where this switcher would be useful include convention centers, presentation areas, meeting rooms, and more, where both HDMI display output and USB video capture are required simultaneously. UPC: 040232633836 In the Box INOGENI CAM 300 4x1 HDMI/USB 2.0 Camera Switcher Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the INOGENI CAM 300 4x1 HDMI USB 2.0 Camera Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

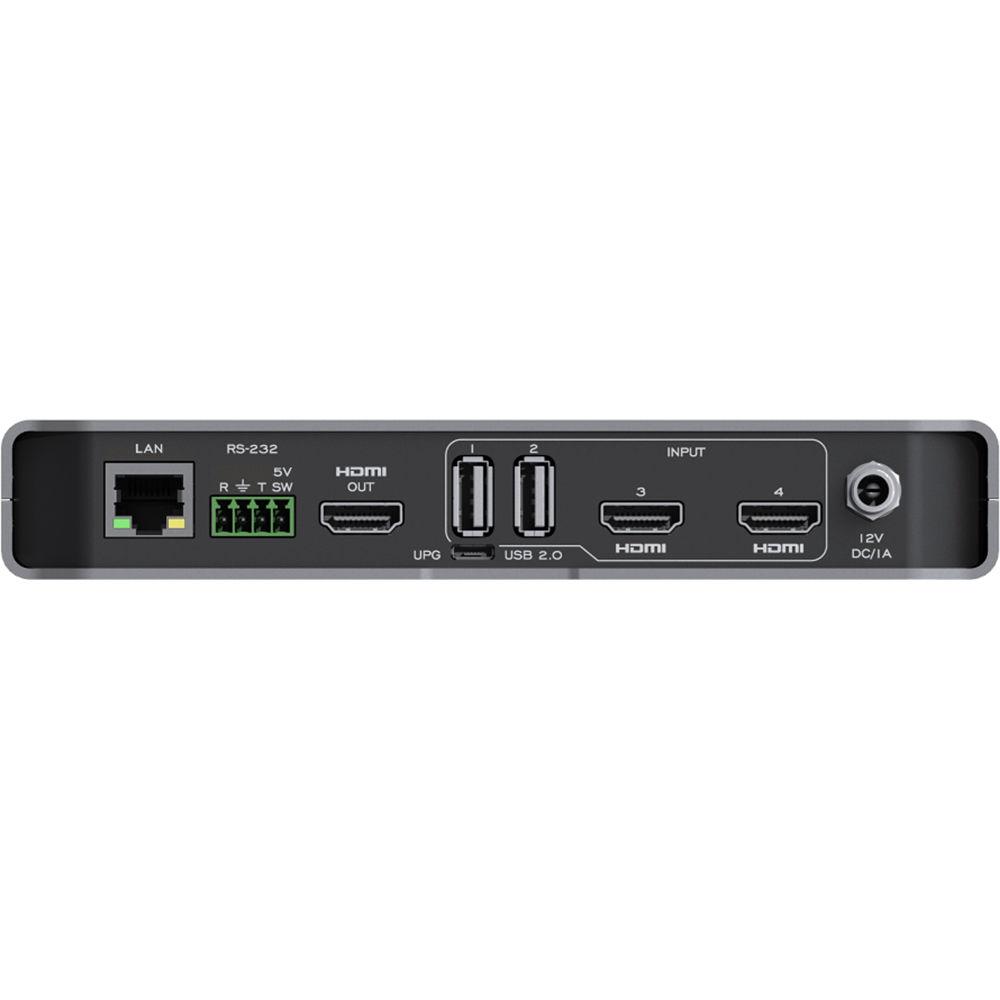

Technical parametersINOGENI CAM 300 Specs | Inputs | 2 x USB 2.0 Type-A
2 x HDMI type A | | Outputs | 1 x HDMI type A
1 x USB 3.0 Type-B | | Other I/O | 1 x Ethernet
1 x 4-pin Phoenix, RS-232
2 x USB 3.0 Type-A, host | | Video Input Format | USB:
MJPEG
H.264
HDMI:
1080p 30
720p 60
480p 60 | | Audio Input Format | USB: USB camera audio
HDMI: Embedded PCM | | Video Output Format | Up to 1080p 60 | | Audio Output Format | Embedded PCM (audio output follows selected video input) | | Power Supply | 12 VDC, 500 mA | | Environmental | Operating Temperature: 32 to 113°F / 0 to 45°C
Storage Temperature: -40 to 221°F / -40 to 105°C
Humidity: 0-90%, non-condensing | | Dimensions | 7.3 x 4.4 x 1.2" / 18.5 x 11.2 x 3 cm | | Weight | 1 lb / 469 g | | | | Package Weight | 1.9 lb | | Box Dimensions (LxWxH) | 9.8 x 6.9 x 3.4" |
