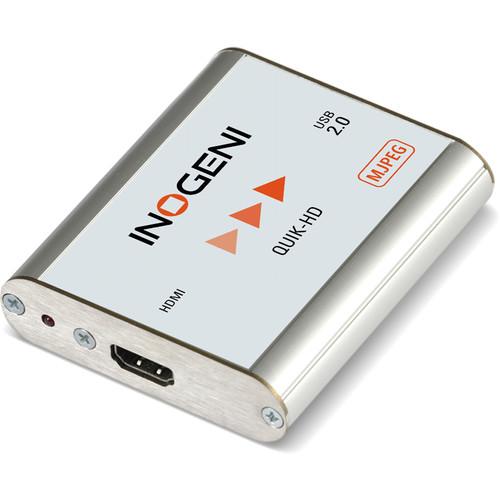

User Manual for INOGENI HDMI to USB 2.0 Video Capture Card Click to enlarge the picture
Contents of the user manual for the INOGENI HDMI to USB 2.0 Video
- Product category: Computer Hardware INOGENI
- Brand: INOGENI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for INOGENI Computer Hardware
|
User manual for the INOGENI HDMI to USB 2.0 Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any INOGENI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official INOGENI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a INOGENI product will considerably shorten its lifespan!
|
Product description The INOGENI HDMI to USB 2.0 Video Capture Card allows you to capture an HDMI signal with audio to your Windows, Mac, or Linux computer. It was designed to let you bring a camera signal over into your computer for videoconferencing, streaming, recording, and editing. The card supports up to 1080p60 resolution on input and delivers the image to your computer in up to 1080p30 resolution, applying internal scaling and conversion if necessary.
It's recognized on your computer as a webcam, so it's compatible with destinations such as Skype, Zoom, Hangouts, Facebook, and YouTube. UVC-compliant, it also works with all DirectShow-compatible software. The card is powered off the computer's USB 2.0 port, so no external power is required. - Key Features
-
- HDMI input, USB 2.0 output, MJPEG encoding
- Up to 1080p30 / 720p60 output
- Embedded HDMI audio is extracted and output as two-channel LPCM audio
- Digital Fluid technology internal frame buffering ensures maximization of frame rates with any computer
- Hardware-based color space and sampling conversion
- Automatic scaling and frame rate conversion
- Brightness, contrast, saturation, and hue settings controls
- Supports multiple devices on the same computer
- Powered off computer's USB 2.0 port
- Compatible with Windows, Mac, and Linux
- Made in Canada
UPC: 040232633874 In the Box INOGENI HDMI to USB 2.0 Video Capture Card USB 2.0 Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the INOGENI HDMI to USB 2.0 Video Capture Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersINOGENI QUIK-HD Specs | Input | 1 x HDMI 1.4a | | Output | 1 x USB 2.0 Type-A | | Input Resolution | 1080p, 1080i
720p
576p
480p
1920 x 1200
1280 x 1024, 1280 x 960, 1280 x 800
1024 x 768
800 x 600
640 x 480 | | Frame Rates | 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 Hz for all input resolutions (as applicable) | | Color Space | RGB, YCbCr, 4:4:4, and 4:2:2 | | Sampling Rate | 170 MHz | | Embedded Audio | Supported | | HDCP | Will not decrypt BD/DVD movies, satellite/cable receivers, or other encrypted sources | | Output Resolution | 1080p up to 30 Hz, all others up to 60 Hz | | Codec | MJPEG | | Video Scaler | Automatic hardware-based | | Color Space Conversion | Automatic hardware-based | | Sampling Conversion | Automatic hardware-based | | Frame Rate Conversion | Automatic hardware-based | | Compatible Operating Systems | Windows 7 and above (32/64-bit)
OS X 10.10 and above
Linux (kernel v2.6.38) and above | | Host Requirements | USB 2.0 port | | Motherboard Compatibility | Compatible with all motherboards, including Intel, Renesas, ASMedia, and Fresco Logic | | Software Compatibility | UVC-compliant | | Operating Temperature | 32 to 113°F / 0 to 45°C | | Storage Temperature | -40 to 221°F / -40 to 105°C | | Relative Humidity | 0 to 90% non-condensing | | USB Power | 5 V, 480 mA | | Dimensions | 3.2 x 2.9 x 0.75" / 8.1 x 7.4 x 1.9 cm | | Weight | 4.2 oz / 120 g | | | | Package Weight | 0.38 lb | | Box Dimensions (LxWxH) | 5.75 x 3.4 x 2.35" |
