Product description The INOGENI SHARE 2 is a dual video to USB 3.0 converter. It's an easy-to-use solution for capturing two video sources simultaneously and running them via USB to your computer for streaming in applications like Skype. Built-in IP control allows you to control the SHARE 2 over a network. It provides Web-based control using HTTP or TCP/IP.
For those familiar with the original SHARE, SHARE 2 offers the same features but with no USB bandwidth limitations, as well as with full Mac support, and support for multiple mixer control interfaces. With no bandwidth limits, two 1080p60 signals can now be streamed at the same time. SHARE 2 requires no driver installation and works with all motherboards and USB 3.0 chipsets.
SHARE 2 features a mixer that allows you to send your two video sources as one source, which is the only way supported by most video conferencing applications, like Skype, Zoom, Webex, and GoToMeeting. You can assign the two sources to appear in the application as side-by-side, big-and-small, or picture-in-picture, or you can designate input 1 or input 2 to appear individually in full screen. The designations are set in advance, and can be done via panel controls, RS-232, the optional INOGENI REMOTE, or HID via USB connection.

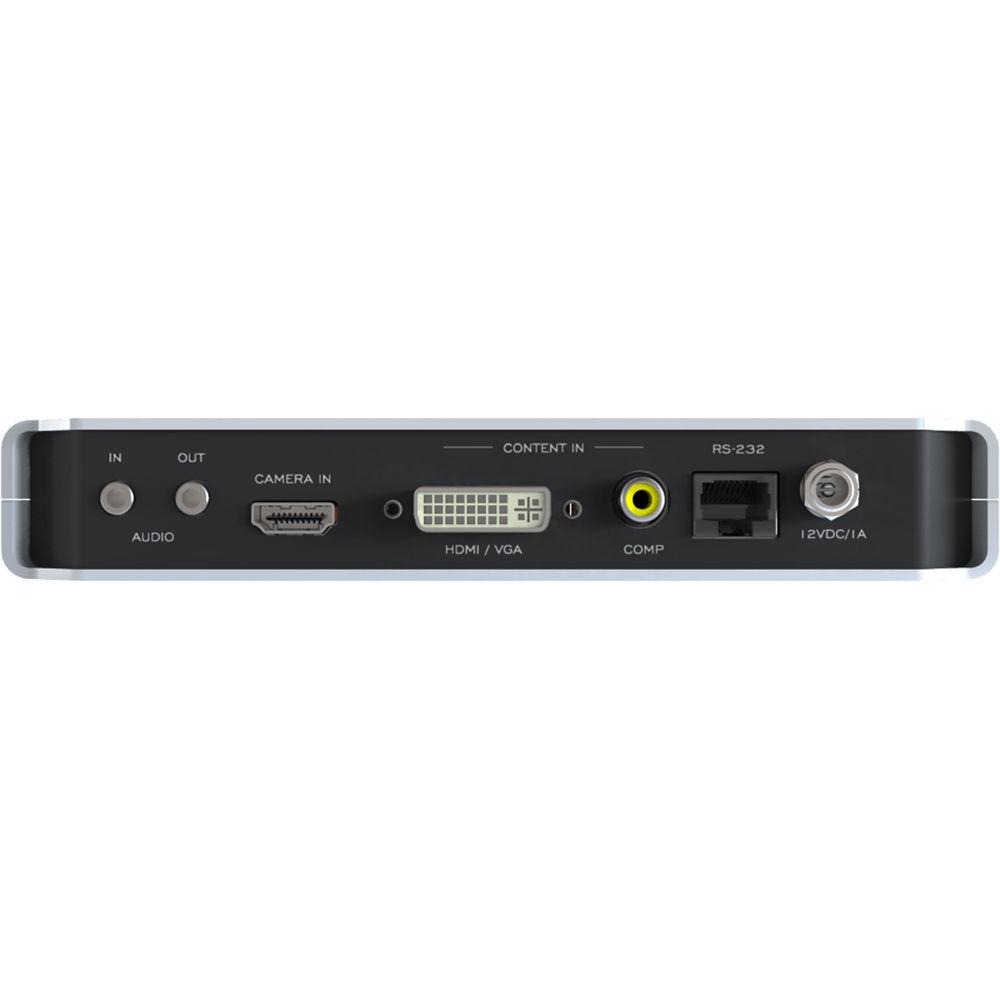

SHARE 2 has an HDMI input as video input 1, and DVI-I and composite inputs that you can select between for input 2. (The DVI and composite inputs cannot be used at the same time.) It also comes with DVI to VGA and DVI to HDMI adapters for use on input 2. SHARE 2 supports up to 1080p60 via HDMI, DVI, and VGA. In addition, there are 3.5mm analog audio input and output ports for connecting a microphone and speaker for two-way communication, an RJ45 port for RS-232 connection, and two USB 3.0 ports for expansion purposes.
SHARE 2 is also OEM and system developer friendly. It can be controlled by the INOGENI app or via an included API so you can design your own. You can read a source's status, presence, and format, modify the EDID, ask for custom functionalities, and more. - Key Features
-
- Dual-video to USB 3.0 converter
- Send 2 video sources to your computer as 1 stream, the only way recognized in applications like Skype
- Stream up to two 1080p60 signals at the same time
- No USB bandwidth limitations, full Mac support, support for multiple control interfaces
- Designate the two sources to appear as side-by-side, big-and-small, or picture-in-picture
- Or designate input 1 or input 2 to appear individually in full screen
- Make assignments via panel controls, RS-232, optional INOGENI REMOTE, or HID via USB connection
- HDMI input as video input 1; DVI and composite inputs as input 2 (selectable)
- DVI to VGA and DVI to HDMI adapters included
- 3.5mm audio input and output for connecting a microphone and speaker
- RJ45 port for RS-232 connection

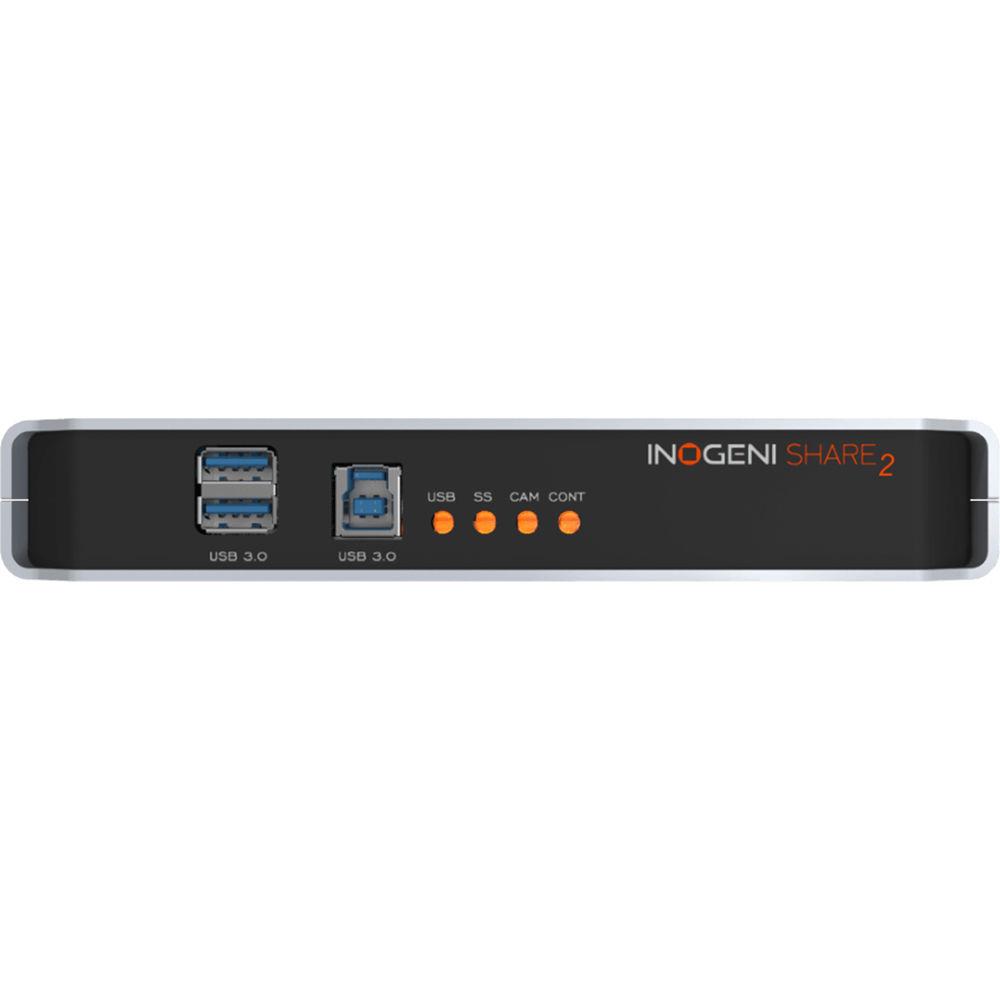

- Two USB 3.0 ports for expansion
- Additional Features
-
- Digital Fluid Technology: Internal frame buffers maximize frame rates with any host
- Hardware-based color space and sampling conversion
- Automatic scaling and frame rate conversion
- Customizable video processing functions
- Image controls: Brightness, contrast, saturation and hue settings
UPC: 040232461736 In the Box INOGENI SHARE 2 Dual Video USB 3.1 Gen 1 Capture Device Power Adapter DVI to VGA Adapter DVI to HDMI Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the INOGENI SHARE 2 Dual Video USB 3.1 Gen 1 Capture Device in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersINOGENI SHARE 2 Specs | | | Video Input 1 | 1 x HDMI
1080p, 720p, 1080i, 480p, 576p, 1920x1200, 1280x1024, 1280x960, 1024x768, 800x600, 640x480 | | Video Input 2 | 1 x DVI-I (Digital + Analog)
DVI:
1080p, 720p, 1080i, 480p, 576p, 1920x1200, 1280x1024, 1280x960, 1024x768, 800x600, 640x480
VGA:
1080p, 720p, 480p, 576p, 1920x1200, 1680x1050, 1400x1050, 1600x1200, 1280x1024, 1360x768, 1280x768, 1280x800, 1024x768, 800x600, 640x480
or 1 x CVBS
480i, 576i | | Frame Rates | Up to 60 Hz, all formats | | Color Space | RGB, YCbCr, 4:4:4, and 4:2:2 | | Sampling Rate | 165 MHz | | Analog Audio Input | Analog stereo, line level, 3.5 mm jack | | Analog Audio Output | Analog stereo, line level, 3.5 mm jack | | RS232 | Via RJ45 port | | HDCP | The device will not decrypt BD/DVD movies, satellite/cable receivers, or other encrypted sources | | Mixer | The Mixer feature can be controlled by the following interfaces: panel control buttons, RS-232, optional INOGENI REMOTE, or HID (Human Interface Device) via USB connection | | | | Connector | 1 x USB 3.0 | | Color Space | YCbCr (YUY2) 4:2:2 8-bit | | Video Scaler | Automatic hardware based | | Color Space Conversion | Automatic hardware based | | Sampling Conversion | Automatic hardware based | | Frame Rate Conversion | Automatic hardware based | | Audio Input | 2-channel LPCM 48 kHz audio from line input or embedded in HDMI | | Audio Output | 2-channel LPCM 48 kHz audio line level | | USB Expansion | 2 x extra USB 3.0 ports for expansion purposes (The devices connected will appear to the host) | | USB Bandwidth | No USB bandwidth limitation | | | | Operating Systems | No driver installation required
Windows 7 and above (32-/64-bit)
OS X 10.10 and above
Linux (kernel v2.6.38) and above
Android | | Host Requirements | USB 3.0 port
Minimum 4 GB RAM
Intel Core i5
Graphic card with dedicated memory | | Motherboard | Compatible with all motherboards
Intel, Renesas, ASMedia, and Fresco Logic | | Cameras Supported | Cameras and camcorders with an HDMI, DVI, VGA, or CVBS output | | Software Compatibility | UVC-compliant; runs with all software compatible to DirectShow, AVFoundation, and V4L2 | | Power | 12 V, 500 mA | | Operating Temperature | 32 to 113°F (0 to 45°C) | | Storage Temperature | -40 to 221°F (-40 to 105°C) | | Relative Humidity | 0 to 90% non-condensing | | Dimensions | 7.3 x 4.4 x 1.2" (18.5 x 11.2 x 3 cm) | | Weight | 1 lb (466 g) | | | | Package Weight | 2.35 lb | | Box Dimensions (LxWxH) | 10.1 x 7.0 x 3.5" |
