User Manual for INOGENI SHARE 2U USB HDMI Mixer and Capture Device Click to enlarge the picture
Contents of the user manual for the INOGENI SHARE 2U USB HDMI Mixer
- Product category: Computer Hardware INOGENI
- Brand: INOGENI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for INOGENI Computer Hardware
 |
User manual for the INOGENI SHARE 2U USB HDMI Mixer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any INOGENI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official INOGENI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a INOGENI product will considerably shorten its lifespan!
|

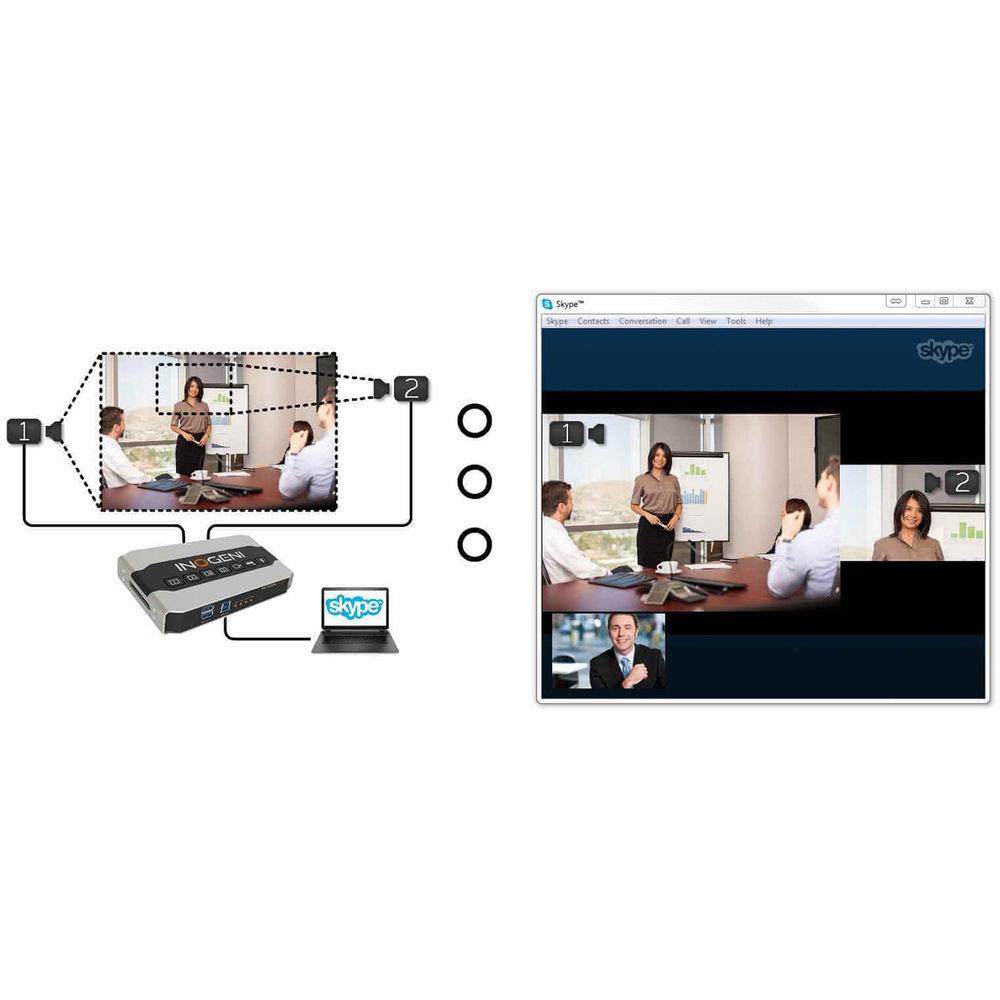

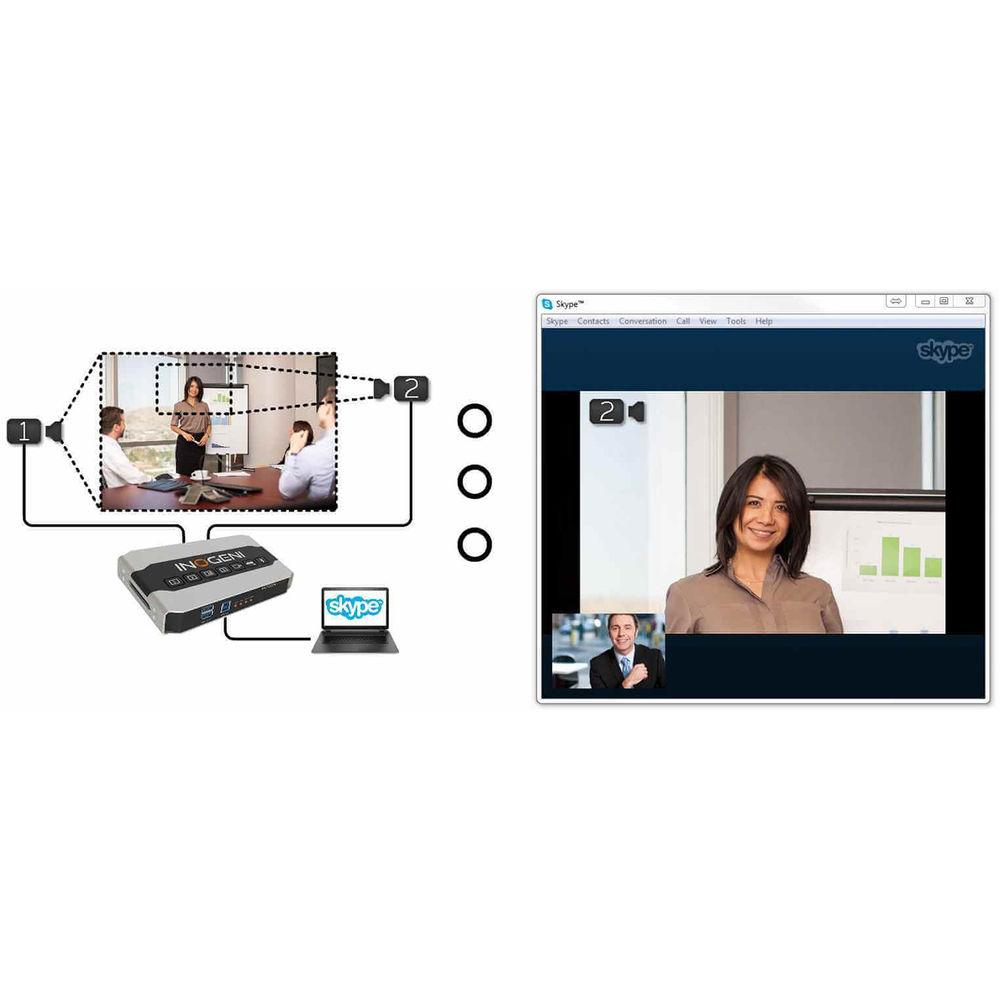

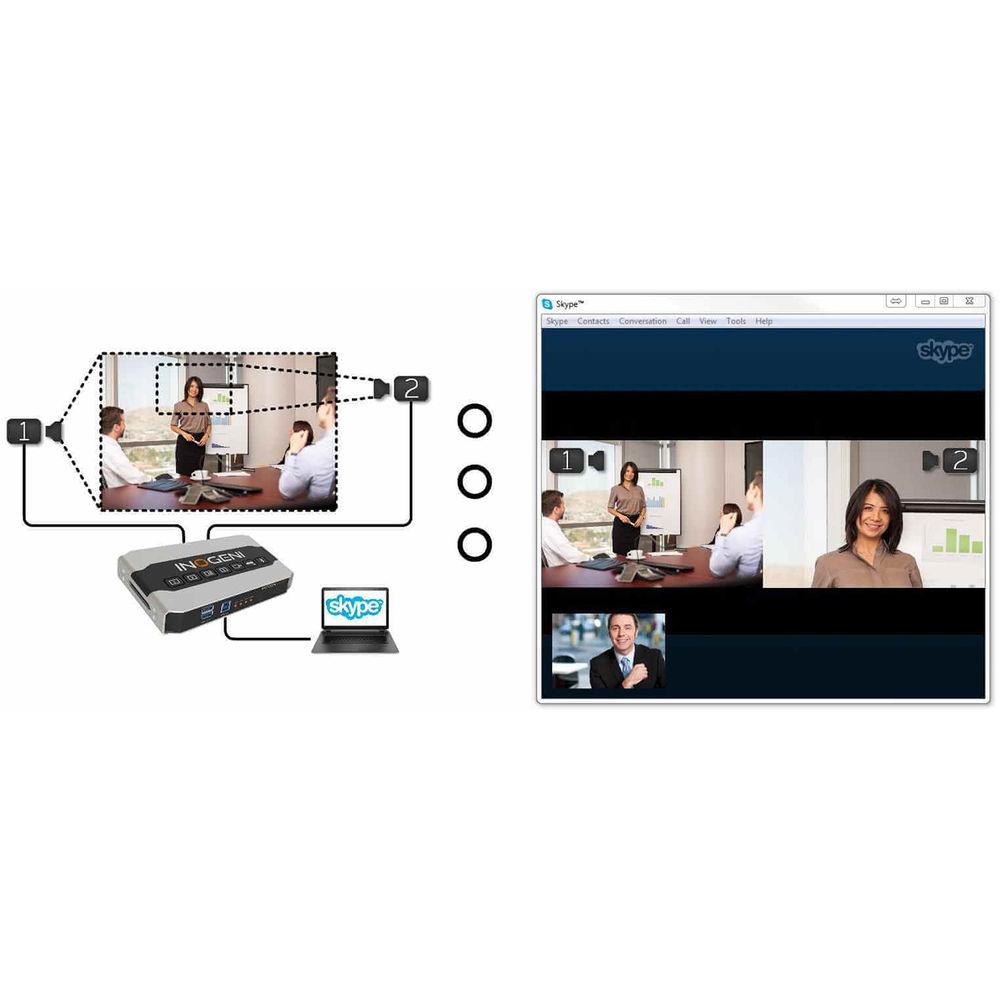

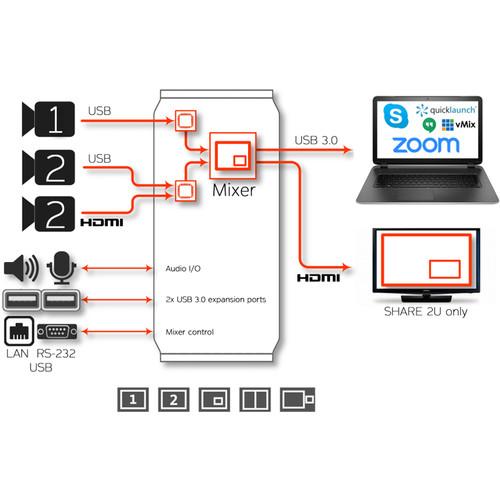

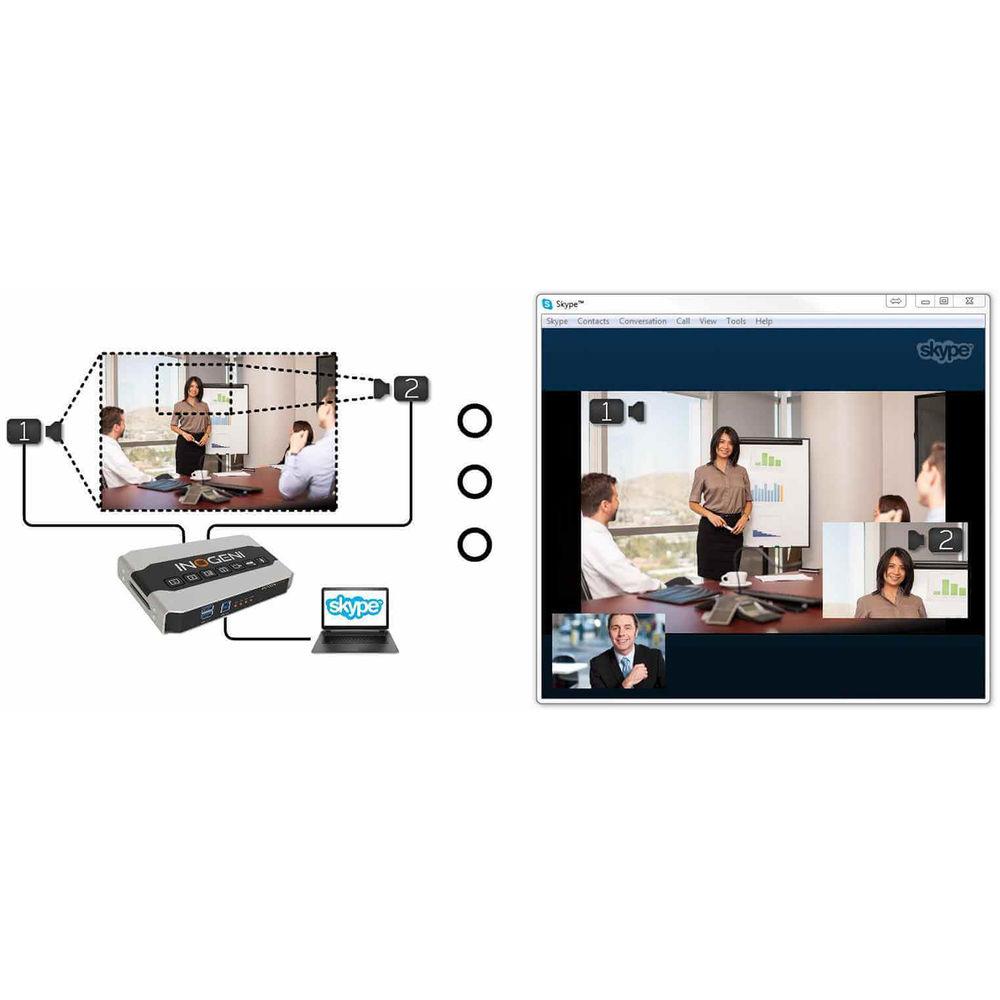

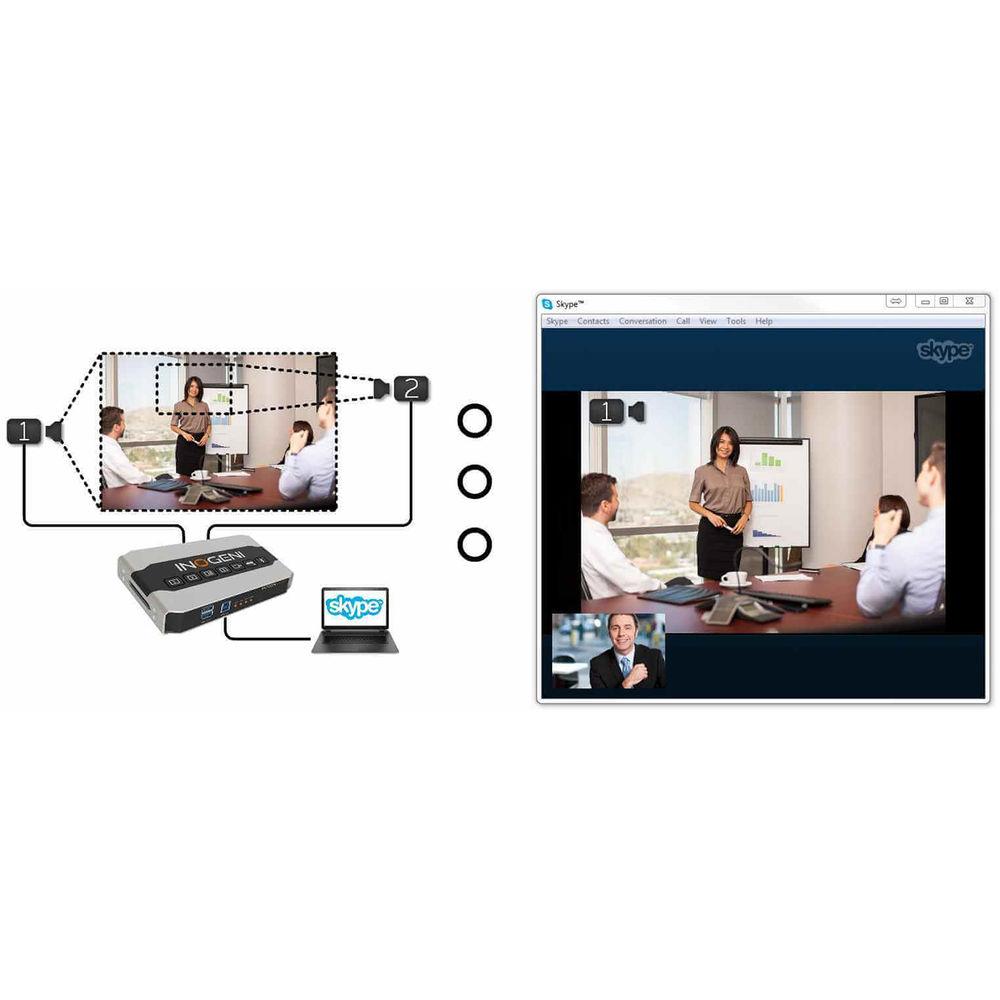

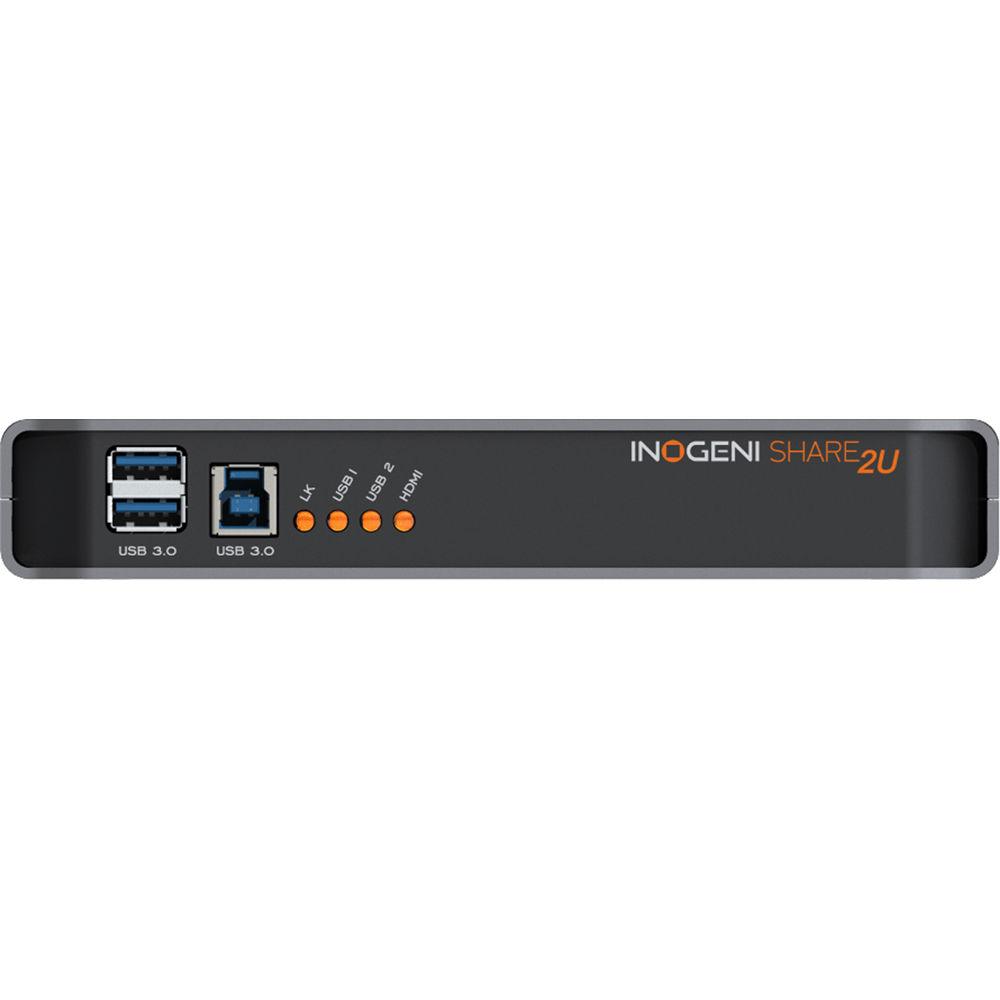

Product description Mix two channels of HD video over USB or HDMI and capture them with the INOGENI SHARE 2U USB/HDMI Mixer and Capture Device. Dual USB inputs and single HDMI input are available (only two can be used simultaneously). 1080p30 uncompressed video is accepted over HDMI, MJPEG and H.264 video formats from POV and webcams are supported via USB. The built-in video mixer can show one input or the other, or display both inputs in side-by-side, big and small, and picture-in-picture configurations. All video processing is done using hardware, so video quality remains high latency is minimal. The advantage to using a mixer like the SHARE 2U is the ability to show more than one video input on teleconferencing software such as Skype, Zoom, Webex, and GoToMeeting with one-touch controls. Unique to the SHARE 2U is the incorporation of an HDMI mixed output in addition to the USB connection. With this connection, you can send mixed feeds to your computer for recording or teleconferencing, while simultaneously sending video to a projector or monitor. Control over the device can be taken using the host PC, or remotely via RS-232 and Ethernet. - OEM and System Developer Friendly
- The device may be controlled by INOGENI's app or via an included API so you can design your own. You can read the sources status, presence, format, modify the EDID, update the firmware, and ask for custom functionalities. You can also get Crestron modules to control the device using the LAN or serial interface.
- General Features
-
- Mixer feature: Hardware mixer into a single USB 3.0 interface
- Control interface: LAN, RS-232, USB
- Local and remote keypad
- USB 2.0 cameras and HDMI capture
- HDMI output for preview
- Line level stereo audio support
- Digital Fluid technology: Internal frame buffers maximize frame rate with any host
- Hardware-based color space and sampling conversion
- Compatible with Windows, OS X, Linux, and Android
UPC: 040232633843 In the Box INOGENI SHARE 2U USB/HDMI Mixer and Capture Device Power Adapter USB Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the INOGENI SHARE 2U USB HDMI Mixer and Capture Device in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

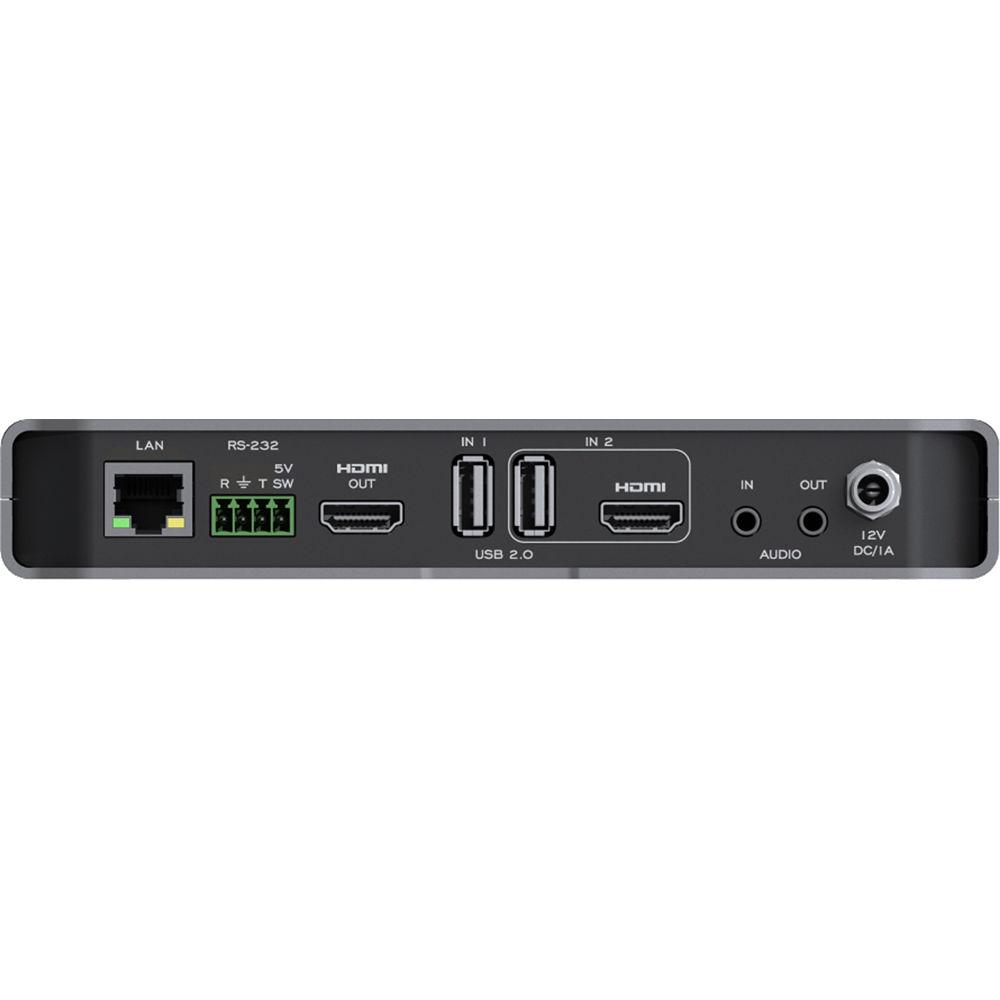

Technical parametersINOGENI SHARE2U Specs | | | Video Inputs | 2 x USB 2.0 Type-A
1 x HDMI type A
Note: Only two inputs can be active simultaneously | | Frame Rates | Up to 60 fps, all formats | | Color Space | RGB, YCbCr, 4:4:4, and 4:2:2 (USB only supports RGB) | | Sampling Rate | 165 MHz | | Analog Audio Input | Analog stereo, line level, 3.5 mm jack | | Analog Audio Output | Analog stereo, line level, 3.5 mm jack | | Remote Control | 1 x Phoenix, RS-232
1 x RJ45, Ethernet
Note: Remote control via USB connection is also available | | Mixer | The Mixer feature can be controlled by the following interfaces: panel control buttons, RS-232, optional INOGENI REMOTE, or HID (Human Interface Device) via USB connection | | | | Connector | 1 x USB 3.0 Type-B
1 x HDMI type A | | Color Space | YCbCr (YUY2) 4:2:2 8-bit | | Video Scaler | Automatic hardware based | | Color Space Conversion | Automatic hardware based | | Sampling Conversion | Automatic hardware based | | Frame Rate Conversion | Automatic hardware based | | Audio Input | 2-channel LPCM 48 kHz audio from line input or embedded in USB or HDMI | | Audio Output | 2-channel LPCM 48 kHz audio line level | | USB Expansion | 2 x extra USB 3.0 ports for expansion purposes (The devices connected will appear to the host) | | USB Bandwidth | No USB bandwidth limitation | | | | Operating Systems | No driver installation required
Windows 7 and above (32-/64-bit)
OS X 10.10 and above
Linux (kernel v2.6.38) and above
Android | | Host Requirements | USB 3.0 port
Minimum 4 GB RAM
Intel Core i5
Graphic card with dedicated memory | | Motherboard | Compatible with all motherboards
Intel, Renesas, ASMedia, and Fresco Logic | | Software Compatibility | UVC-compliant; runs with all software compatible to DirectShow, AVFoundation, and V4L2 | | Power | 12 V, 700 mA | | Operating Temperature | 32 to 113°F / 0 to 45°C) | | Storage Temperature | -40 to 221°F / -40 to 105°C) | | Relative Humidity | 0 to 90% non-condensing | | Dimensions | 7.3 x 4.4 x 1.2" / 18.5 x 11.2 x 3 cm | | Weight | 1 lb / 466 g | | | | Package Weight | 2.15 lb | | Box Dimensions (LxWxH) | 9.8 x 7.2 x 3.4" |
