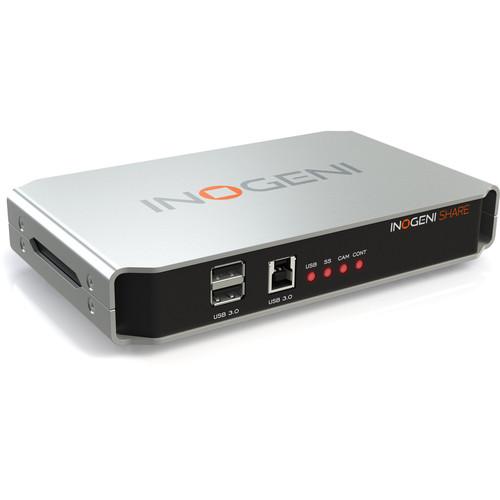

User Manual for INOGENI Share Video Converter Click to enlarge the picture
Contents of the user manual for the INOGENI Share Video Converter
- Product category: Computer Hardware INOGENI
- Brand: INOGENI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for INOGENI Computer Hardware
|
User manual for the INOGENI Share Video Converter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any INOGENI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official INOGENI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a INOGENI product will considerably shorten its lifespan!
|
Product description INOGENI Announces SHARE, a Dual-Stream USB 3.0 Converter and Capture Device Read More Requiring no separate drivers, the INOGENI Share is able to convert two simultaneous video signals for recording or streaming via your computer. Since no drivers are required, the Share can be used with a Windows- or Linux-based computer with a USB 3.0 connection, and it can be easily set up for use in videoconferencing, lecture capture, and streaming applications. OS X can support a single video signal over USB 3.0. The front panel has a USB Type-B connector for a lead to the host computer and a two-port USB 3.0 hub for connecting other peripherals. Status indicator LEDs are located next to the USB ports for checking the unit's operation. The rear panel contains all the other I/O, power, and control ports. These include digital and analog video inputs by way of an HDMI port, a DVI port, and a composite RCA port. VGA and HDMI signals are also supported via included adapters for the DVI port. Separate analog line-level audio I/O is accommodated via 3.5mm stereo jacks. RS-232 control can be connected using the RJ45 port. Power is supplied with the included AC adapter when connected to the barrel jack. - Video Processing
- All video processing is performed by the Share using specialized hardware. Operations that can be performed include scaling, frame-rate conversion, and color-space conversion. Audio can be embedded with the HDMI signal or de-embedded and replaced by the analog audio input. Before being sent to the host computer, all video, regardless of resolution, is converted to an 8-bit 4:2:2 color space.
- Input Versatility
- Included with the Share converter are HDMI and VGA adapters for the DVI port. This allows you to use the DVI port for a second HDMI input or an analog VGA input for older computer systems. Composite video is also supported via an integrated RCA port. Using the included resources, you can use the first HDMI input for a camera while the second input handles content devices like a computer or a DVD player. Frame rates of up to 60p can be used at any of the supported resolutions. Note: Two 1080p60 signals cannot be streamed at the same time due to USB 3.0 bandwidth restrictions. The onboard video processing hardware should be used to convert one of the inputs to 30p.
UPC: 040232355523 In the Box INOGENI Share Video Converter USB 3.0 Cable DVI to VGA Adapter DVI to HDMI Adapter Limited 2-Year Warranty Spec sheet PDF 198.4kb Table of Contents
|
Upload User Manual
Have you got an user manual for the INOGENI Share Video Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersINOGENI SHARE Specs | I/O | Video Input 1: 1 x HDMI
Video Input 2: 1 x DVI/1 x RCA (selectable)
Audio Input: 1 x 3.5mm stereo line-level
Audio Output: 1 x 3.5mm stereo line-level
USB: 1 x host connection, 2 x hub connection | | Supported Resolutions | HDMI/DVI: 1080i/p, 720p, 480p, 576p, 1920x1200, 1280x1024, 1280x960, 1024x768, 800x600, 640x480VGA: 1080p, 720p, 480p, 576p, 1920x1200, 1680x1050, 1400x1050, 1600x1200, 1280x1024, 1360x768, 1280x768, 1280x800, 1024x768, 800x600, 640x480CVBS (RCA): NTSC, PAL | | Frame Rates | Up to 60 Hz, all formats (simultaneous 60 Hz inputs not supported, second input will be limited to 30 Hz maximum) | | Audio Format | 2-channel LPCM 48 kHz (for both analog and and HDMI audio) | | Color Space | Input: RGB, YCbCr 4:4:4 and 4:2:2
Output: 8-bit YCbCr 4:2:2 | | Sampling Rate | 165 MHz | | HDCP Support | No | | Camera Control | RS-232 via RJ45 connector (works with RS-232 and VISCA control) | | System Requirements | Operating System: Microsoft Windows 7 or newer (32/64-bit)
Mac OS X 10.10 or newer
Note: OS X only supports one video stream per USB port
Linux kernel v2.6.38 and newer
Host: 1 x USB 3.0 port
4GB RAM (minimum)
Intel Core i5 processor
Dedicated graphics card
Motherboard: Compatible with Intel, Renesas, ASMedia, and Fresco Logic
Software: Runs with all software compatible with DirectShow, and V4L2 | | Power Input | 1 x 12 V @ 500 mA | | Dimensions | 7.2 x 4.3 x 1.2" / 185 x 110 x 30 mm | | Weight | 1 lb / 466 g | | | | Package Weight | 2.05 lb | | Box Dimensions (LxWxH) | 9.8 x 6.9 x 3.4" |
