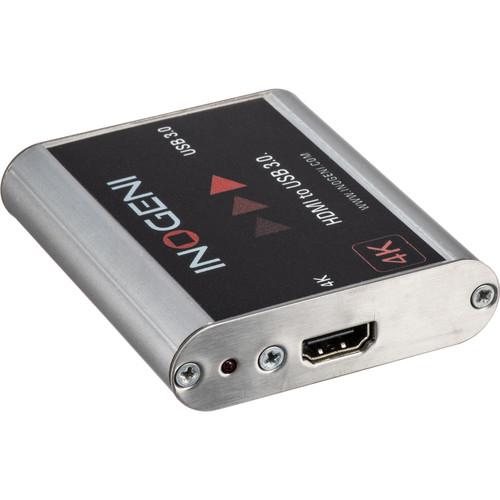

User Manual for INOGENI USB 3.0 4K HDMI Video Capture Card Click to enlarge the picture
Contents of the user manual for the INOGENI USB 3.0 4K HDMI Video
- Product category: Computer Hardware INOGENI
- Brand: INOGENI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for INOGENI Computer Hardware
|
User manual for the INOGENI USB 3.0 4K HDMI Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any INOGENI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official INOGENI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a INOGENI product will considerably shorten its lifespan!
|
Product description The Inogeni USB 3.0 4K HDMI Video Capture Card allows you to capture uncompressed video with audio from your camera's HDMI output on your PC for recording, editing, videoconferencing, and streaming applications. No driver installation is necessary and it will work on all motherboard and USB 3.0 chipsets. It features a HDMI input and a USB 3.0 output. Compact in size and powered directly from a USB 3.0 port, the converter is a practical and easy-to-use USB 3.0 capture solution. It is compatible with Windows, Mac OSX, Linux, and Android operating systems, and is UVC-compliant, so it will work with all DirectShow compatible software. This capture card is backward compatible with USB 2.0 devices. However, due to bandwidth restrictions, the card will only be able to operate at resolutions below 1080p. The converter supports 4K resolutions up to 30 fps, and 1080p resolutions up to 60 fps as well as most computer graphic formats. All SD and HD resolution signals are converted to 4:2:2 8-bit color space over USB 3.0 while all UHD resolution signals are converted to 4:2:0 8-bit. The embedded audio in the HDMI signal is extracted and output as two-channel LPCM. A USB 3.0 cable comes included. Features - HDMI capture to USB 3.0 (Backward compatible with USB 2.0)
- Supports 4K, 1080p, 1080i, 720p, 480p, and 576p video formats
- Supports 1920x1200, 1280x1024, 1280x960, 1024x768, 800x600, 640x480 graphic formats
- Fluid technology - Internal frame buffers maximize frame rate regardless of PC
- Hardware-based color space and sampling conversion
- Automatic scaling and frame rate conversion (UHD upscaling not supported)
- Customizable video processing functions
- Image controls: Brightness, contrast, saturation and hue settings
- Bus powered from USB port
- Compatible with Windows, Max OSX, Linux, and Android
Note: Not all resolutions will be supported on some devices with input bandwidth restrictions UPC: 040232164873 In the Box INOGENI USB 3.0 4K HDMI Video Capture Card USB 3.0 Cable Limited 2-Year Warranty Quick start Guide PDF 1.2mbrquqtzdzzbstx Table of Contents
|
Upload User Manual
Have you got an user manual for the INOGENI USB 3.0 4K HDMI Video Capture Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersINOGENI 4K2USB3 Specs | | | Interface | 1 x HDMI 1.4a Input | | Video Resolutions | 4K (4096/3840 x 2160), 1440p, 1080p, 720p, 1080i, 480p, 576p
Note: USB 2.0 connections found on older computers and mobile devices will operate at lower resolutions | | Computer Resolutions | 1920x1200, 1280x1024, 1280x960, 1024x768, 800x600, 640x480 | | Video Frame Rate | 23.98/24/25/29.97/30/50/59.94/60 Hz (4K resolutions limited to 30 Hz max) | | Color Space | RGB, YCbCr, 4:4:4, and 4:2:2 | | Sampling Rate | 297 MHz | | Embedded Audio | Ch 1&2 48kHz LPCM | | HDCP Compliant | No | | | | Interface | 1 x USB 3.0 | | Color Space | YCbCr (YUY2) 4:2:2 8-bit
NV12 4:2:0 8-bit (UHD)
YV12 4:2:0 8-bit (UHD)
I420 4:2:0 8-bit (UHD) | | Video Scaler | Automatic hardware based | | Color Space Conversion | Automatic hardware based | | Sampling Conversion | Automatic hardware based | | Frame Rate Conversion | Automatic hardware based | | Audio | 2-channel LPCM audio from HDMI | | | | Operating System Support | Windows 7/8/8.1 (32/64-bit)
Mac OS X (10.8.5 and above)
Linux (kernel v2.6.38 and above)
Android | | Host Requirements | USB 3.0 port (Backward compatible with USB 2.0 at reduced resolutions) | | Cameras Supported | Cameras and camcorder with an HDMI output | | Software Compatibility | UVC-compliant
Runs with all software compatible with DirectShow, V4L2, QuickTime, and AVFoundation | | Tested Applications | Recording/Editing
Adobe Live Encoder
Camtasia
Debut
Elements
GUBCView
LUVCView
MATLAB
MEncoder
MPlayer
OBS
ProPresenter
QuickTime
qV4L2
ScreenFlow
SONY Vegas Pro 13
VLC
VirtualDub
VideoGlide
VIDBlaster
Wirecast
vMix
Streaming
Justin.tv
Livestream
OBS
Ustream
Wirecast
xSplit
vMix
YouTube
Videoconferencing
BlueJeans
Cisco Jabber
FaceTime
GotoMeeting
Hangout
HipChat
Lync 2010/2013
Skype
Webex
Zoom | | | | Power | 5 V, 580 mA bus power from USB port | | Dimensions | 3.3 x 2.9 x 0.75" / 8.4 x 7.4 x 1.9 cm | | Weight | 4.2 oz / 120 g | | | | Package Weight | 0.715 lb | | Box Dimensions (LxWxH) | 6.25 x 5.1 x 1.85" |
