Product description - Voyager Detailed Breakdown
- Voyager Real time Build

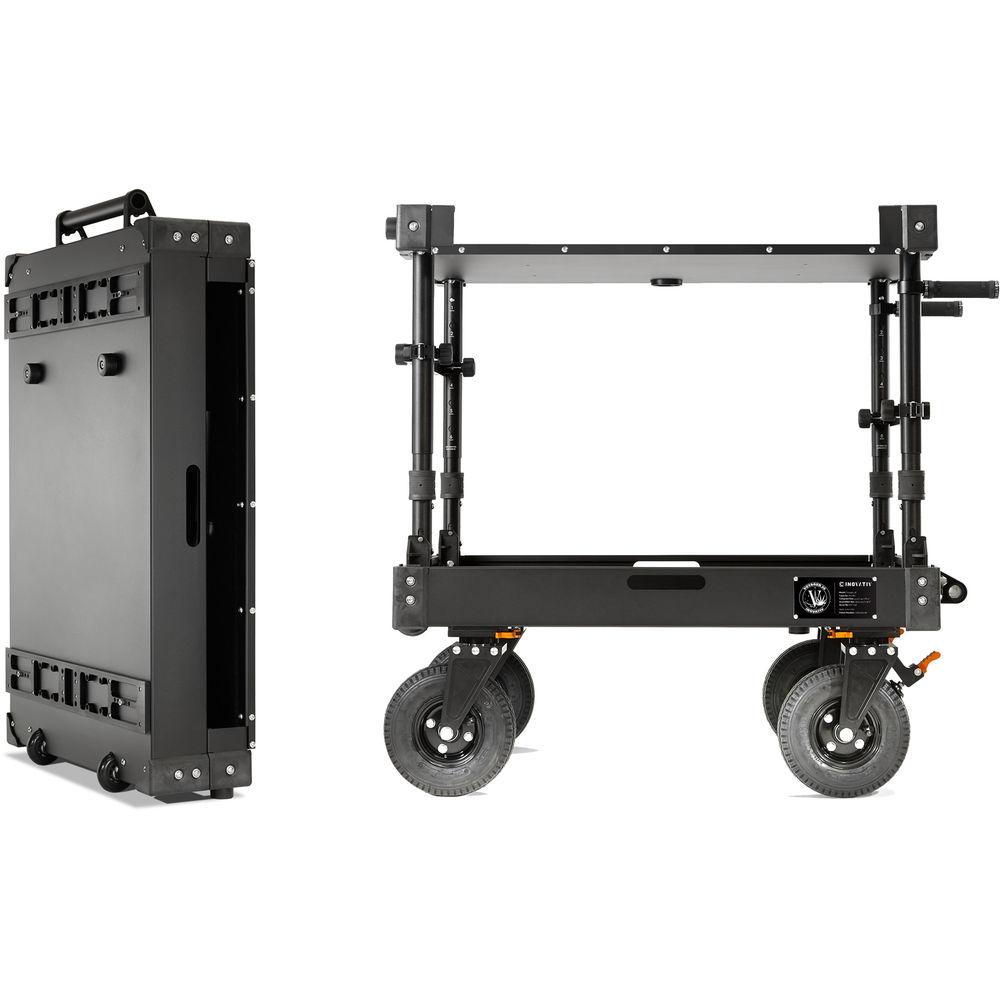

Measuring 39.9 x 24.7 x 39.5 inches (W x L x H), the Inovativ Voyager 36 EVO with X-Top Keyboard Shelf is a lightweight equipment cart designed to carry camera gear, tools, and accessories in the studio or on location. Inovativ's patented SLAS (Self-Locking Adjustable Shelving) system requires no tools for assembly/disassembly, so you can build or break down the cart with ease in approximately two minutes. The X-Top shelf is height adjustable up to 10" in 2" increments, and comfortably accommodates a keyboard and mouse. The cart collapses to a compact flight case measuring 8.25" thick, with a travel handle, integrated rolling wheels, and a spring-loaded latch system. In flight case form, the cart becomes portable and easy to transport at just 68 pounds.Two threaded rail plates are built into the top shelf for convenient attachment of 1/4"-20 and 3/8"-16 accessories. The pneumatic tires incorporate 100% sealed bearing wheels and Inovativ's premium foot brake system. The equipment cart shelves are powder coated, and the uprights and machined parts are type II and III anodized. The rest of the cart is constructed using 5052 and 6061 aluminum. All Voyager EVO carts are designed and made in the USA with rivet- and weld-free construction. - Fully collapsible, fully adjustable, and tool-free design

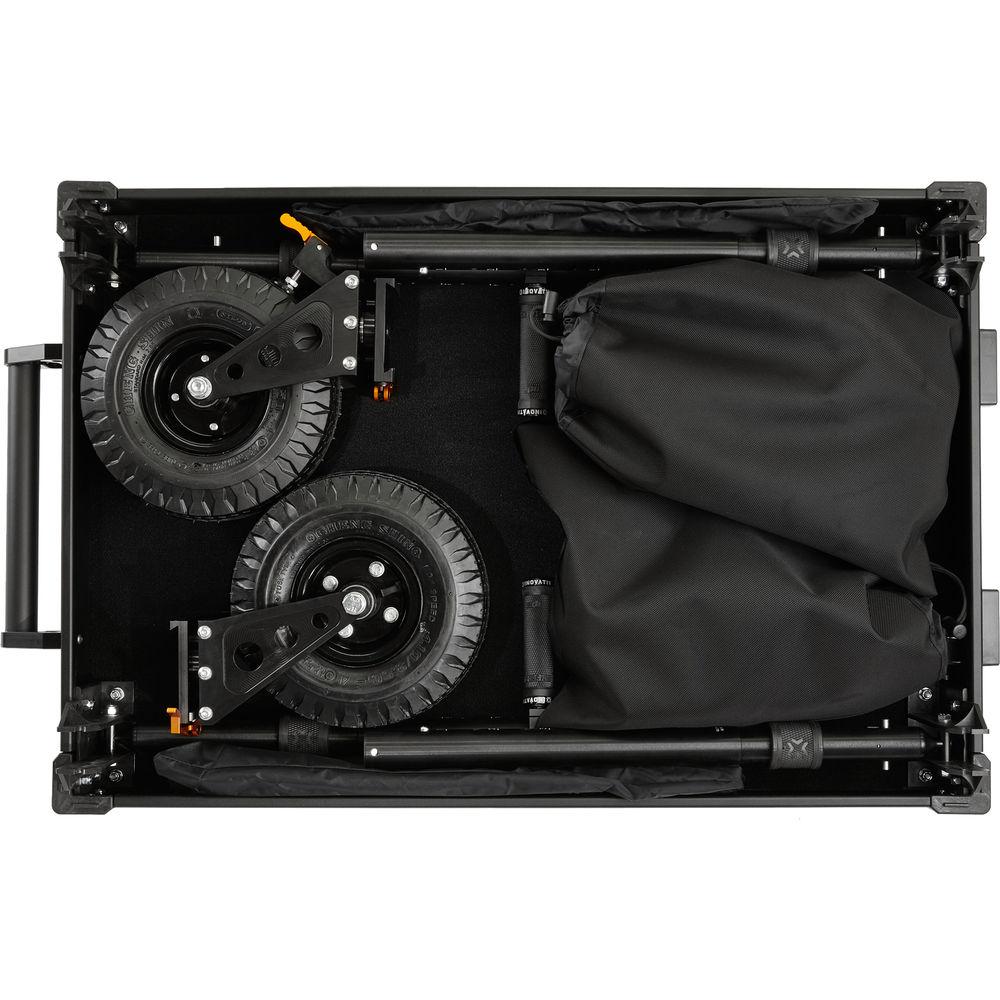

- Collapses to a flight case measuring 8.25" thick with travel handle and built-in transport wheels
- Average assembly/disassembly time of two minutes
- Rigid and stable construction with premium 5052 and 6061 aluminum, 40% glass-filled nylon corners and hinge brackets, and stainless steel hardware

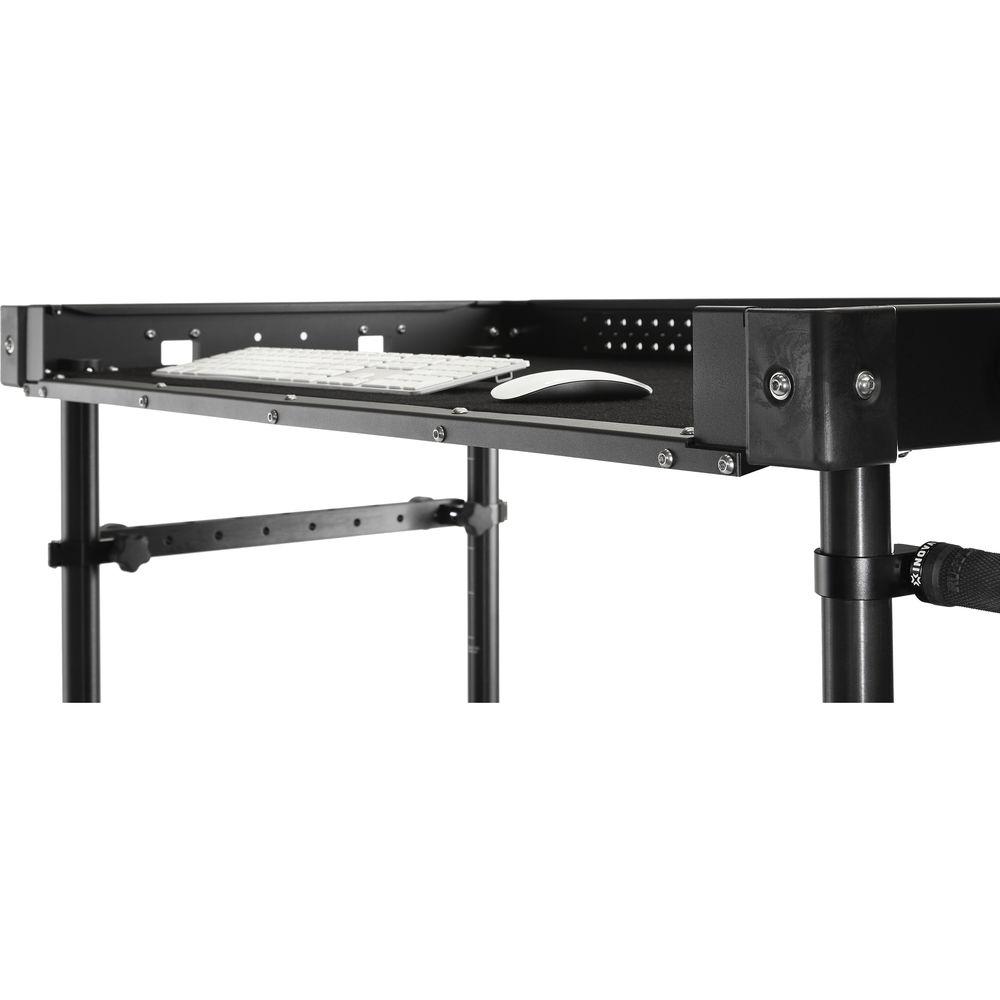

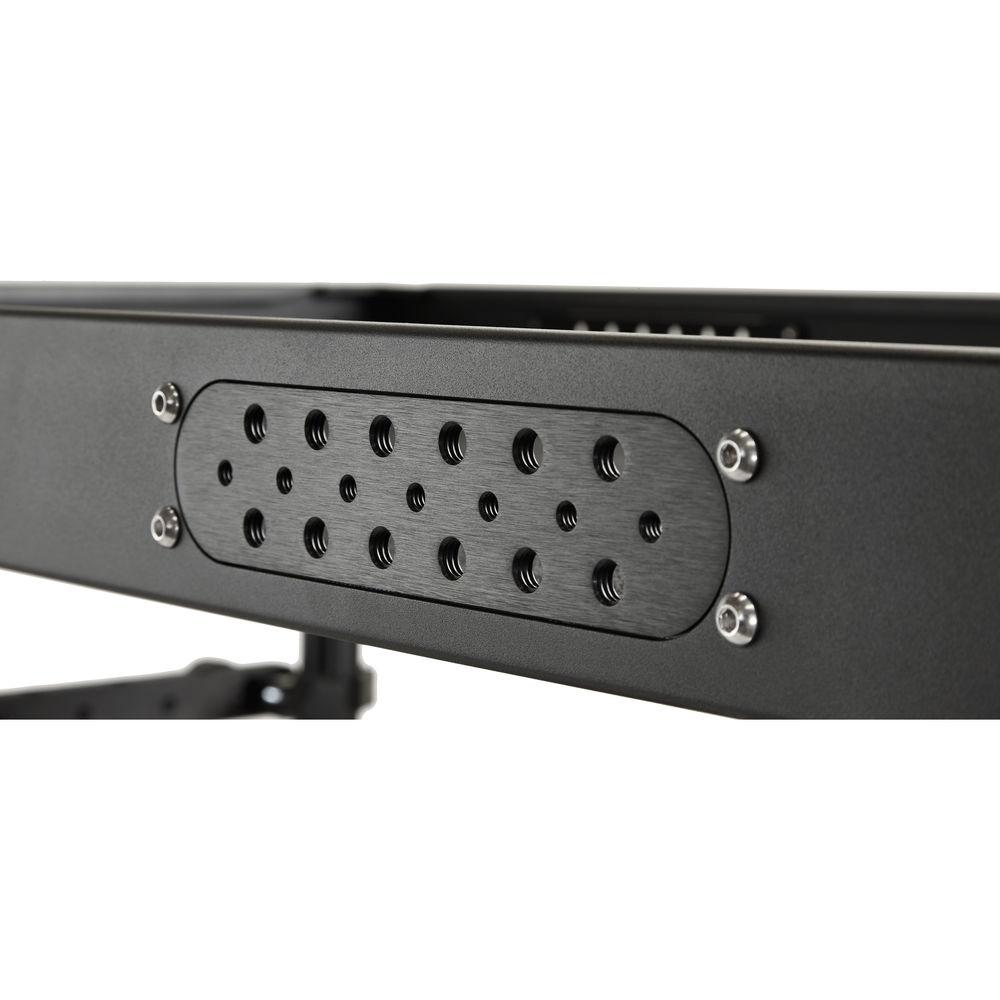

- X-Top shelf features a folded lip for comfortable use of a keyboard and mouse, pre-drilled holes to allow attachment of an optional top drawer, two threaded rail plates for 1/4"-20 and 3/8"-16 accessory attachments, and compliance with Inovativ's Insight monitor mount system
- Height-adjustable top shelf allows you to adjust for your preferred standing heights and accommodate larger items placed underneath
- Premium foot brake system yields stronger braking power and more ergonomic application than standard foot brakes
- Adjustable handles for lifting leverage up curbs, stairs, and other inclines
- Spring-loaded latch system secures the collapsed cart; add your own padlocks (available separately) for extra security
- Rubberized release collars on cart posts for easier grip during assembly/disassembly
- Side handle cutouts for easier loading/unloading
- Two crossbars for securing 3/8"-16 accessories

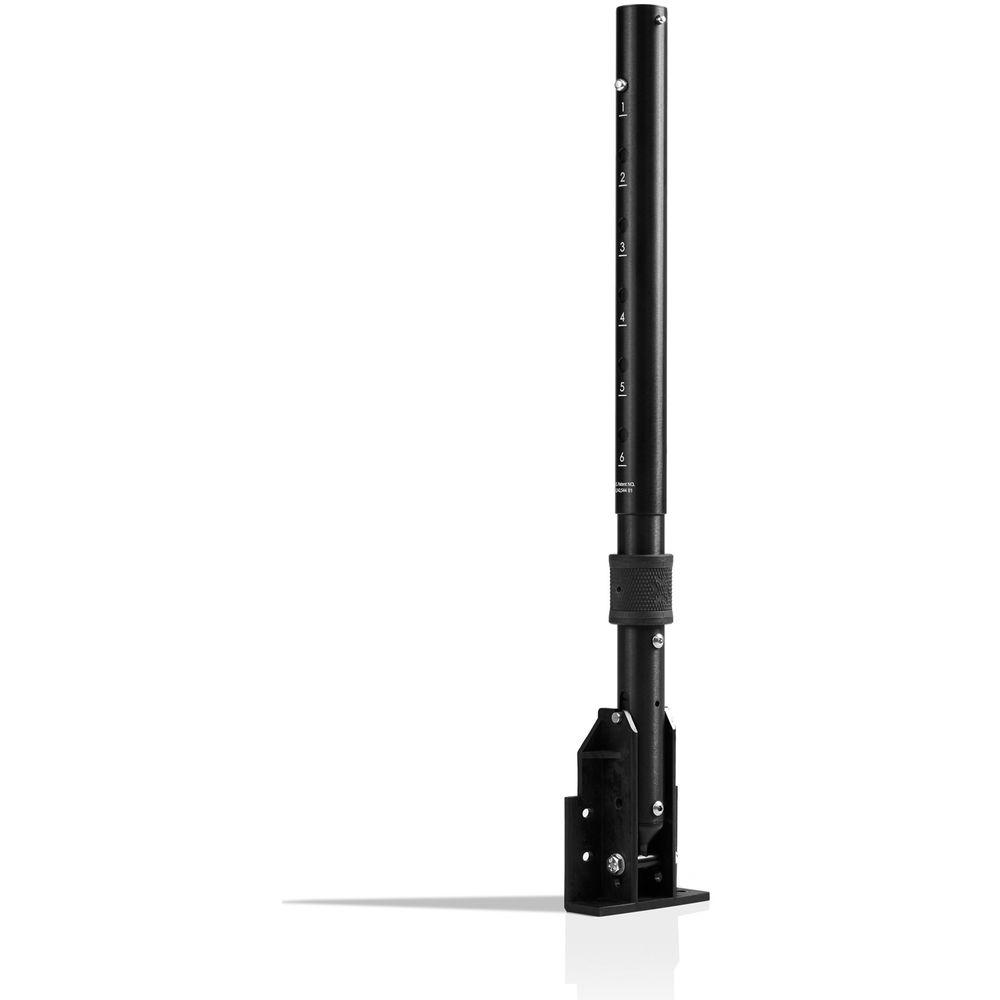

- Upright posts lock in place and will not loosen over time
In the Box Inovativ Voyager 36 EVO Equipment Cart with X-Top Keyboard Shelf Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Inovativ Voyager 36 EVO Equipment Cart with X-Top Keyboard Shelf in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersInovativ VEX 0036 Specs | Payload Capacity | 600 lb / 272.2 kg | | Construction Material | 5052 and 6061 Aluminum
40% Glass-Filled Nylon Corners and Hinge Brackets
Stainless Steel Hardware | | Country of Manufacture | United States of America | | Tray Dimensions | 35.0 x 23.3" / 88.9 x 59.1 cm (W x L) | | Dimensions (W x L x H) | Collapsed: 39.9 x 24.7 x 8.3" / 101.3 x 62.7 x 21 cm
Assembled: 39.9 x 24.7 x 39.5" / 101.3 x 62.7 x 100.3 cm | | Weight | 68 lb / 30.8 kg | | | | Package Weight | 79.65 lb | | Box Dimensions (LxWxH) | 46.0 x 29.75 x 12.4" |
