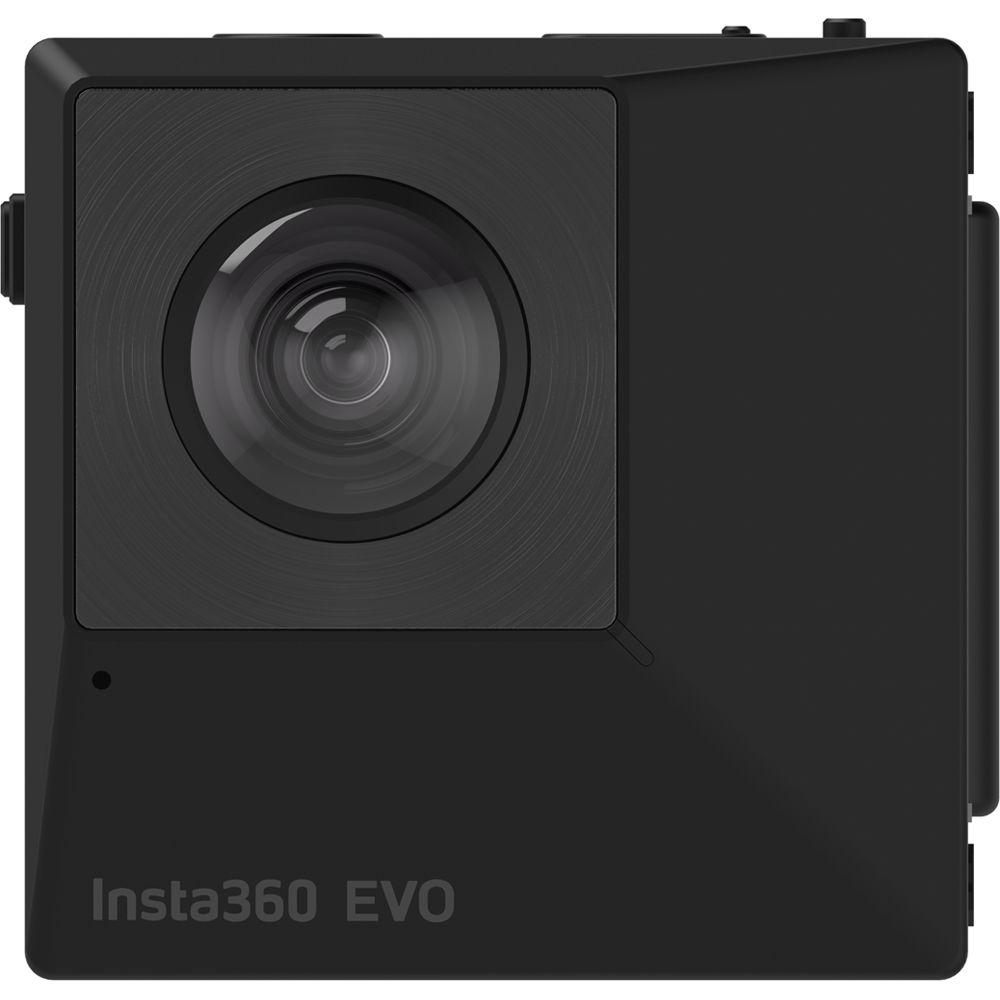

Product description Just Announced: Insta360 EVO Ultra-Compact Folding 360 VR & 3D Camera Read More Create stunning, professional 360/180° 2D and 3D VR video with the compact EVO 3D/2D Convertible 360/180° VR Camera from Insta360. The clever folding design allows you to shoot in two different formats: record 360° 2D video when the camera is folded closed with the lenses on either side, and when it is open flat with the lenses on the same side you can record 180° 3D video. The high-resolution EVO records up to 5.7K30 video and 18MP photos with HDR support.
When in 360° 2D mode, the EVO utilizes Insta360's FlowState digital image stabilization, which compensates for shake captured in your videos and provides you with smoother footage. Basic gyro stabilization is used when in 180° 3D mode, which helps stabilize some minor shakes. Stabilization helps greatly when using EVO's hyperlapse and slow motion functions up to 100 fps.

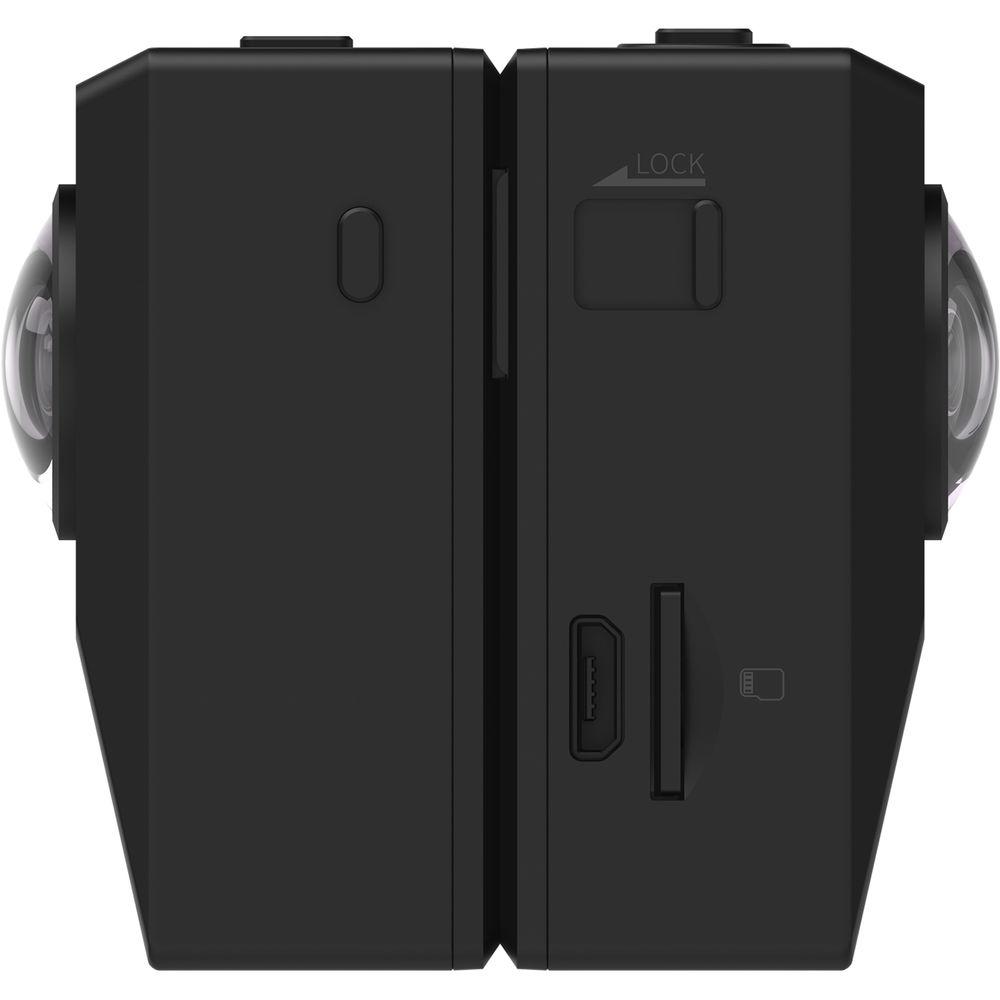

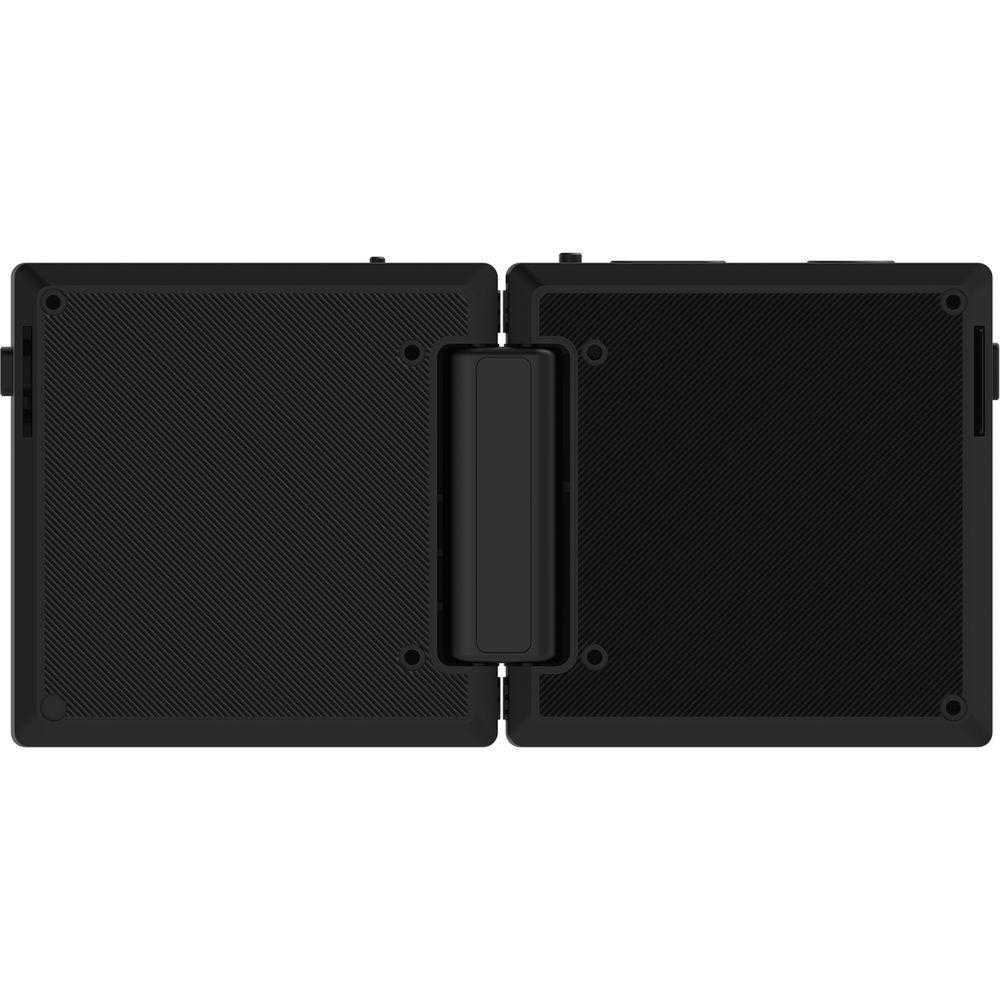

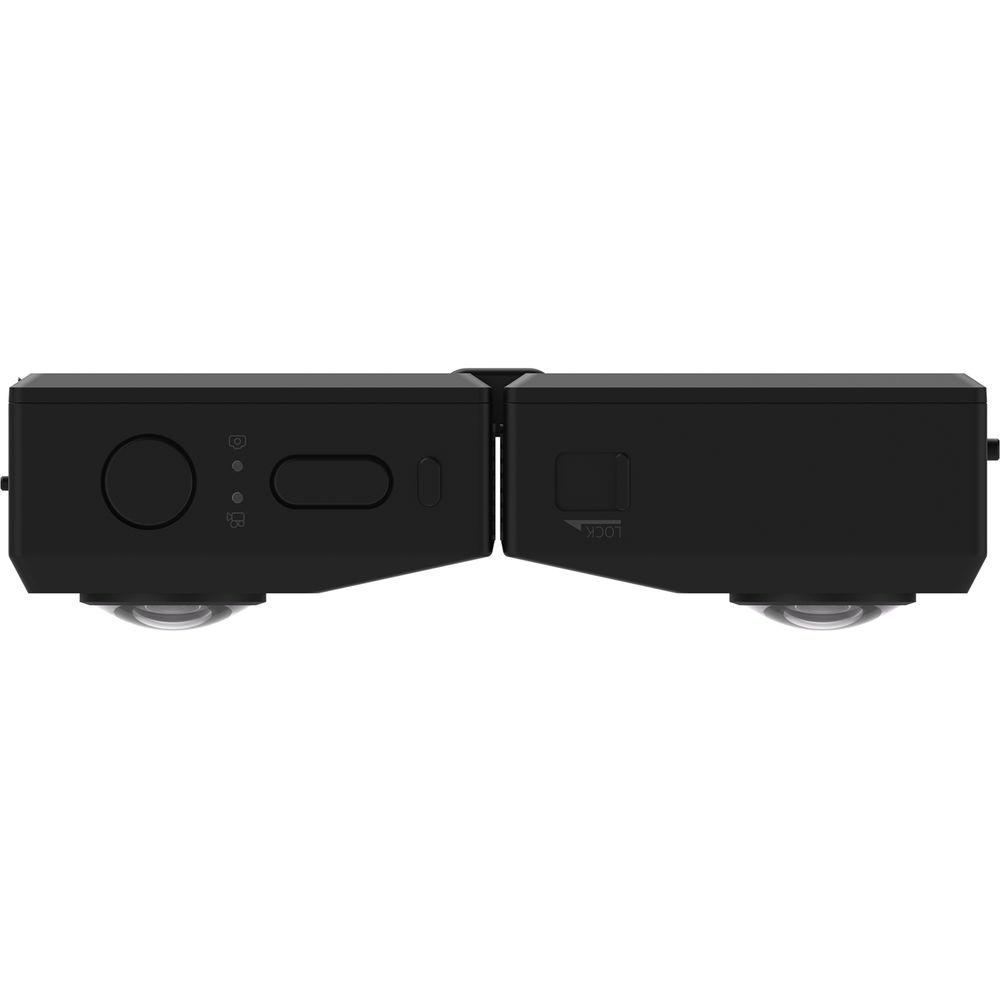

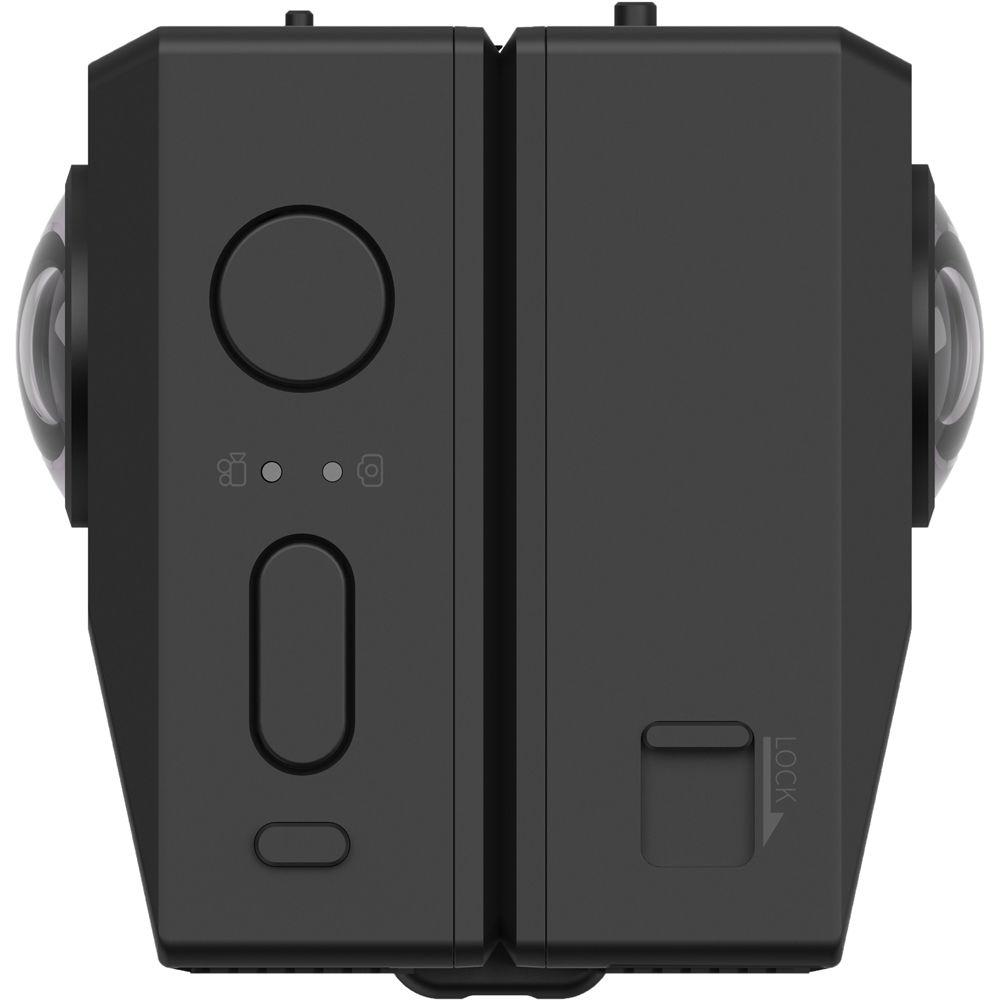

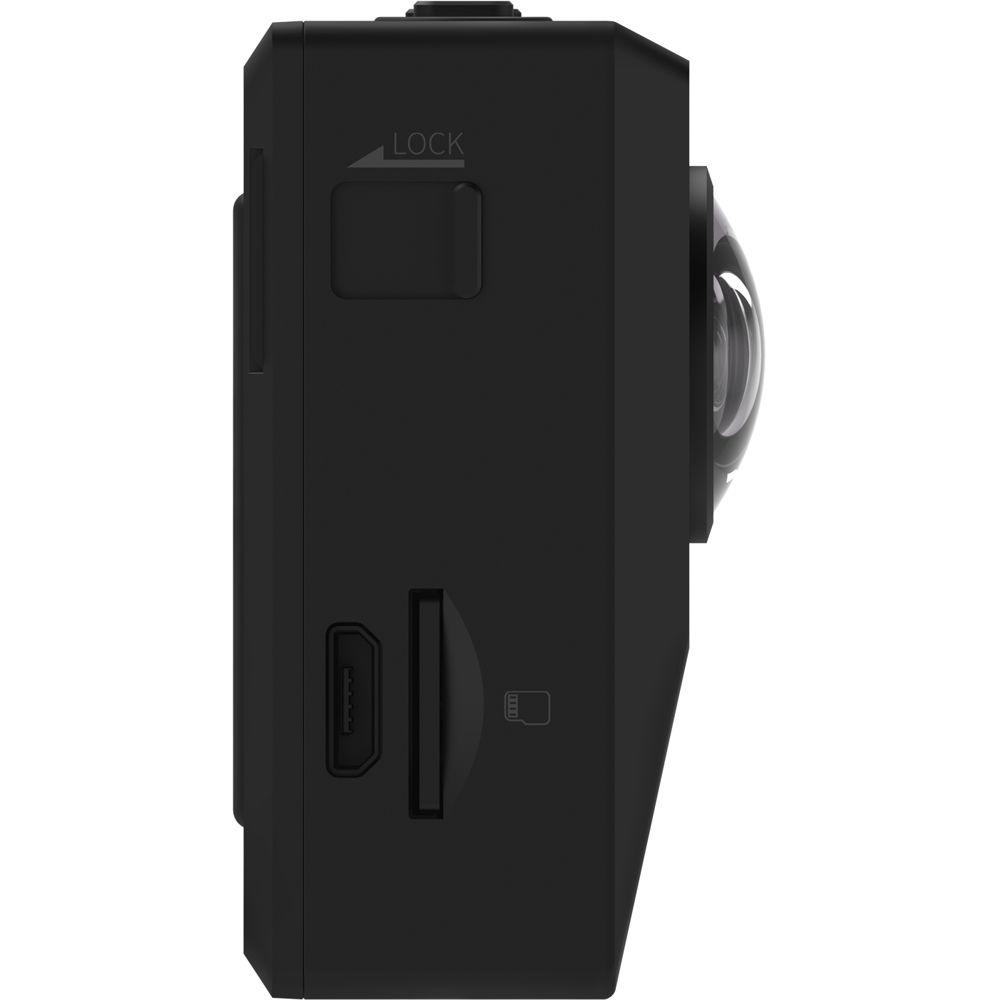

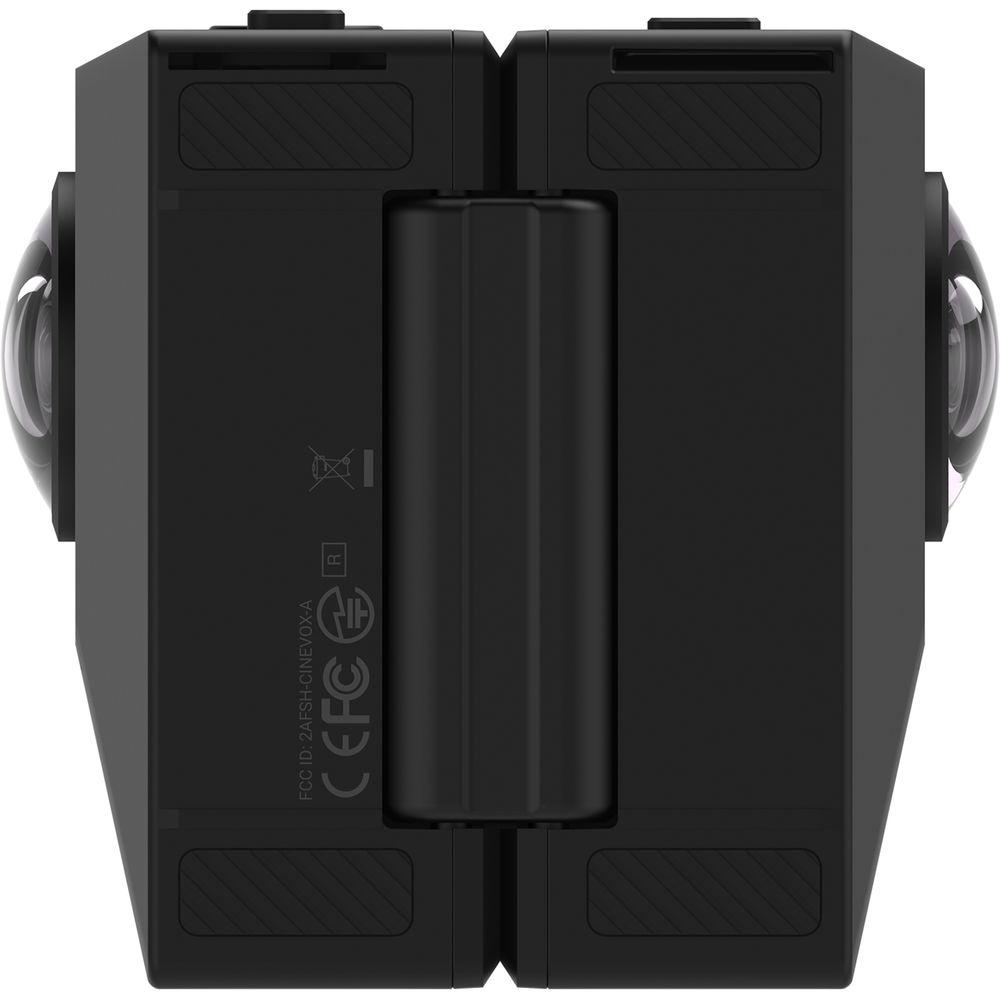

In the 180° 3D shooting position the heavy-duty hinge is held open with a locking switch, and a quick release latch holds it closed in 360° mode. There are separate video and photo shutter buttons for quick and easy capture. Video is stored on a built-in microSD card and is transferred through its micro-USB port. The camera is also charged via the same micro-USB port.
The EVO is VR headset-ready and the footage it records can be viewed in popular headsets such as the Oculus Go, the Samsung Gear VR, and the HTC VIVE Focus using the downloadable Insta360 VR app. The 180° 3D footage is fully compatible with Premiere Pro, so editing your footage directly out of the camera is easy.
Included with the EVO is a tabletop tripod and specialized 3D glasses to accurately view your footage. You can also purchase a separately available Insta360 HoloFrame to view your footage on your phone without glasses. - Compatible Devices
- The following tested devices had the best performance with the Insta360 app. Other phones can be used with comparable specs:
iOS:
Apple iPhone XS, iPhone XS Max, iPhone XR, iPhone X, iPhone 8/8 plus, iPhone 7/7 plus, iPhone 6s/6s plus, iPhone SE, iPad Pro, iPad (2018)
Android:
Huawei: P20 Pro/P10/P9/Mate 9/Mate 10/Honor 9
Samsung: S9/Note 8/S8/S7/S7 Edge
Xiaomi: Mix/Mix2/Note3/6/8
OnePlus: 5t
Google:Pixel/Pixel 2
Vivo: X9 Plus L UPC: 842126101045 In the Box Insta360 EVO 3D/2D Convertible 360/180° VR Camera 3D Glasses Tabletop Tripod Micro-USB Charging Cable Pouch Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Insta360 EVO 3D 2D Convertible 360 180° VR Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersInsta360 EVO CINEVOX Specs | | | Stitching Resolution | 5.7K (Video) | | Internal/External Stitching | Internal Stitching | | Supported Spherical Projection Types | Fisheye, Stereographic | | 360 Stitched Video Format | Internal 3D:
5760 x 2880 at 30 fps (100 Mb/s MP4 via H.264)
3840 x 1920 at 30, 50 fps (100 Mb/s MP4 via H.264)
3008 x 1504 at 100 fps | | Still Image Resolution | JPEG: 18 Megapixel, 6080 x 3040 | | Number of Lenses | 2 | | | | Recording Media | 1 x microSD (128 GB Maximum) | | Built-In Mic | Yes | | | | Wi-Fi | Yes, Wi-Fi 5 (802.11ac) | | | | Inputs | None | | Outputs | 1 x USB Micro-B | | Microphone Input | No | | Headphone Jack | No | | | | Battery | Built-In Lithium-Ion Battery, 5 VDC, 1200 mAh
Max Runtime: 65 Hours per Charge
Battery Charge Time: 1 hours | | Charging Method | USB | | Operating Temperature | 50 to 104°F / 10 to 40°C | | Dimensions (W x H x D) | 3.9 x 1.9 x 1.0" / 9.8 x 4.9 x 2.6 cm (In 180° 3D Mode) | | Weight | 3.99 oz / 113 g | | | | Package Weight | 1.055 lb | | Box Dimensions (LxWxH) | 5.8 x 4.3 x 2.7" |
