User Manual for Insta360 ONE X Click to enlarge the picture
Contents of the user manual for the Insta360 ONE X
- Product category: All 360 Video Cameras Insta360
- Brand: Insta360
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Insta360 All 360 Video Cameras
 |
User manual for the Insta360 ONE X contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Insta360 product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Insta360 user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Insta360 product will considerably shorten its lifespan!
|

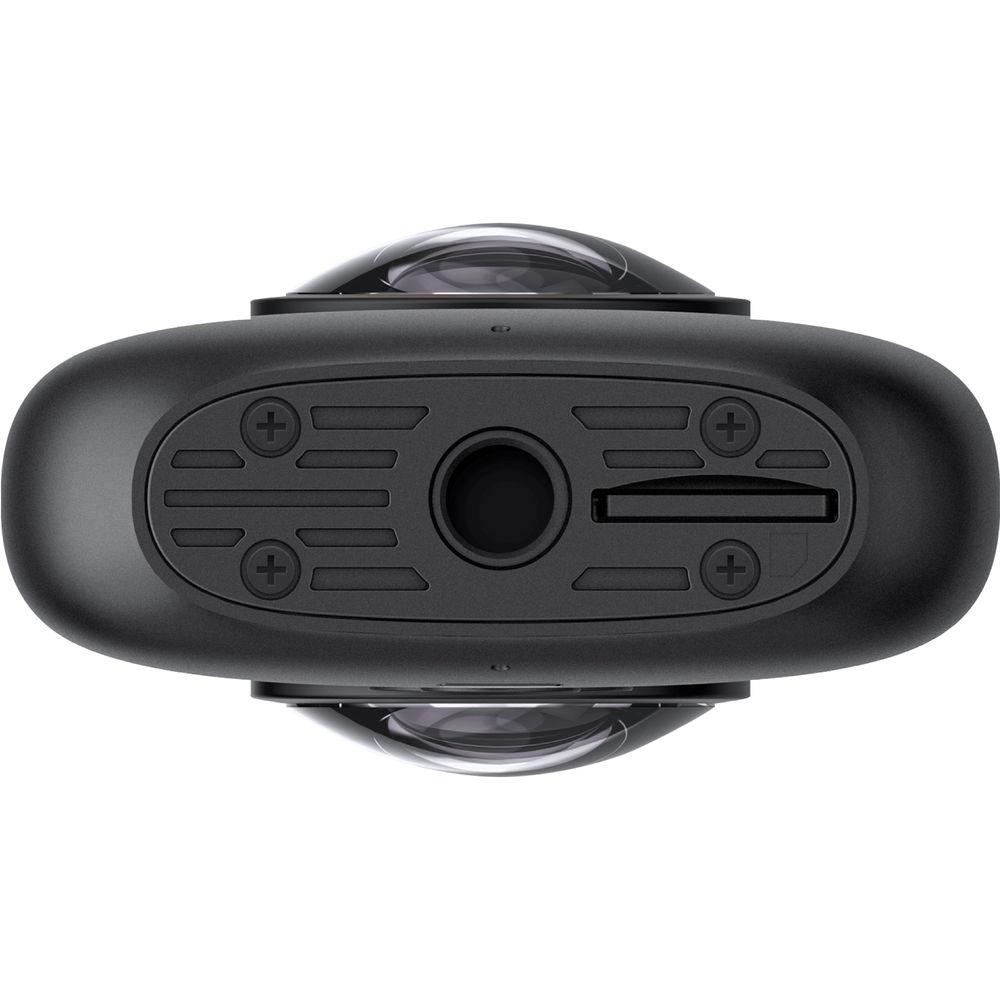

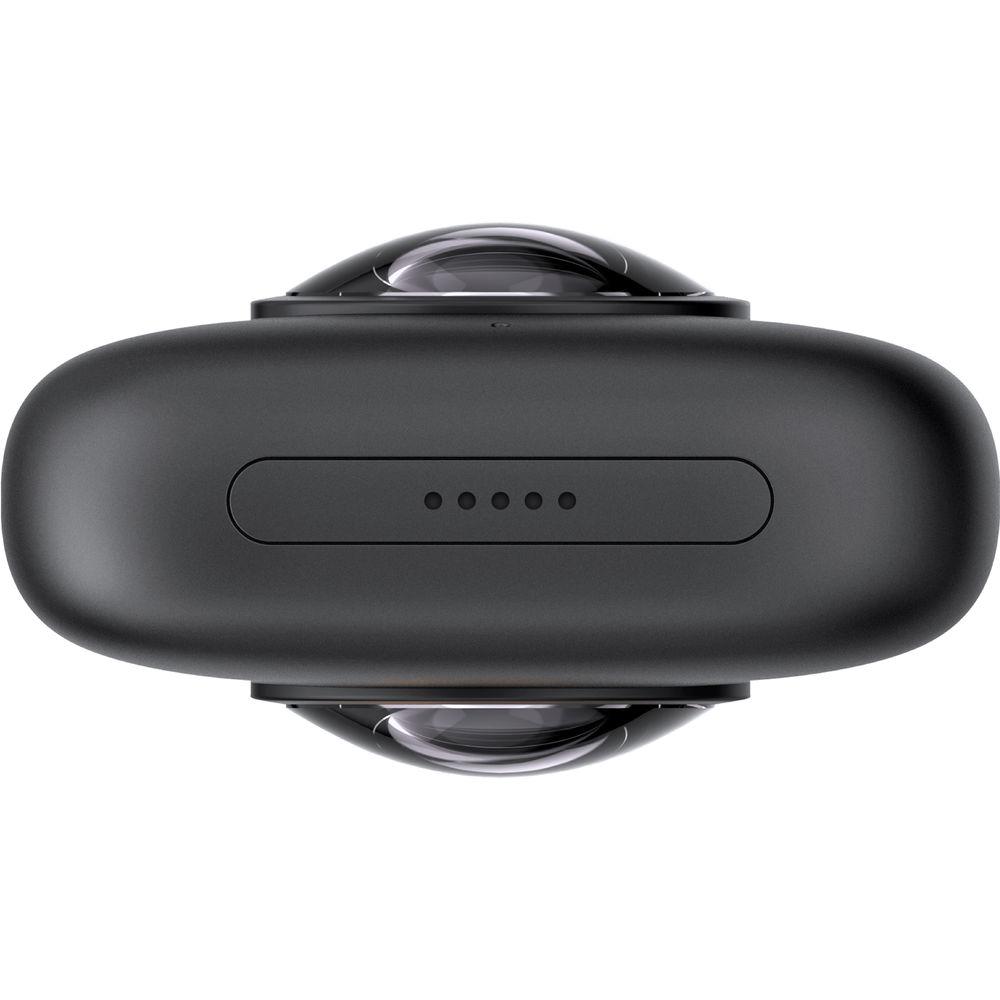

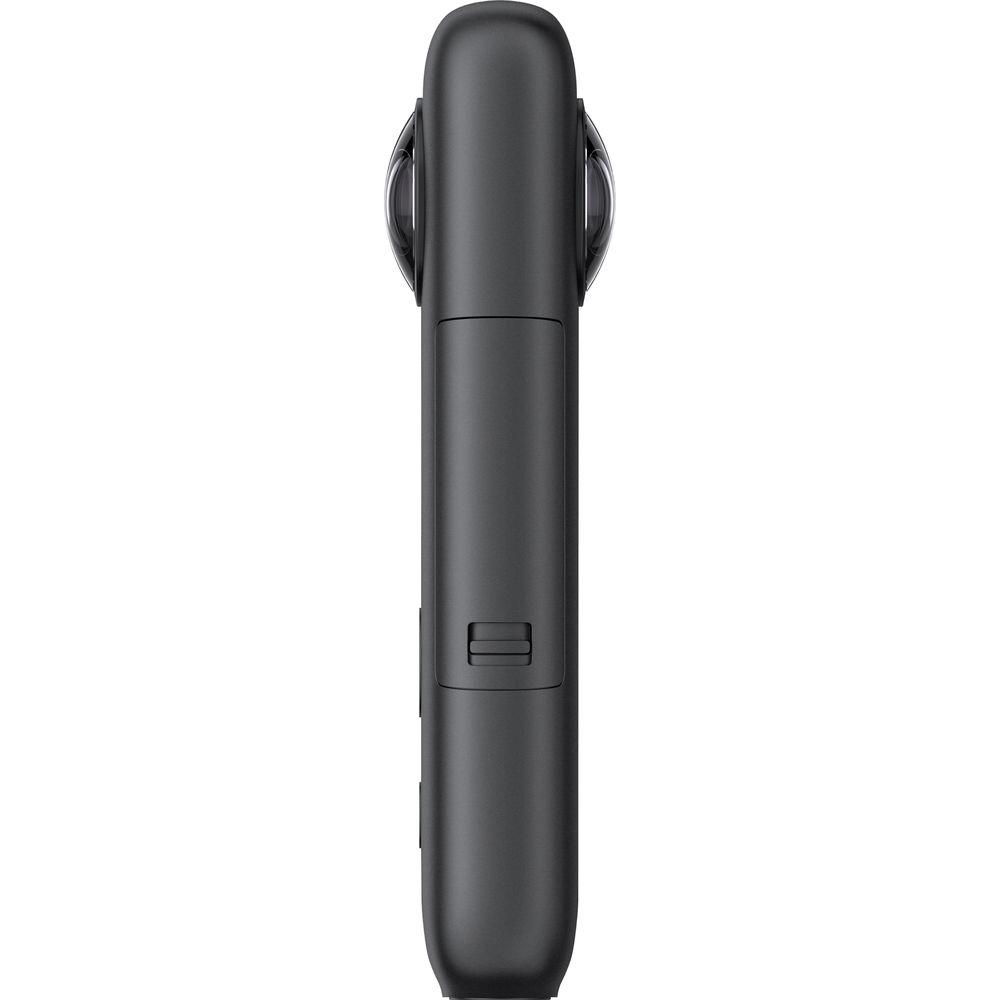

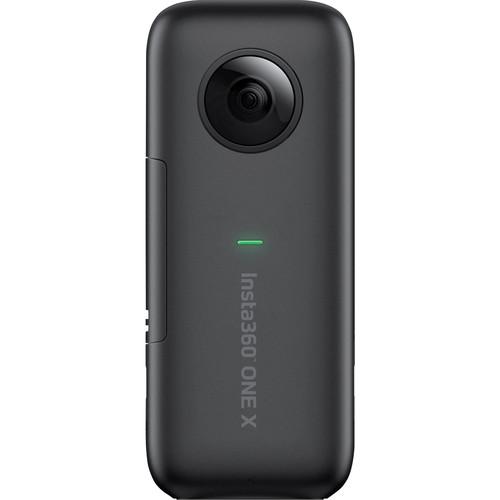

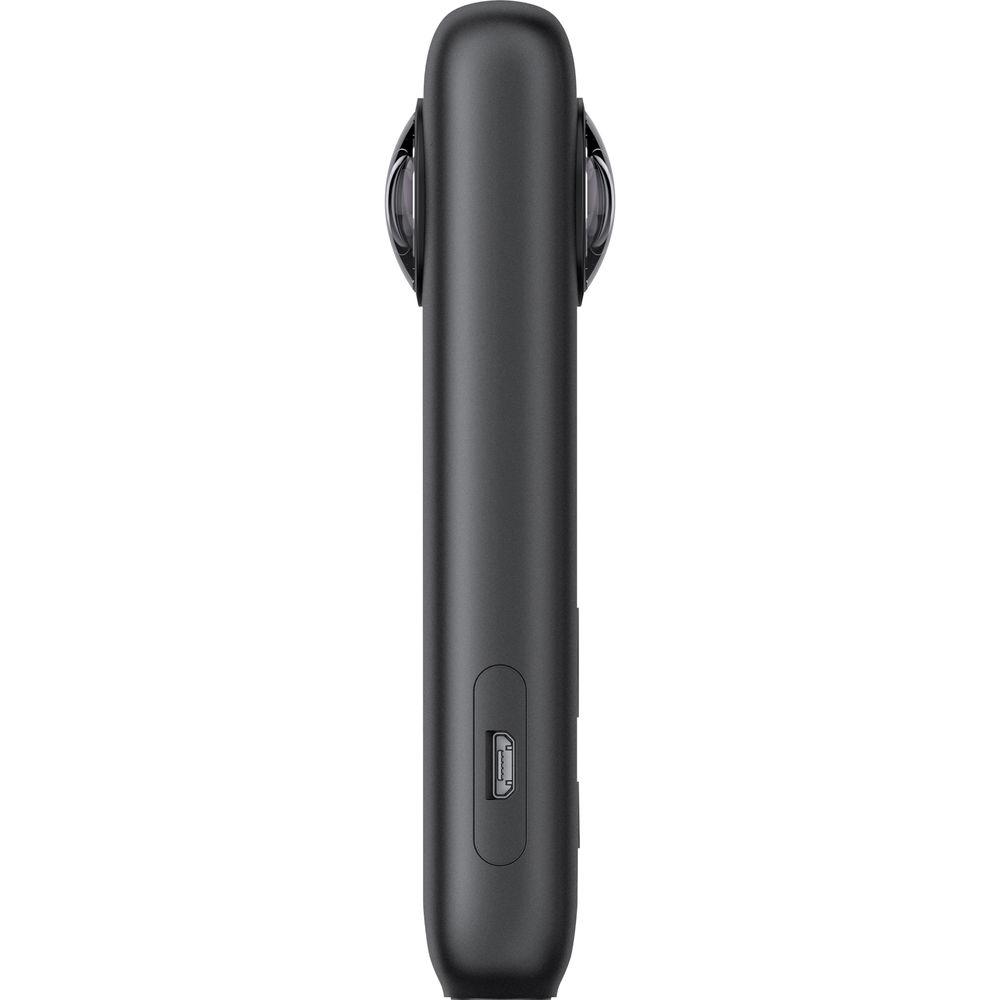

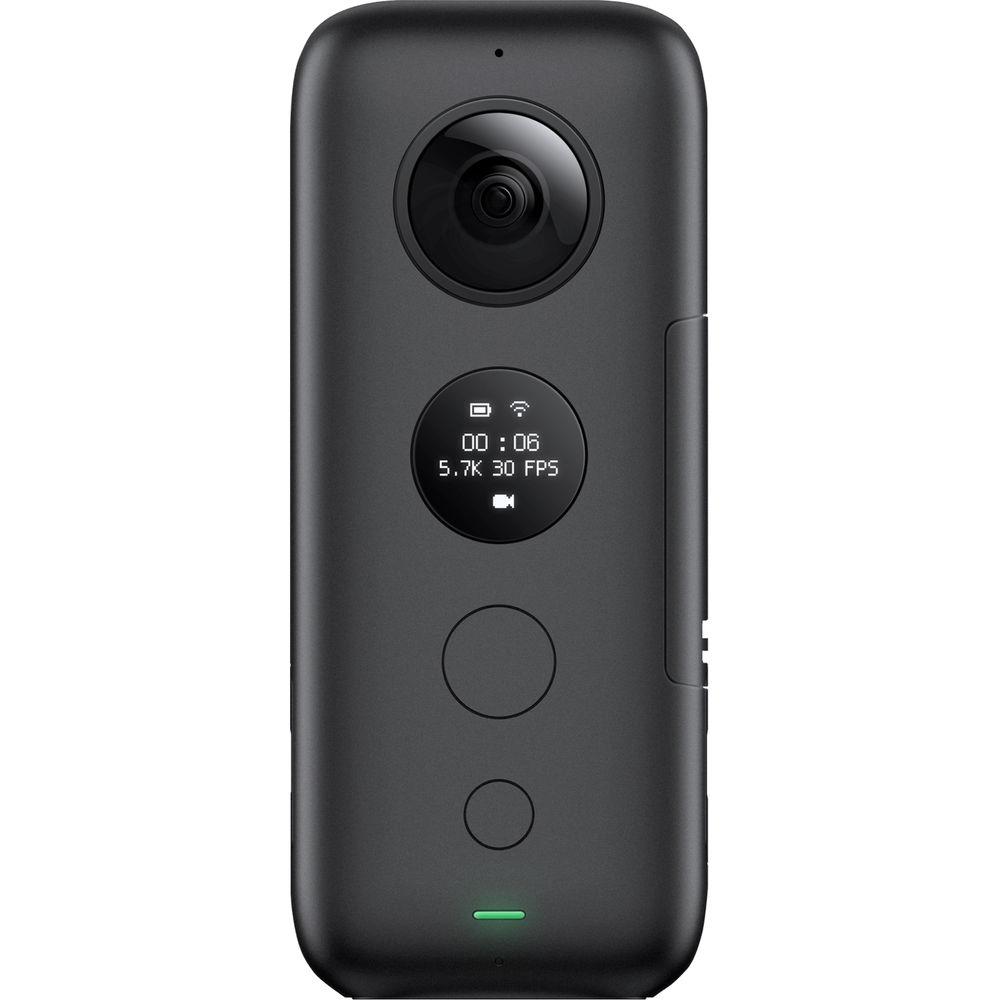

Product description The Insta360 ONE X, a follow-up to the original Insta360 ONE, is Wi-Fi-enabled and capable of syncing to your iOS or Android device remotely, instead of having to be physically connected to your phone/tablet as is the case with the original. The Insta360 ONE X captures up to 5.7K resolution 360 video at 30 fps and 18MP photos. Two 200° lenses, accompanied by two built-in mics, capture your surrounding from all angles to a microSD card (sold separately).
With the images captured, you can transfer them over Wi-Fi to the companion 360 ONE app (downloadable for free for iOS/Android), and the app stitches them automatically into a single 360 image. From the app, you can further share the 360 image to social media including YouTube and Facebook, as well as live stream it. The full 360 image can be moved around at the swipe of your finger in the app so you can find the angle that you want to see, including behind where you stood when shooting the image. You can also stitch the images in the Insta360 Studio software (downloadable for free for Mac/Windows), where you can exercise greater control over the stitching and other factors.
The ONE X features Insta360's FlowState digital image stabilization that compensates for shake captured in your videos and provides you with smoother footage. So not only can you record immersive 360° video but you get the video stabilized. The camera also offers an HDR mode, in which the camera shoots multiple images and combines them into one sharp "true-to-life", "true-to-light" image.
The ONE X app provides many tools and features that allow you to get a lot more out of your image. You can apply cinematic slow-motion to add drama or other desired effects to your shot, or add hyperlapse to see your video running sped up. You can also reframe the parts of the 360 image that you want, add music and effects, and edit the image in other ways, all from your mobile device.
With the addition of an optional Insta360 Bullet Time accessory for the ONE X (which consists of a selfie stick and a handle), the camera supports a feature called Bullet Time, which is a slow-motion effect similar to the spinning time-freeze effect in the film The Matrix. This package includes a tether wire and screw to perform basic Bullet Time effects. The addition of the optional GPS Smart Remote allows you to record GPS data and track on-screen stats such as speed, altitude, and direction. The ONE X also supports an optional Venture Case for many water sports activities and a Dive Case for underwater activities.
The Insta360 ONE X is powered by a removable battery that provides 60 minutes of non-stop video recording. Additional batteries are available sold separately for quick swapping. The Insta360 ONE X is designed with 794 individual components, which together with the included battery total a lightweight 4 oz. - Key Features
-
- Up to 5.7K30 resolution 360 video at up to 120 Mb/s in H.264
- Up to 18MP 360 photos
- FlowState digital image stabilization
- Up to 65' 5G Wi-Fi connection to iOS/Android devices
- Automatic stitching in free 360 ONE app (iOS/Android)
- Manual stitching in free Insta360 Studio software (Mac/Windows)
- Storage to microSD cards up to 128GB
- Share to social media or live stream from the app
- HDR mode
- Cinematic slow-mo, hyperlapse, and editing in the app
- Support for optional Bullet Time accessory, GPS Smart Remote, and waterproof housings
- 60 minutes of non-stop video recording using the included removable battery
- Video Modes
-
- Standard 360 video
- Time-lapse mode
- Bullet time (optional Bullet Time accessory required)
- Log 360 video
- Photo Modes
-
- Standard 360 photos
- Timed 360 photos
- HDR 360 photos
- Interval 360 photos
- Raw 360 photos
- Live Streaming
-
- 360 live streaming
- FreeCapture Live (user controls visual perspective)
- Compatible iOS Devices
-
- iPhone Xs, Xs Max, X, 8/8 Plus, 7/7 Plus, 6s/6s Plus, SE
- iPad Pro (10.5"), iPad (2018)
- iOS 10.0 or above
- Compatible Android Devices
-
- Huawei P20 Pro, P10, P9, Mate 9/10, Honor 9
- Samsung S9, Note 8, S8/S7/S7 Edge
- Xiaomi Mix/Mix 2, Note 3/6/8
- OnePlus 5T
- Google Pixel/Pixel 2
- Vivo X9 Plus L
- OPPO R11
- Other Android devices (although not confirmed) featuring OTG support; Qualcomm 653/820, Kirin 950, Exynos 8890, or above; Android 5.1 or above; and 2G RAM or above
UPC: 842126100475 In the Box Insta360 ONE X Battery Protective Pouch USB to Micro-USB Cable Lightning to Micro-USB Cable USB Type-C to Micro-USB Cable Micro-USB to Micro-USB Cable Tether Wire and Screw for Bullet Time Effect Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Insta360 ONE X in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersInsta360 One X Specs | | | Stitching Resolution | 5.7K | | Internal/External Stitching | Internal Stitching | | 360 Stitched Video Format | 5760 x 2880 at 30 fps (MP4 via H.264)
3840 x 1920 at 50 fps (MP4 via H.264)
3840 x 1920 at 30 fps (MP4 via H.264)
3008 x 1504 at 100 fps (MP4 via H.264) | | Still Image Resolution | JPEG: 18 Megapixel, 6080 x 3040
Raw: 18 Megapixel, 6080 x 3040 | | Number of Lenses | 2 | | | | Sensor | 1-Chip 1/2.3" CMOS | | | | Maximum Aperture | f/2 | | Angle of View | Ultra Wide: 200° | | | | Recording Media | 1 x microSD (128 GB Maximum) | | Built-In Mic | Yes | | | | Shutter Speed | 1/8000 - 2 Seconds (Photo, Video) | | Video ISO Range | 100 - 3200 (Auto) | | | | Wi-Fi | Yes, Wi-Fi 5 (802.11ac) | | Tripod Mount | 1/4" - 20 | | | | Inputs | None | | Outputs | 1 x USB Micro-B | | Microphone Input | No | | Headphone Jack | No | | | | Battery | Rechargeable Battery Pack, 5 VDC, 1200 mAh | | Charging Method | USB | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Dimensions (W x H x D) | 1.9 x 4.5 x 1.1" / 4.8 x 11.5 x 2.8 cm | | Weight | 4.06 oz / 115 g with single battery | | | | Package Weight | 1.1 lb | | Box Dimensions (LxWxH) | 9.15 x 4.8 x 2.55" |
Rating86% users recommend this product to others. And what about you?
This product has already been rated by 96 owners. Add your rating and experience with the product.
